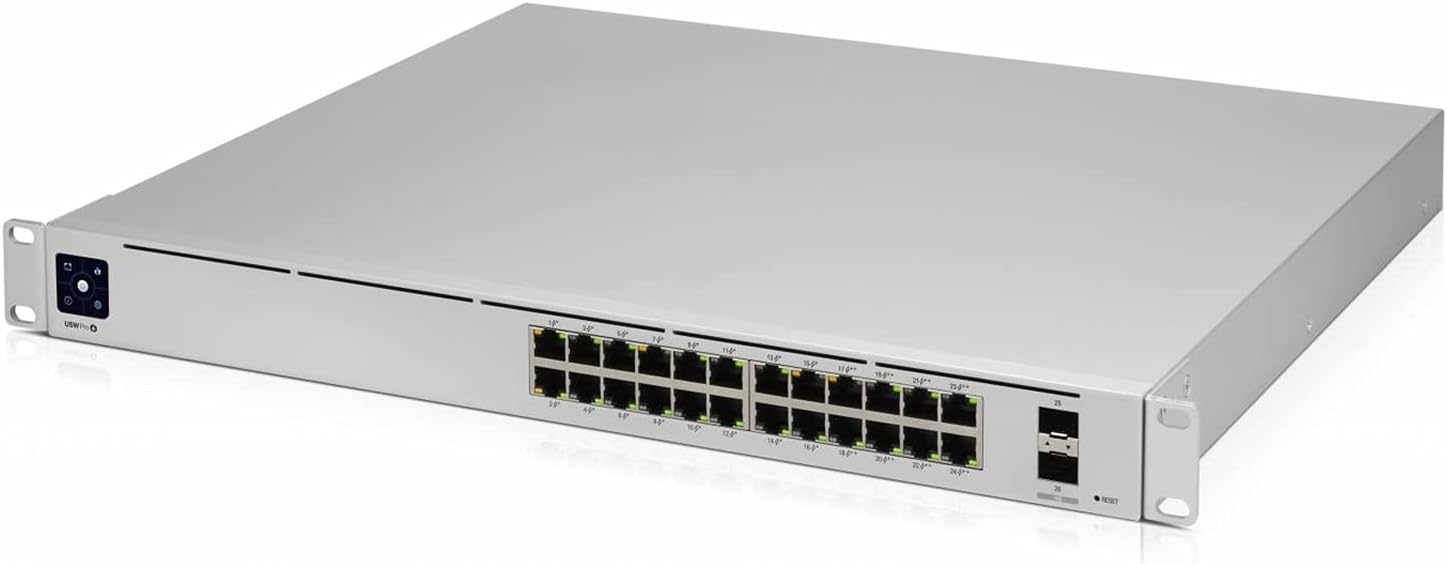

UniFi Switch Pro 24 is a fully managed Layer 3 switch with (24) Gigabit Ethernet ports. (2) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability. The UniFi Switch Pro 24 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 24 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
Features
(24) Gigabit RJ45 ports
(2) 10G SFP+ ports
Layer 2 and Layer 3 features
UniFi SmartPower RPS DC input
Near-silent cooling
1.3" touchscreen display
Managed by UniFi Network Controller
| Category | Specification |
|---|---|
| Mechanical | |
| Dimensions | 442 x 285 x 44 mm (17.4 x 11.2 x 1.7") |
| Weight | Without mounting brackets: 3.5 kg (7.7 lb) With mounting brackets: 3.6 kg (7.9 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (24) GbE RJ45 ports (2) 1/10G SFP+ ports |
| Total non-blocking throughput | 44 Gbps |
| Switching capacity | 88 Gbps |
| Forwarding rate | 65.472 Mpps |
| Power method | (1) Universal input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input 11.5V DC, 2.61A |
| Power supply | AC/DC, internal, 36W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 30W |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Ambient operating temperature | -5 to 45° C (23 to 113° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | IGMP snooping, STP / RSTP with priorities and port-level disable, Port isolation, Storm control, Voice VLAN |
| Port mirroring, LACP port aggregation, Multicast / broadcast rate limiting, MAC address blocking, Flow control | |
| 802.1X control, Jumbo frames, Proprietary loop protection, DHCP snooping / guarding, Egress rate limit | |
| LLDP-MED, Port restricted by MAC, Device isolation with ACLs | |
| Layer 3 features | DHCP for locally-managed networks, DHCP relay, Inter-VLAN routing between networks on same switch |
| Static routing between local networks, Network isolation with ACLs | |
| LEDs | |
| System | Status |
| Ethernet | Speed/link/activity |
| SFP+ | Speed/link/activity |
| RPS | Status |
| Application Requirements | |
| UniFi Network | Version 5.12.11 and later |
