Ubiquiti UniFi Gen2 48 Port Non-PoE Gigabit Network Switch | USW-PRO-48
SKU: USW-PRO-48
£469.36 (Excl. VAT)
- Description
- Specifications
-

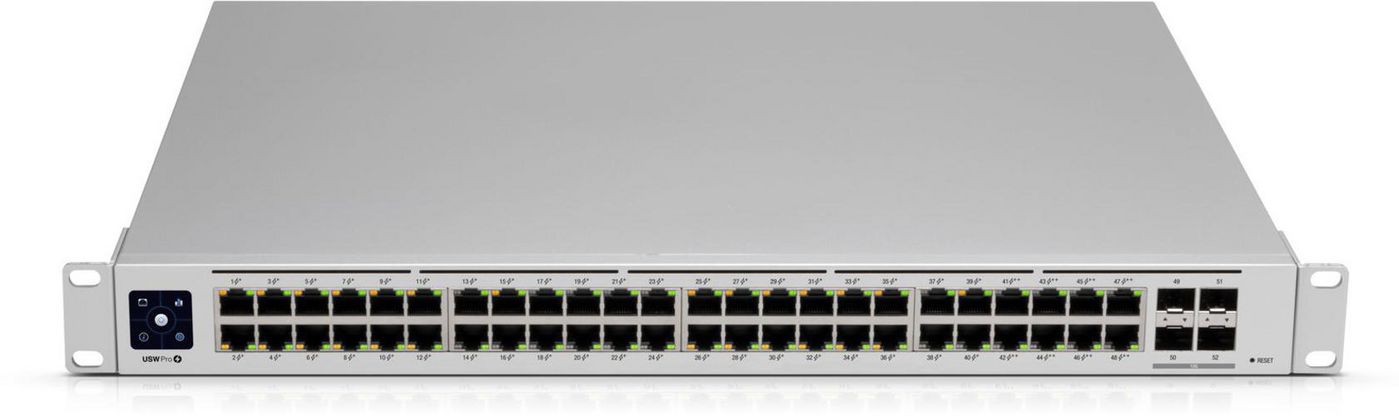

Ubiquiti UniFi Gen2 48 Port Non-PoE Gigabit Network Switch
UniFi Switch Pro 48 is a fully managed Layer 3 switch with (48) Gigabit Ethernet ports. (4) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability.
The UniFi Switch Pro 48 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 48 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
Features
(48) Gigabit RJ45 ports
(4) 10G SFP+ ports
Layer 2 and Layer 3 features
UniFi SmartPower RPS DC input
Near-silent cooling
1.3" touchscreen display
Managed by UniFi Network Controller -
Category Specification Mechanical Dimensions 442 x 285 x 44 mm (17.4 x 11.2 x 1.7") Weight Without mounting brackets: 4 kg (8.8 lb) With mounting brackets: 4.1 kg (9 lb) Enclosure material SGCC steel Hardware Management interface Ethernet In-Band Networking interface (48) GbE RJ45 ports (4) 1/10G SFP+ ports Total non-blocking throughput 88 Gbps Switching capacity 176 Gbps Forwarding rate 130.944 Mpps Power method (1) Universal input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 5.22A Power supply AC/DC, internal, 60W Supported voltage range 100—240V AC Max. power consumption 60W ESD/EMP protection Air: ± 16kV, contact: ± 12kV LCM display (1) 1.3" touchscreen Button Factory reset Shock and vibration ETSI300-019-1.4 Standard Ambient operating temp. -5 to 45° C (23 to 113° F) Ambient operating humidity 10 to 90% noncondensing Certifications CE, FCC, IC Switching Features Layer 2 features IGMP snooping, STP / RSTP with priorities and port-level disable Port isolation, Storm control, Voice VLAN, Port mirroring LACP port aggregation, Multicast / broadcast rate limiting, MAC address blocking Flow control, 802.1X control, Jumbo frames, Proprietary loop protection DHCP snooping / guarding, Egress rate limit, LLDP-MED, Port restricted by MAC Device isolation with ACLs Layer 3 features DHCP for locally-managed networks, DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks, Network isolation with ACLs LEDs System Status Ethernet Speed/link/activity SFP+ Link/activity RPS Status Application Requirements UniFi Network Version 5.12.11 and later
