Ubiquiti UniFi Mesh Indoor/Outdoor Access Point | UAP-AC-M
SKU: UAP-AC-M
£77.88 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Ubiquiti UniFi Mesh Indoor/Outdoor Access Point
The UniFi Mesh access points allow users to break down the barriers to wireless access. Modern antennas and a quick installation system provide users with the ability to increase access range to 183 m in a very simple way.
The solution is based on the advanced Wi-Fi UniFi system which combines enterprise level efficiency with unlimited scalability and central management.Highlights
Inside and outside use
High resistance
Versatile antenna
Optimal efficiency
Small size
Many powering options

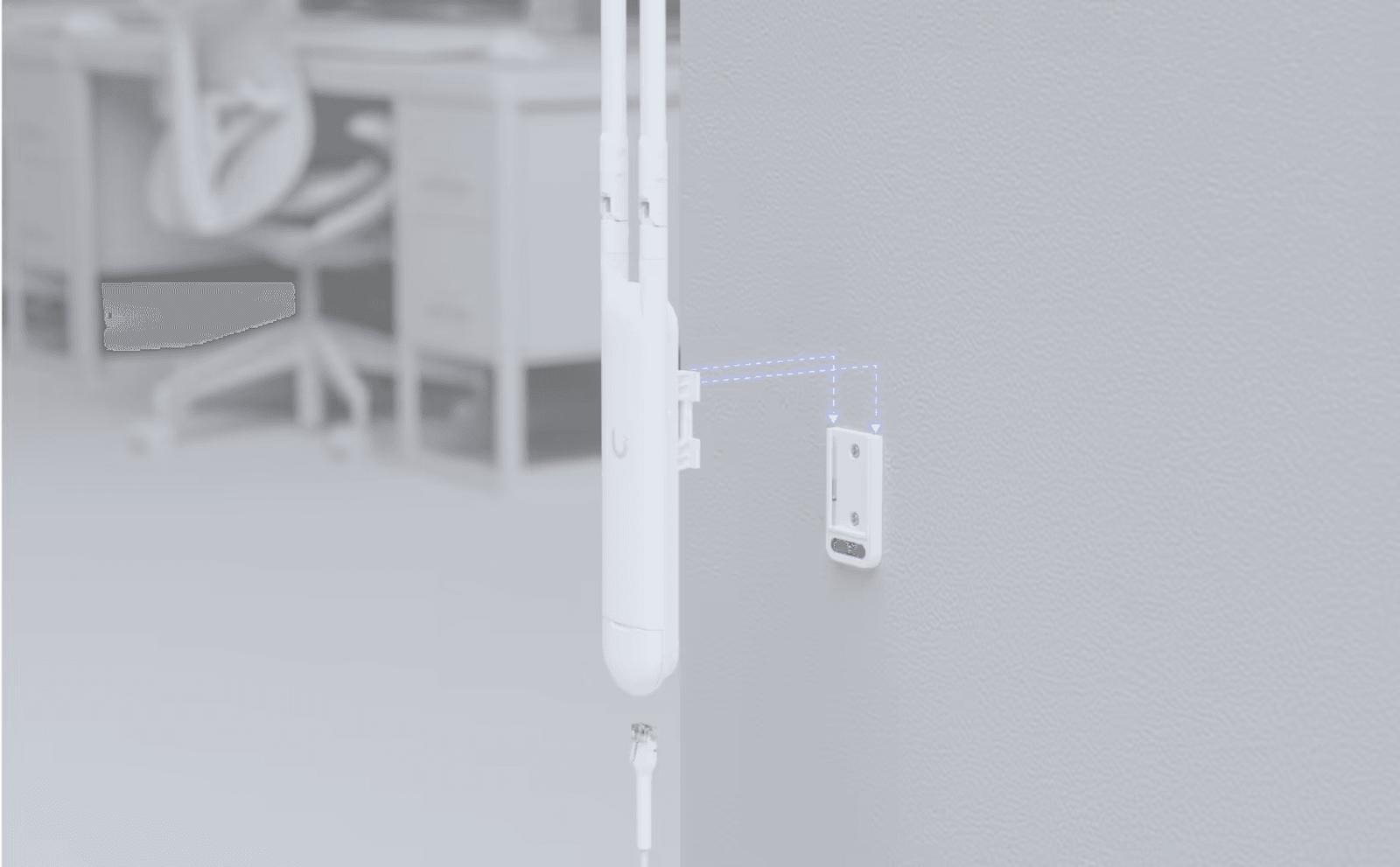

Versatile installation
-
Specification Details Mechanical Dimensions 353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4") Weight 152 g (5.4 oz) Hardware Networking interface (1) GbE RJ45 port Management interface Ethernet, Bluetooth Power method PoE (Passive PoE, 24V) Power supply Gigabit PoE adapter 24V, 0.5A* (*5-packs do not include PoE adapters) Supported voltage range 44—57V DC Max. power consumption 8.5W Max. TX power - 2.4 GHz 20 dBm - 5 GHz 20 dBm MIMO 2 x 2 (2.4 GHz, 5 GHz) Throughput rate - 2.4 GHz 300 Mbps - 5 GHz 867 Mbps Antenna gain - 2.4 GHz 3 dBi - 5 GHz 4 dBi Button Factory reset Mounting Wall, pole, fast-mount (Included) Ambient operating temperature -30 to 70° C (-22 to 158° F) Ambient operating humidity 5 to 95% noncondensing Certifications CE, FCC, IC, UKCA Software WiFi standards 802.11a/b/g/n/ac Wireless security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) VLAN 802.1Q BSSID Up to 4 per radio Advanced QoS Per-user rate limiting Guest traffic isolation Supported Power save Supported WMM Voice, video, best effort, and background Concurrent clients 250+ Supported Data Rates (Mbps) See detailed breakdown -
Description Downloads Ubiquiti UniFi Mesh Indoor/Outdoor Access Point | UAP-AC-M DataSheet Downloads Ubiquiti UniFi Mesh Indoor/Outdoor Access Point | UAP-AC-M Quick Start Guide Downloads
