Official Partner
Pro Max 24 PoE
A 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output.
Features

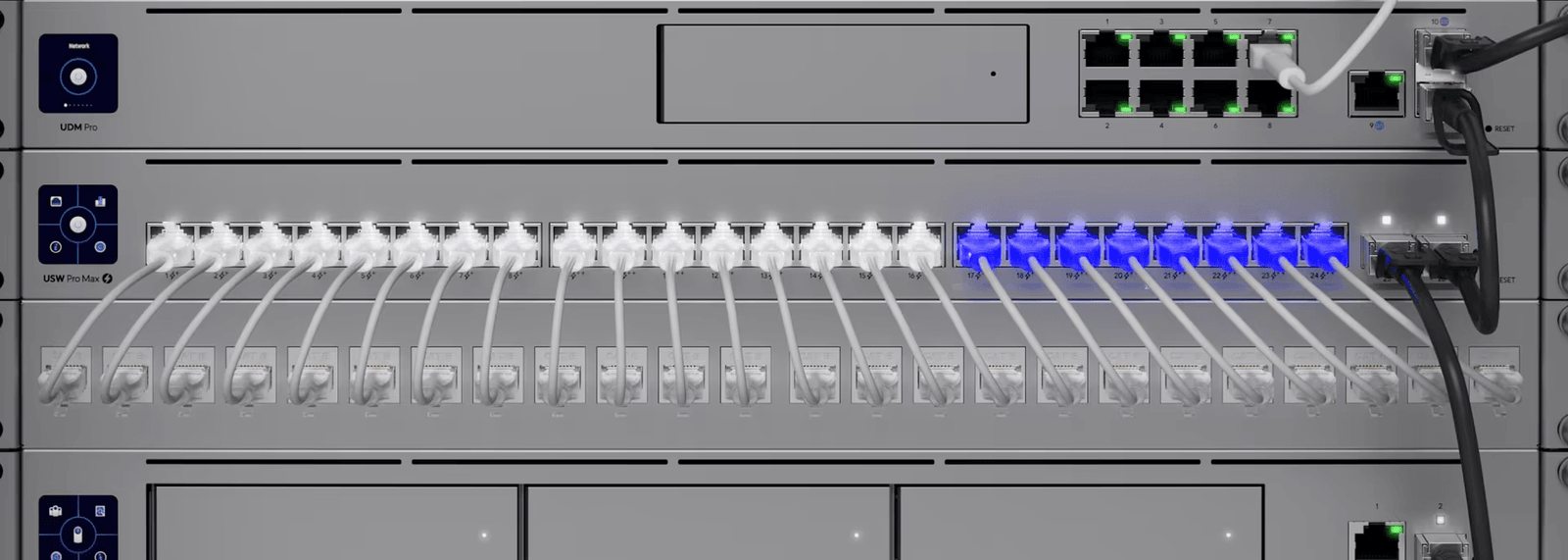

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network.
(8) 2.5 GbE ports including (8) PoE+ and (8) PoE++.
(16) GbE ports including (24) PoE+ and (8) PoE++.
(2) 10G SFP+ ports.
DC power backup ready.
400W total PoE availability.
Managed with UniFi Network 8.0.24 and later.
| Category | Specification |
|---|---|
| Data Transmission | |
| Switching capacity | 112 Gbit/s |
| Throughput | 56 Gbit/s |
| Design | |
| Certification | CE, FCC, IC |
| Housing material | Steel |
| LED indicators | System |
| Product colour | Grey |

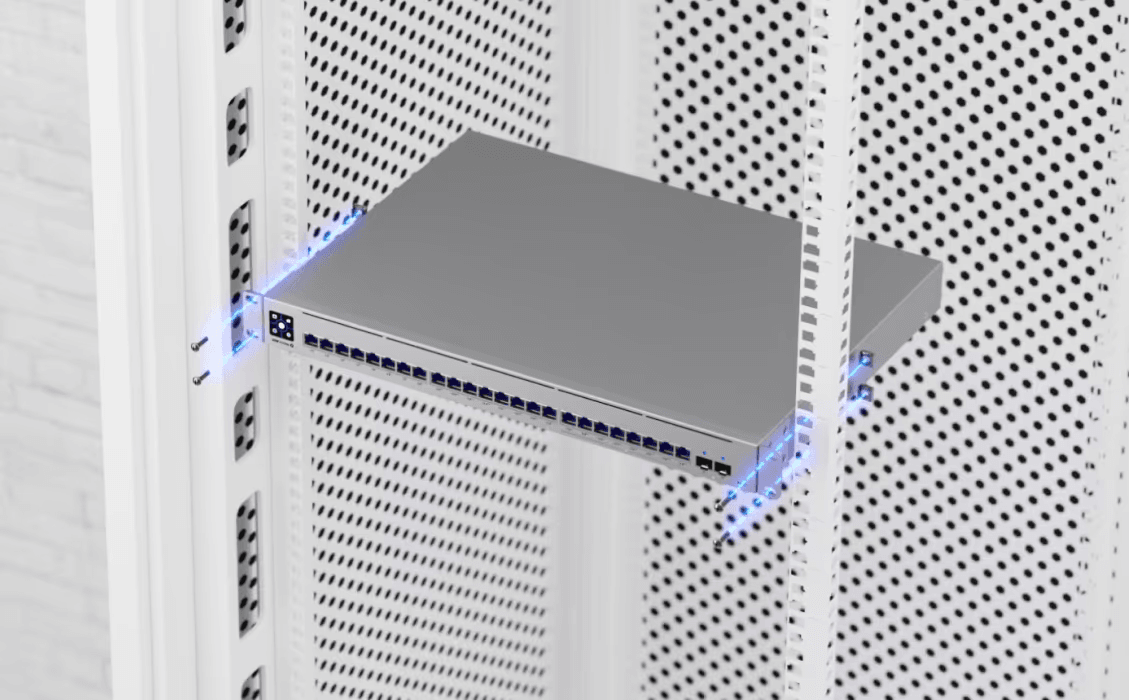

| Rack mounting | Yes |
| Reset button | Yes |
| Legal Information | |
| UNSPSC Code | 43222612 |
| Management Features | |
| Switch layer | L3 |
| Switch type | Managed |
| Network | |
| 10G support | No |
| VLAN support | Yes |
| Operational Conditions | |
| Operating relative humidity | 10 - 90 % |
| Operating temperature (T-T) | -5 - 40 °C |
| Package Dimensions (Verified) | |
| Depth Verified | 52 cm |
| Gross Weight Verified | 6.2 kg |
| Height Verified | 12 cm |
| Width Verified | 43 cm |
| Packaging Data | |
| Manual | Yes |
| Ports & Interfaces | |
| 2.5G Ethernet (copper) ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Power connector | AC-in jack |
| SFP+ module slots quantity | 2 |
| Power | |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 50 Watt |
| Power source | AC/DC |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 400 Watt |
| Product Dimensions | |
| Net Weight (Product, kg) | 5.1 kg |
| Product Depth | 32.5 cm |
| Product Height | 4.37 cm |
| Product Width | 44.24 cm |
| Vendor Information | |
| Brand Name | Ubiquiti |
| Warranty | 2 Year(s) |
| Categories | |
| Main category | Network |
| Subcategory | Wired Network |
| Subcategory | Network Switches |
