Features
24-port switch
8 x 2.5 GbE PoE++ ports
16 x GbE ports including (8) PoE+ and (8) PoE++
2 x 10G SFP+ ports
Layer 3
Etherlighting ports that illuminate
DC power backup ready
400W total PoE availability

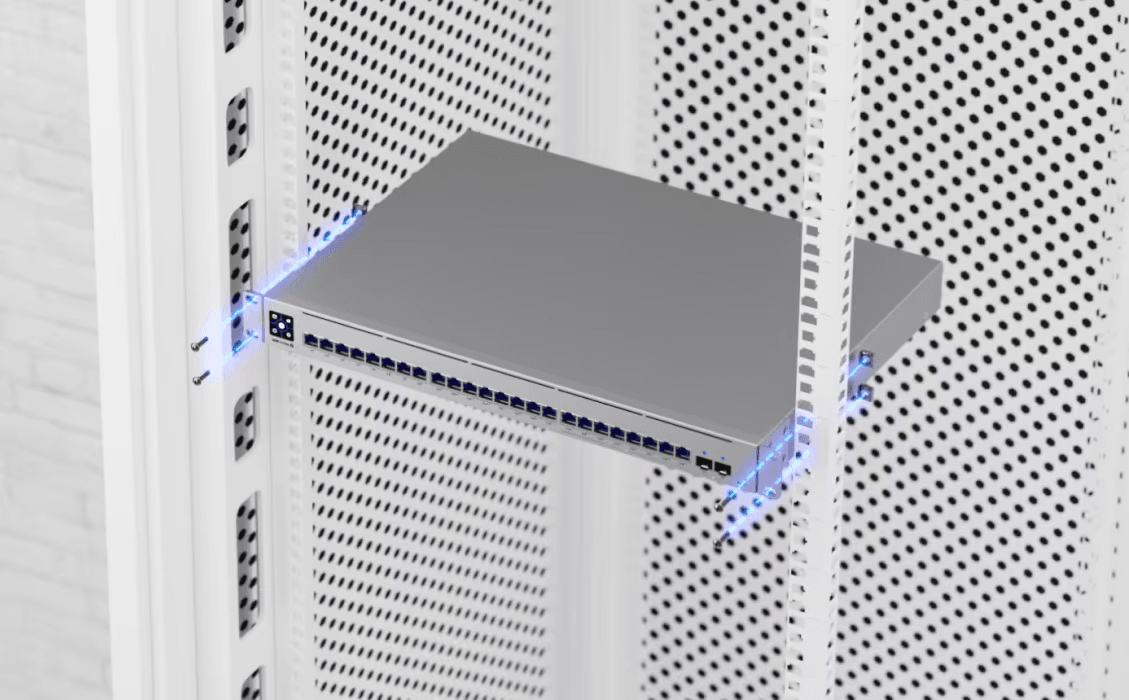

The USW-Pro-Max-24-PoE is a cutting-edge Layer 3 Etherlighting switch, designed for high-power PoE++ output. This 24-port switch is an exceptional blend of performance and innovation, suitable for demanding network environments.

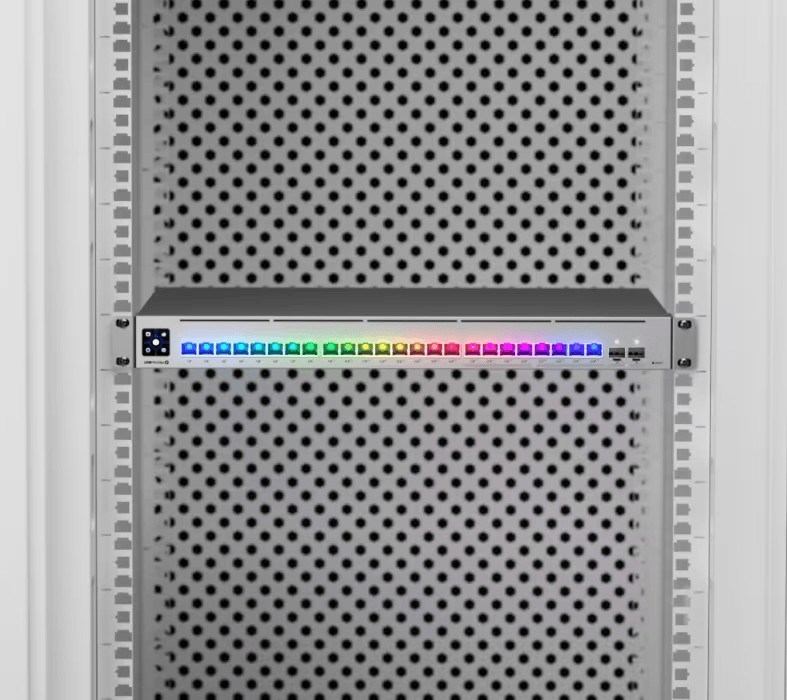

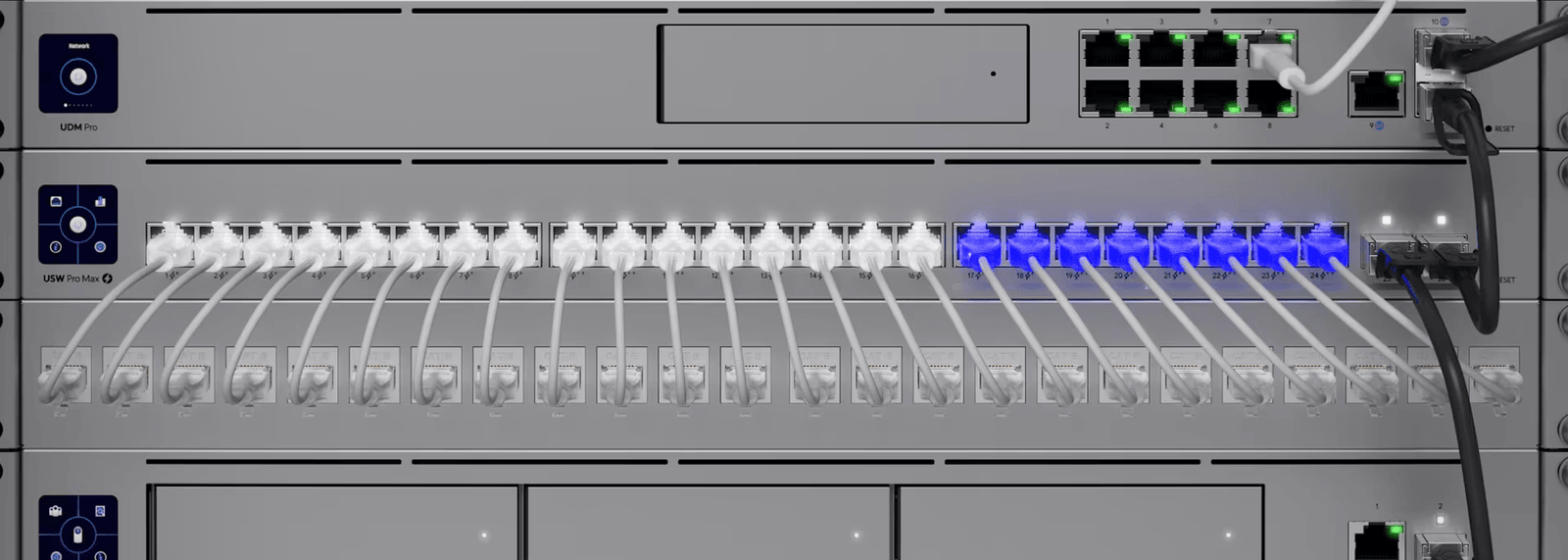

USW-Pro-Max-24-PoE features Etherlighting Ports that illuminate to indicate port location, speed/link, and native VLAN/network. When paired with UniFi Etherlighting Patch Cables, the brightness is optimised for easier port identification
USW-Pro-Max-24-PoE features 8 x 2.5 GbE PoE++ ports and 16 x GbE ports, which include 8 x PoE+ and 8 x PoE++ ports, allowing for versatile power delivery to connected devices. The switch is also equipped with 2 10G SFP+ ports for high-speed uplinks and data-intensive operations.
The USW-Pro-Max-24-PoE switch offers a total non-blocking throughput of 56 Gbps and a switching capacity of 112 Gbps.
| Feature | Detail |
|---|---|
| Dimensions | 17.4" x 12.8" x 1.7" (442 x 325 x 44 mm) |
| Weight | Without brackets: 11.3 lb (5.1 kg) |
| With brackets: 11.5 lb (5.2 kg) | |
| Ports | 16 x Gigabit Ethernet (GbE) RJ45 |
| 8 x 1/2.5 Gigabit Ethernet (GbE) RJ45 | |
| 2 x 10G SFP+ | |
| 8 x PoE/PoE+ | |
| 16 x 60W PoE++ | |
| Throughput | Non-blocking: 56 Gbps |
| Switching Capacity: 112 Gbps | |
| PoE | Total Power: 400W |
| Max PoE++ per Port: 60W | |
| Display | 1.3" Touchscreen |
| Management | UniFi Network App (v8.0.24+) |
| Other | Rackmountable |
| Operating Temp: 23°F to 104°F (-5°C to 40°C) | |
| Humidity: 10% to 90% non-condensing | |
| Certifications: CE, FCC, IC |
