About This Product

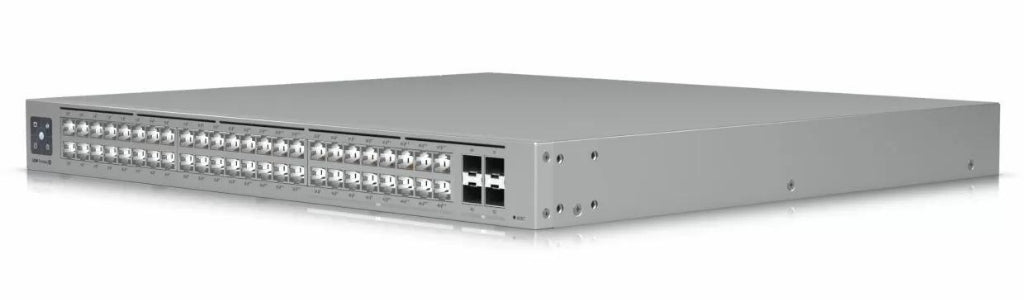

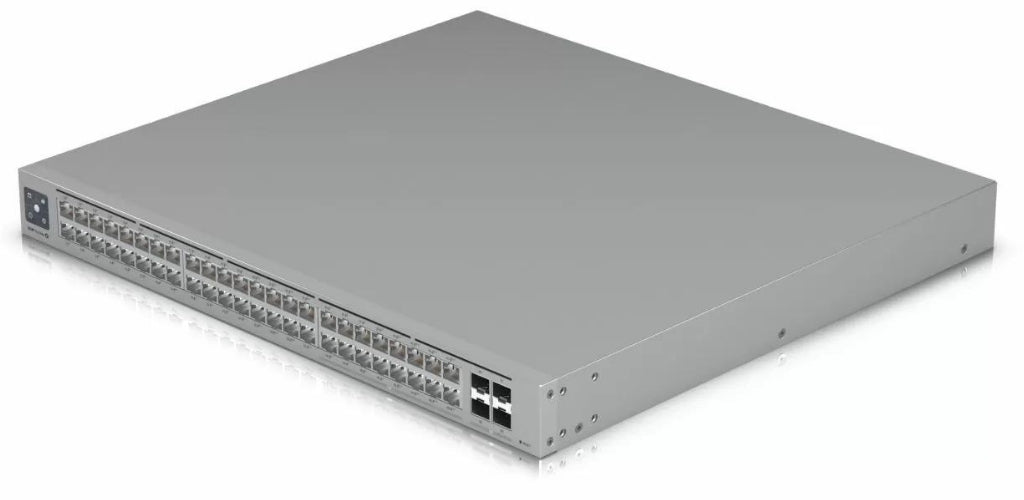

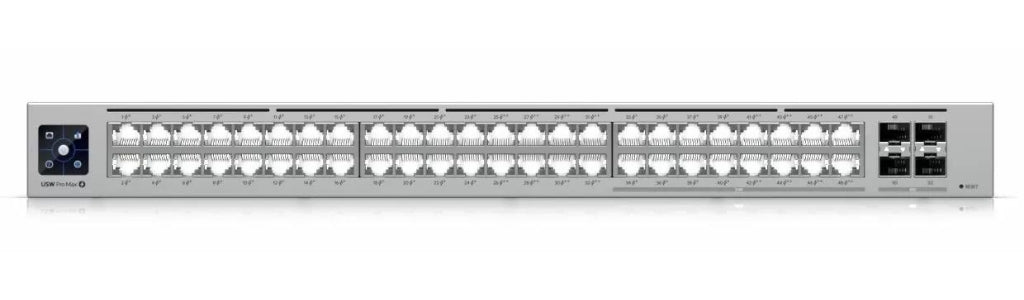

The Ubiquiti USW-Pro-Max-48-PoE-720W UniFi 48-Port Layer 3 Managed Rackmount Gigabit PoE+ Switch is a 48-port, Layer 3 Etherlighting switch capable of high-power PoE++ output.
Etherlighting

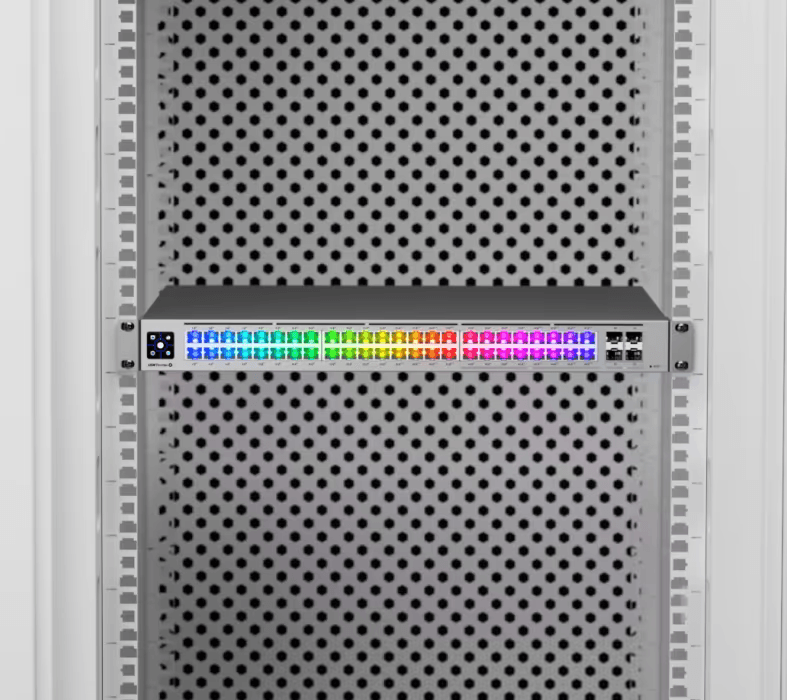

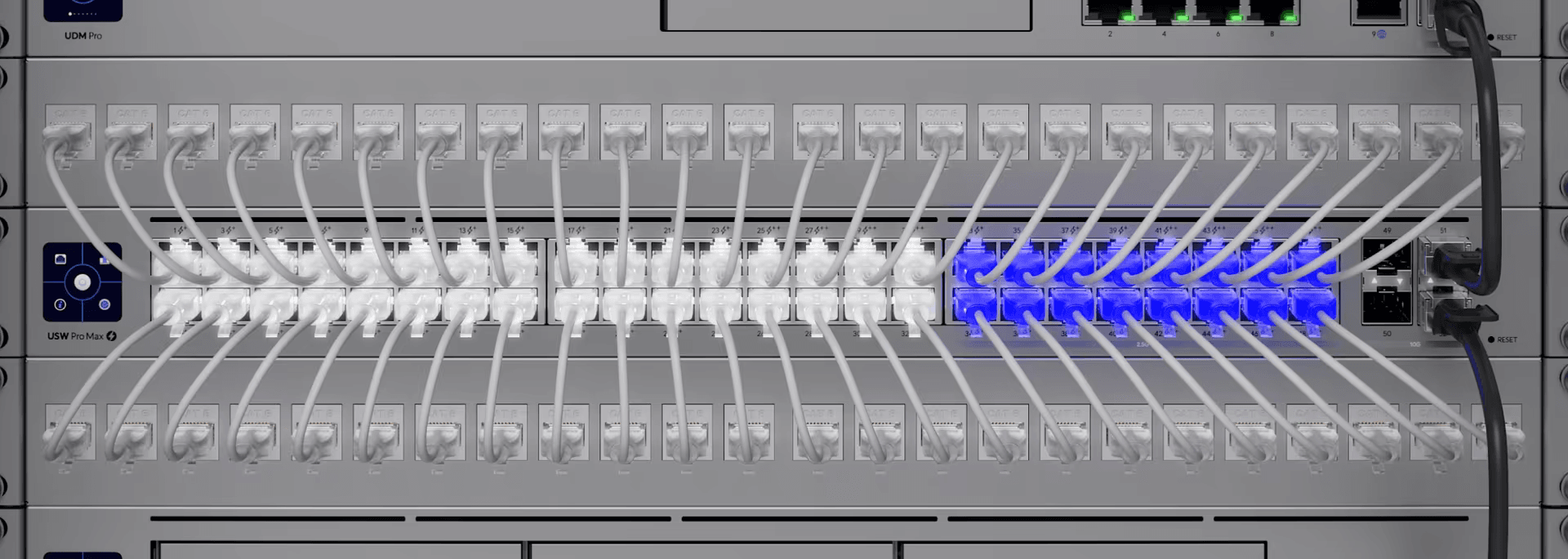

The USW-Pro-Max-48-PoE-720W revolutionises network management with its 48-port, Layer 3 Etherlighting design. Uniquely equipped with Etherlighting ports that illuminate to display critical information such as port location, speed/link, and native VLAN/network, this switch enhances visibility and simplifies troubleshooting.
Enhanced Connectivity

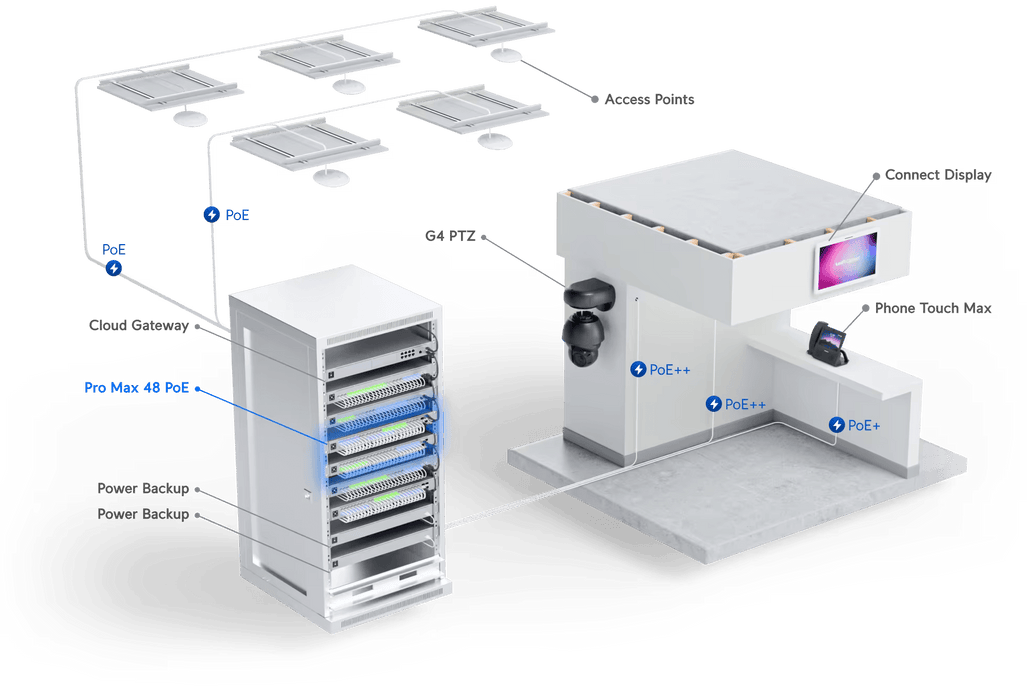

This switch has remarkable connectivity, including sixteen 2.5 GbE ports, comprising of eight PoE+ and eight high-power PoE++ ports, ensuring versatile and efficient power delivery. With an additional thirty-two GbE ports, featuring twenty-four PoE+ and eight PoE++ ports, along with four 10G SFP+ ports, the switch offers a comprehensive and flexible networking solution.
Intelligent Management
Experience intelligent and efficient network management with the USW-Pro-Max-48-PoE-720W. With a 1.3-inch touchscreen LCM display and a convenient factory reset button, managing your network is intuitive and user-friendly.
| Technical Specifications | Details |
|---|---|
| Mechanical | |
| Dimensions | 442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7") |
| Weight | Without brackets: 6.2 kg (13.7 lb) |
| With brackets: 6.3 kg (13.9 lb) | |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (32) GbE RJ45 ports |
| (16) 1/2.5 GbE RJ45 ports | |
| (4) 10G SFP+ ports | |
| PoE interface | (32) PoE/PoE+ |
| (16) 60W PoE++ | |
| Total non-blocking throughput | 112 Gbps |
| Switching capacity | 224 Gbps |

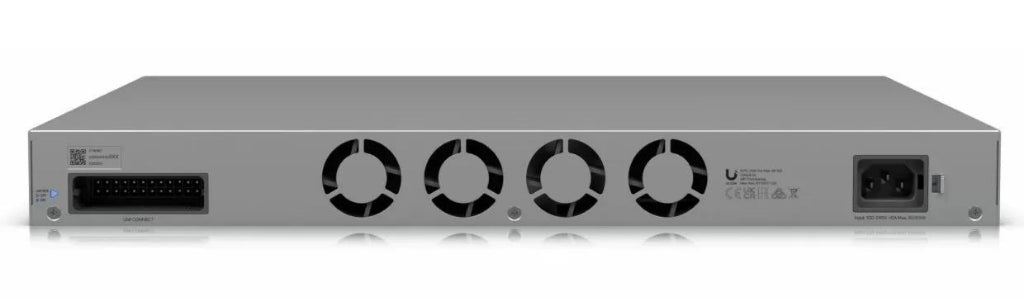

| Power method | (1) Universal input, 100—240V AC, 50/60 Hz |
| (1) USP-RPS DC input | |
| Power supply | AC/DC, internal, 820W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 100W (Excluding PoE output) |
| Total available PoE | 720W |
| Max. PoE wattage per port | PoE: 15.4W |
| PoE+: 30W | |
| PoE++: 60W | |
| Voltage range PoE mode | PoE: 44—57V |
| PoE+: 50—57V | |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Ambient Operating Conditions | |
| Temperature | -5 to 40°C (23 to 104°F) |
| Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | IGMP snooping, STP/RSTP, port isolation, voice VLAN, etc. |
| Layer 3 features | DHCP, inter-VLAN routing, static routing, ACLs, etc. |
| LEDs | System, RPS, Locating, Speed/link, Native VLAN/network |
| Application Requirements | UniFi Network, Version 8.0.24 and later |
