The Network Video Recorder Pro (UNVR Pro) is a business-grade network video recorder that provides data redundancy and long-term storage capabilities (up to 60 days of storage for 20 4K cameras or 60 1080p cameras)
The UNVR Pro is a UniFi OS Console that runs the pre-installed UniFi Protect application and has a 7-drive hard disk drive (HDD) bay that offers the greatest storage capacity of any UniFi OS Console. The powerful, easy-to-use UNVR Pro can be deployed in minutes and support systems with up to 60 cameras. Combining the best features of Cloud and onsite surveillance systems, UniFi Protect gives you centralized, local, low-latency access to all of your live camera feeds and recordings, as well as remote access from anywhere in the world via unifi.ui.com and the Protect mobile app.
The UNVR Pro also offers expanded RAID configuration options for enhanced data protection, applying either RAID 1, 5, or 10 based on the number of HDDs installed. It's also equipped with a 1.3" touchscreen display for concise, convenient video event previewing.
Features
(7) 2.5"/3.5" HDD bays
(1) 10G SFP+ port
(1) GbE RJ45 port

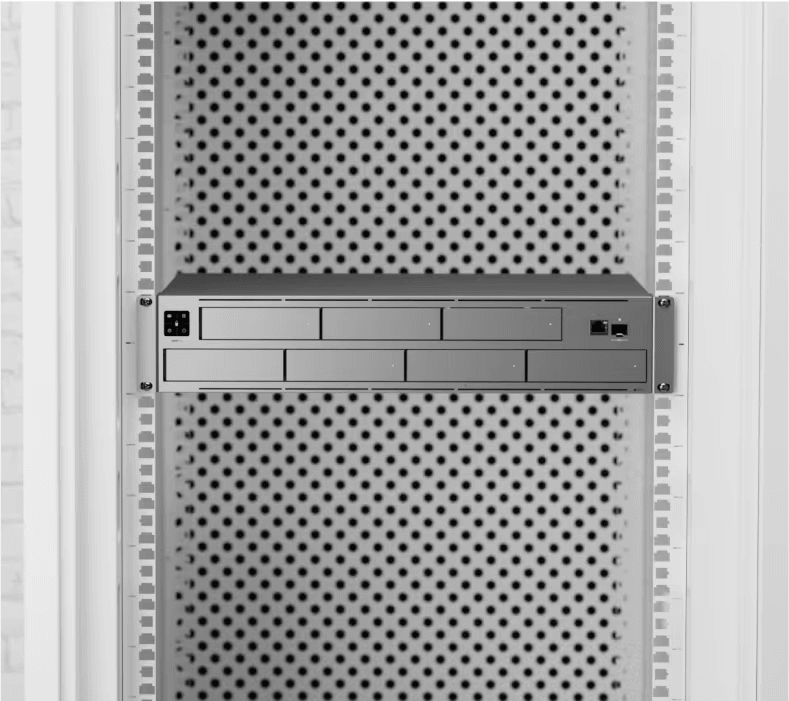

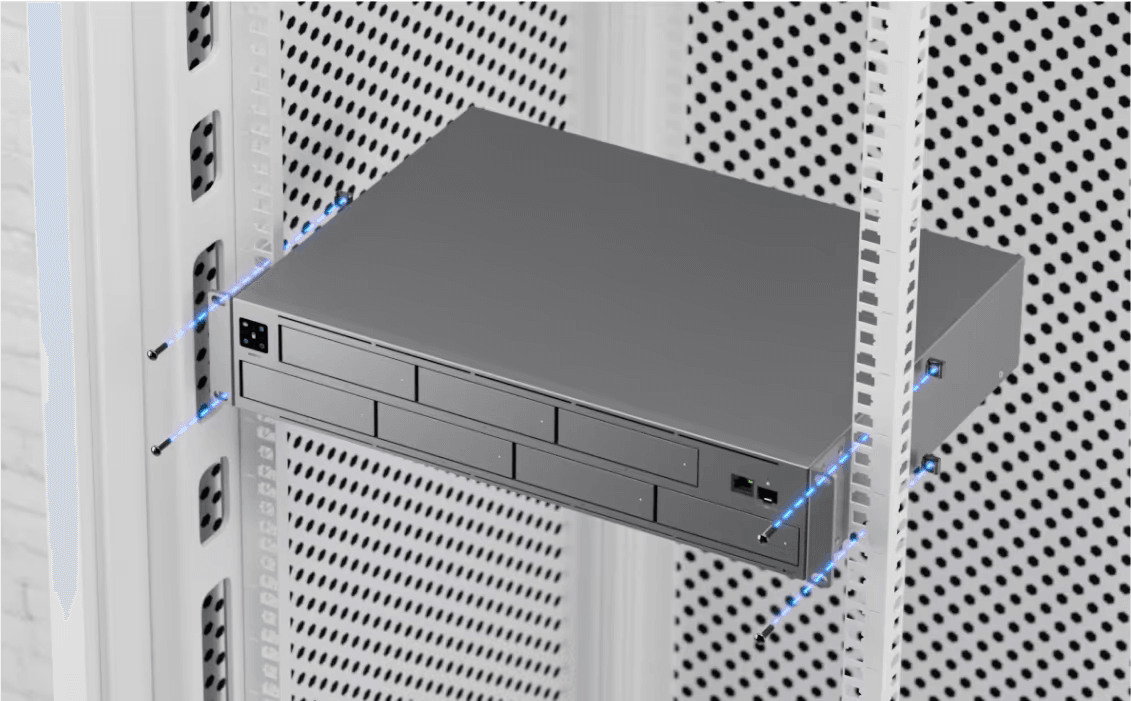

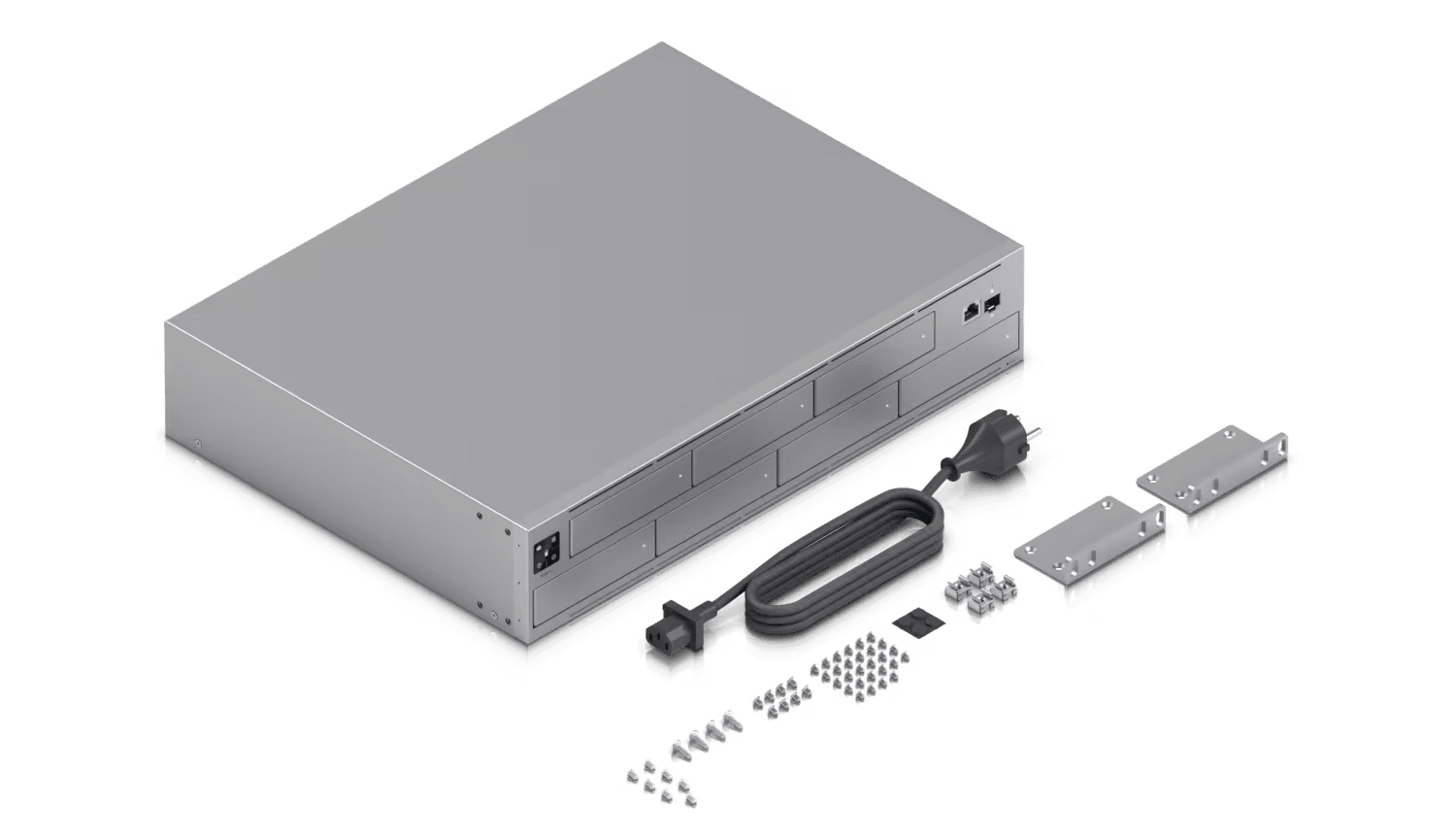

2U-sized, rack-mountable console (kit Included)
1.3" touchscreen with video event previewing
Pre-installed UniFi Protect application
Simple, Bluetooth-powered setup via the UniFi Protect mobile app
Automated RAID 1, 5, or 10 HDD configuration
Can be connected to the USP RPS (sold separately) for enhanced power supply failover protection
| Technical Specifications | |
|---|---|
| Mechanical | |

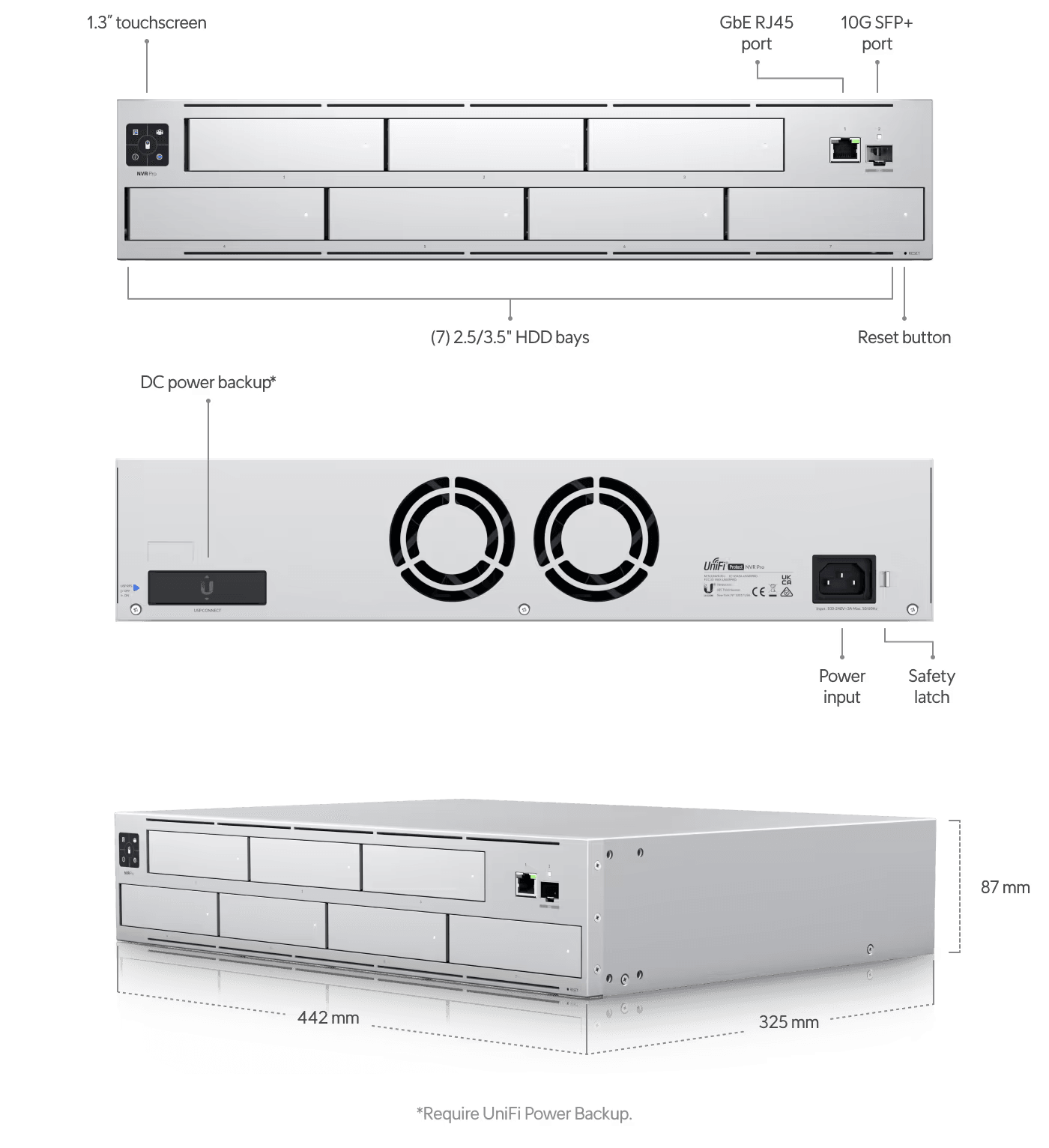

| Dimensions | 442 x 325 x 87 mm (17.4 x 12.8 x 3.4") |
| Weight | Without mounting brackets: 9.2 kg (20.3 lb) With mounting brackets: 9.5 kg (20.8 lb) |
| Enclosure material | SGCC steel |
| Mount material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (1) GbE RJ45 port (1) 1/10 GbE SFP+ port |
| RF interface | Bluetooth 4.1 |
| Power method | (1) Universal AC input, 100—240V AC, 3A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 13.91A |
| Power supply | AC/DC, internal, 200W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 160W |
| Max. power budget for Drives | 135W |
| ESD/EMP protection | Air: ± 12kV, contact: ± 8kV |
| LCM display | (1) 1.3" touchscreen |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, CE, IC |
| LEDs | |
| System | (1) Power: blue/white Flashing white: bootup in progress Flashing blue: firmware upgrading Steady white: factory defaults, awaiting adoption Steady blue: device is adopted |
| Ethernet | Green: 1 Gbps Amber: 10/100 Mbps |
| SFP+ | White: 10 Gbps Green: 1 Gbps |
| HDD | White: disk detected Amber: disk error |
| RPS | Blue: ready |
