Ubiquiti UniFi Protect IoT Gateway for UniFi Protect Sensors | UP-SUPERLINK
SKU: UP-SUPERLINK
£105.12 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Ubiquiti UniFi Protect IoT Gateway for UniFi Protect Sensors | UP-SUPERLINK
The Ubiquiti UP-SuperLink UniFi Protect IoT Gateway is an optimised wireless protocol designed for low-latency, long-range communication with software update management enhancements. Unlike the existing BLE devices, SuperLink endpoint devices offer superior range and power efficiency while minimising delays, making it ideal for security, automation, and industrial applications. The Ubiquiti SuperLink ensures that sensor communications remain both reliable and efficient, even when deployed over extended distances.
Key Features

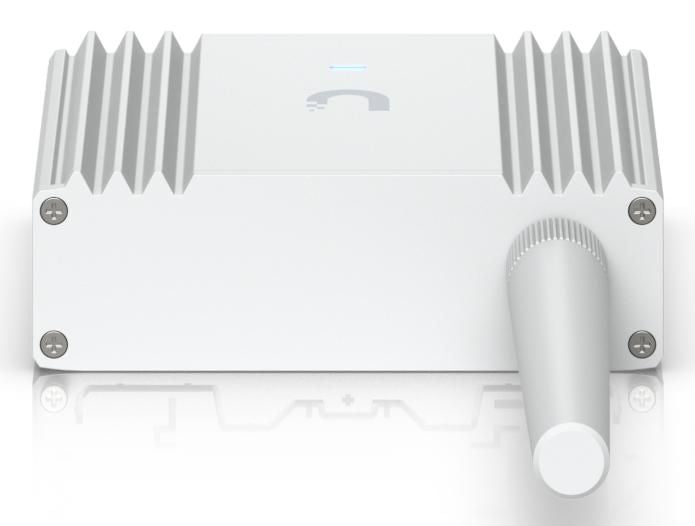

Dual Radios: Bluetooth for short-range and proprietary SuperLink for ultra-long-range connectivity (up to 2 km).
High Capacity: Supports up to 96 SuperLink sensors and up to 7 legacy UP-Sense (BLE) devices via Bluetooth (UP-Sense and additional UP-SuperLink devices sold separately).

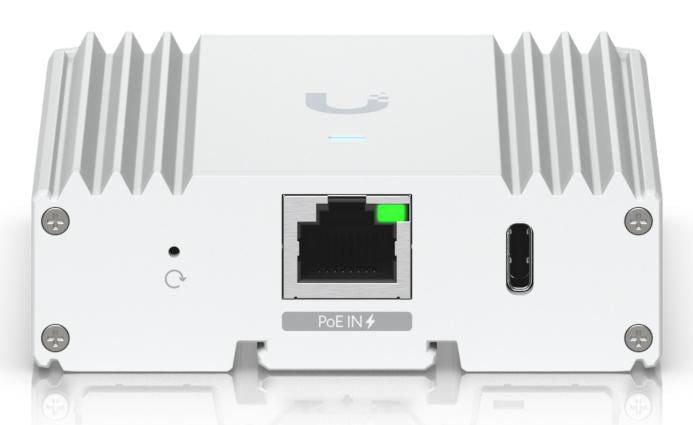

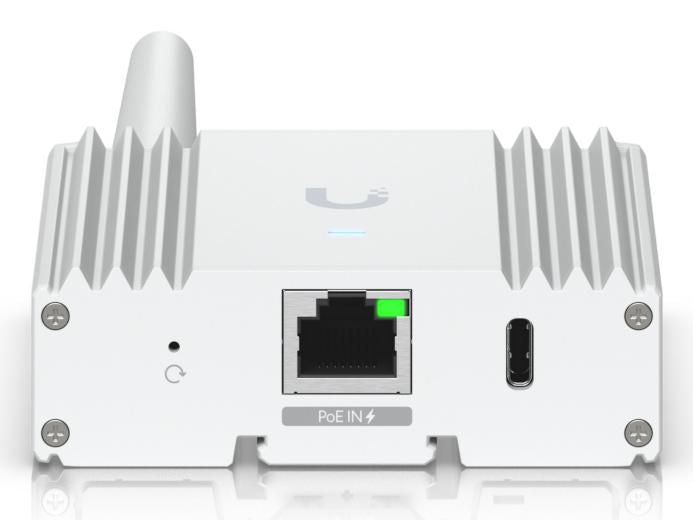

Flexible Power Options: Powered via PoE or USB-C (power supply sold separately) for multiple deployment possibilities.

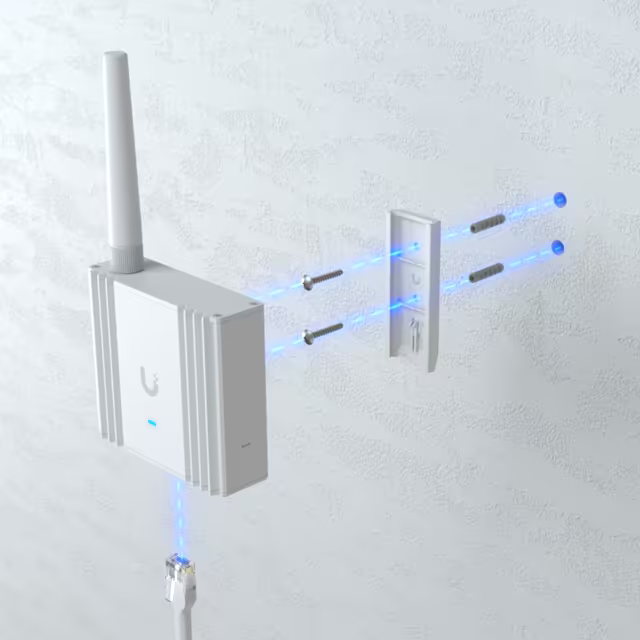

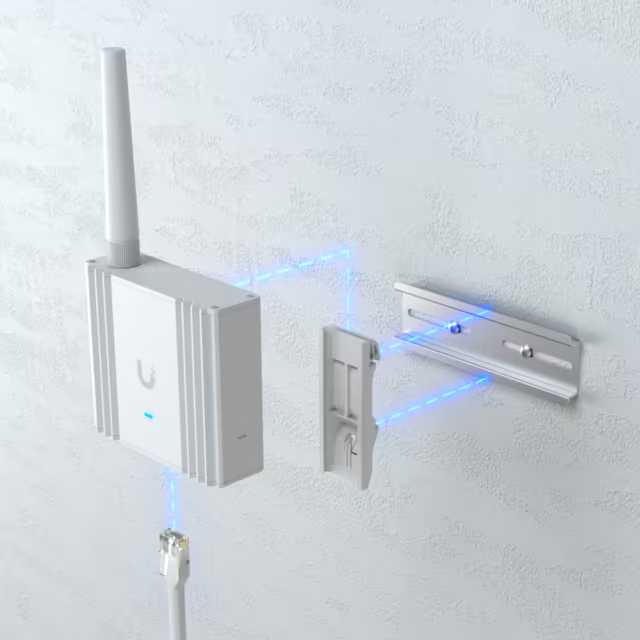

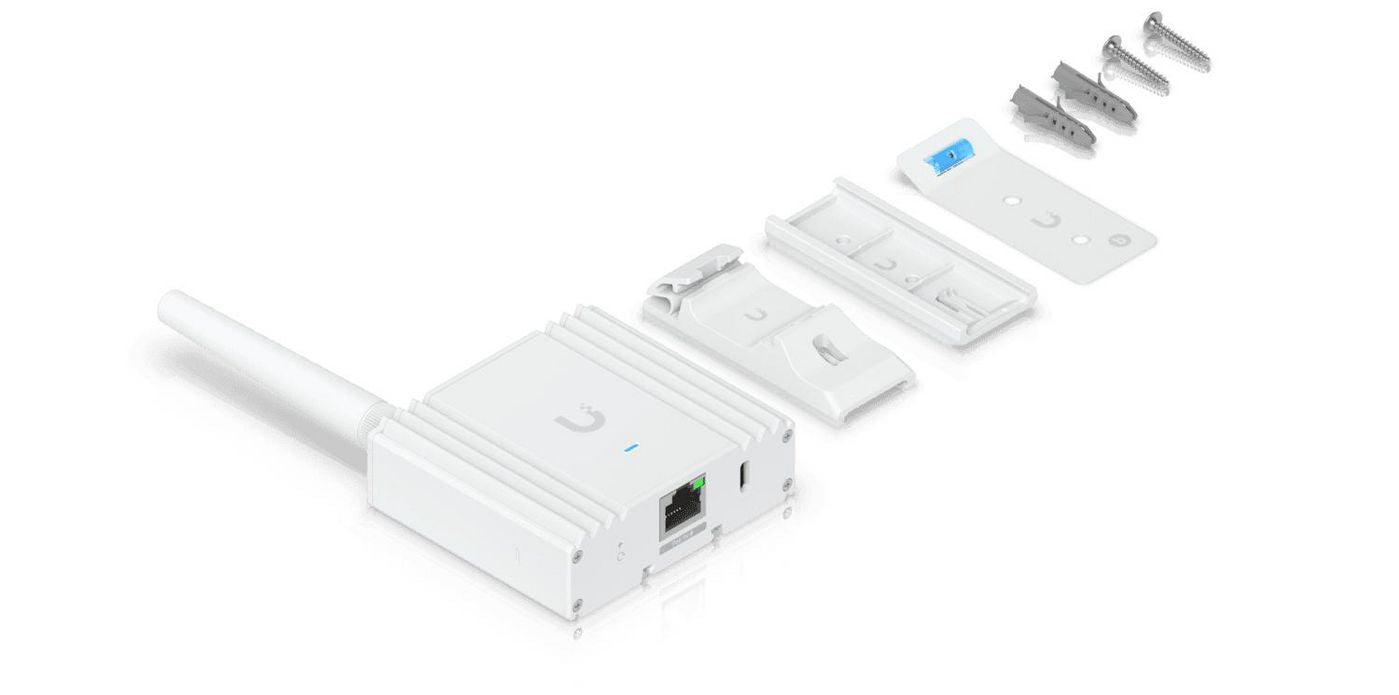

Mounting: Wall or DIN rail mount options make installation fast and easy.
Elevate the Performance of Sensor Deployments
Positioned within the UniFi ecosystem, the SuperLink serves as a pivotal link between UniFi Protect sensors and the broader network infrastructure. It is optimised for scenarios where traditional wireless solutions might struggle, thus offering a more resilient and robust option for maintaining secure, real-time sensor connectivity. This makes it an ideal solution for professional installations that demand both expansive range and swift data transmission. -

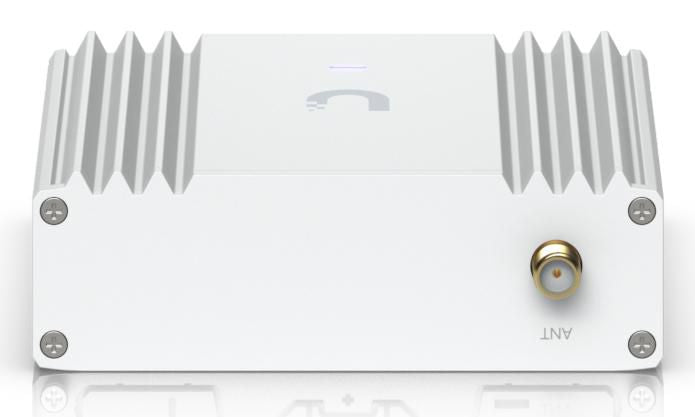

Feature Description Compliance Certificates CE, FCC, IC LED Indicators Status Mounting Type DIN-rail/Wall mounting Product Colour White Antenna Gain 3 dBi Antenna Type External Antennas Quantity 1 UNSPSC Code 43222605 Reset Button Yes Bluetooth Yes Bluetooth Low Energy Yes Bluetooth Version 5.2 LAN Data Rates 10/100 Mbit/s Operating Humidity 10 - 90% Operating Temperature 0 - 40 °C Package Weight 0.25 kg Control Display Unit No LAN Ports 1 x RJ-45 Max Power Consumption 3.4 W PoE Support Yes Net Weight 0.179 kg Dimensions (W x D x H) 8.19 x 2.6 x 15.93 cm Brand Name Ubiquiti Warranty 2 Years Main Category Network Subcategory Firewalls & Gateways Subcategory Gateways/Controllers -
Description Downloads Ubiquiti UniFi Protect IoT Gateway for UniFi Protect Sensors | UP-SUPERLINK Installation Guide Downloads
