Ubiquiti UniFi Router Next-Generation Gateway Pro
The UniFi Next-generation Gateway Pro (UXG Pro) is a powerful security gateway that delivers a versatile networking interface and enterprise-class threat management functionality to medium to large-sized networks.
The UXG Pro is equipped with (2) WAN ports (GbE RJ45 and 10G SFP+) that provide failover support, as well as (2) LAN ports (GbE RJ45 and 10G SFP+) to provide the high-speed connectivity needed to support the most bandwidth-intensive applications. It also excels as a complete network security solution, offering a full suite of threat mitigation features, including deep packet inspection (DPI), intrusion detection and prevention systems (IDS/IPS), and layered firewall configuration.
The UXG Pro can be paired with a Cloud Key Gen2 Plus to create a highly powerful and secure deployment that can be fully managed with the UniFi Network application (web/mobile).
Key Features
1.7 GHz quad-core processor
(2) WAN ports (GbE RJ45 and 10G SFP+) with failover support
(2) LAN ports (GbE RJ45 and 10G SFP+)
Enterprise-class DPI, IPS/IDS, and layered firewall configuration
Power redundancy when connected to the UniFi SmartPower RPS (sold separately)
SmartPower outlet (125VAC/2A) for an external modem

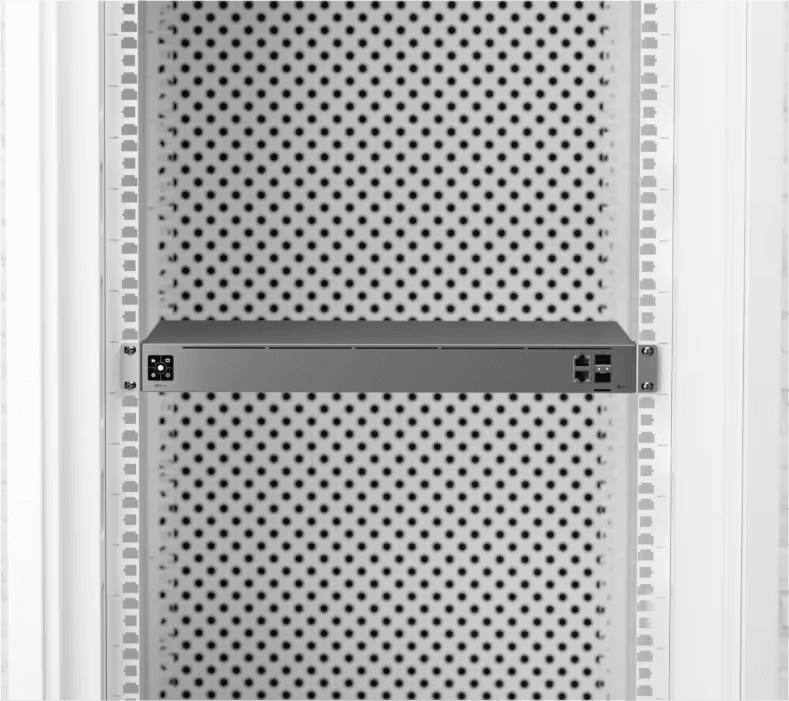

1U-sized, rack-mountable device
| Feature | Description |
|---|---|
| Battery Type | NONE - Only use for non-battery items |
| Compliance Certificates | CE |
| Enclosure Material | Aluminum |
| LED Indicators | LAN/Power |
| Mounting Type | Rack mounting |
| Product Colour | Aluminium |
| Rack Capacity | 1U |
| Control Display Unit | Yes |
| Display Diagonal | 1.3" |
| Touchscreen | Yes |
| UNSPSC Code | 43222605 |
| HS Code | 85176990 |
| Reset Button | Yes |
| Internal Memory | 2048 MB |
| LAN Data Rates | 1000 Mbit/s |
| Humidity Range | 5 - 95% |
| Operating Temp | -10 - 40 °C |
| Gross Weight | 4.2 kg |
| Built-in Processor | Yes |
| Processor Frequency | 1700 MHz |
| Processors Installed | 1 |
| LAN Ports | 2 x RJ-45 |
| WAN Connection | RJ-45 |
| Input Voltage | 200 - 240 V |
| Input Frequency | 50 - 60 Hz |
| Power Supply | 50 W |
| Net Weight | 3.42 kg |
| Dimensions (W x D x H) | 44.24 x 28.56 x 4.37 cm |
| Sustainability Certificates | CE |
| Brand Name | Ubiquiti |
| Warranty | 2 Years |
| Main Category | Network |
| Subcategory | Firewalls & Gateways |
| Subcategory | Gateways/Controllers |
| Description | Downloads |
|---|---|
| Ubiquiti UniFi Router Next-Generation Gateway Pro | UXG-PRO DataSheet | Downloads |
