Ubiquiti UniFi Security Gateway Lite - Advanced Router And Gateway
Key Features
Up to 10x routing performance increase over UniFi USG
Managed with a Cloud Key, Official UniFi Hosting, or UniFi Network Server

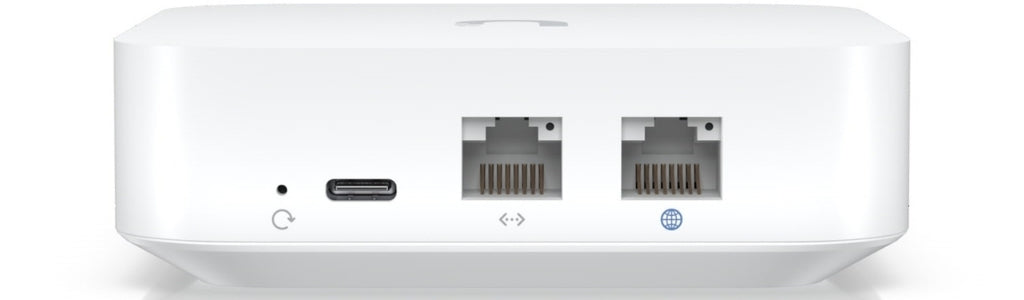

1 x GbE WAN port
1 x GbE LAN port
Compact footprint
The Ubiquiti UniFi UXG-Lite is a compact yet powerful gateway, equipped with a comprehensive suite of advanced routing and security features. It significantly boosts routing performance, offering up to 10 times the capability of its predecessor, the UniFi USG, especially when tested with IPS/IDS, QoS, and Smart Queues. The device can be managed using a Cloud Key, Official UniFi Hosting, or a UniFi Network Server.

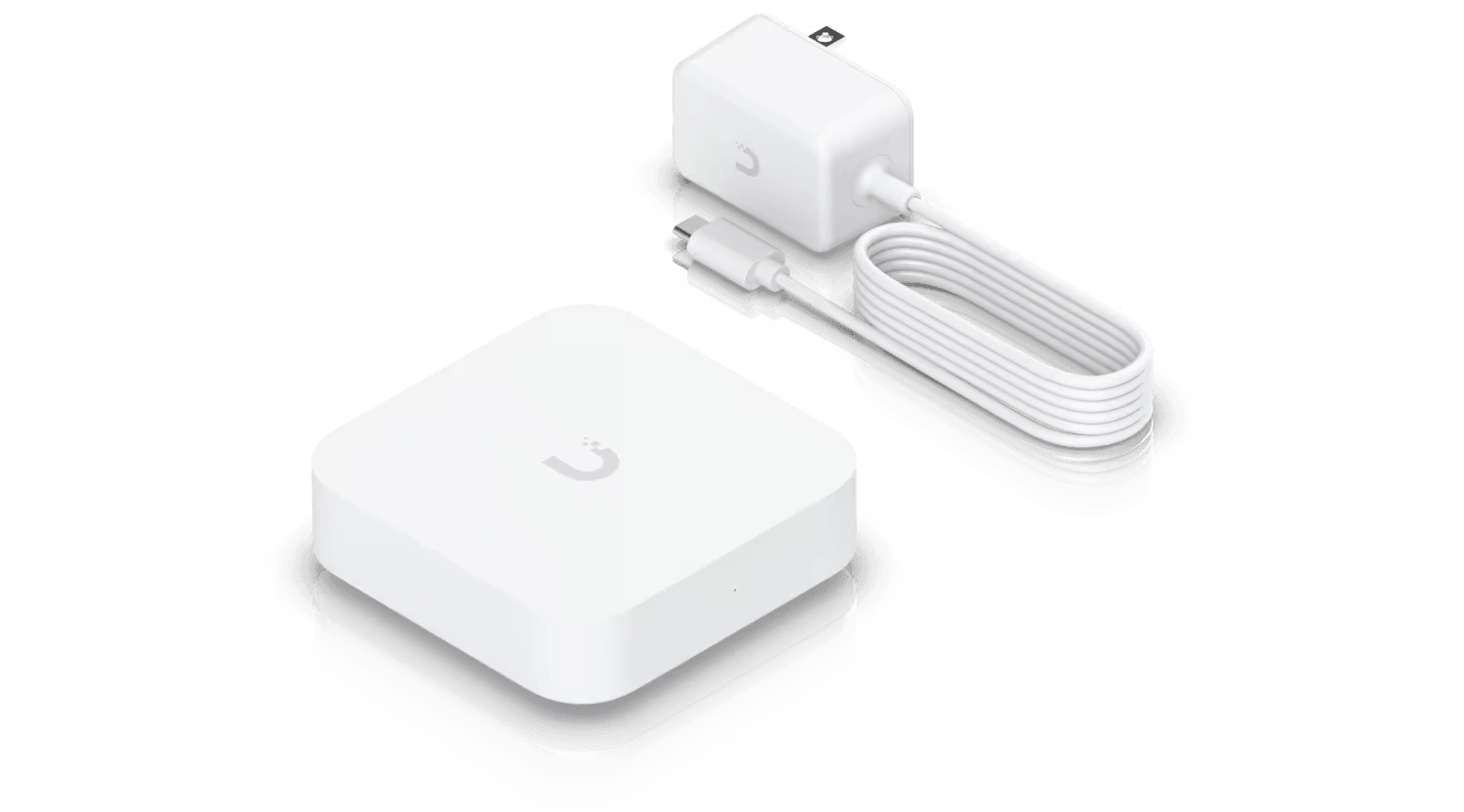

The UXG-Lite's hardware consists of a dual-core ARM Cortex-A53 processor at 1 GHz and 1 GB DDR3L memory. For connectivity, it includes one Gigabit Ethernet (GbE) WAN port and one GbE LAN port. It also supports Bluetooth 5.1, and is USB-C powered (with an adapter included), supporting a voltage range of 100–240V.
UXG-Lite offers performance WiFi QoS with UniFi APs, application, domain, and country-based QoS, and application and device type identification. It also provides additional internet quality and outage reporting, and next-generation security with application-aware firewall rules and signature-based IPS/IDS threat detection.
The UXG-Lite also supports VLAN/subnet-based traffic segmentation, a full stateful firewall, and advanced networking options including license-free SD-WAN, WireGuard, L2TP and OpenVPN server, and more.
| Technical Specifications | Details |
|---|---|
| Mechanical | |
| Dimensions | 98 x 98 x 30 mm (3.9 x 3.9 x 1.2") |
| Weight | 320 g (11.3 oz) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Processor | Dual-core ARM® Cortex®-A53 at 1 GHz |
| Memory information | 1 GB DDR3L |
| Management interface | Ethernet |
| Bluetooth | 5.1 |
| Networking interface | LAN: (1) GbE RJ45 port WAN: (1) GbE RJ45 port |
| Power method | USB type C (5V/3A) |
| Supported voltage range | 100–240V |
| Max. power consumption | 3.83W |
| Ambient operating temperature | -10 to 40° C (14 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Gateway Features | |
| Performance | WiFi QoS with UniFi APs, Application, domain, and country-based QoS, Application and device type identification, Internet quality and outage reporting |
| Next-generation security | Application-aware firewall rules, Signature-based IPS/IDS threat detection, Content, country, domain, and ad filtering, VLAN/subnet-based traffic segmentation, Full stateful firewall |
| Advanced networking | License-free SD-WAN* WireGuard, L2TP and OpenVPN server, OpenVPN client, OpenVPN and IPsec site-to-site VPN, One-click Teleport* and Identity Enterprise VPN**, Policy-based WAN and VPN routing, DHCP relay, Customizable DHCP server, IPv6 ISP support |
