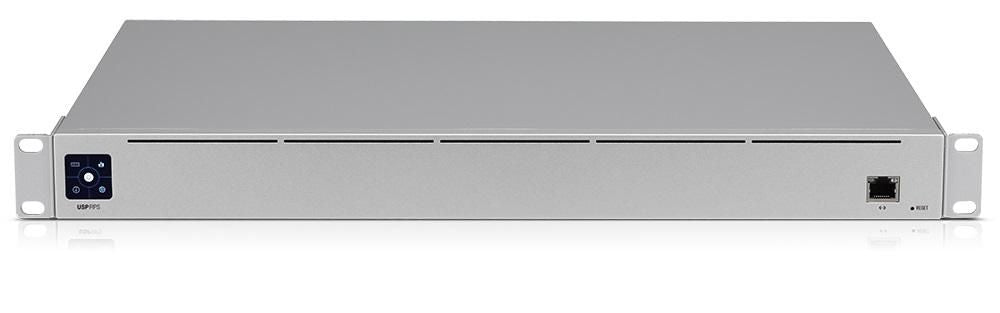

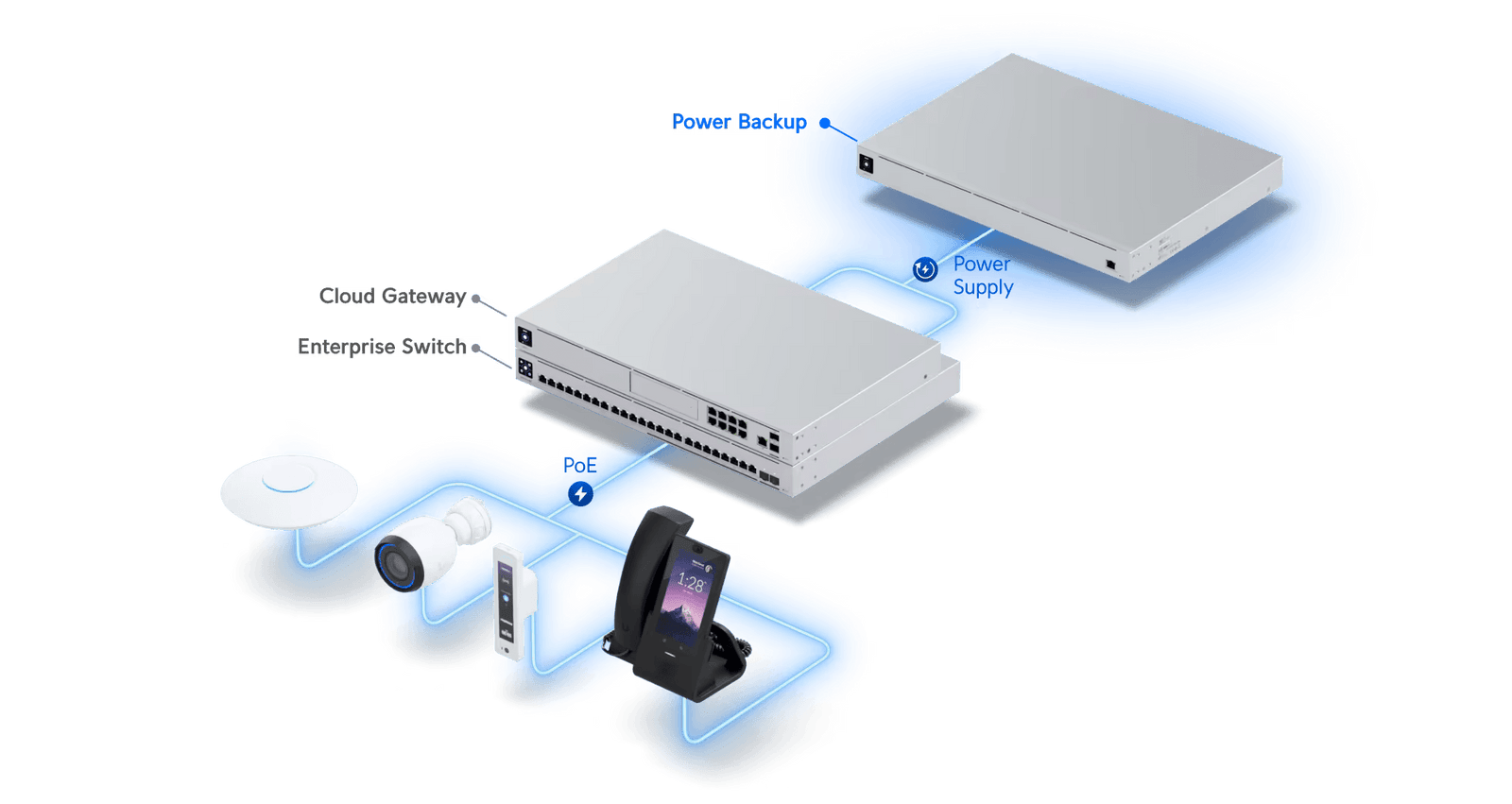

The UniFi® SmartPower Redundant Power System, model USP-RPS, is a proprietary redundant power system designed to protect up to six UniFi SmartPower supported devices from sudden power supply module failure. The USP-RPS continually monitors all attached devices. In the event of an internal AC/DC power supply failure, failover is automatic so your network continues to operate with no interruption in service. With a 950W DC power budget, the USP-RPS can protect a variety of high-power devices, including UniFi PoE switches. An integrated 1.3" color touchscreen LCM displays system information for convenient monitoring.
| Category | Specification |
|---|---|
| Mechanical | |
| Dimensions | 442.4 x 325.6 x 43.7 mm (17.4 x 12.8 x 1.7") |
| Weight | Without mount brackets: 5.5 kg (12.1 lb) |
| With mount brackets: 5.6 kg (12.3 lb) | |
| Enclosure material | SGCC steel |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Management interface | Ethernet In-Band |
| Power output | (6) RPS DC ports |
| Power method | (1) Universal AC input, 100—240V AC |
| Max. power consumption | 995W |
| Power supply | Internal 350W AC/DC |
| Internal 645W AC/DC | |
| Supported voltage range | 100—240V AC |
| Total output power | 52V DC: 11.54A (600W) |
| 11.5V DC: 30.44A (350W) | |
| Max. output power per RPS | 52V DC: 11.54A (600W) |
| port | 11.5V DC: 30.44A (350W) |
| Display | 1.3" touchscreen |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| Ambient operating | -5 to 45° C (23 to 113° F) |
| temperature | |
| Ambient operating | 10 to 90% noncondensing |
| humidity | |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Status |
| Ethernet | Link/activity |
| USP RPS | Activity |
