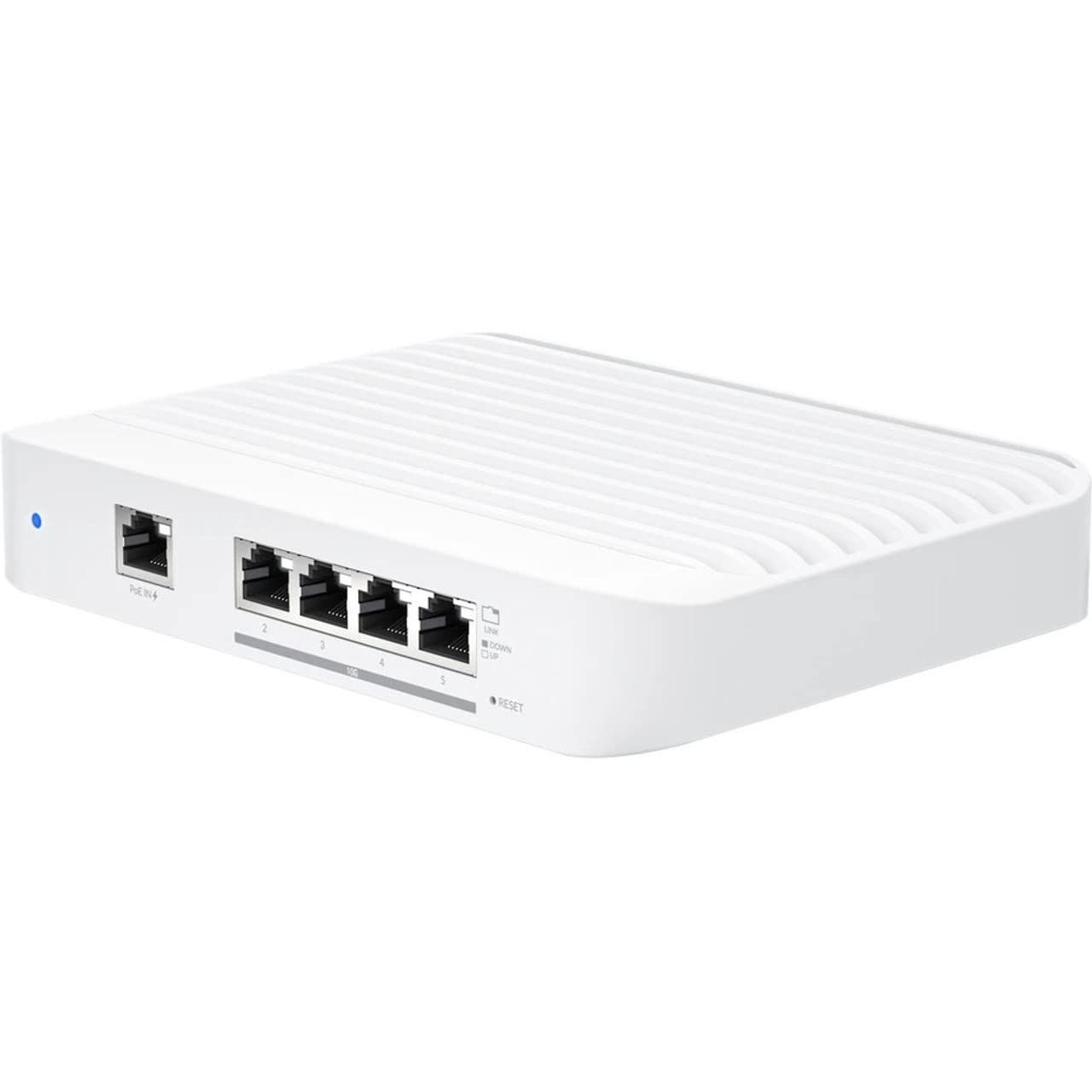

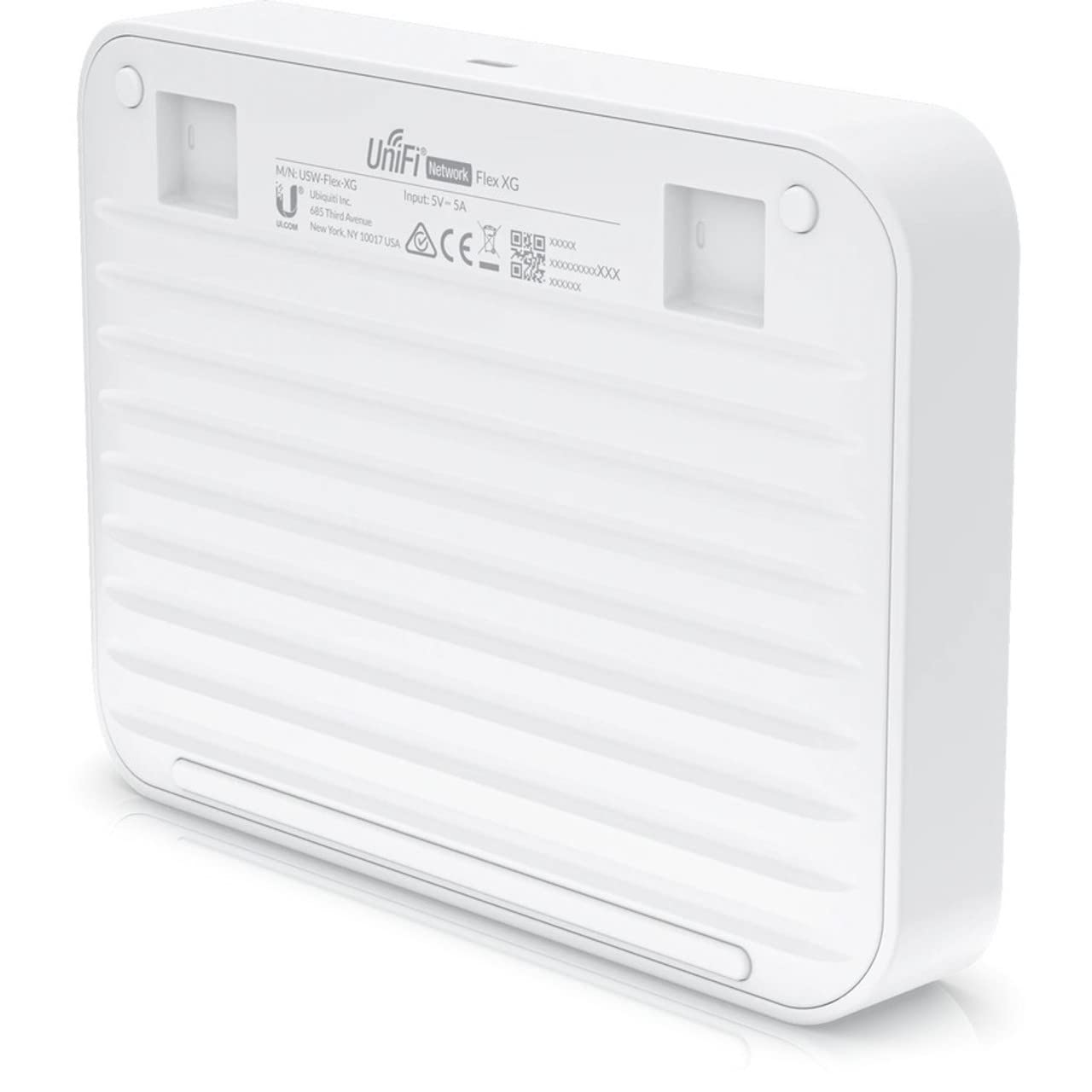

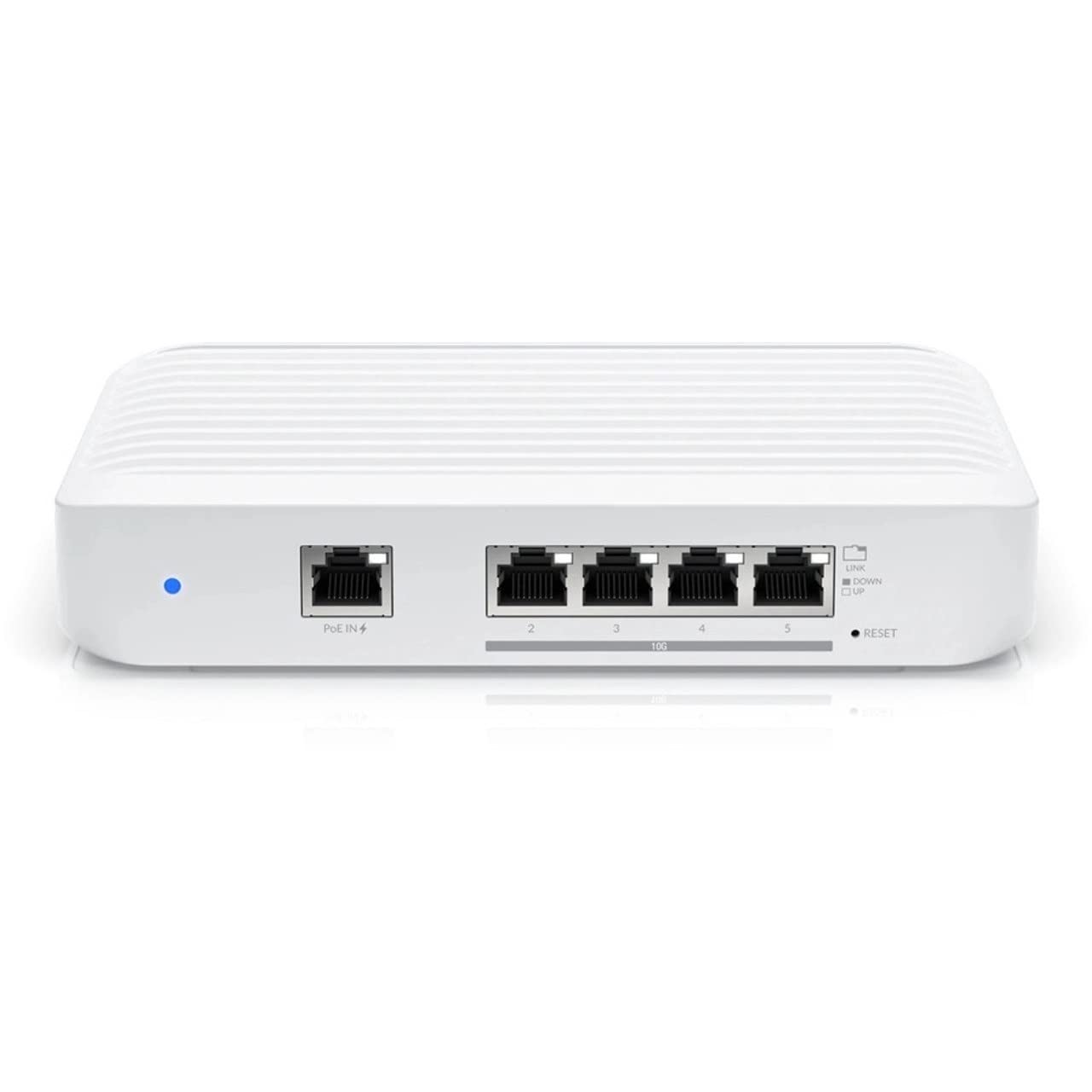

Ubiquiti Unifi USW-FLEX-XG 5 Port Layer 2 Managed Gigabit Switch

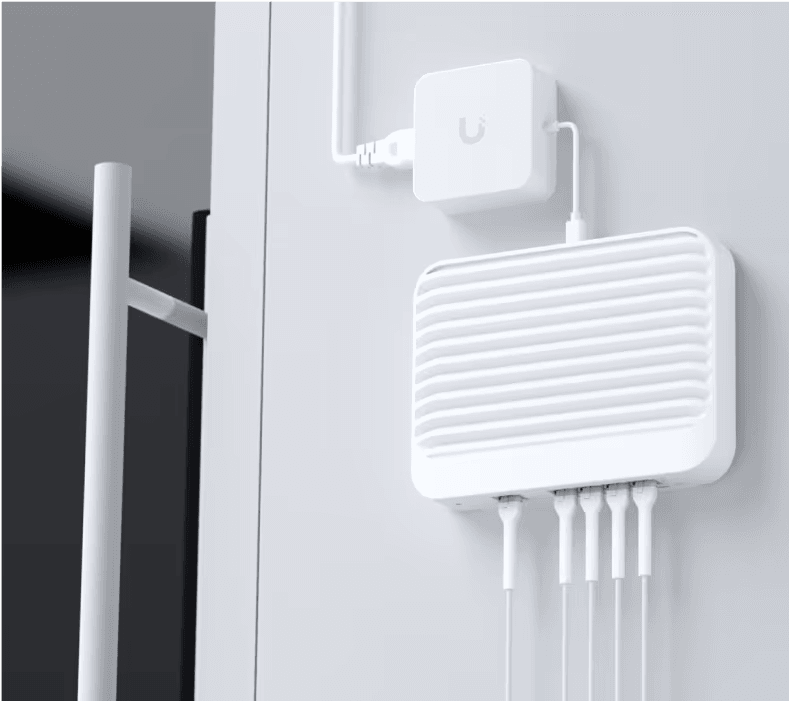

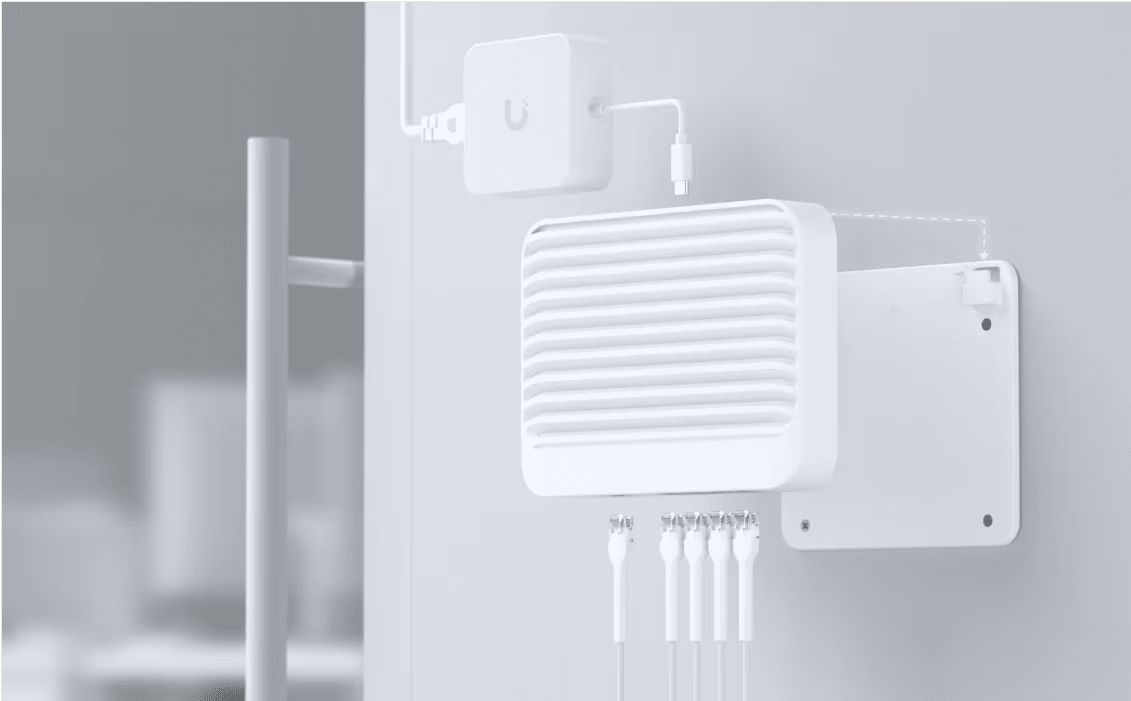

The Switch Flex XG (USW Flex XG) is a fully managed, mult-gigabit, Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE PoE input. The USW Flex XG sports slim, compact housing and can be mounted on a desktop*. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Key Features
(1) GbE, 802.3at PoE+ RJ45 input.
(4) 10GbE RJ45 ports.
Compact, slim housing.
Can be powered with a 5V, 5A USB-C adapter.
| Technical Specifications | |
|---|---|
| Mechanical | |
| Dimensions | 135 x 185 x 32 mm (5.3 x 7.3 x 1.3") |
| Weight | 1.2 kg (2.7 lb) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (1) GbE, PoE+ RJ45 port |
| (4) 10 GbE RJ45 ports | |
| Total non-blocking throughput | 41 Gbps |
| Switching capacity | 82 Gbps |
| Forwarding rate | 61.012 Mpps |
| Power method | (1) PoE+, 50—57V DC, 25W |

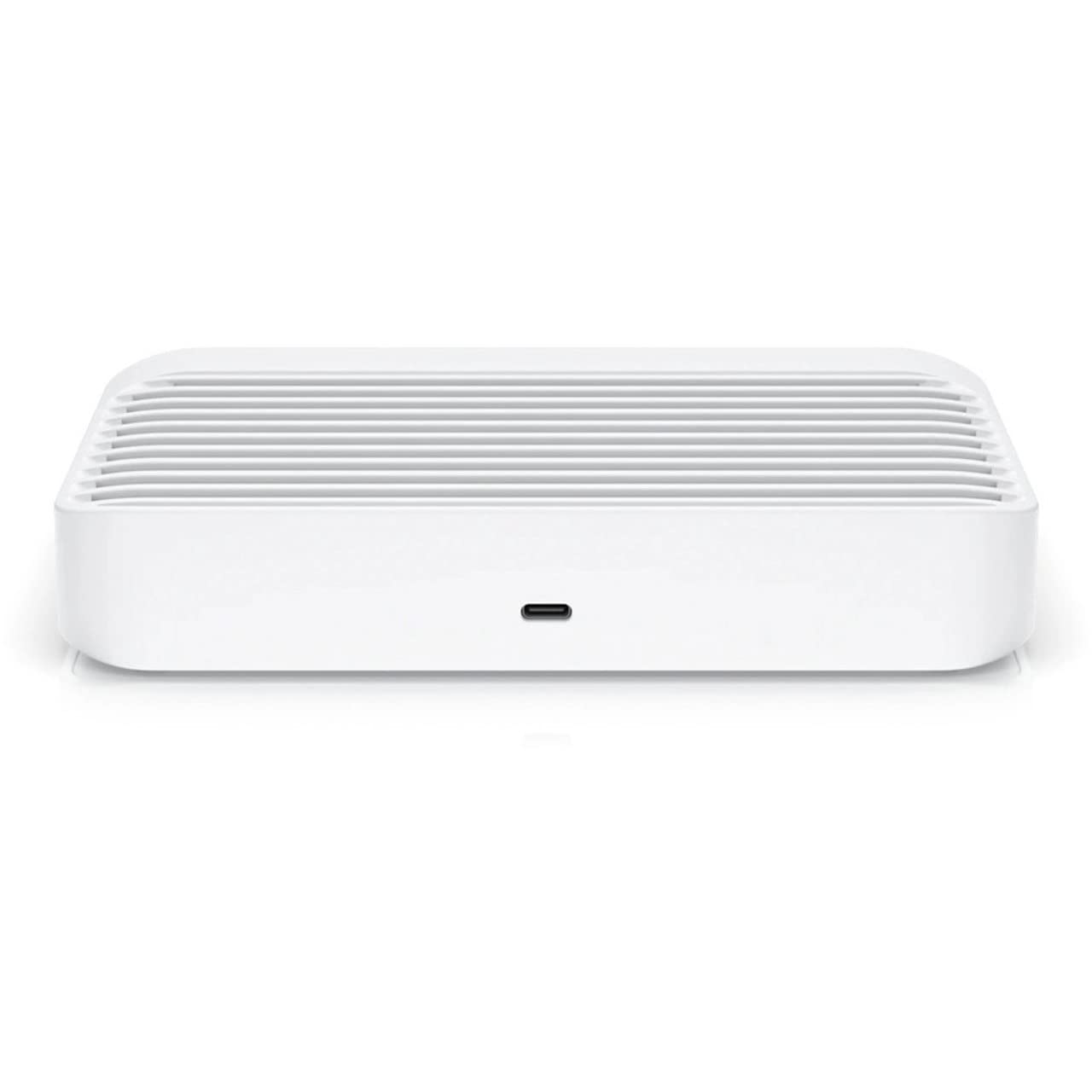

| (1) USB Type-C, 5V DC, 5A | |
| Power supply | PoE+ (Pins 1, 2+/3, 6- or 4, 5+/7, 8-) |

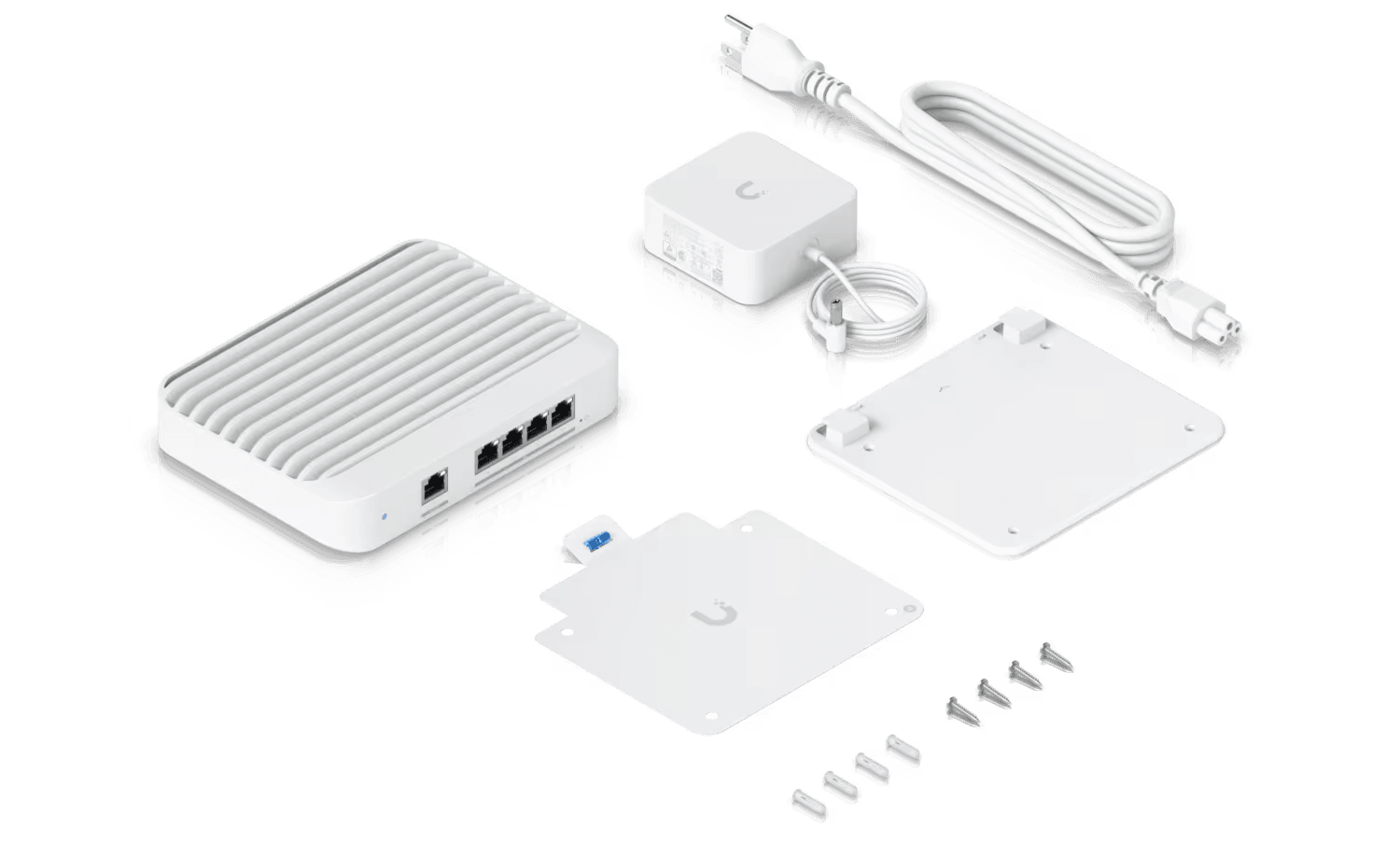

| AC/DC power adapter, 5V DC, 5A, 1.5 m cord (Included) | |
| Supported voltage range | 90—264V AC (Adapter) |
| Max. power consumption | 25W |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| Button | Factory reset |
| Ambient operating temperature | -5 to 45° C (23 to 113° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | IGMP snooping |
| STP / RSTP with priorities and port-level disable | |
| Port isolation | |
| Storm control | |
| Voice VLAN | |
| Port mirroring | |
| LACP port aggregation | |
| Multicast / broadcast rate limiting | |
| MAC address blocking | |
| Flow control | |
| 802.1X control | |
| Jumbo frames | |
| Proprietary loop protection | |
| DHCP snooping / guarding | |
| Egress rate limit | |
| LLDP-MED | |
| Port restricted by MAC | |
| Device isolation with ACLs | |
| Layer 3 features | – |
| LEDs | |
| System | Status |
| Ethernet | Speed/link/activity |
| Application Requirements | |
| UniFi Network | Version 6.1.67 and later |
