Layer 3 switch with (28) 10G SFP+ ports and (4) 25G SFP28 ports.

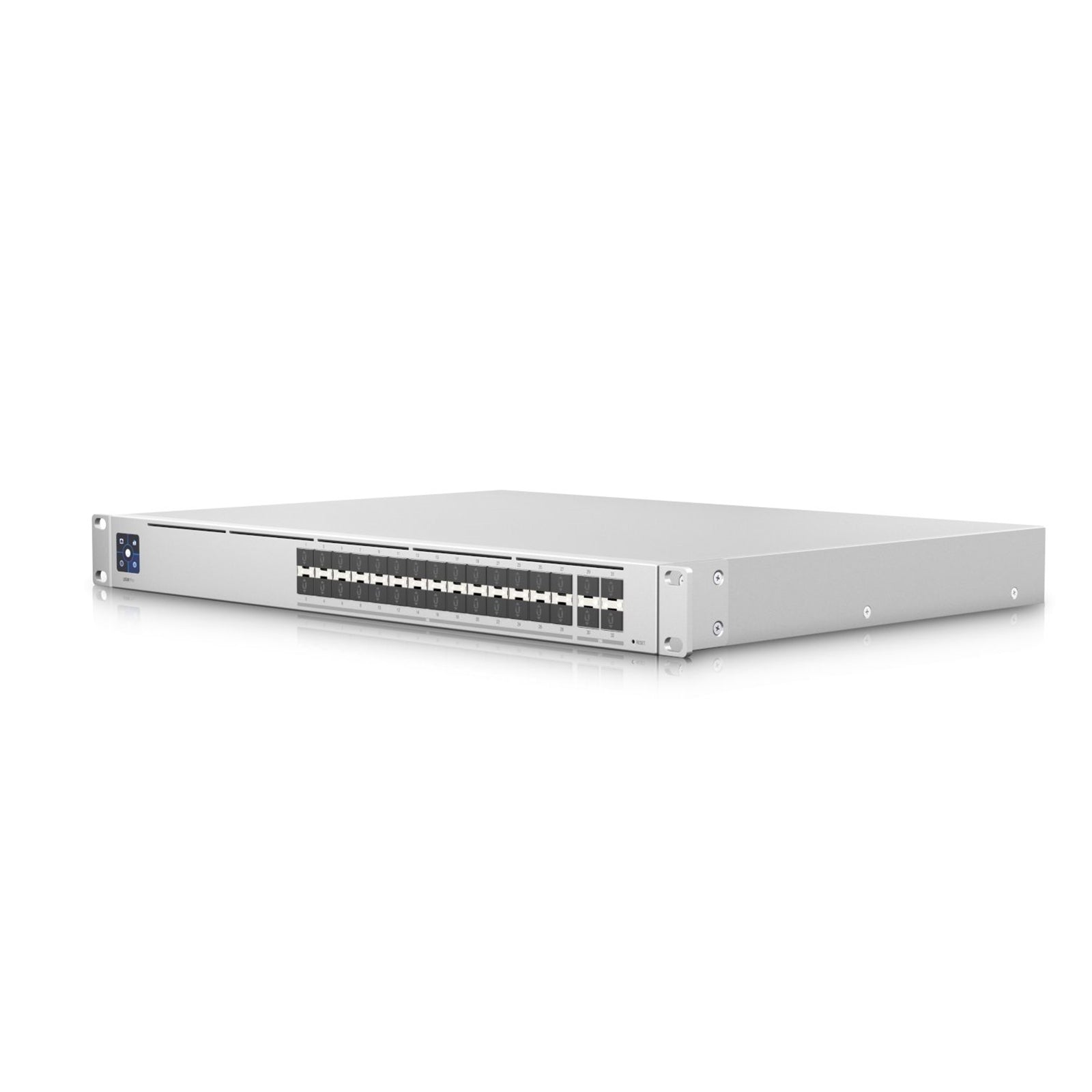

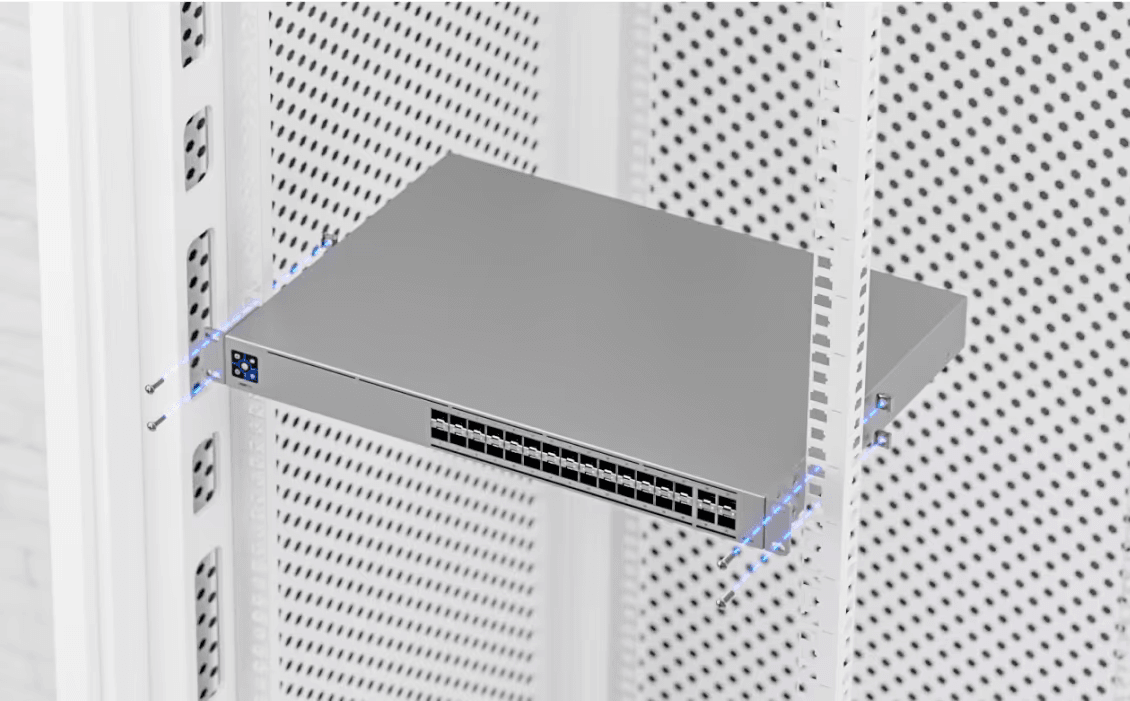

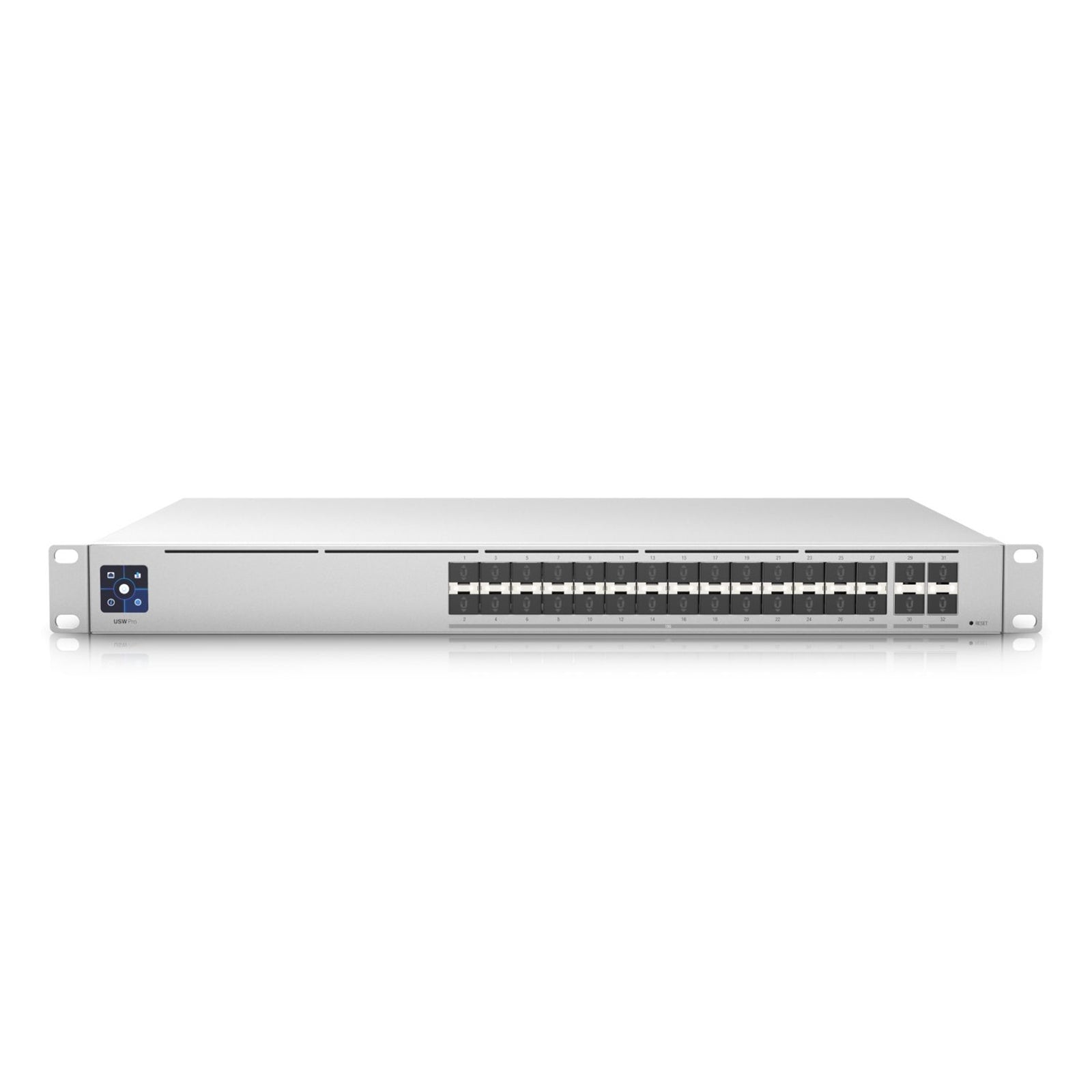

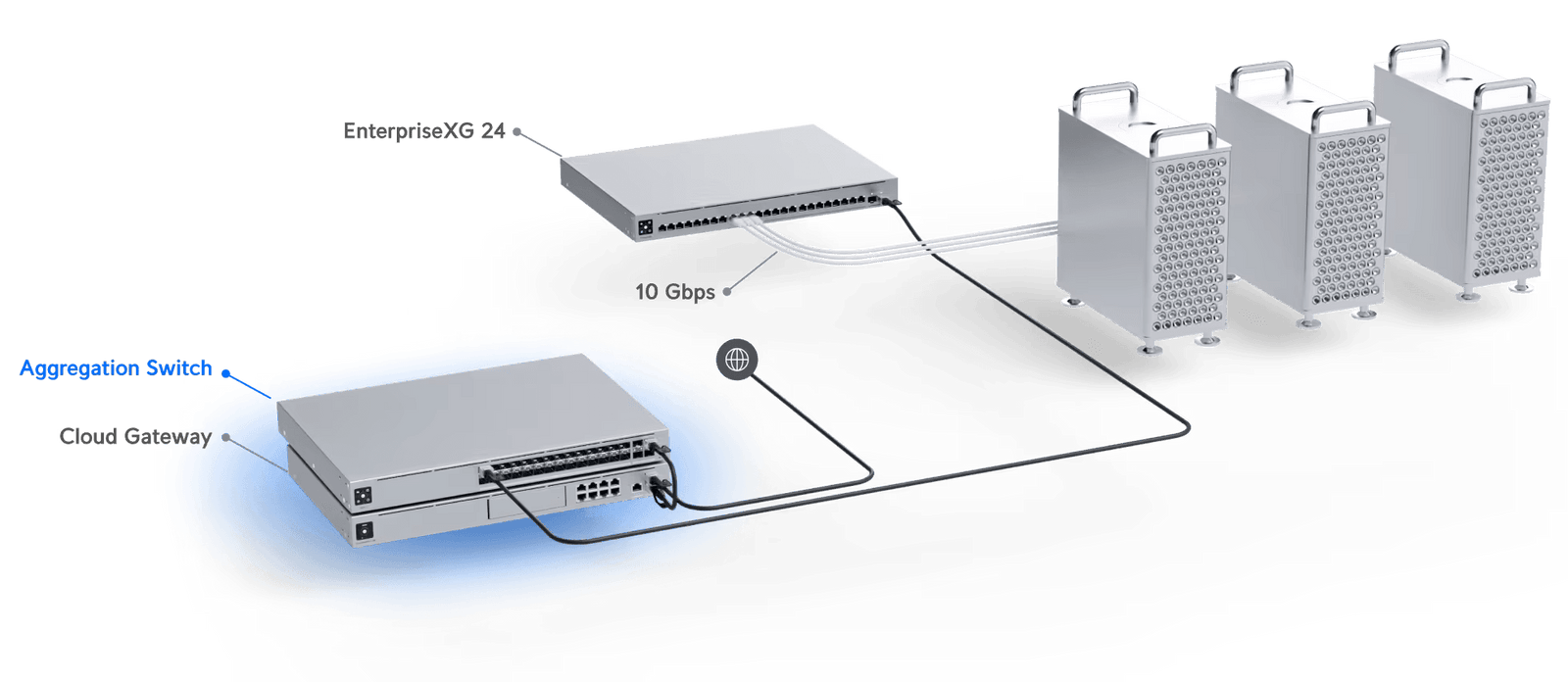

The Switch Pro Aggregation is a fully managed, Layer 3 switch with (28) 10G SFP+ ports and (4) 25G SFP28 ports designed to enhance your network's switching capacity and performance by creating high-bandwidth aggregation links. This rack-mountable switch also offers 760 Gbps switching capacity and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the Switch Pro Aggregation offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features
(1) 1.3" LCM color touchscreen with AR switch management
(28) 10G SFP+ ports
(4) 25G SFP28 ports
(1) USP RPS DC input
760 Gbps switching capacity
Layer 3 switching features
| Technical Specifications | |
|---|---|
| Mechanical | |
| Dimensions | 442 x 325 x 44 mm (17.4 x 12.8 x 1.7") |
| Weight | Without brackets: 4.6 kg (10.1 lb) With brackets: 4.7 kg (10.4 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (28) 1/10G SFP+ ports (4) 1/10/25G SFP28 ports* *Don't support mixed speed at 25 Gbps mode. Supports mixed speed when all ports are at 1 or 10 Gbps. |
| Total non-blocking throughput | 380 Gbps |
| Switching capacity | 760 Gbps |
| Forwarding rate | 565.44 Mpps |
| Power method | (1) Universal input, 100—240V AC, 2A Max., 50/60 Hz <br> (1) USP RPS DC input, 11.5V DC, 8.7A |
| Power supply | AC/DC, internal, 100W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 100W |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| Switching Features | |
| Layer 2 features | IGMP snooping STP/RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast/broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping/guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
| Layer 3 features | DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks |
| LEDs | |
| System LEDs | Status |
| SFP28/SFP+ LEDs | Link/activity |
| Application Requirements | |
| UniFi Network | Version 6.1.25 and later |
