Ubiquiti Unifi UDW Dream Wall Switch

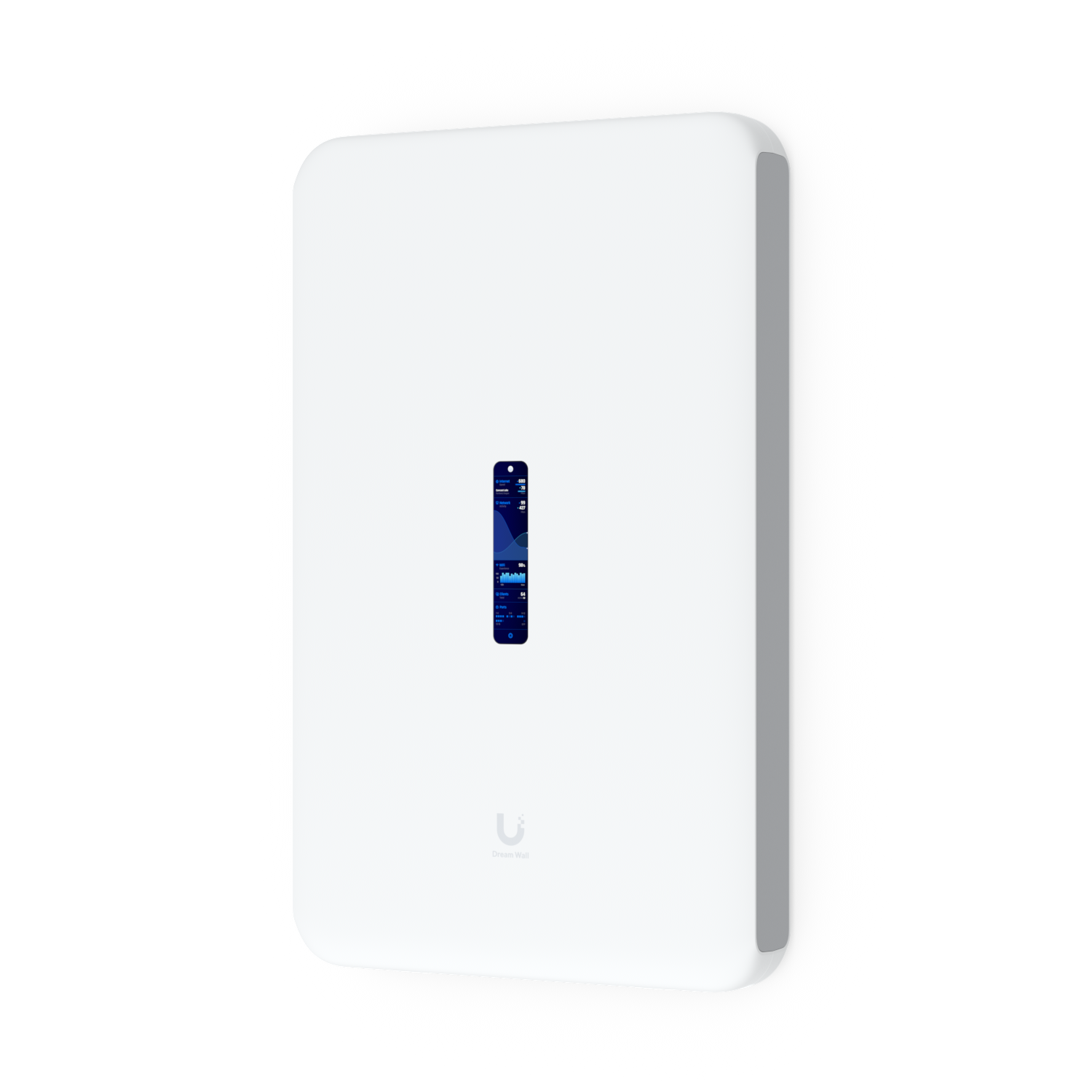

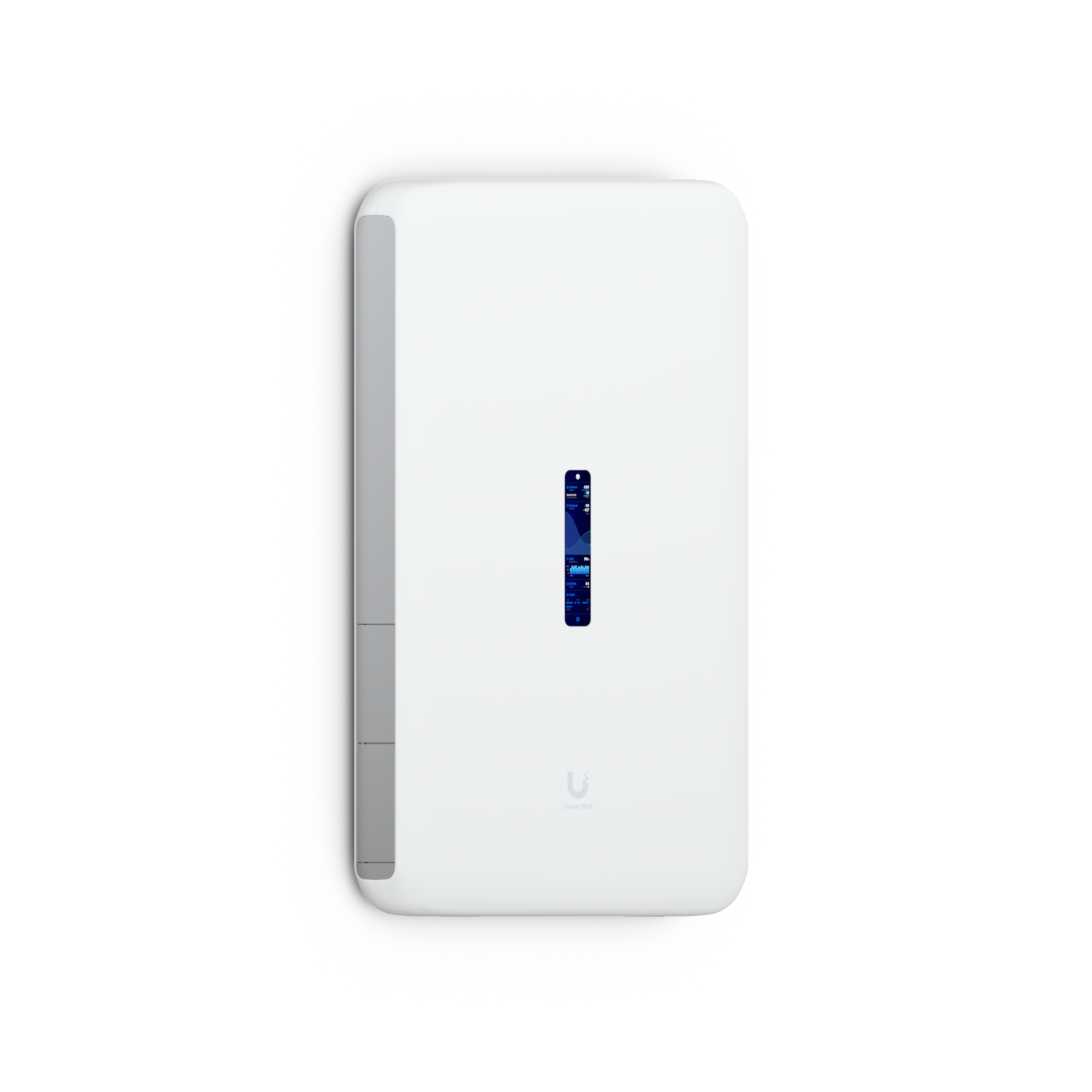

Ubiquiti UniFi Dream Wall (UDW)
The Ubiquiti UniFi Dream Wall is a wall-mounted UniFi OS Console with a security gateway, high-speed access point, network video recorder, and a PoE switch with a versatile networking interface. The Dream Wall iserves as a standalone, space-saving deployment hosting solution. Each of these feature-rich, next-gen consoles are equipped with a variety of multi-gigabit WAN/LAN ports to support high-speed connectivity, along with a wealth of GbE RJ45 ports that deliver PoE, PoE+, and PoE++ output.
Key Features
Wall-mountable UniFi OS Console
Dual-band WiFi radio with a 2.7 Gbps aggregate throughput rate (2.4 GHz: 300 Mbps / 5 GHz: 2.4 Gbps)
Dual WAN ports (10G SFP+ and 2.5GbE RJ45)
(1) 10G SFP+ LAN port
Dedicated Bluetooth management radio for streamlined configuration
1.3" LCM colour touchscreen

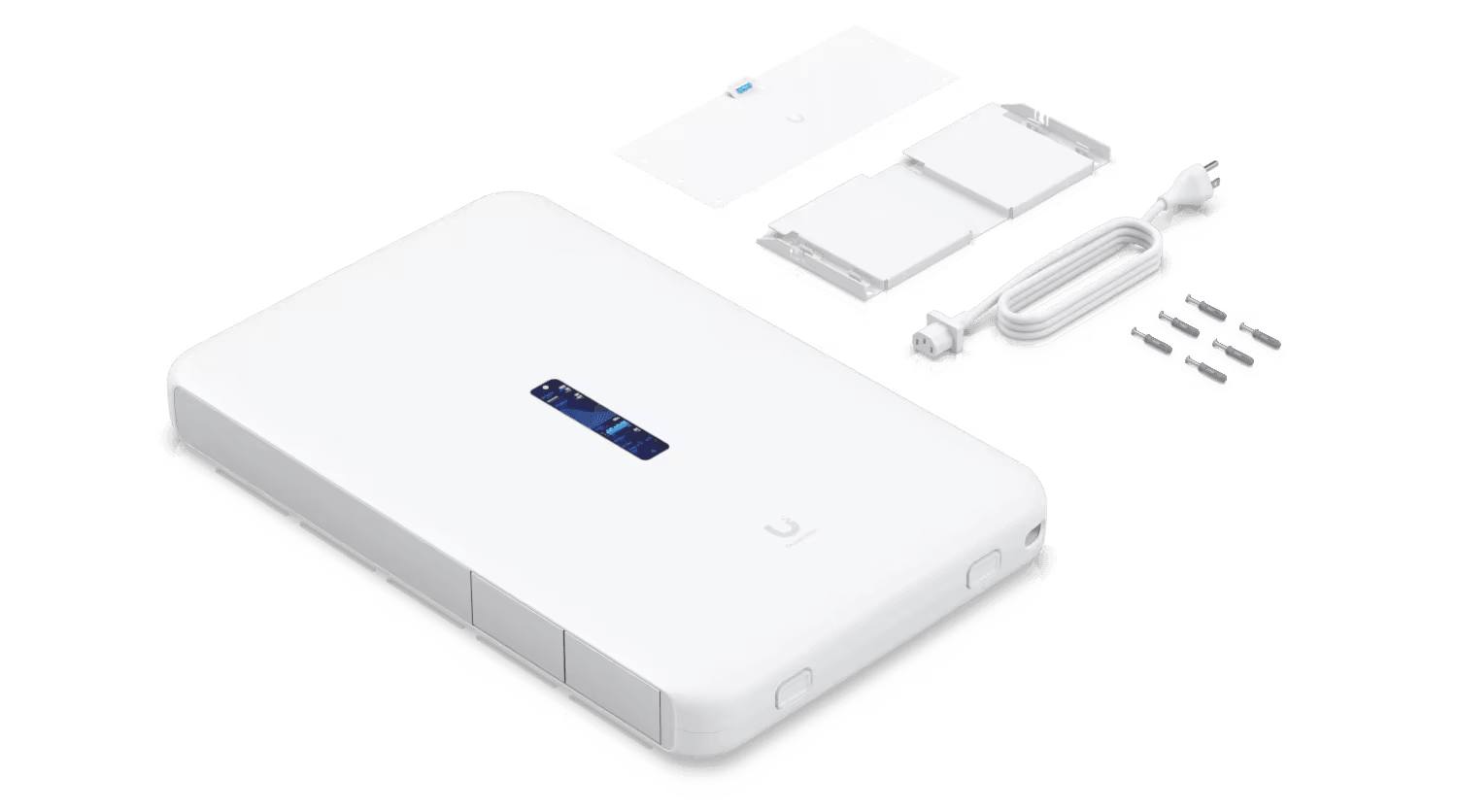

Includes a wall mount, screw kits, and a power cord
128 GB integrated storage for full UniFi OS Application experience
Micro SD memory card expansion slot (card needs min 128 GB of storage)
Supports redundant power resources
(5) GbE RJ45 LAN ports
(12) GbE RJ45 ports, including (4) PoE, (4) PoE+, and (4) PoE++ LAN ports
| Feature | Description |
|---|---|
| Battery Type | NONE - Only use for non-battery items |
| Certification | CE, FCC, IC |
| Enclosure Material | Metal |
| LED Indicators | Power/Yes |
| Mounting Type | Wall mounting |
| Product Colour | White |
| Antenna Gain | 6 dBi |
| Antenna Type | Internal |
| Card Reader | Yes |
| Memory Cards | MicroSD/SDHC/SDXC |
| UNSPSC Code | 43222605 |
| QoS Support | Yes |
| Reset Button | Yes |
| LAN Data Rates | 1000/10000 Mbps |
| Wi-Fi | Yes |
| WLAN Speeds | 1–2402 Mbit/s |
| Networking Standards | 802.11a/b/g |
| Humidity Range | 5 - 95% |
| Operating Temp | -10 - 40 °C |
| Gross Weight | 10 kg |
| Cables Included | AC |
| Quick Start Guide | Yes |
| Built-in Processor | Yes |
| Display Unit | Yes |
| Display Type | LCD |
| Flash Memory | 16 MB |
| Internal Memory | 4000 MB (DDR4) |
| Processor | ARM Cortex-A57, 1.7 MHz |
| SSD Capacity | 128 GB |
| LAN Ports | 17 x RJ-45 |
| WAN Connection | RJ-45 / SFP |
| Input Voltage | 100 - 240 V |
| Input Frequency | 50/60 Hz |
| Input Current | 7 A |
| Power Supply | 550 W |
| Max Power Use | 532 W |
| PoE Support | Yes |
| Net Weight | 8.59 kg |
| Dimensions | 34.2 x 54.9 x 6.2 cm |
| DHCP Server | Yes |
| Security Algorithms | WEP, WPA, WPA2, WPA3 |
| VLAN Support | Yes |
| Brand Name | Ubiquiti |
| Warranty | 2 Years |
| Main Category | Network |
| Subcategory | Firewalls & Gateways |
| Subcategory | Gateways/Controllers |
