Incredibly compact, indoor/outdoor AP with versatile mounting options and long-range external antenna support.
Features
WiFi 5
4 spatial streams
115 m² (1,250 ft²) coverage with internal antenna
200+ connected devices

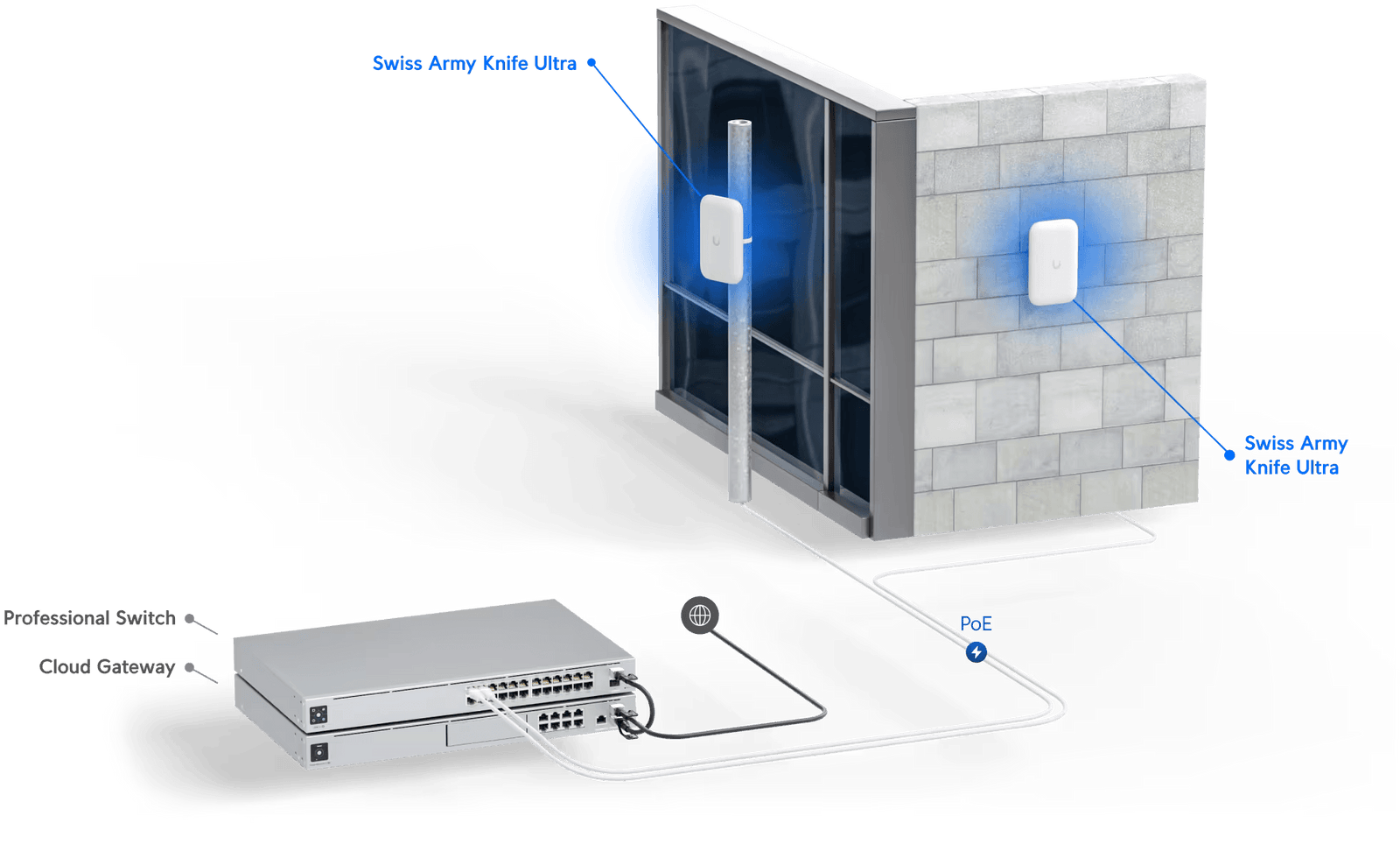

Powered using PoE
GbE uplink
Versatile wall, ceiling, and pole mounting
2 x RP-SMA connectors for optional external antennas
Weatherproof (outdoor exposed)

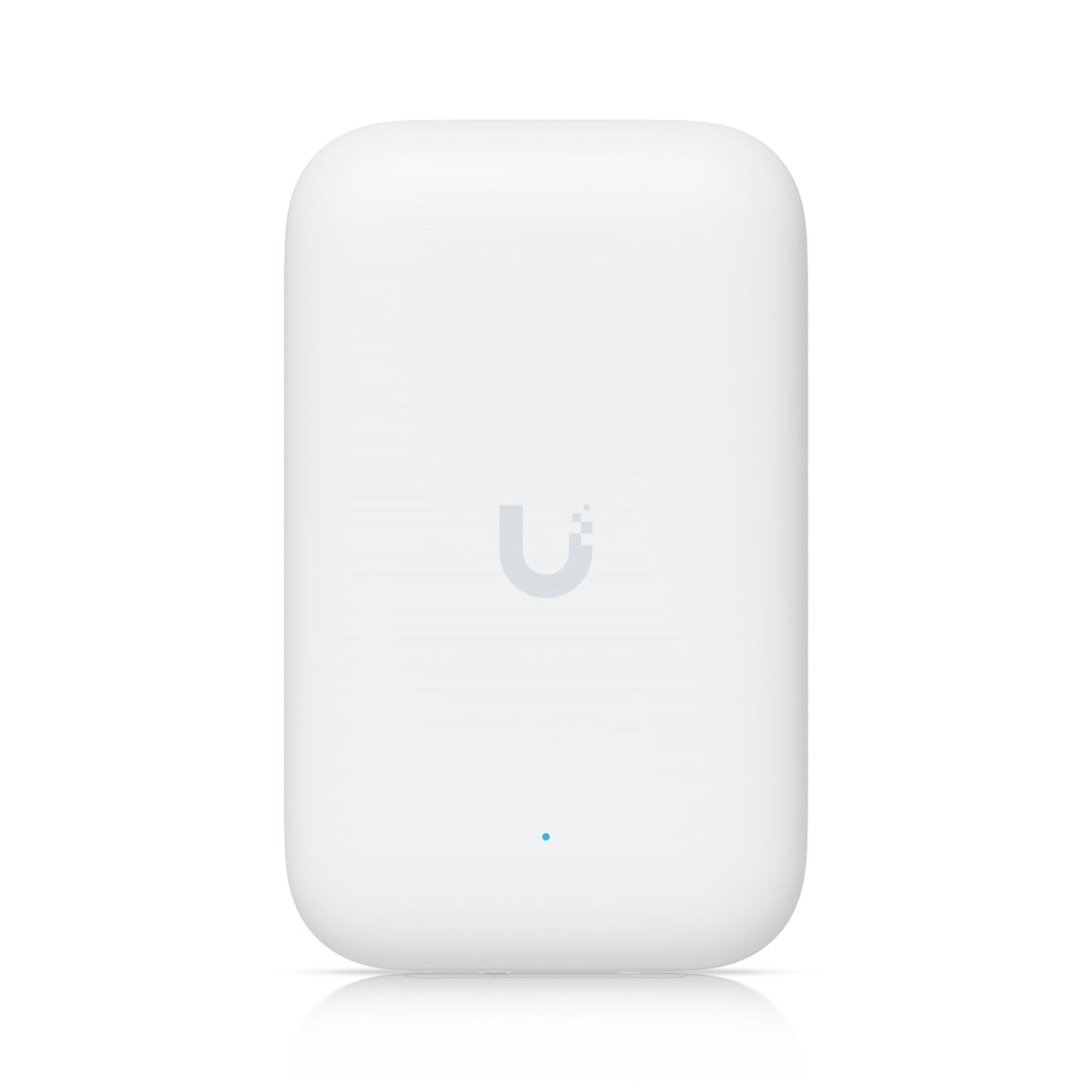

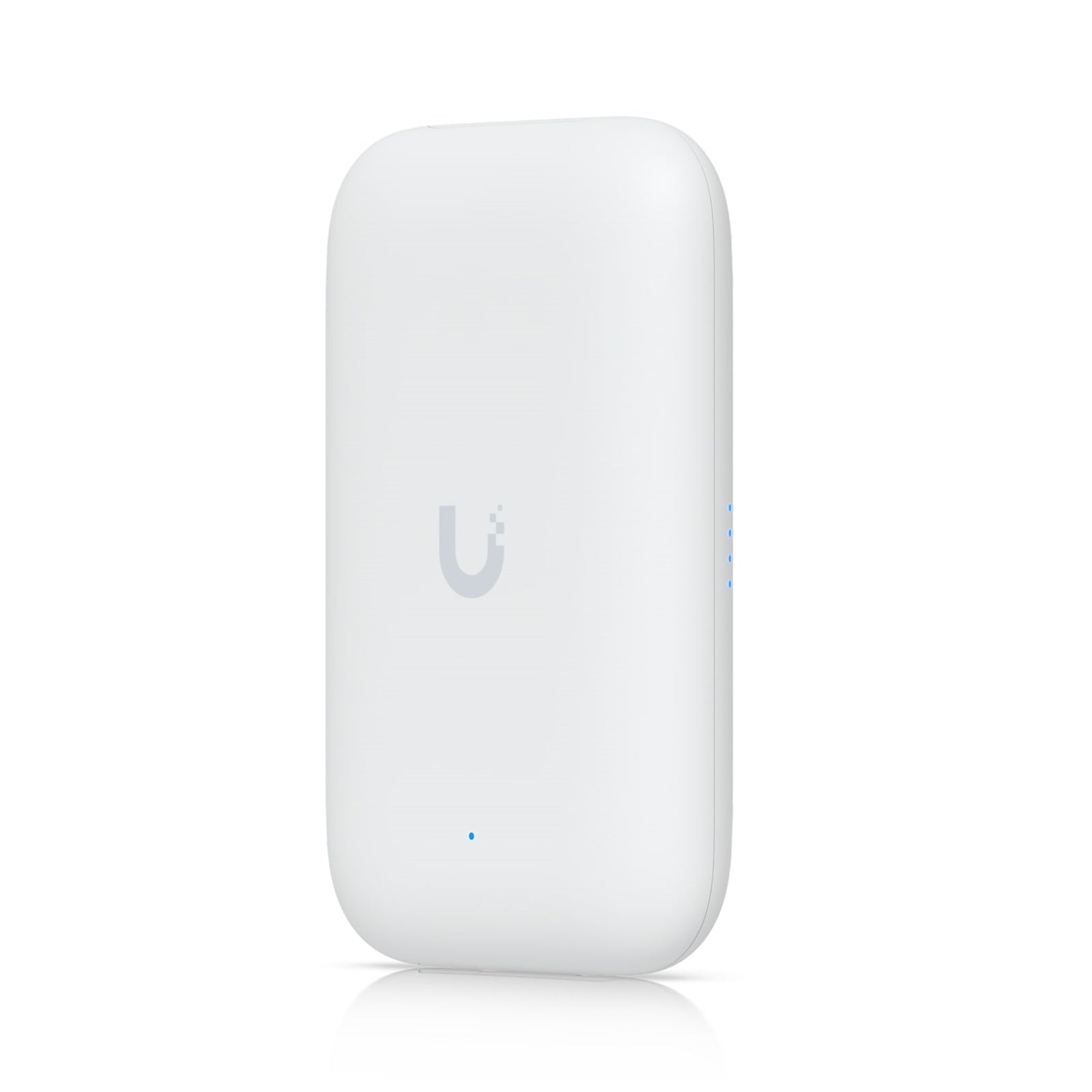

Ubiquiti UniFi UK-Ultra "Swiss Army Knife" Access Point
UniFi UK-Ultra supports wireless standards 8021.11a/b/g/n/ac in a 2x2 MIMO configuration for both frequency bands and can handle 200+ connected clients.

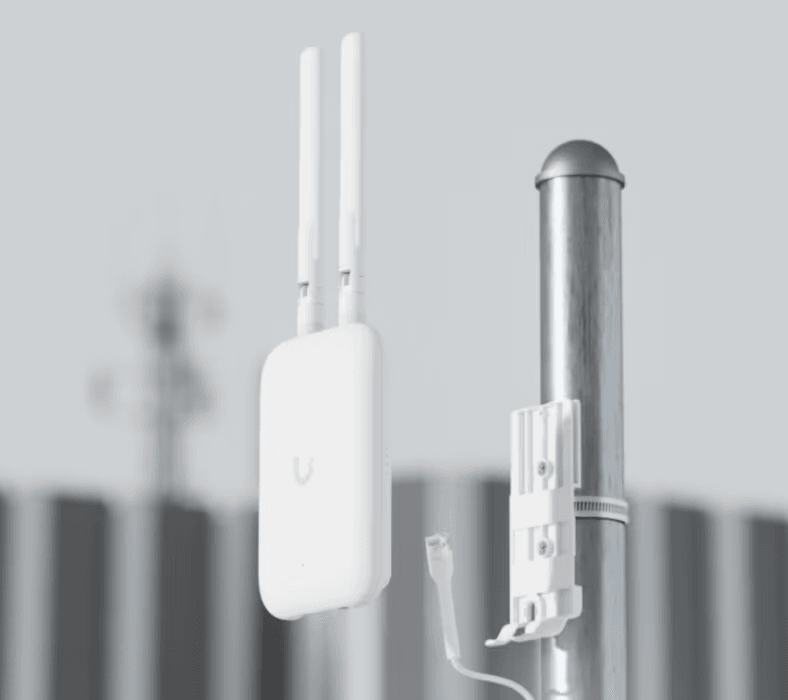

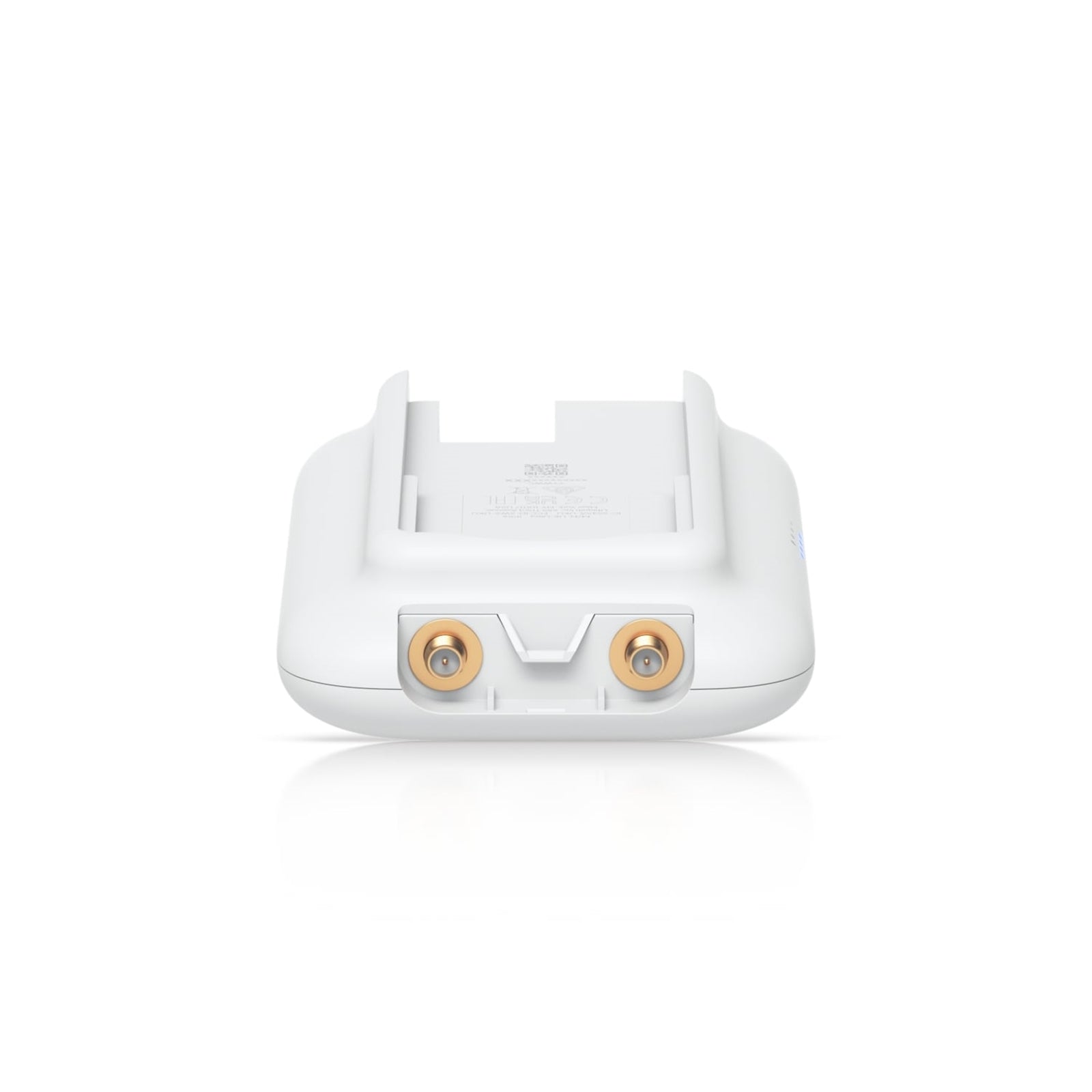

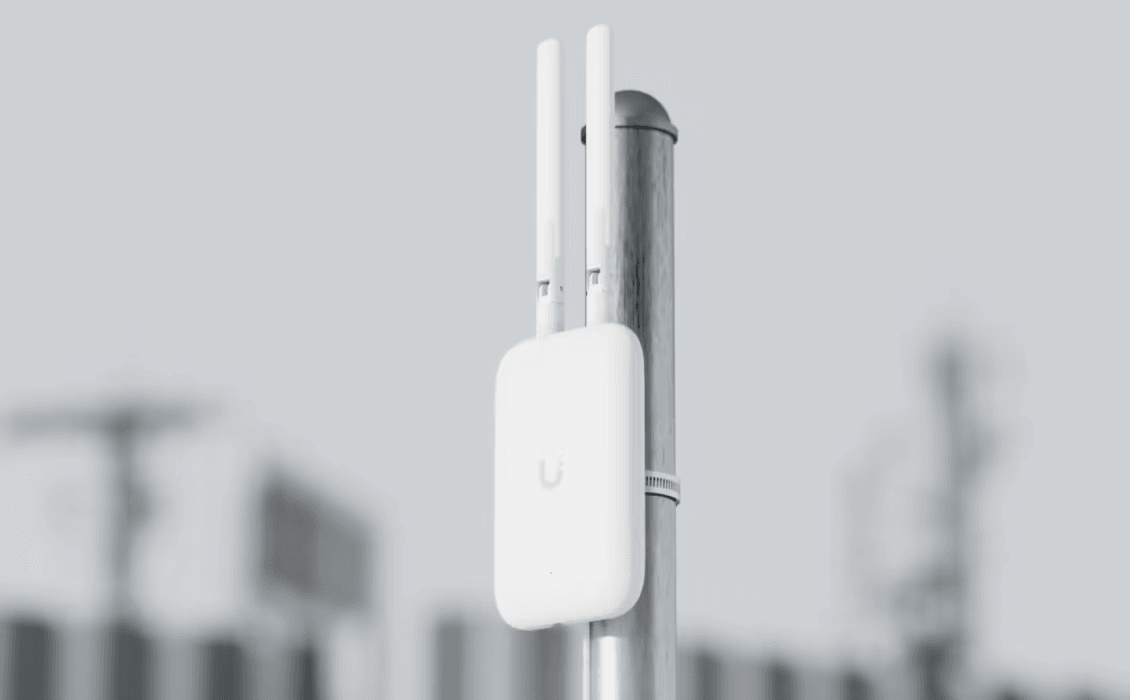

UniFi UK-Ultra fearures a pair of RSMA connectors, where an omnidirectional or sectoral external antenna can be connected to increase the transmitter's range.

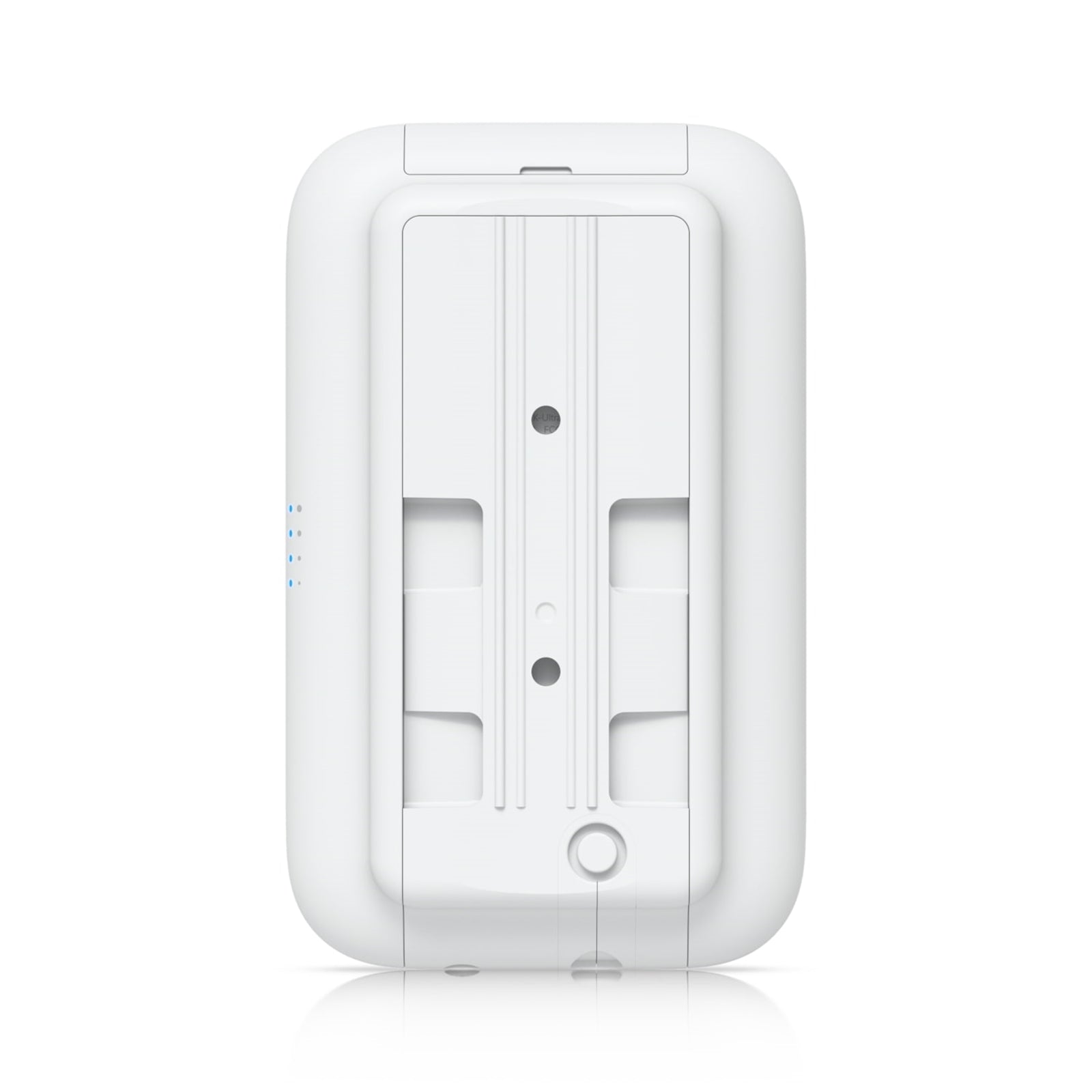

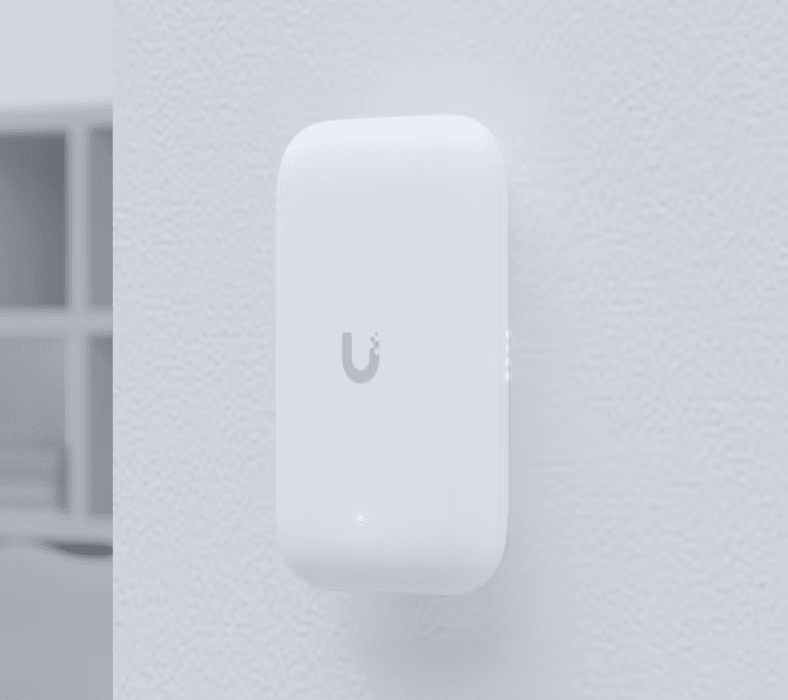

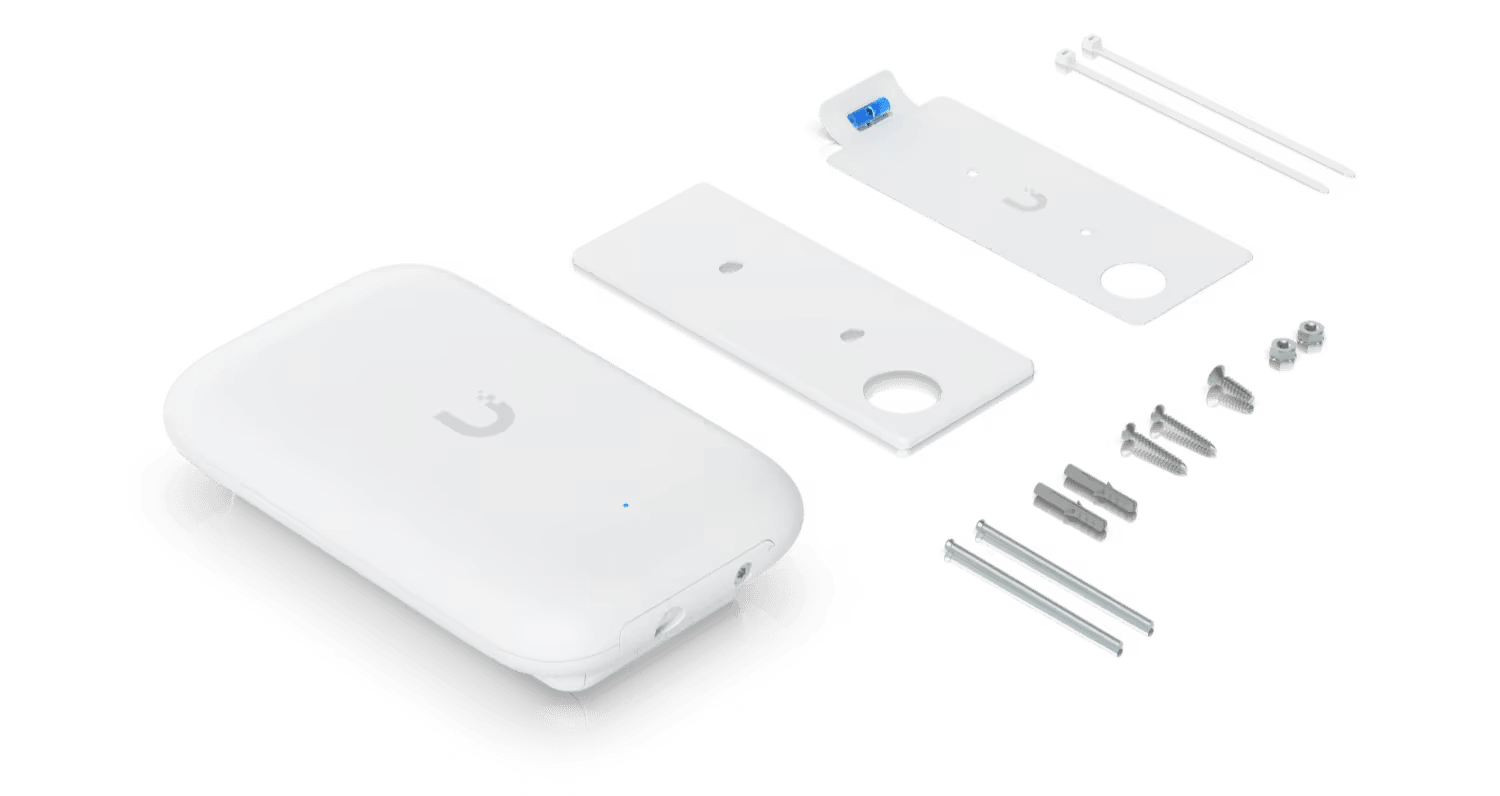

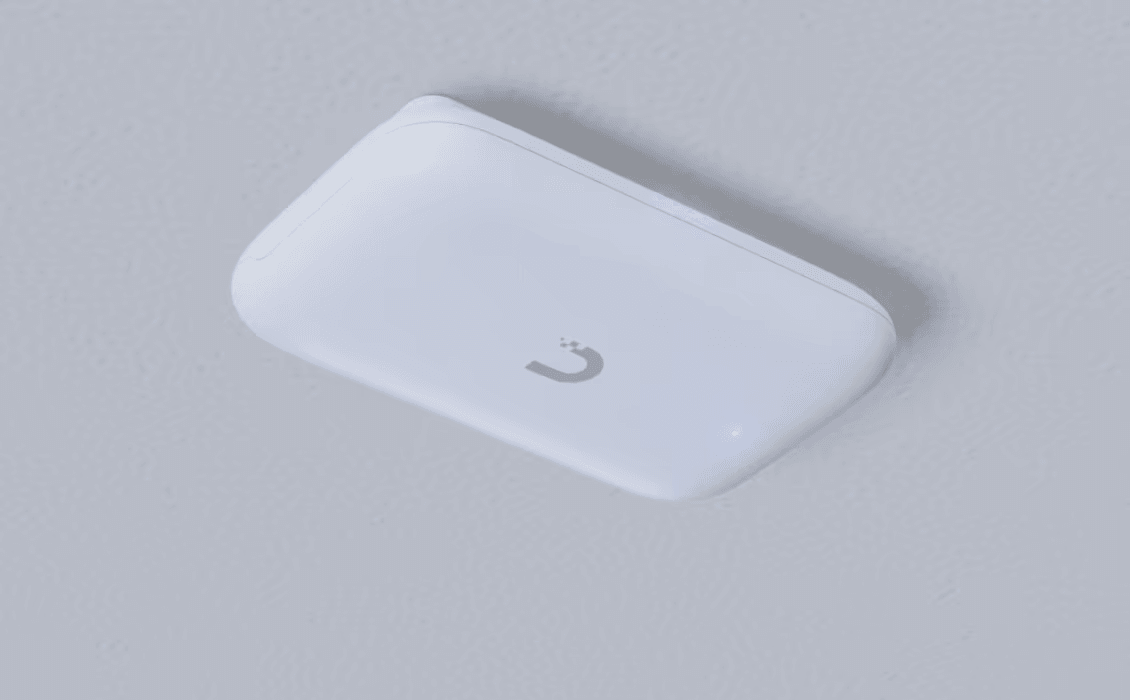

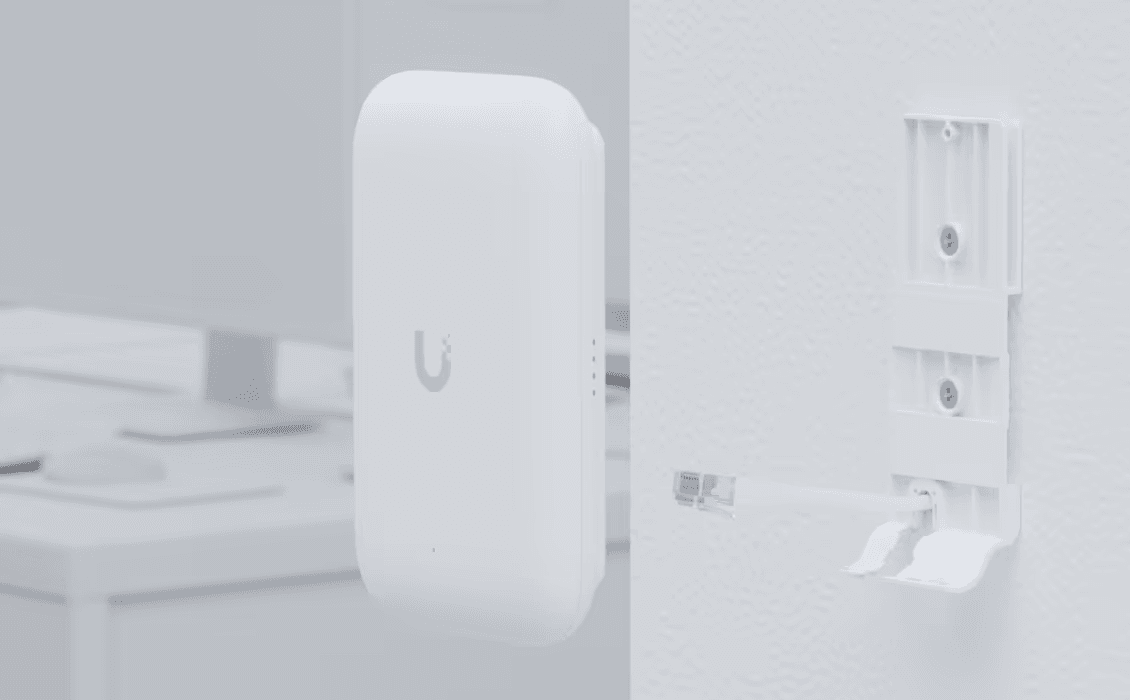

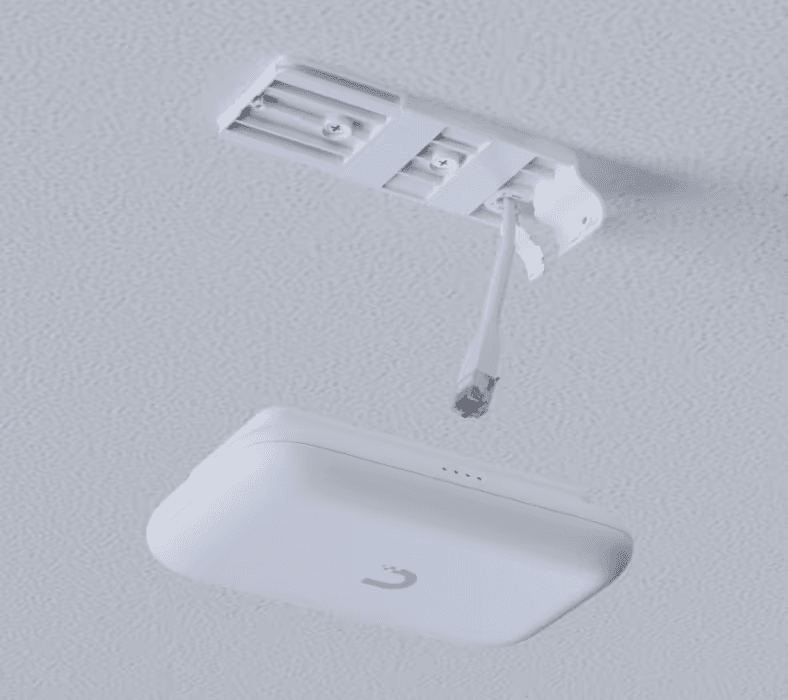

The UniFi UK-Ultra Access Point offers a wide range of mounting options on walls, ceilings, or poles, with mounting accessories included in the package.
| Technical Specifications | Details |
|---|---|
| Mechanical | |
| Dimensions | 137 x 84 x 34 mm (5.4 x 3.3 x 1.3") |
| Weight | 173 g (6.1 oz) |
| Enclosure material | UV-stabilized polycarbonate |
| Mount material | Polycarbonate, SGCC steel, plastic |
| Pole mount diameter | 1~2" on pipe outer diameter |
| Wind survivability | 33.2 N at 200 km/h (7.5 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |

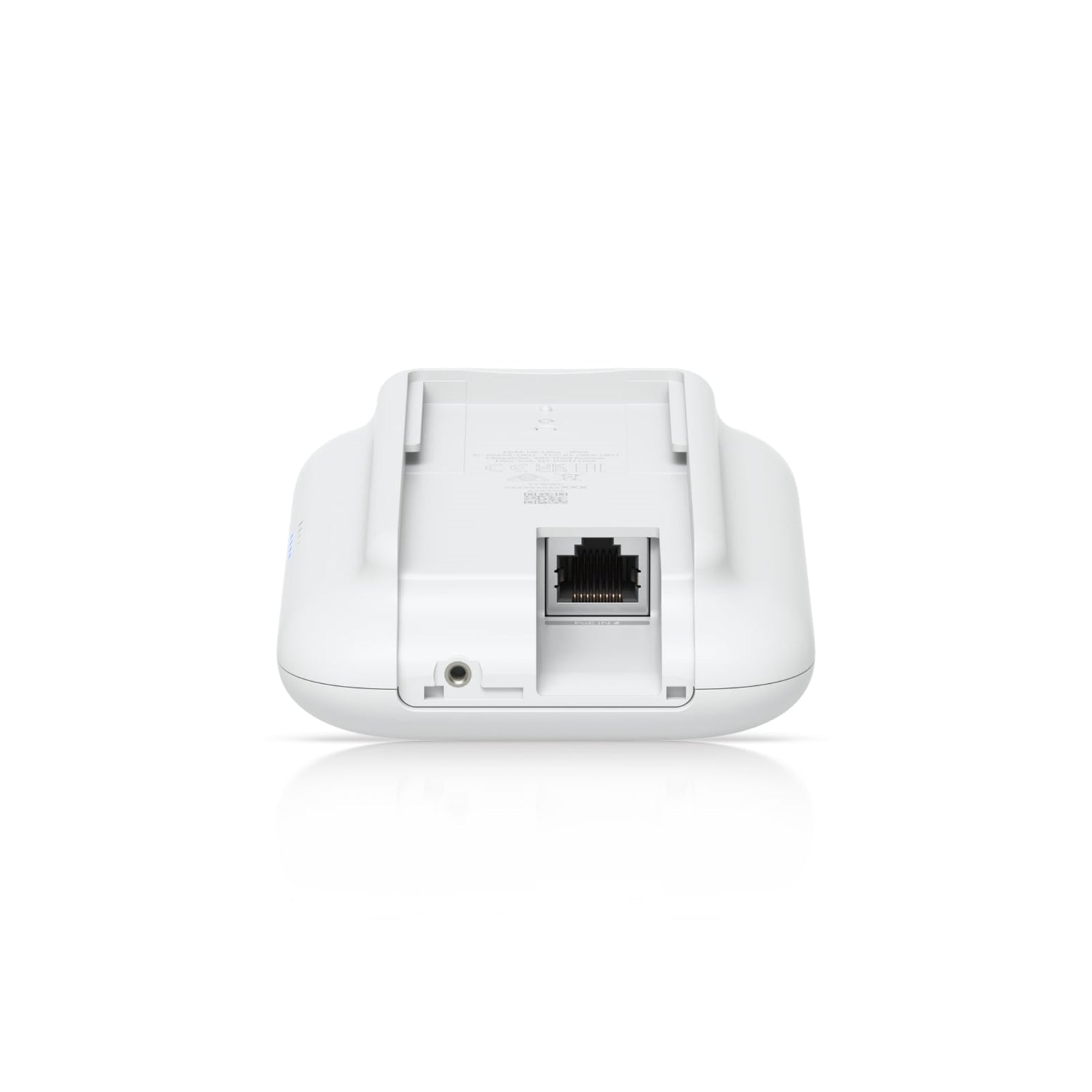

| Networking interface | (1) GbE RJ45 port |
| Management interface | Ethernet |
| Power method | PoE |
| Power supply | UniFi PoE Switch |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 8W |
| Max. TX power | |
| 2.4 GHz | 20 dBm |
| 5 GHz | 20 dBm |
| 6 GHz | - |
| MIMO | |
| 2.4 GHz | 2 x 2 |
| 5 GHz | 2 x 2 |
| 6 GHz | - |
| Throughput rate | |
| 2.4 GHz | 300 Mbps |
| 5 GHz | 866.7 Mbps |
| 6 GHz | - |
| Antenna gain | |
| 2.4 GHz | 4.7 dBi |
| 5 GHz | 6.1 dBi |
| 6 GHz | - |
| Antenna | (1) Internal antenna (2) RP-SMA connectors for optional external antennas |
| LEDs | (1) Power: white/blue (4) Mesh signal: blue |
| Button | Factory reset |
| Mounting | Wall, ceiling, pole (Included) |
| Ambient operating temperature | -40 to 60° C (-40 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 200+ |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| Application Requirements | |
| UniFi Network | Web: Version 8.0.7 and later iOS™: Version 10.11.1 and later Android™: Version 10.10.1 and later |
