Ubiquiti UniFi USW Flex Mini 5-Port Layer 2 Gigabit Switch - EU Power Supply (USW-Flex-Mini)

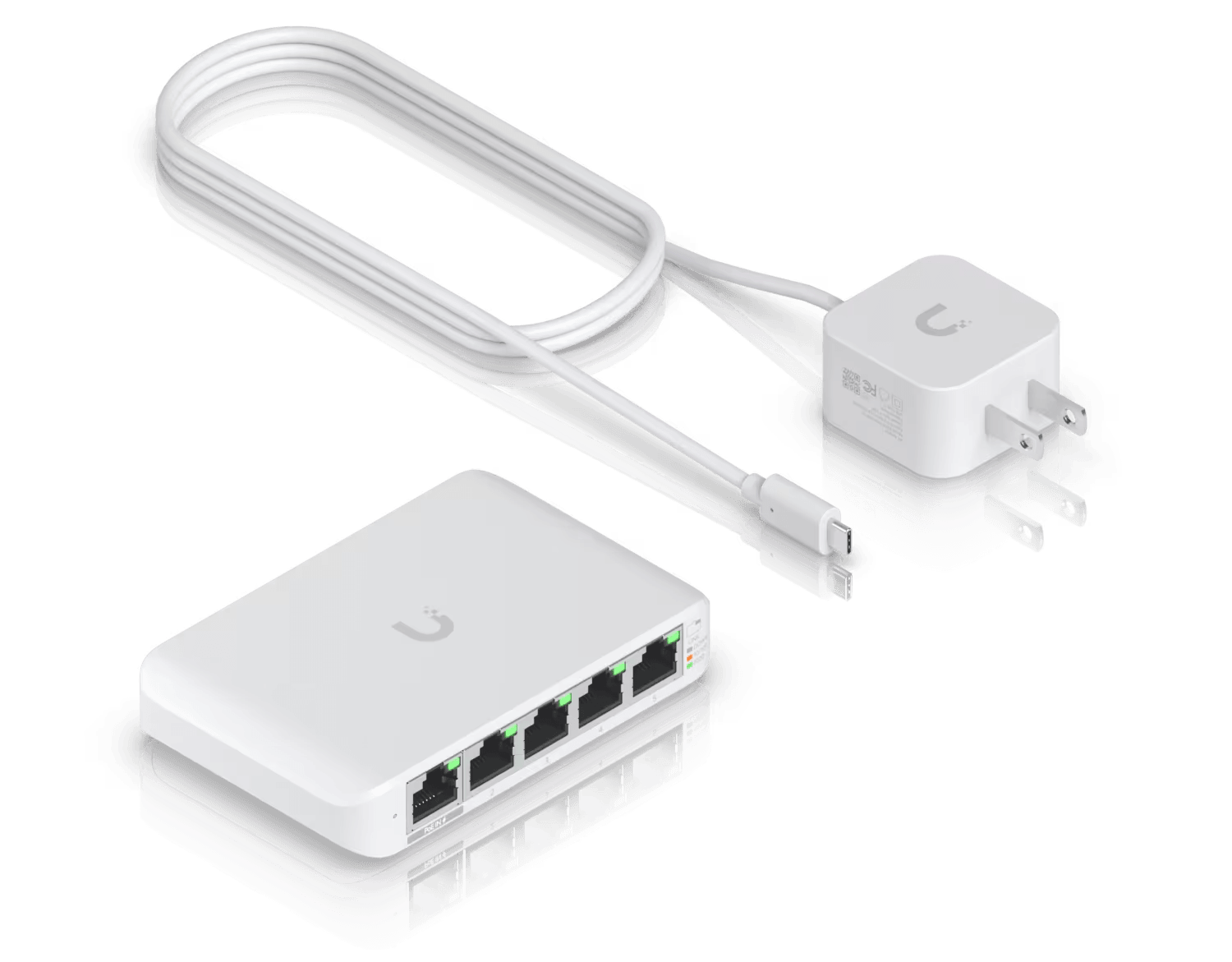

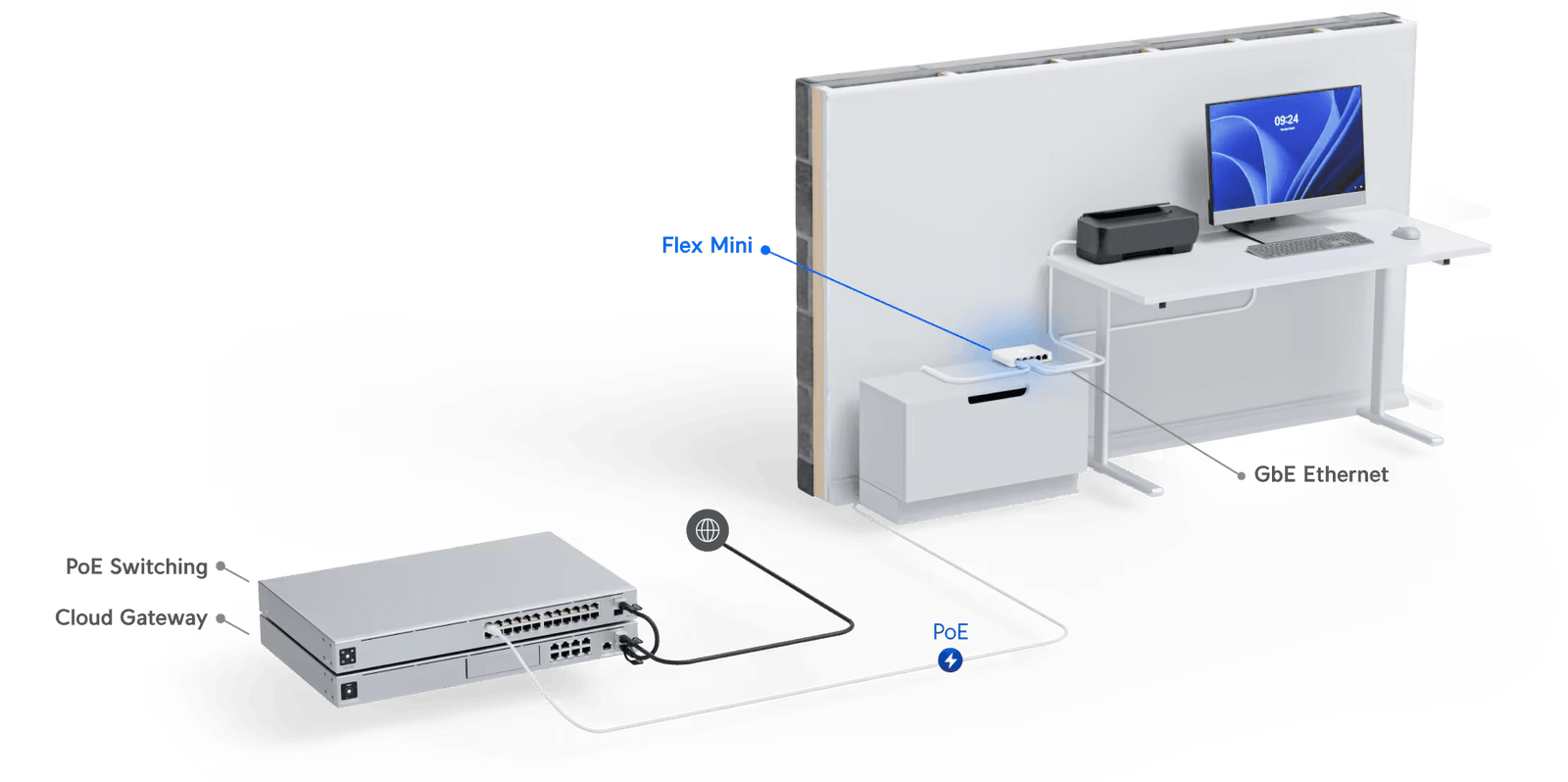

The UniFi USW-Flex-Mini is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices. Power up the USW-Flex-Mini with the included USB Type-C (european only) power adapter or with 802.3af PoE Ethernet in port 1.
Ubiquiti UniFi USW-Flex-Mini Key Features
Powered by 802.3af/at PoE or USB Type C (european only)
Compact Desktop Footprint
Energy-Efficient Design
5x 10/100/1000 RJ45 ports
1x 802.3af/at PoE input port
Compact Desktop Design
The cost-effective UniFi Switch Flex Mini can be discreetly integrated into any environment.

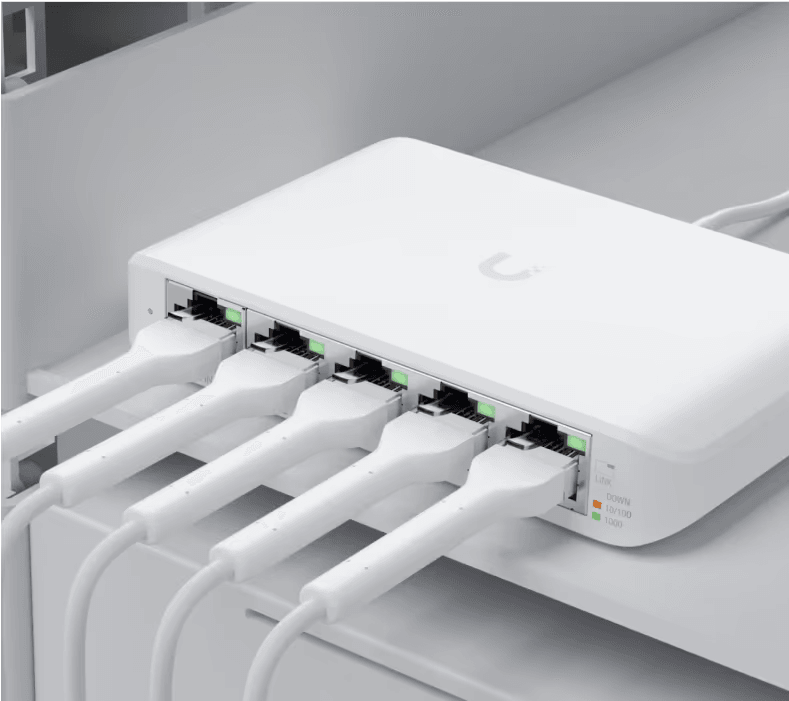

Copper Connectivity
Five RJ45 ports offer 10/100/1000 links. One port also supports 802.3af/at PoE input.
Efficient Use of Energy
The UniFi Switch Flex Mini uses only a maximum of 2.5W. For your convenience, it can be powered by 802.3af/at PoE or a 5V, 1A USB-C power adapter (european only)
Switching Performance
The UniFi Switch Flex Mini offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

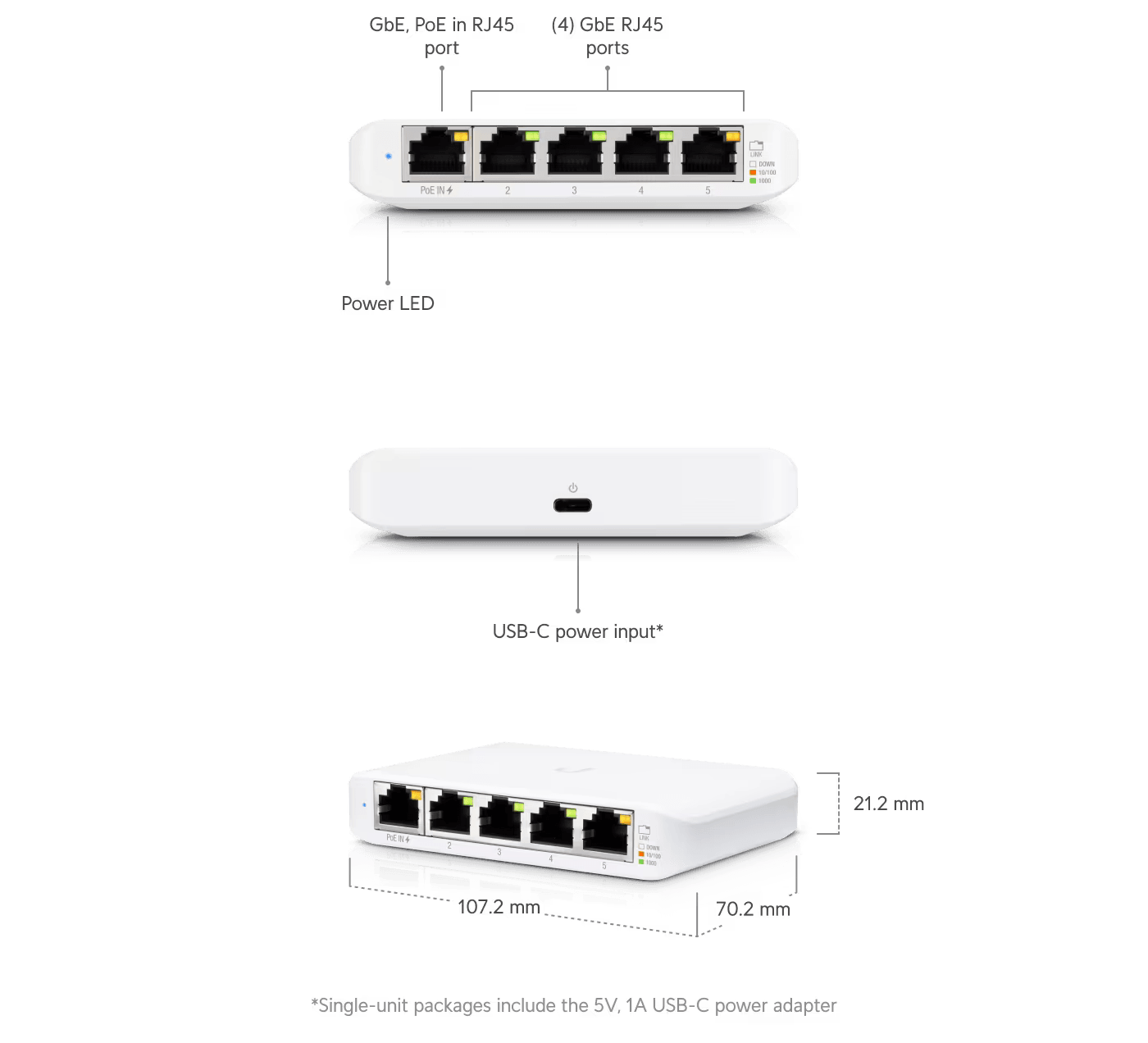

| Technical Specifications | |
|---|---|
| Mechanical | |
| Dimensions | 107 x 70 x 21 mm (4.2 x 2.8 x 0.8") |
| Weight | 150 g (5.3 oz) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (5) GbE RJ45 ports |
| Total non-blocking throughput | 5 Gbps |
| Switching capacity | 10 Gbps |
| Forwarding rate | 7.44 Mpps |
| Power method | (1) USB Type C, 5V |
| (1) PoE/PoE+, 44—57V DC, 0.05—0.04A | |
| Power supply | 5V, 1A power adapter* |
| Supported voltage range | USB Type C: 4.7—5.3V DC |
| PoE/PoE+: 44—57V DC | |
| Max. power consumption | 2.5W |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| Button | Factory reset |
| Ambient operating temperature | -5 to 45° C (23 to 113° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | Port isolation |
| Storm control | |
| Port mirroring | |
| Multicast / broadcast rate limiting | |
| Flow control | |
| Jumbo frames | |
| Egress rate limit | |
| Layer 3 features | – |
| LEDs | |
| System | Status |
| Ethernet | Speed/link/activity |
| Application Requirements | UniFi Network Version 5.12.5 and later |
