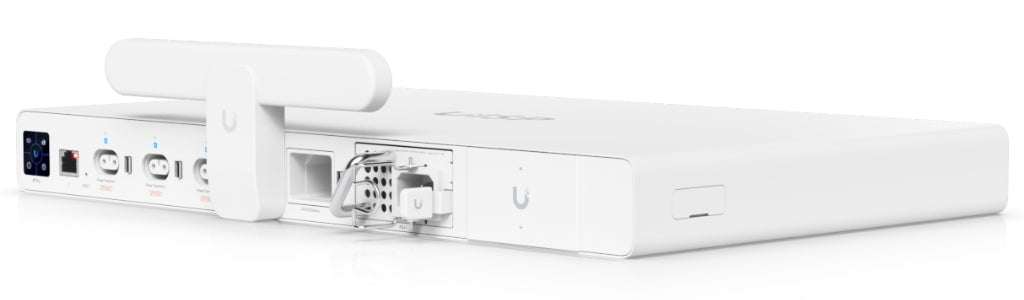

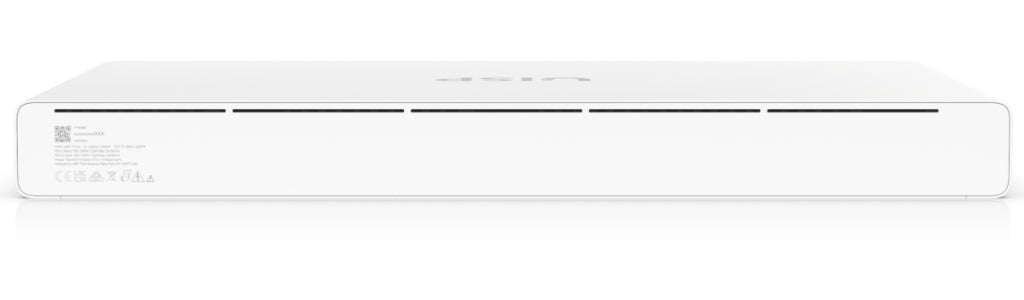

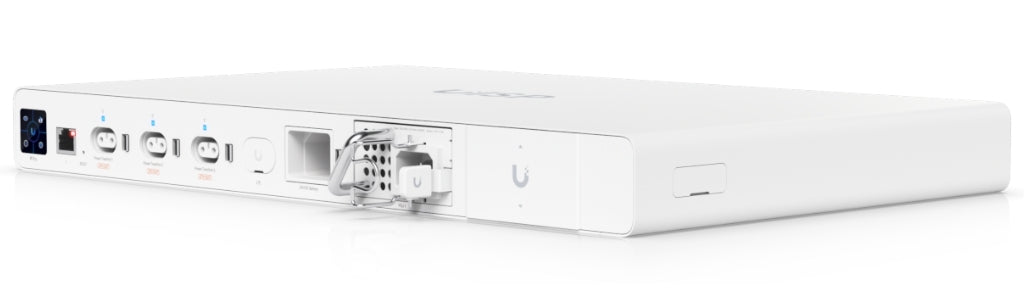

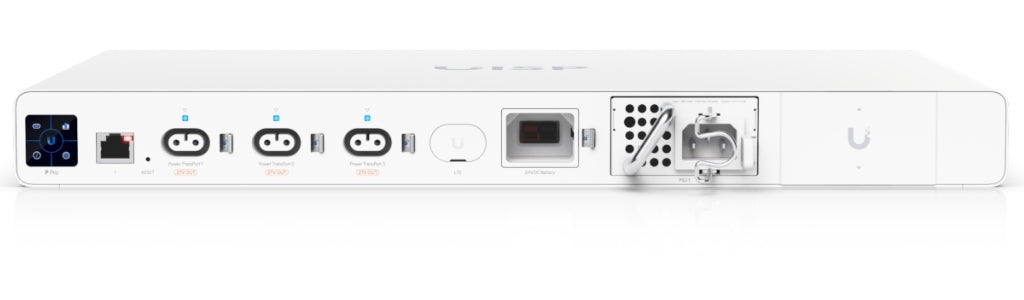

Ubiquiti UISP Power Pro (UISP-P-Pro)
The Ubiuqiti UISP Power Pro offers uninterruptible power management system designed to support high-capacity WISP deployment sites.
Ubiquiti UISP-P-Pro Key Features
(3) Power TransPort outputs
Delivers up to 480W* (27V DC) to supported UISP devices
(2) PSU bays with (1) 250W AC/DC Power Supply included
(1) DC battery port for an external 24V lead-acid battery (not included)
Supports SMS-over-LTE (Cat M1) notification**
Compatible with UISP Console, UISP Router (installed with UISP Box), UISP Router Pro, UISP Switch (installed with UISP Box), UISP Switch Pro
| Specifications | Details |
|---|---|
| Mechanical | |
| Dimensions | 442.4 x 267.5 x 43.7 mm (17.4 x 10.5 x 1.7") |
| Weight | 4.16 kg (9.2 lb) |
| Enclosure materials | SGCC steel, polycarbonate/ABS |
| Hardware | |
| Networking interface | (1) 10/100 MbE RJ45 LAN port |
| Management interface | Ethernet In-Band |
| Bluetooth | |
| Power TransPort interface | (3) Power TransPort ports [up to 250W (27V DC) output each] |
| Total output | 240W (27V DC) with 1 PSU / 480W (27V DC) with 2 PSUs |
| Primary power | (2) Universal AC inputs (100–240V AC, 3.5A Max., 50/60Hz) |
| Backup power | (1) 24V DC, 20.83A lead-acid battery input* |
| Supported voltage range | 100 to 240V AC |
| Max. power consumption | 3W (Excludes Power TransPort output and battery charger.) |
| ESD/EMP protection | Air: ±15 kV / Contact: ± 8 kV |
| LCM display | 1.3" touchscreen |
| Ambient operating temperature | -10 to 50° C (14 to 122° F) |
| Ambient operating humidity | 5 to 95% non-condensing |
| Certifications | CE, FCC, IC, PTCRB, AT&T |
| LTE | |
| Antenna | External (included) |
| SIM | Nano-SIM |
| Category | Cat M1 |
| Bands | US/Canada: FDD-LTE Bands 2, 4, 12, 13 (AT&T Network-Ready) |
| EU: FDD-LTE Bands 1, 3, 8, 20, 28 | |
| Notification type | SMS (Requires a nano-SIM card from a Cat M1 SMS provider.) |
| Input rating | 5V DC, 0.5A |
| LEDs | |
| System | Status |
| RJ45 data ports | Link/activity |
| Power TransPort | On/Off |
| Compatibility | |
| Supported models | UISP Console |
| UISP Router (installed with UISP Box) | |
| UISP Router Pro | |
| UISP Switch (installed with UISP Box) | |
| UISP Switch Pro | |
| Software | |
| Management application | UISP: Version 1.4.8 and later |
