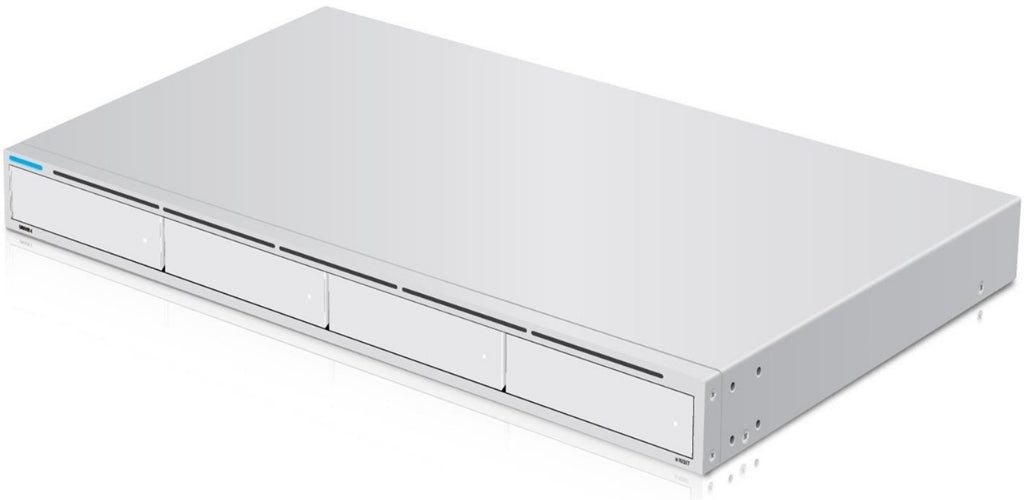

Ubiquiti UNVR UniFi Protect 4 Bay Network Video Recorder
SKU: UNVR
£246.71 (Excl. VAT)
- Description
- Specifications
-
Ubiquiti UNVR UniFi Protect 4 Bay Network Video Recorder
Enterprise network video recorder, can provide up to 30 days of 4K video storage for 15 cameras or Full HD video storage for 50 cameras

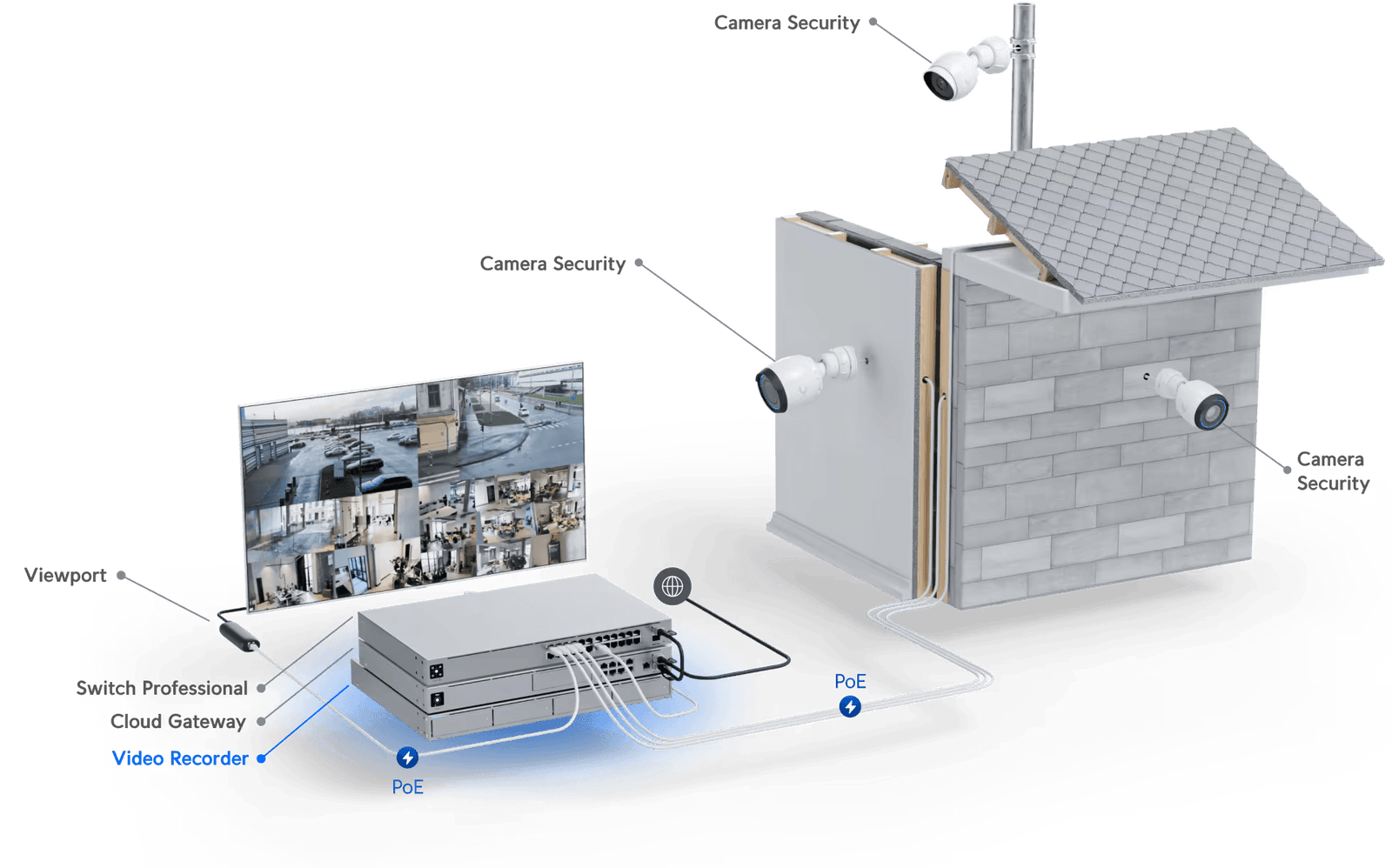

The UniFi NVR is an enterprise network video recorder that integrates an NVR, the UniFi Protect software, and a 4-drive bay. UNVR unifies enterprise-class data protection and scalable storage with simple Plug and Play integration using the intuitive UniFi Protect software. From a desktop computer or mobile device, you can access your surveillance recordings from virtually anywhere using the intuitive graphical user interface. The mobile app is available for iOS and Android-based devices. The drive bays are easily accessed from the front panel, so hard drive mounting and maintenance are simple. Using four 8 TB drives in a RAID 5 configuration, the UNVR can provide up to 30 days of 4k video storage for 15 cameras or Full HD video storage for 50 cameras.
Features

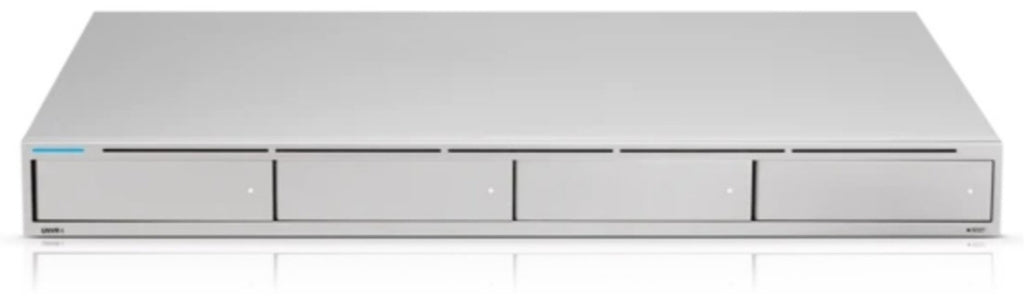

(4) 2.5"/3.5" Drive bays

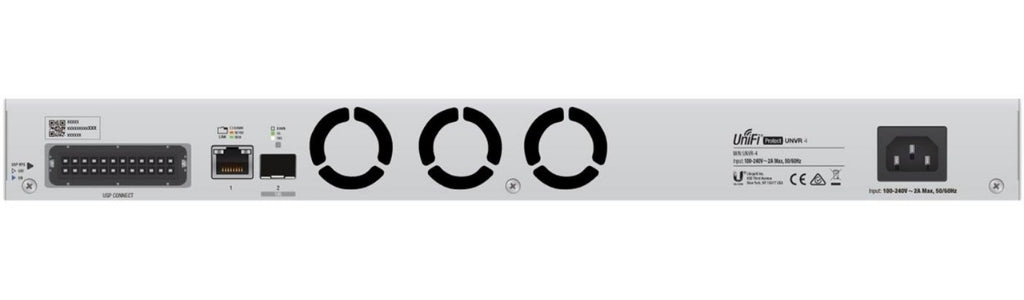

(1) 10G SFP+ port
(1) Gigabit RJ45 port

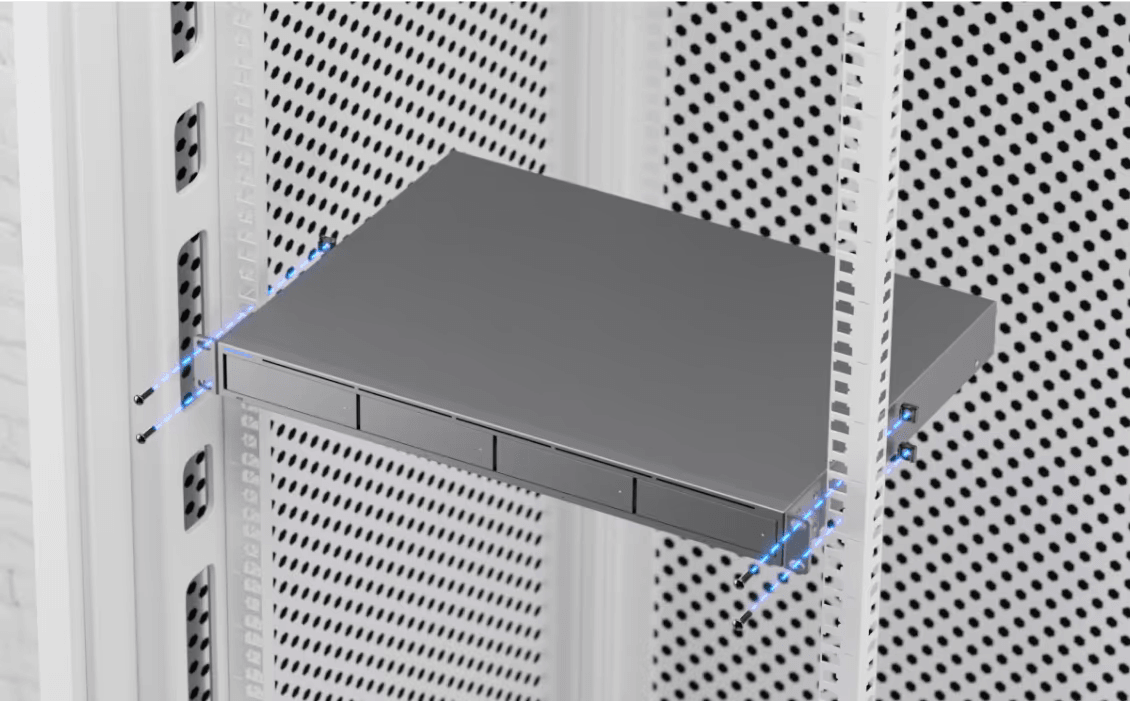

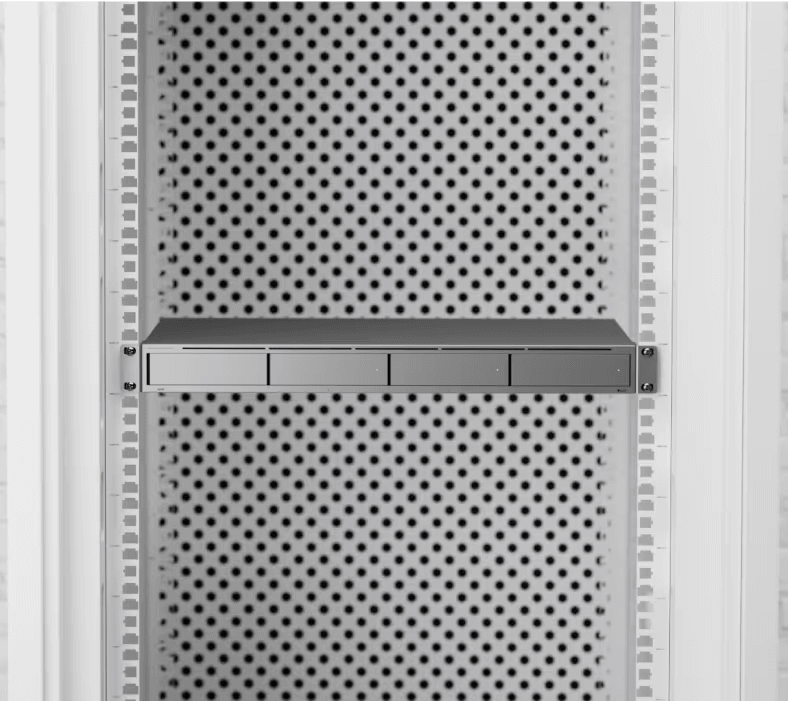

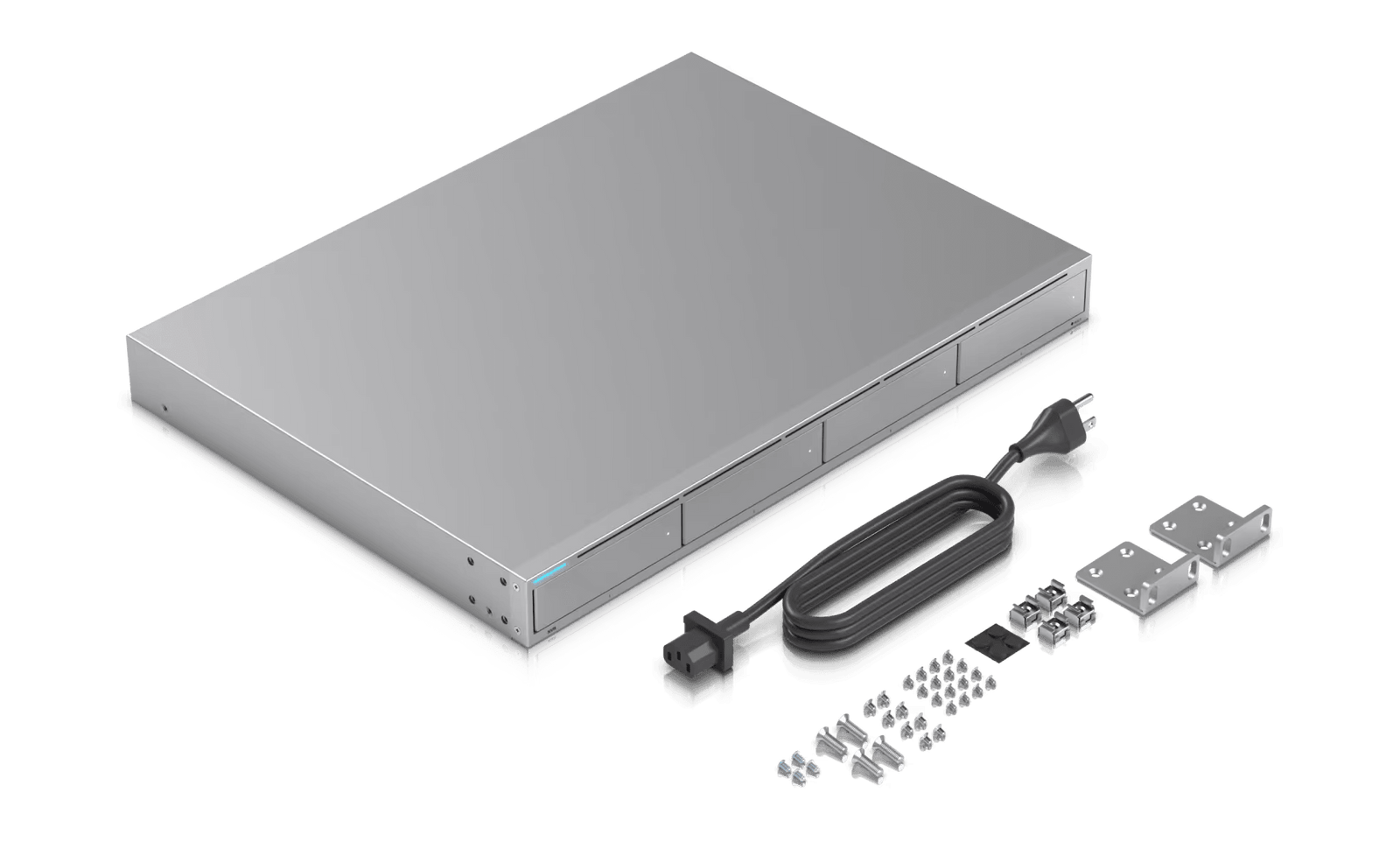

1U rackmountable (kit included)
Plug and Play UniFi Protect system with NVR
Automated secure RAID 1 or RAID 5 configuration
Supports USP-RPS for PSU failover
-
Technical Specifications Details Mechanical Dimensions 442 x 325 x 44 mm (17.4 x 12.8 x 1.7") Weight Without mounting brackets: 5.1 kg (11.3 lb) With mounting brackets: 5.2 kg (11.5 lb) Enclosure material SGCC steel Mount material SGCC steel Hardware Management interface Ethernet In-Band Networking interface (1) GbE RJ45 port (1) 1/10 GbE SFP+ port Power method (1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 10.43A Power supply AC/DC, internal, 120W Supported voltage range 100—240V AC Max. power consumption 100W Max. power budget for Drives 75W ESD/EMP protection Air: ± 12kV, contact: ± 8kV Ambient operating temperature -5 to 40° C (23 to 104° F) Ambient operating humidity 5 to 95% noncondensing Certifications FCC, CE, IC LEDs System (1) Power: blue/white Flashing white: bootup in progress Flashing blue: firmware upgrading Steady white: factory defaults, awaiting adoption Steady blue: device is adopted Ethernet Green: 1 Gbps Amber: 10/100 Mbps SFP+ White: 10 Gbps Green: 1 Gbps HDD White: disk detected Amber: disk error RPS Blue: ready
