Official Partner

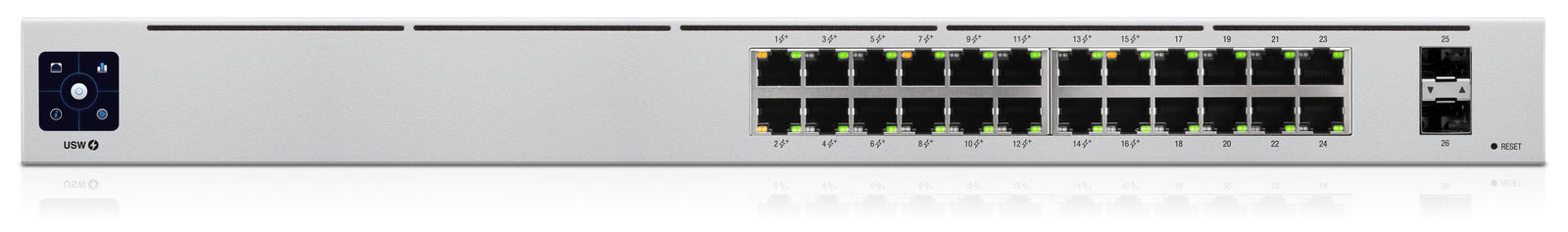

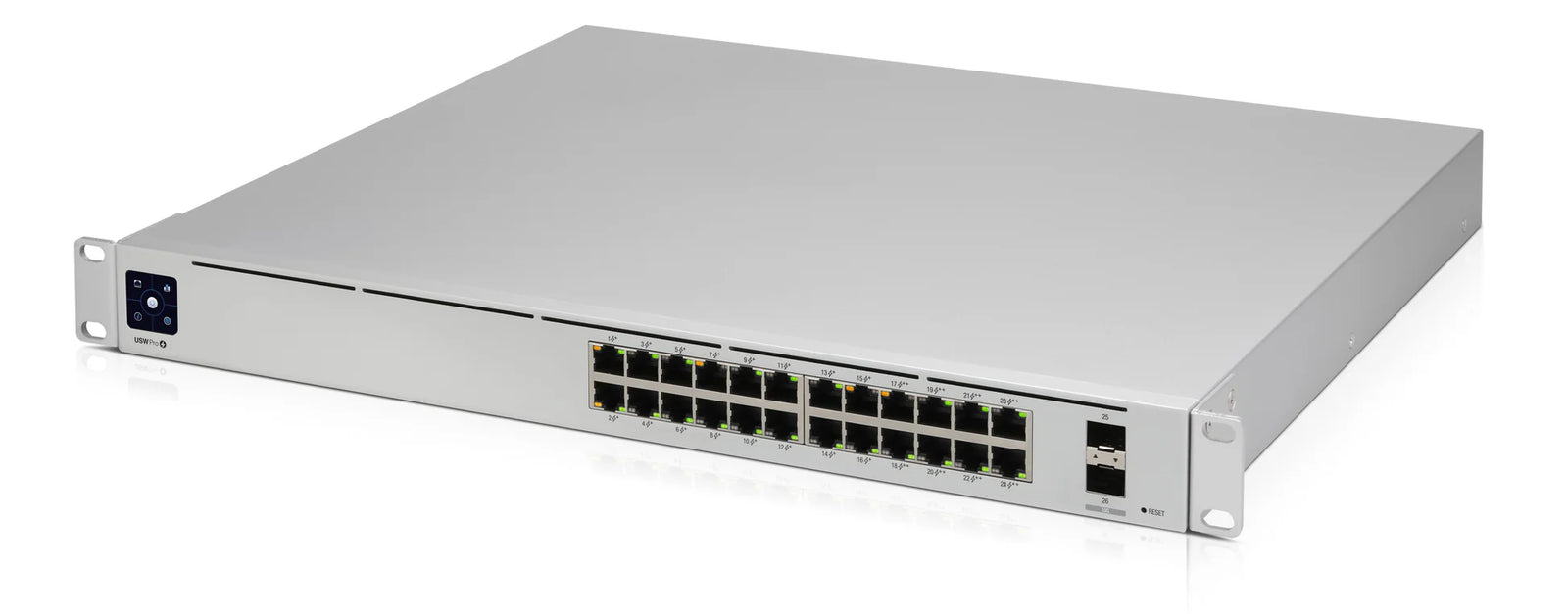

A 24-port, Layer 3 switch capable of high-power PoE++ output.
(16) GbE PoE+, (8) GbE PoE++ ports
(2) 10G SFP+ ports
400W total PoE availability
DC power backup-ready
Layer 3 switching
Near-silent cooling1
| Mechanical | Specifications |
|---|---|
| Dimensions | 442.4 x 285.4 x 43.7 mm (17.4 x 11.2 x 1.7 inches) |
| Weight | Without mounting brackets: 4.3 kg (9.5 lb) |
| With mounting brackets: 4.4 kg (9.7 lb) | |
| Enclosure material | SGCC steel |
| Hardware | Specifications |
|---|---|
| Management interface | Ethernet In-Band |
| Networking interface | (24) GbE RJ45 ports |
| (2) 1/10G SFP+ ports | |
| PoE interface | (16) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| (8) 60W PoE++; PoE/PoE+ (Pins 1, 2+; 3, 6-) | |
| / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) | |
| Total non-blocking throughput | 44 Gbps |
| Switching capacity | 88 Gbps |
| Forwarding rate | 65.472 Mpps |
| Power method | Universal input, 100—240V AC, 50/60 Hz |
| USP RPS DC input, 52V DC, 7.69A / 11.5V DC, 2.61A | |
| Power supply | AC/DC, internal, 450W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 50W (Excluding PoE output) |
| Total available PoE | 400W |
| Max. PoE wattage per port by PSE | PoE+: 32W |
| PoE++: 64W | |
| Voltage range PoE mode | PoE: 44—57V |
| PoE+: 50—57V |
| LEDs | Specifications |
|---|---|
| System | Status |
| Ethernet | PoE, Speed/link/activity |
| SFP+ | Link/activity |
| RPS | Status |
| LCM display | Specifications |
|---|---|
| LCM display | (1) 1.3" touchscreen |
| Button | Specifications |
|---|---|
| Button | Factory reset |
| Shock and vibration | Specifications |
|---|---|
| Shock and vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | Specifications |
|---|---|
| Operating temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | Specifications |
|---|---|
| Operating humidity | 10 to 90% noncondensing |
| Certifications | Specifications |
|---|---|
| Certifications | CE, FCC, IC |
| Application Requirements | |
|---|---|
| UniFi Network | Version 5.10.5 and later |
