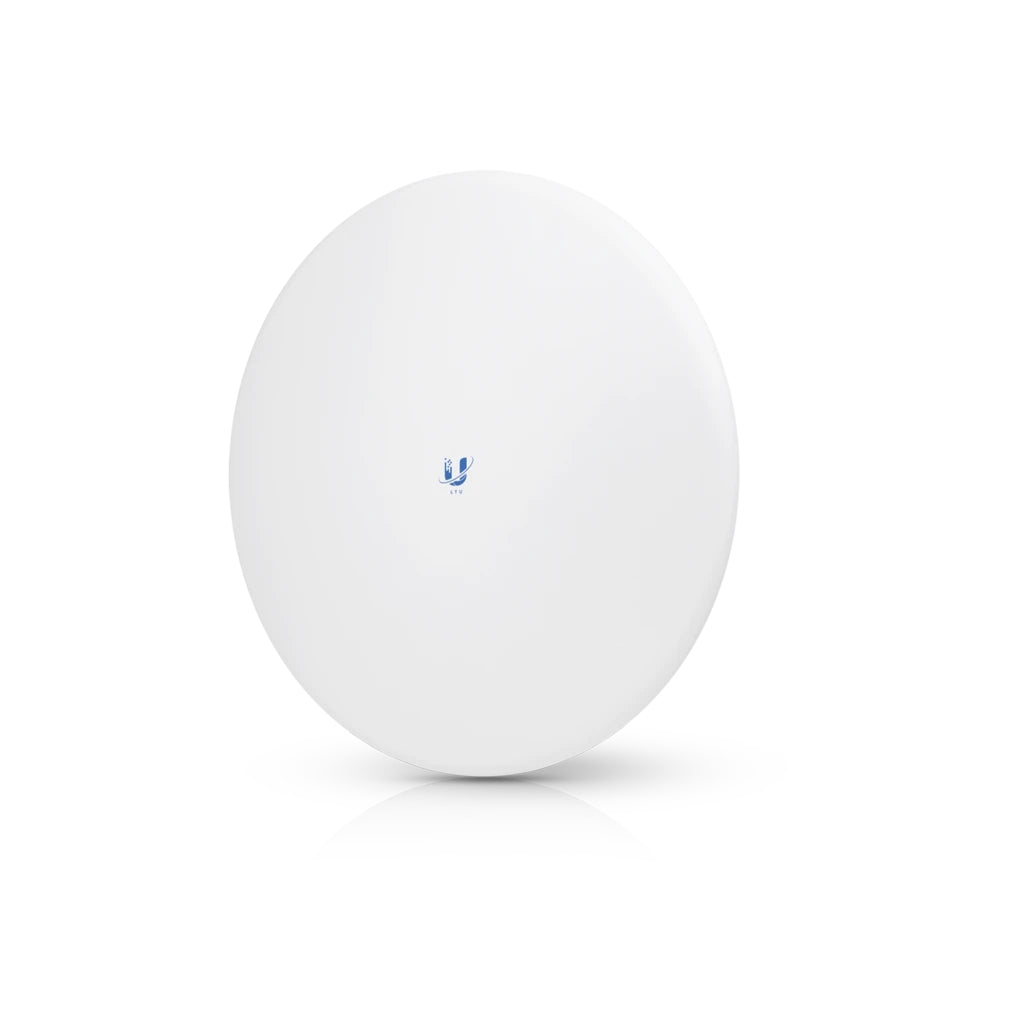

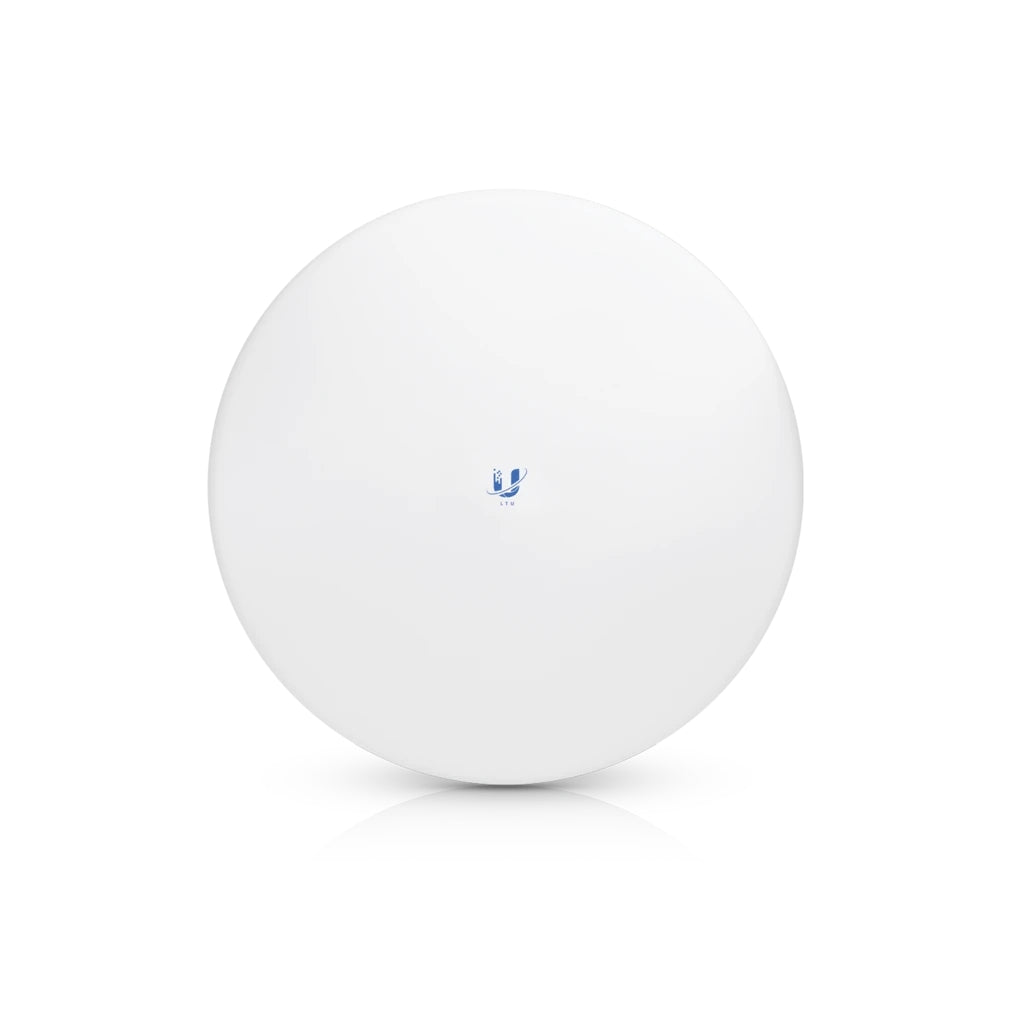

Ubiquiti LTU Pro 5 GHz PtMP LTU™ Client Radio with Advanced RF Performance (LTU-PRO)
The Ubiquiti LTU-PRO is a Point-to-MultiPoint (PtMP) 5 GHz high-performance subscriber station. Based on Ubiquiti’s proprietary LTU technology, the LTU Pro is not impeded by the limitations of standard 802.11 Wi-Fi technology. It features an integrated high-gain dish for long range and high performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference.
Ubiquiti LTU-PRO Key Features
Proprietary Ubiquiti® LTU Processor
Integrated 24 dBi Dish Antenna
10/20/30/40/50 MHz Channel Width Flexibility
PtMP CPE
1024 QAM
Central configuration management from AP side
Frequency split
Automatic power adjustments
Router mode support
Proprietary LTU Technology
Based on Ubiquiti’s LTU technology, the LTU Pro is not impeded by the limitations of standard 802.11 WiFi technology. Its custom LTU silicon and radio architecture provide up to 600+ Mbps of real TCP/IP throughput and modulation rates of up to 4096QAM.
CPE Modes
The LTU Lite supports both bridged and built-in hardware NAT router modes to suit your specific deployment.
Frequency Split
The LTU Lite can use different frequencies for TX and RX to avoid interference.

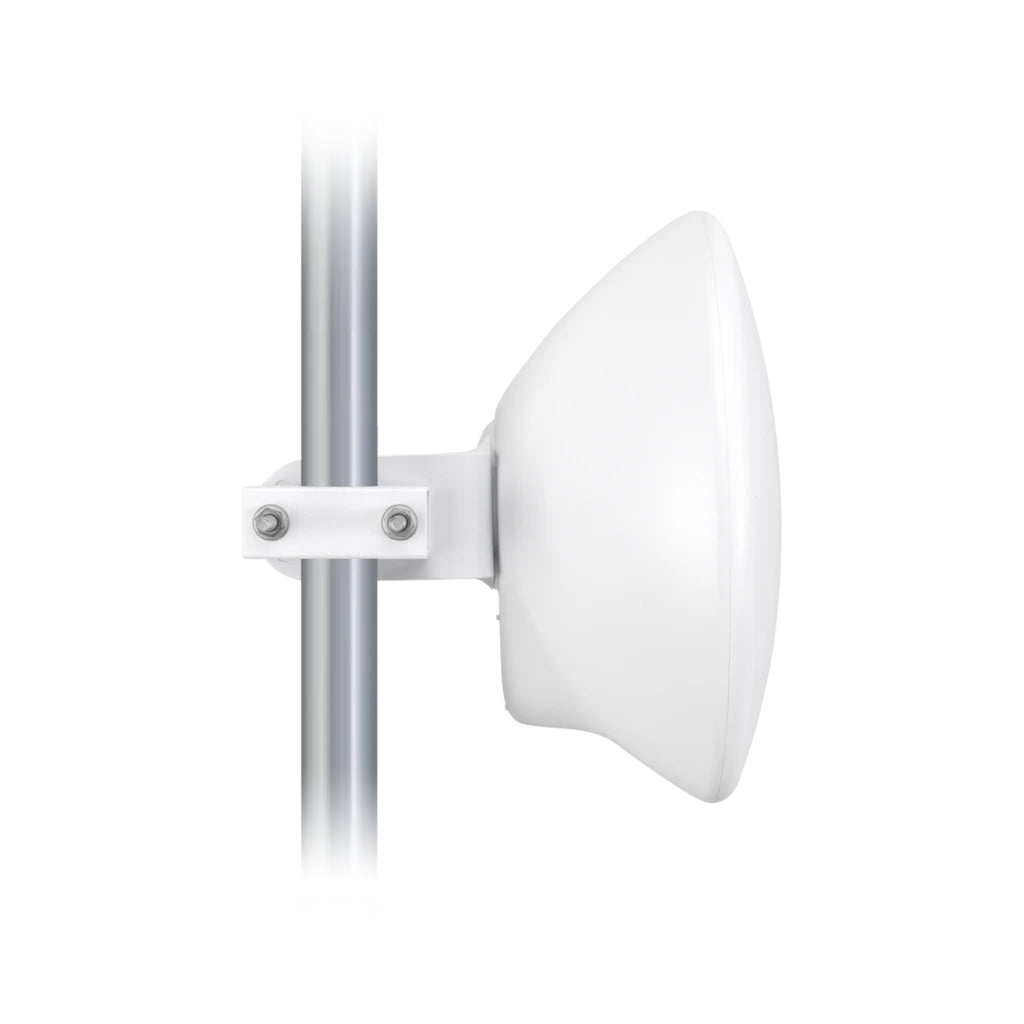

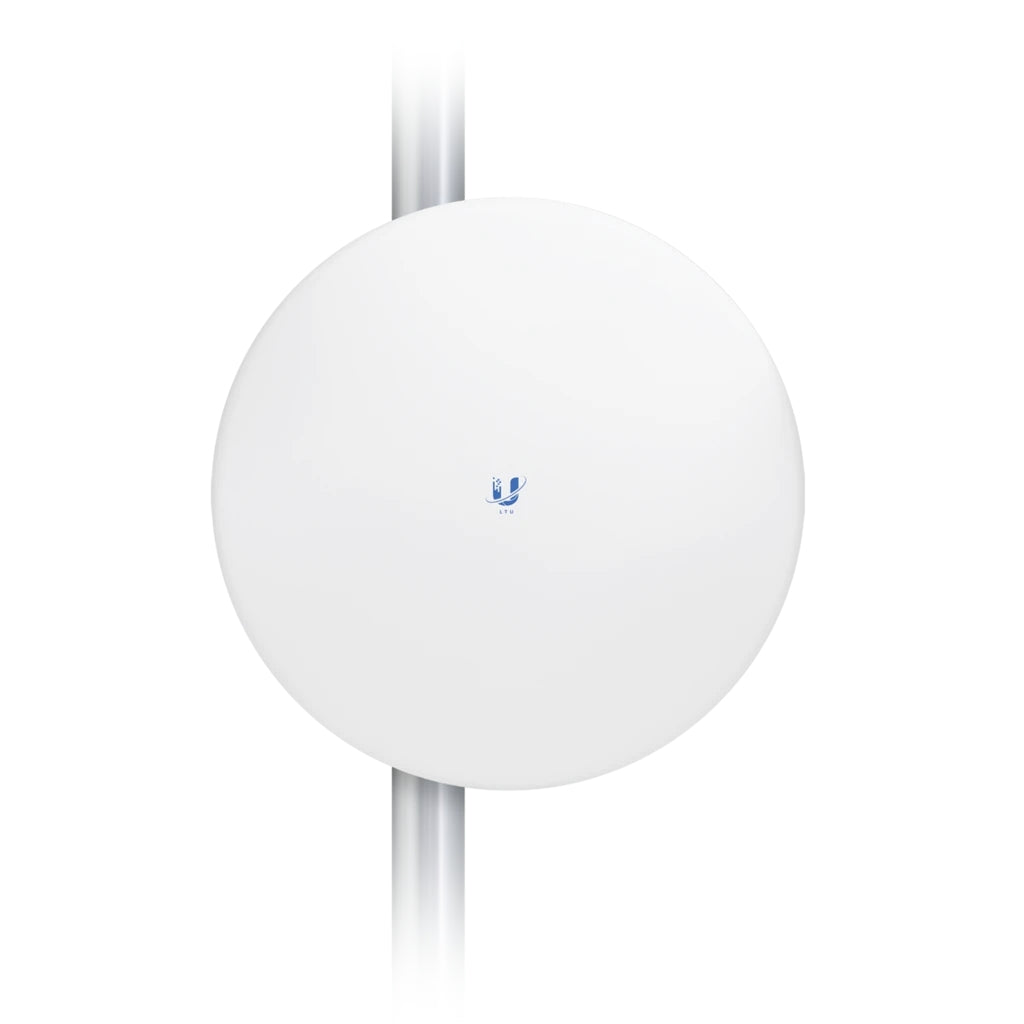

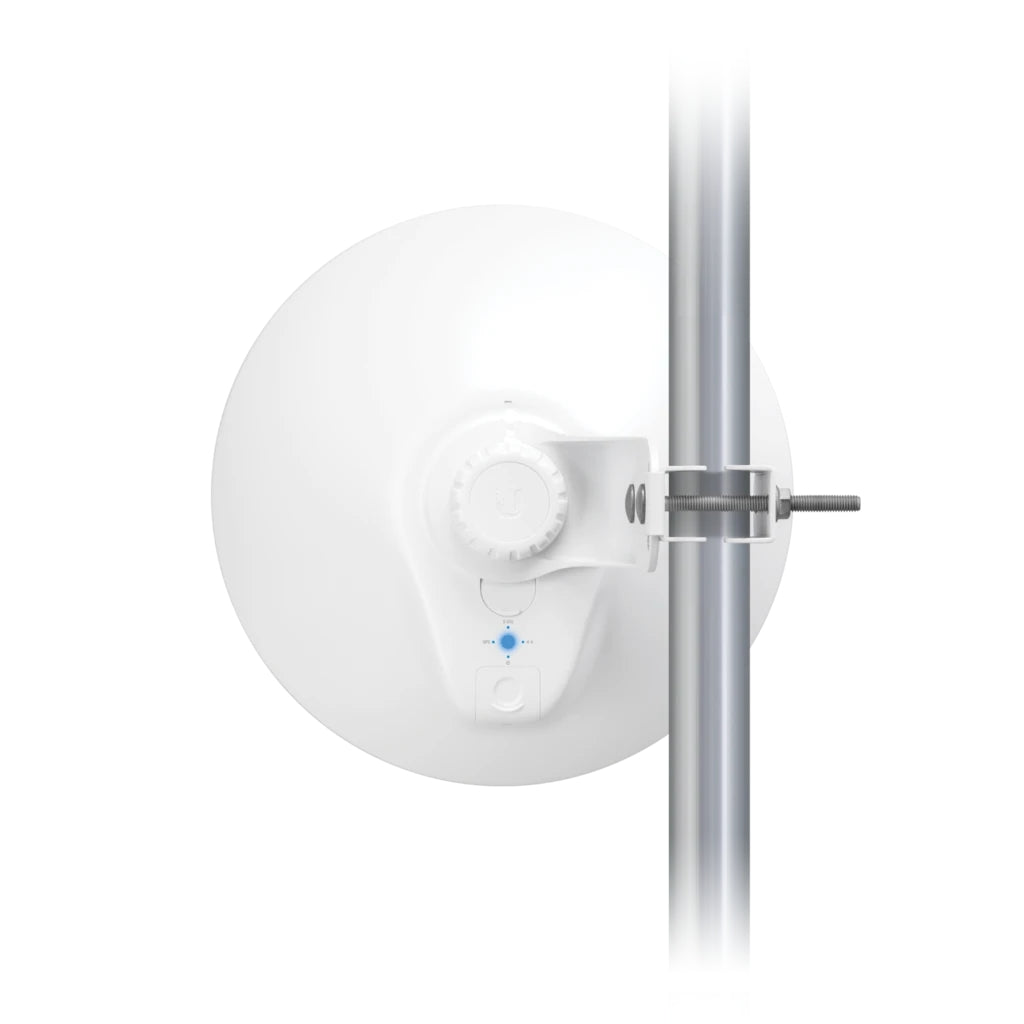

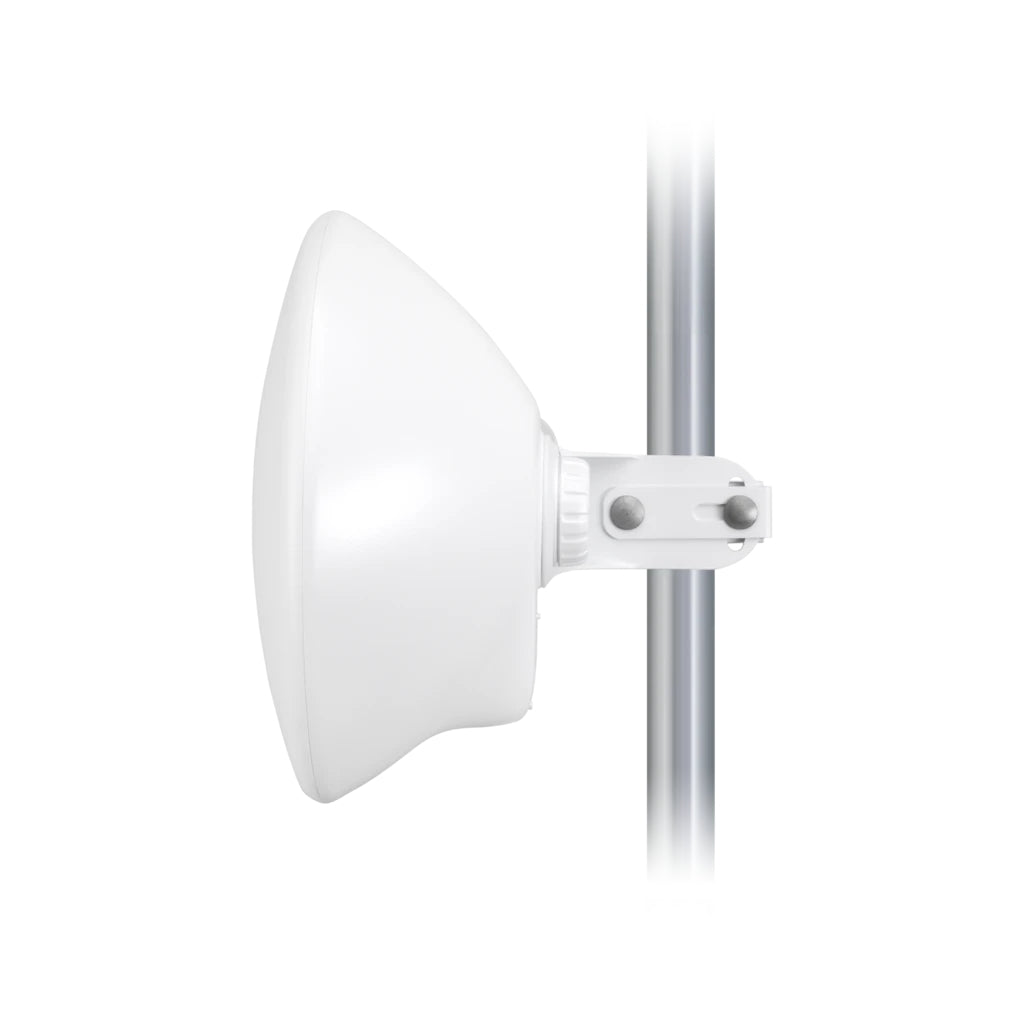

Robust Pole Mount Design
The LTU Pro is designed for quick yet reliable mounting on a pole. It features a built-in mechanical tilt; the mounting bracket allows convenient adjustments to the elevation with a range of ± 15°.
| Technical Specifications | Details |
|---|---|
| Mechanical | |
| Dimensions | 316.5 x 316.5 x 174.3 mm (12.5 x 12.5 x 6.9") |
| Weight | 1.3 kg (2.9 lb) |
| Enclosure material | UV-stabilized polycarbonate |
| Mounting | Pole mount (Kit included) |
| Wind loading | 150 N at 200 km/h (33.72 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Hardware | |

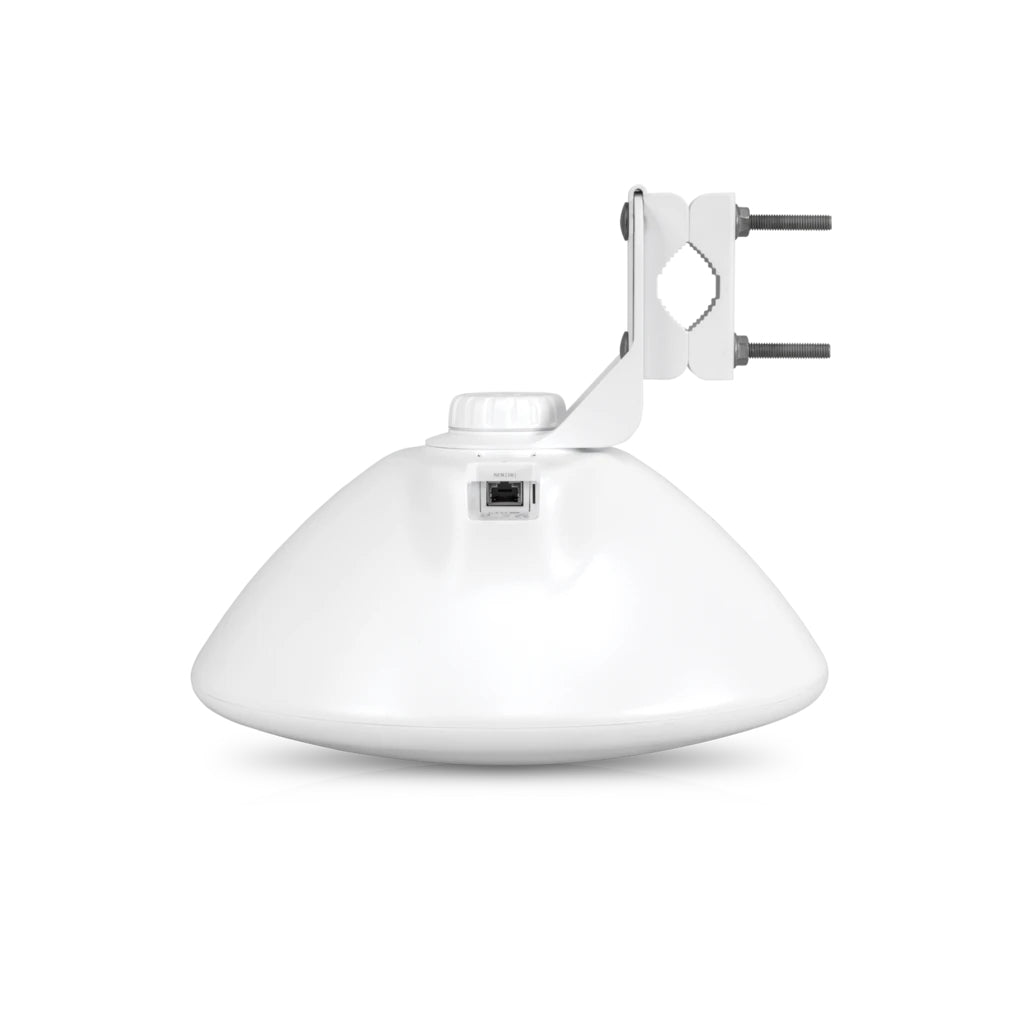

| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8-) |
| Power supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported voltage range | 22–27V DC |
| Max. power consumption | 9W |
| ESD/EMP protection | Air/contact: ± 24kV |
| Ambient operating temperature | -40 to 60° C (-40 to 140° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Modes | PtMP CPE, PtP* (*1.5.1 and later 1.5.x series firmware) |
| Services | SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog |
| Utilities | airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation |
| Auto distance adjustment | Yes |
| Auto power adjustment | Yes |
| Network | Bridge/Router* mode (*Router mode is available in PtMP CPE mode only) |
| Security | Yes |
| Statistical reporting | Yes |
| Management interface | Bluetooth management for easy setup over UISP App, WEB UI |
| Minimum software requirements | Any modern web browser, iOS™ or Android™ based smartphone |
| System | |
| Maximum throughput | 900+ Mbps* (*FW version 2.3.0 and later) |
| Encryption | WPA2-PSK (AES) |
| Uplink/downlink ratio | 25/75, 33/67, 50/50 |
| RF | |
| Operating frequency* | US/CA: 5150 - 5250 MHz, 5250 - 5350 MHz, 5470 - 5725 MHz, 5725 - 5850 MHz; EU: 2400 - 2483.5 MHz, 5150 - 5875 MHz; Worldwide: 2400 - 2483.5 MHz, 4800 - 6200 MHz (*Depends on regulatory region) |
| Max. conducted TX power | 22 dBm (per chain) |
| Channel bandwidth | 10/20/30/40/50/60/80/100 MHz* (*FW version 2.3.0 and later) |
| Antenna gain | 24 dBi |
| Beamwidth | 14° |
| Sidelobe level | -10 dB |
| Front-to-back ratio | 27 dB |
