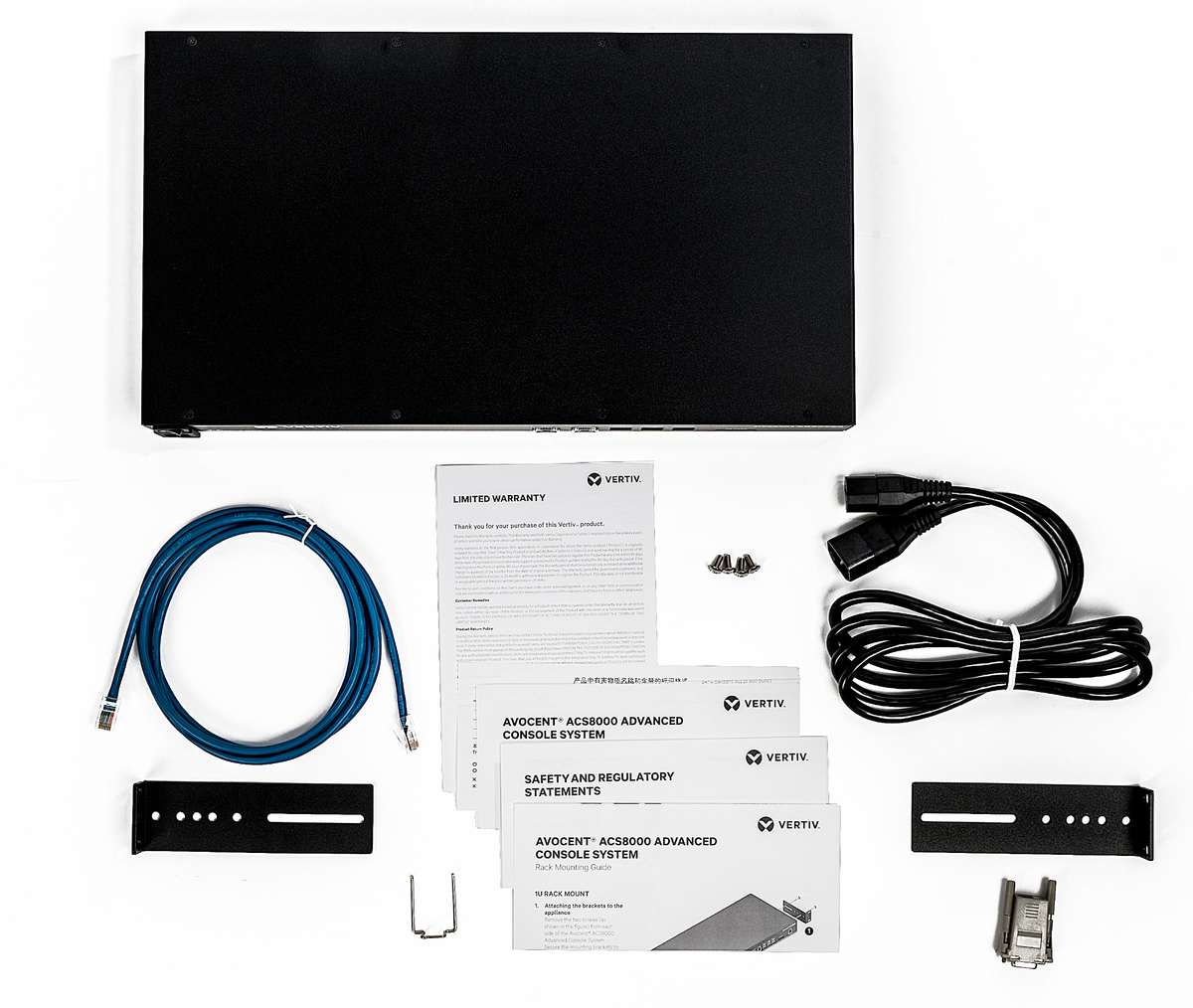

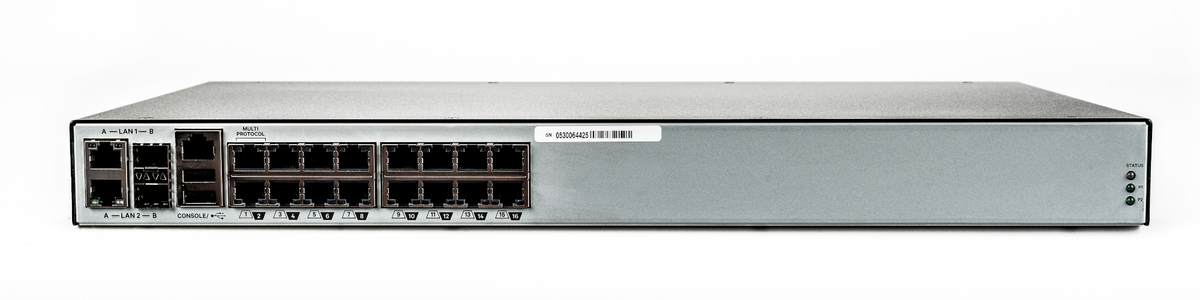

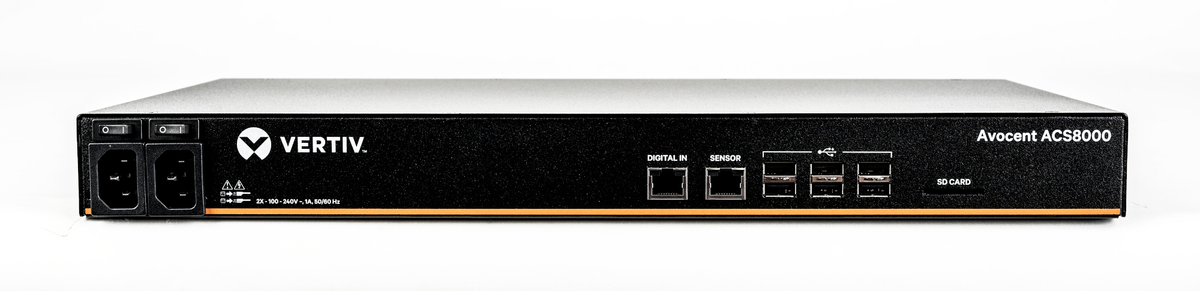

The Vertiv Avocent ACS8000 Advanced Console Server system integrates connectivity features for secure in-band and out-of-band network remote management of IT assets from anywhere in the world. It includes a 16 port console server and dual AC power supply. The serial console system helps maximize IT asset productivity while providing scalability and reducing operational costs for a range of applications from insurance and financial institutions, to education, government, healthcare, oil and gas, the military, retail/wholesale and more
Features
Serial console provides in-band and out-of-band connectivity and control for connected devices.
Console's single-IP address management acts as IoT gateway for sensors and digital inputs/outputs.
Console's single-point-of-entry security for downstream equipment has customizable access levels
Serial console comes with auto discovery, auto pin-out conversions, and native command settings.

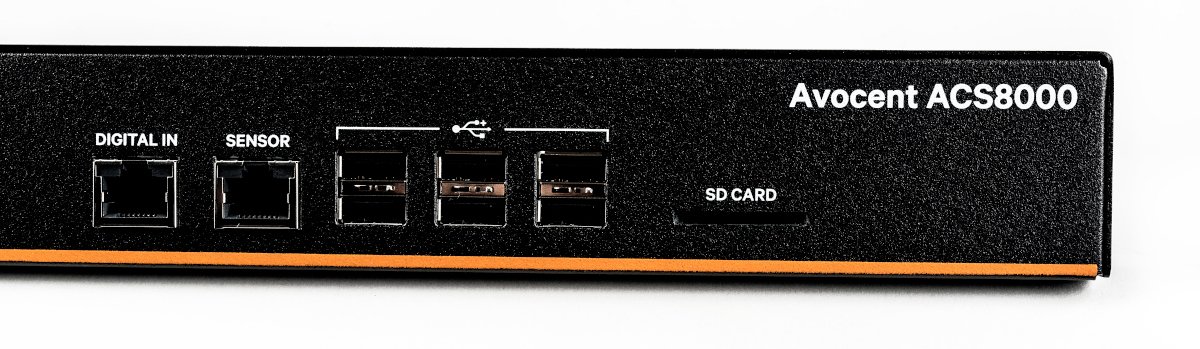

The 8 USB and environmental sensor ports support external devices and environmental monitoring.
| Category | Details |
|---|---|
| General | Product: AVOCENT ACS8000 Serial Console, Model: ACS8016DAC-404, Country of Origin: China, Device Type: Console Server, Form Factor: Rack-mountable |
| Processor & Memory | Processor: ARM, Memory: 1 GB DDR3 SDRAM (Max 16 GB) |
| Networking | Ethernet: Gigabit Ethernet, Standards: 1000Base-X, 10/100/1000Base-T, Network Ports: 2 RJ-45, No PoE, No Wireless LAN |
| Media Supported | Twisted Pair, Optical Fiber |
| Interfaces/Ports | USB: Yes, Number of USB Ports: 8, Serial Port: Yes, Number of Serial Ports: 16, Parallel Port: No, Centronics Port: No |
| Physical Characteristics | Dimensions: 45.7 mm (H) x 439.4 mm (W) x 241.3 mm (D), Weight: 3.18 kg |
| Product Details | Name: ACS8000 - Serial Console 16 port, Dual AC Power, Series: 8000, Line: ACS, Brand: AVOCENT, Part Number: ACS8016DAC-404 |
| Description | Downloads |
|---|---|
| Avocent ACS8000 Serial 16 Port Console Server | ACS8016DAC-404 DataSheet | Downloads |
