Panel |
- |
Screen Size |
86" |
Backlight Type |
Direct-Type LED |
Brightness (Nits) |
400 cd/m² |
Native Resolution |
UHD: 3840 x 2160 |
HDR10 |
- |
Aspect Ratio |
16:9 |
Contrast Ratio |
1200:1 (typical), 40000:1 (dynamic) |
Life Time |
50000 Hrs (typical) |
Response Time |
8 ms (typical) |
Active Area |
1895 x 1066 mm |
Viewing Angle |
178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
Color Value |
1.07 B (10-bit) |
Haze Level |
8% |
Refresh Rate |
60 Hz |
Glass Type |
4 mm Tempered |
Anti-Glare |
- |
Glass Hardness |
8 Mohs |
Built-in System |
- |
Mainboard Model |
MB400VS |
Operating System |
Customized Android Pie 9.0 |
Memory |
4 GB DDR4 |
Storage |
64 GB EMMC |
CPU |
CA55 Quad core |
GPU |
Mali-G31 MP2 |
Wired |
10/100/1000 Mbps Ethernet |
WiFi |
WiFi 5 (802.11 a/b/g/n/ac) |
Bluetooth |
BT 5.1 |
User Experience |
- |

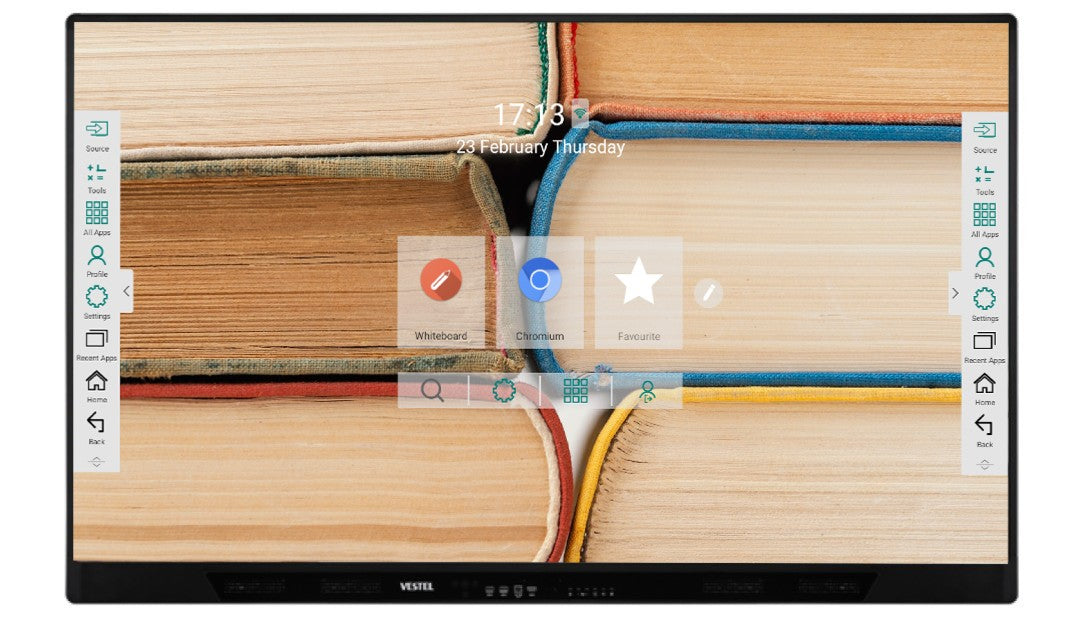

Home Page |
Personalized Background, Home buttons, Navigation bar, Quick Palette |
Launcher |
All Apps, Profile Login/Logout, Quick Settings, Tools, Source Change |
Applications |
Whiteboard, ScreenShare, Web browser, File Manager, Media Player, Officesuite, AquaMail, CloudFileManager |
Board Management System |
Connected System for User Profile Management |
Others |
Over-the-Air SW Update, Screen Freeze, Screen Lock, Dual Pen Recognition, Palm Erase, Annotate over Any Source |
Monitor Connectivity |
- |
Video Input |
2 x HDMI2.0 (HDCP2.2), 1 x HDMI2.0 (Daisychain Input), MicroSD (up to 1TB), OPS Interface |
Video Output |
1 x HDMI2.0 (Daisychain Output), Headphone(Line-out), Optic SPDIF |
USB |
1 x USB-A (2.0), 1 x USB-A (3.0), 1 x USB-C (3.0) |
Front Accessibility |
- |
Front I/Os |
USB-A (2.0 / autoswitch for Android & OPS), USB-A (3.0 / autoswitch for Android & OPS), 1 x USB-B (touch out), 1 x HDMI2.0 Input |
Console Buttons |
Standby on/off, Volume up, Volume down, Touch enable/disable, Source Change, Settings |
IR Receiver |
Fixed on bezel |
Audio |
2x20 W - Front Facing Speakers |
Pen Holder |
Integrated Magnetic Tray |
Touch Interactivity |
- |
Type of Touch Technology |
Infrared (IR) Technology |
Continuous Touch Points |
Max. 20 touch points* (bounded by application's limits) |
Touch Resolution |
32768 x 32768 px |
Sensitivity |
Any touch with finger, gloved hand or pointer |
Compatibility |
Windows®7,Windows®8, Windows®10, Vista, XP, Mac® OS, Linux, Android |
Response Time |
< 5 ms |
Touch Accuracy |
+/- 1 mm (over 90% area) |
Pen Type |
Battery-less Pen |
Pen Identities |
2 |
Object Sizes for Touch |
2.8 & 10 mm |
Inputs |
RJ45 (LAN & Control), 3.5mm jack(RS232 Control), 2 x RJ12 (Sensor Box & service input) |
Mechanical |
- |
Product Dimensions (WxDxH) |
1962 x 1184 x 97 mm |
Package Dimensions (W |
