• Vestel EL32G-2H+ / EL + Series

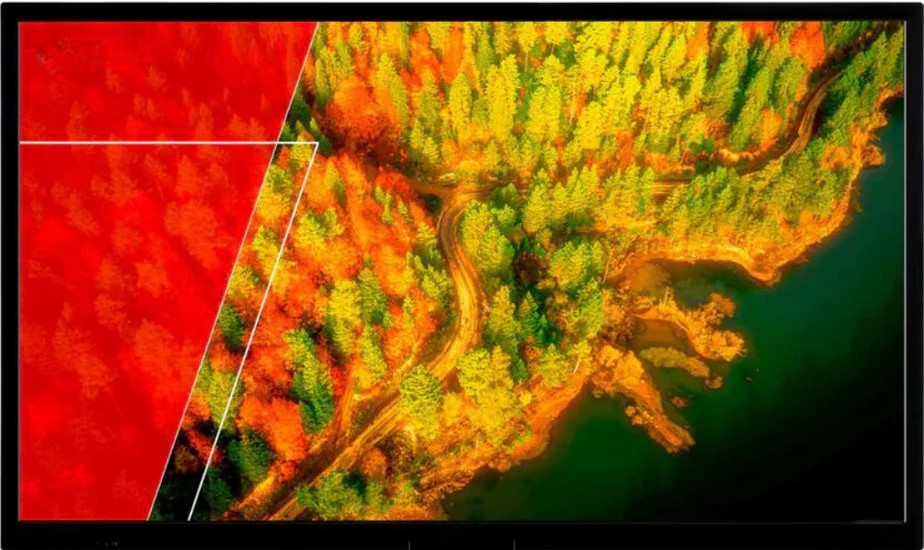

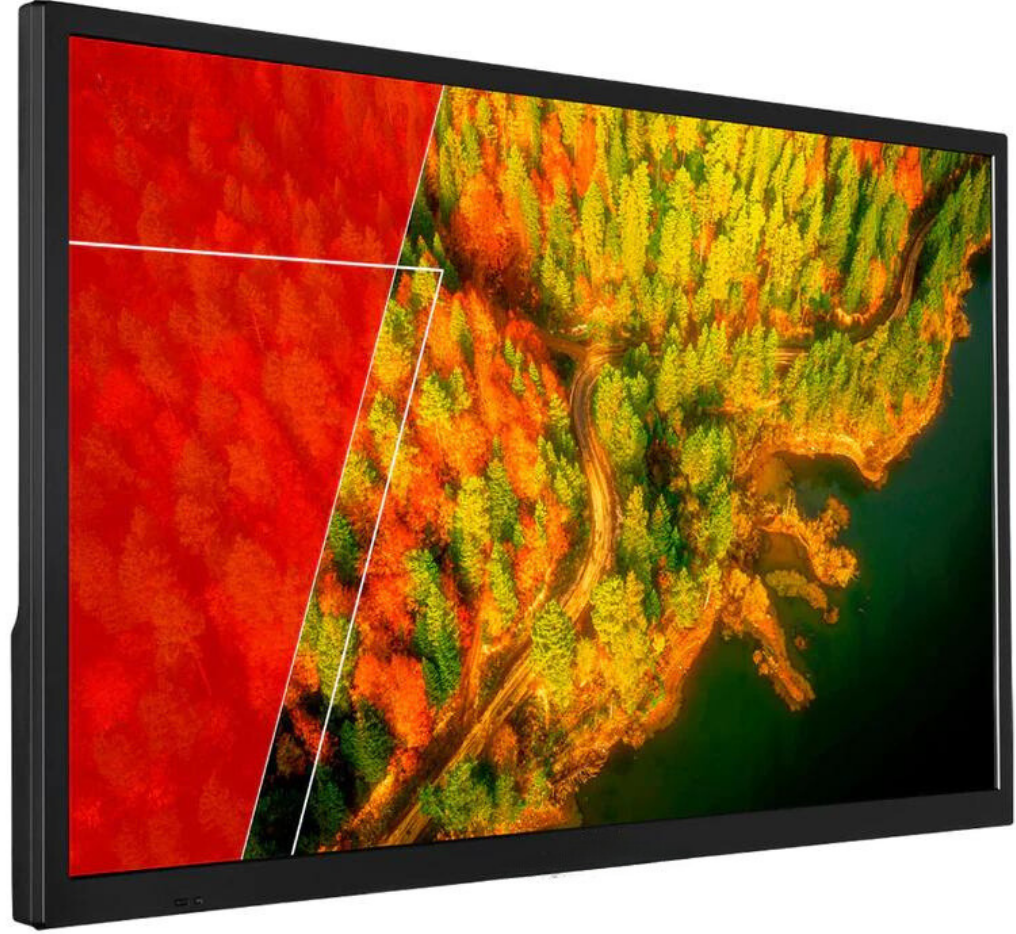

  32" Digital Signage Display
  Free Wall Mounted Included


  Vestel EL32G 32" Commercial Display can be use Portrait or Landscape orientation.

  Usb Security
  This series lets your USB and your content to be secured within the back cover of the display. The cover is protected with a screw not allowing any outside intervention.

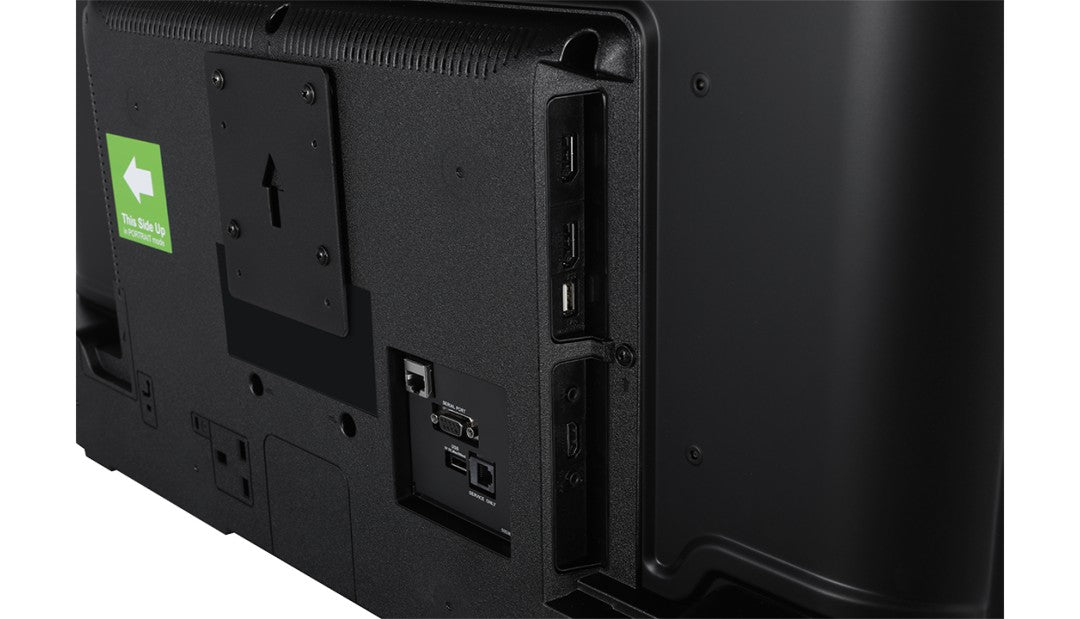

  External Device Connections
  You may want to connect your teleconference system, screen sharing system, set-top box or external PCs via HDMI port. For this purposes, our monitors help you to maximize user experience with HDMI CEC (Consumer Electronics Control) and HDMI Hotplug capabilities.

  Open Platform Support
  Our SoC supports API (Application Programming Interface) for solution providers/integrators to develop and integrate any HTML5-based to be installed and used on our displays.

  Pixel Shifting
  Pixel Shifting is designed to be activated inside the SoC in order to prevent for potential risk of image sticking, caused by constant content. With this feature turned on, pixels on the screen will move in an interval while causing no interference of visual experience.

  SoC Content Management
  With quad core SoC (System on Chip), this Series displays are the digital signage monitors for both offline designed content and cloud-based managed content. This helps your digital content to be displayed in the displays by content management systems.

  Signal Failover
  Our SoC Software has a protection for “No Signal” scenario. If the USB is unplugged after your content is set to be displayed with USB, the display will either show your customized banner or search for any other signal from other sources (HDMI, Display Port, etc.). This failover protection is constructed for higher user experience.

  Scheduler
  Digital Signage Monitor Software allows many important features such as Scheduler. Scheduler sets your display turn on/off time easily and lets you not to worry about the status of your displays in any time.

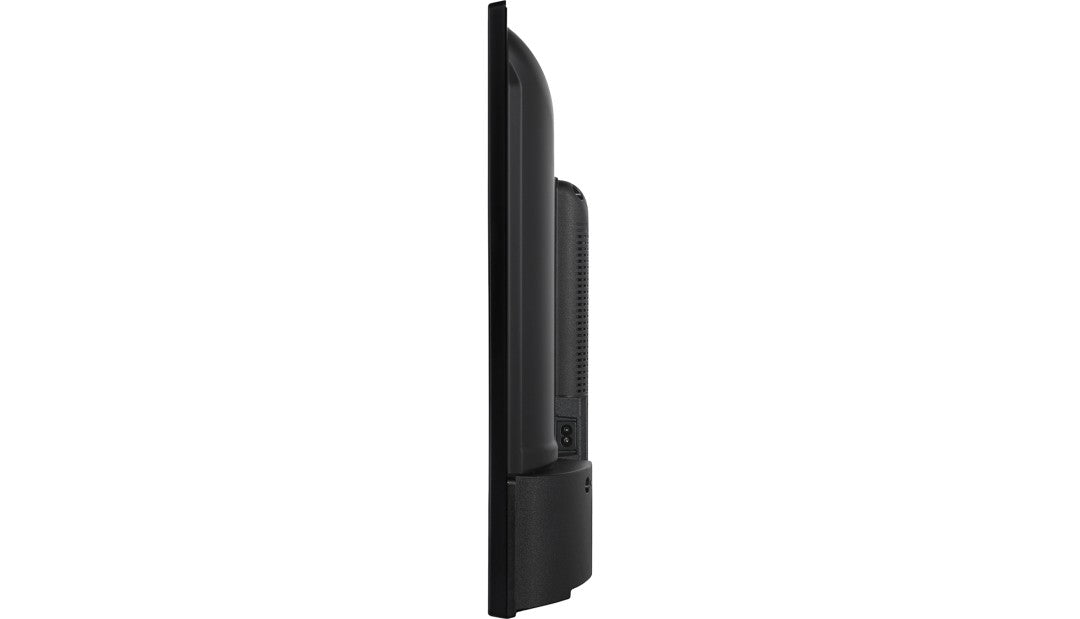

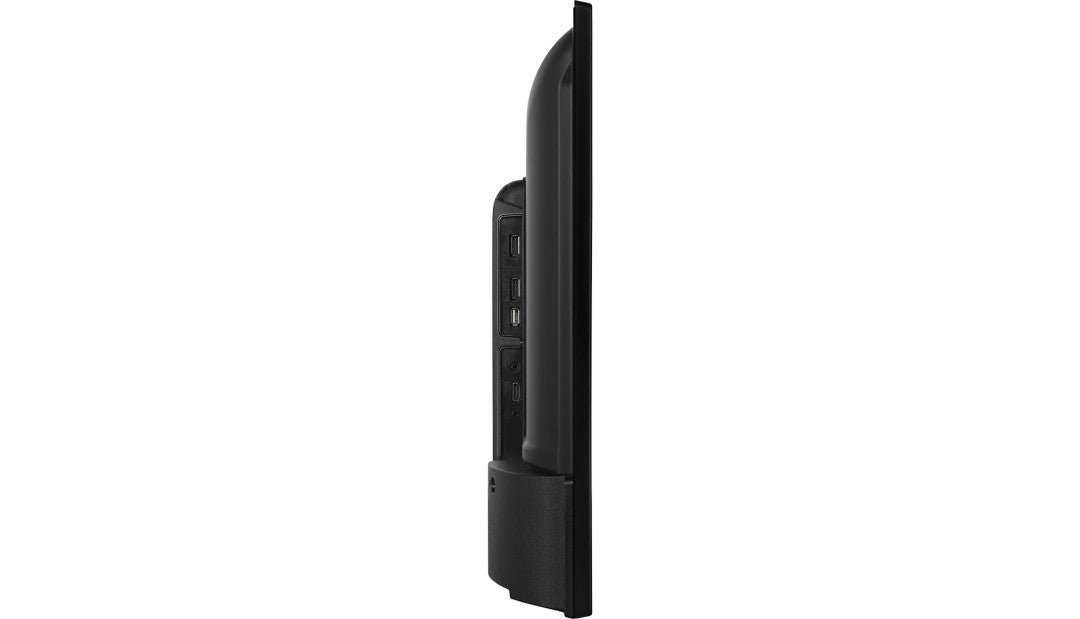

  Subtle Design
  This series’ displays exhibit ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is found to be desirable for digital signage specific design: internal usb cover, detachable power plug, carrying handles and IR extender.

  Usb Auto-Play
  You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen and not worry about anything else.

  Display Control
  Digital Signage Display SoC enables the users to control our displays using RS232 commands in a Local Area Network. Together with the full RS232 command list you can change/set volume, turn on/off the monitor, set a schedule for content display, set a webpage link to be displayed and give a wide range of commands in real-time.


• Panel
  Screen Size	32"
  Panel Technology	VA
  Backlight Type	DLED
  Brightness (typical)	450 cd/m²
  Native Resolution	1920 x 1080 (16:9) - FHD
  Contrast Ratio (typical)	3000:1 (typ.)
  Dynamic Contrast Ratio	35000:1
  Panel Life Time (Min.)	50000 Hrs
  Response Time (typical)	9.5 ms
  Active Area (H x V)	698.40 x 392.8 mm
  Viewing Angle	178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
  Color Value	16.7M
  Color Gamut	68% NTSC
  Haze Level	3%
  Refresh Rate	60 Hz
  Orientation	Landscape / Portrait
  Operation Hours	24/7
  Area of Usage	Indoor
  Built-in System
  Mainboard Model	17MB450VS
  Operating System	Custom OS (built on Android AOSP)
  Memory	2 GB DDR4
  Storage	16 GB eMMC
  CPU	Quad-Core ARM Cortex-A55
  GPU	ARM Mali-G31 MP2
  Wired	10/100 Mbps Ethernet
  WiFi	WiFi 5 (802.11 a/b/g/n/ac)
  HTML5 Browser	Vewd
  Monitor Connectivity
  Video Input	2xHDMI2.0, 1xUSB-A 3.0, 1xUSB-A 2.0
  Video Output	1xHDMI2.0
  External Control	RS232 (3.5mm jack green), Fast Ethernet (RJ45), Service (RJ12)
  Mechanical
  Product Dimensions (WxDxH)	734 x 78 x 435 mm
  Package Dimensions (WxDxH)	795 x 128 x 530 mm
  Product Weight	4.5 kg
  Package Weight	6 kg
  Vesa Mounting	75 x 75 mm M4
  Bezel Width	B:21, T/ L/R:14 mm
  Environmental Conditions
  Operating Temperature	0-40°C
  Operating Humidity	10-90%
  Power
  Power Supply	170 VAC - 240 VAC - 50/60 Hz
  Power Consumption	Typical: 32 W
  	Maximum: 65 W
  	Deep Standby: ≤0.5 W
  Features
  Main Features	HTML5 CMS Launcher, Android CMS Launcher, Open Content Management Support, Scheduler, USB-Autoplay, Auto-Launch, HDMI-CEC, HDMI-Wakeup, Auto-switch on Failover, Panel Lock, OSD and UI Rotation, Video Rotation, NoSignalPowerOff, Pixel shift, Scheduler, Videowall support, Remote control via LAN, Real Time Clock, SNMP
  Mechanical Features	Joystick, Fixed IR lens, Rocker Switch, Detachable Power Cable
  Speaker	2x6 W
  Accessory	Standard
  	QSG, IB, Power cord, Remote control unit, RC battery, Mounting kit, IR extender cable
  Certification
  Safety	Yes
  EMC	Yes
  CE	Yes



• Warranty Period: 3-year on-site swap out
  UK Mainland De-Install/Re-Install Warranty.

  Vestel Digital Signage Displays offer a large range of large format displays for use in commercial applications from reception, and conference rooms to classrooms backed by a 3 Year On-Site UK Mainland Warranty.

  They have displays operating from 16 hours per day to non-stop usage displays ideal for the transport industry.

  If you need to discuss your warranty period, please contact us.

• Document Type	Download Link
  Specification Sheet	Downloads
  Commercial Datasheet	Downloads
  Model Drawing	Downloads
  Wall Mount Drawing	Downloads
