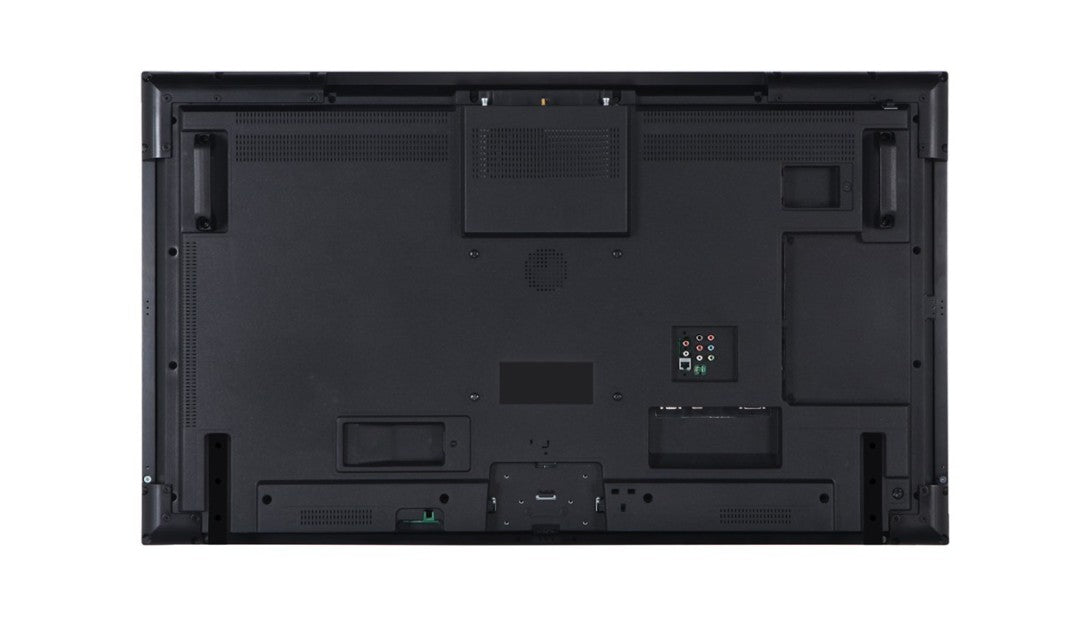

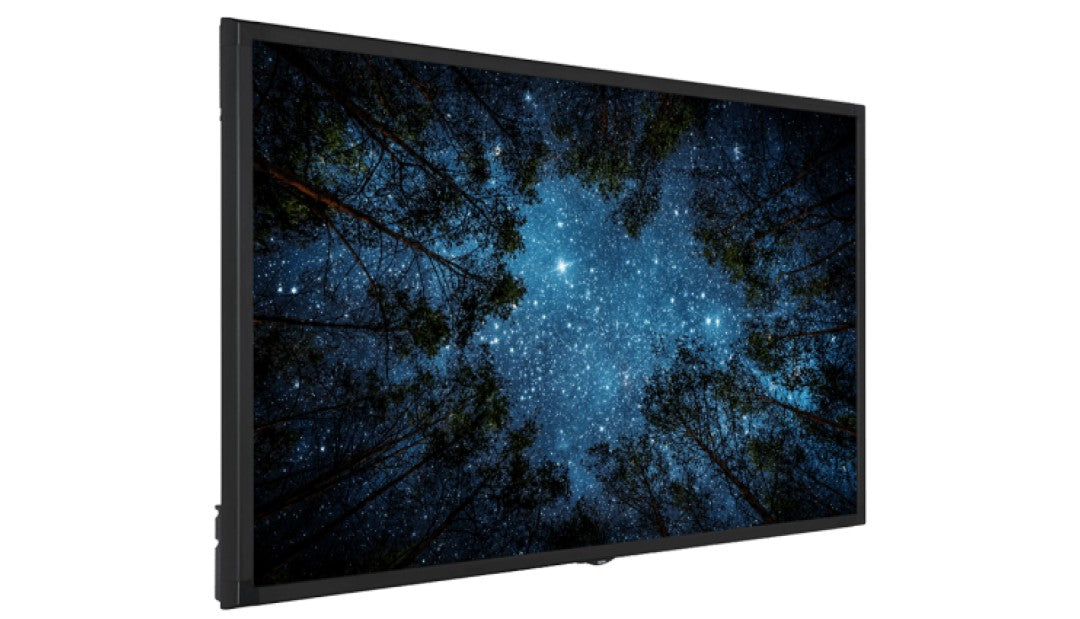

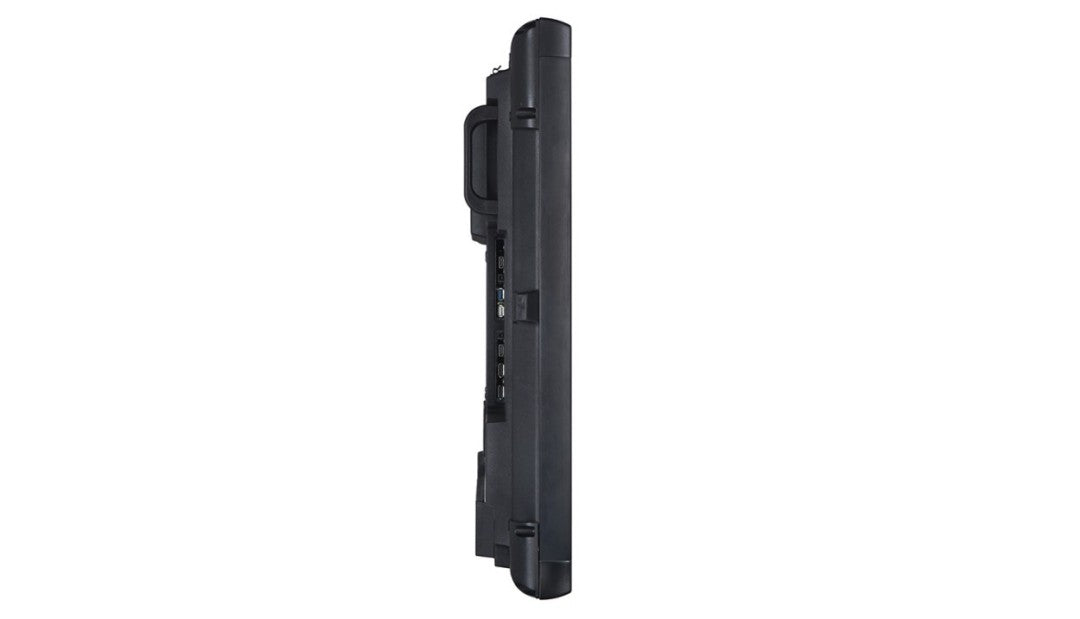

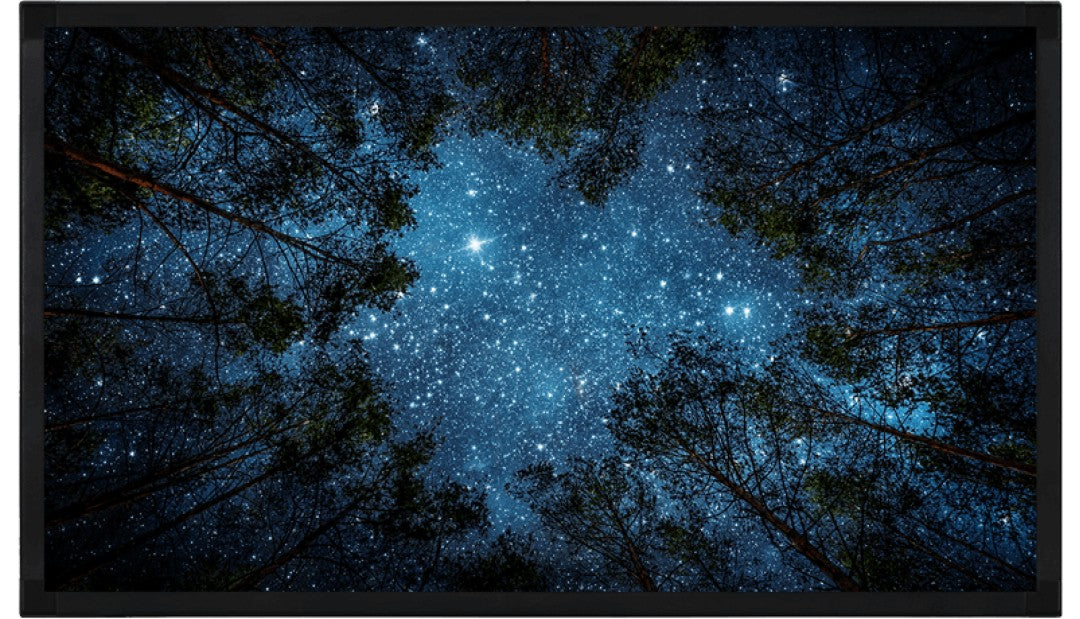

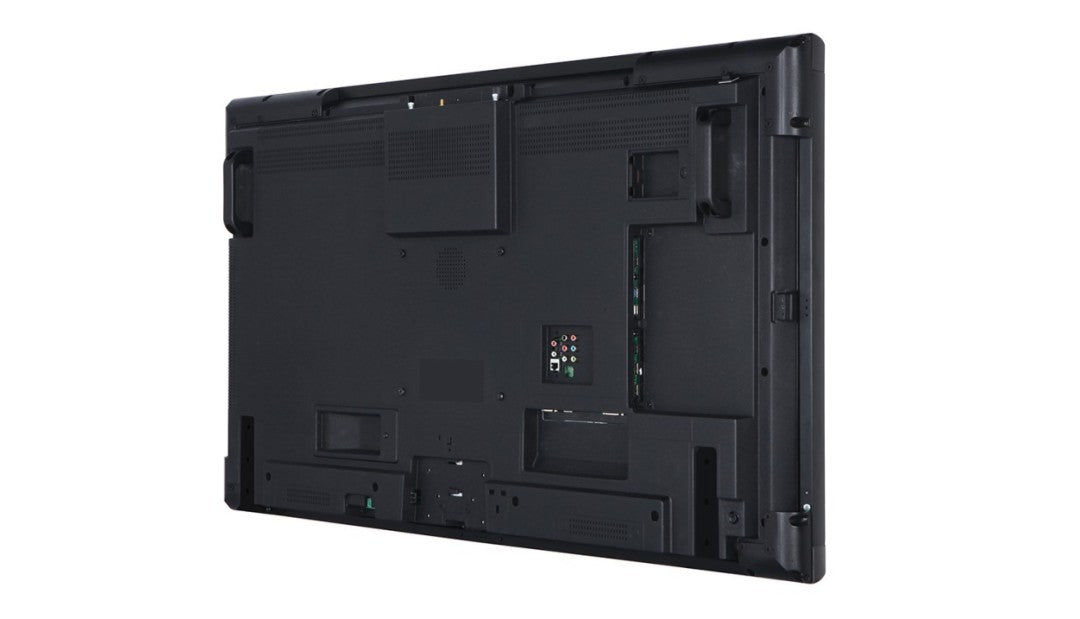

Vestel 55" IFM55TH652/4 Android Flat Panel Display

High-Brightness 350 cd/m2 - 10 Points Multi Touch

• Description
• Specifications
• Warranty
• Downloads

• Application Area: Education

  Simultaneous Smooth writing Multi - Touch

  10 point touch support detects multiple touch points, enhancing the possibility of collaborative work. The screens also provide a precise and user friendly writing experience with its smooth surface.



  HDR10 & 4K HDMI @60Hz

  Displays supporting HDR10 allows HDR based content to be shown, giving a brighter and more dynamic picture. This is further enhanced due to the support of 4K 60Hz, allowing ultra sharp, smooth Video content to be presented.



  Anti Glare Tempered Glass

  Prevents light reflection and provides smooth touch performance with anti glare technology. Robust design with toughened glass material to avoid any damage to the screen



  Collaborate, Annotate with Oktopus

  Collaborate: View lessons, respond, share annotations, and take notes using any tablet or laptop Anntate: Works over browser content & existing applications Poll: Pose questions and gain immediate participant feedback, displaying results instantly.



• Specifications	Details
  Panel
  Screen Size	55"
  Panel Technology	IPS
  Backlight Type	Direct-Type LED
  Brightness (typical)	400 cd/m²
  Native Resolution	UHD: 3840 x 2160 - HDR10
  Contrast Ratio (typical)	1300:1
  Dynamic Contrast Ratio	40000:1
  Panel Life Time (Min.)	30000 Hr
  Response Time (typical)	6 ms
  Active Area (H x V)	1210 x 681 mm
  Viewing Angle	178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
  Color Value	16.7 M (8-bit)
  Screen Treatment	2H
  Haze Level	8%
  Refresh Rate	60 Hz
  Front Type	Black Super Narrow Bezel
  Orientation	Horizontal
  Operation Hours	16/7
  Area of Usage	Indoor
  Built-in System
  Mainboard Model	17MB135VS
  Monitor Connectivity
  RGB Input	VGA(DE-15F)
  RGB Output	N/A
  Video Input	4xHDMI2.0, 2xUSB2.0, USB2.0(Internal)
  Video Output	HDMI2.0
  Audio Input	Line In L/R
  Audio Output	Headphone, Optic SPDIF
  External Control	RS232(DE-9F), Ethernet(RJ45), Service(RJ12)
  External Sensor	RJ12
  Touch Interactivity
  Type of Touch Technology	Infrared (IR) Technology
  Continuous Touch Points	10 Points
  Sensitivity	Any touch with finger, gloved hand or pointer
  Connectivity	HID, TUIO, Flash
  Compatibility	Windows®7, Windows®8, Windows®10, Vista, XP, Mac® OS, Linux, Android
  Orientation	Landscape support
  Calibration	No need
  Accuracy	%90 <
  Reporting Rate	Up to 450 fps
  Glass Type	Anti Glared (AG), 4mm Tempered
  Frame Rate	up to 450 fps
  Communication	USB 2.0
  Power Supply Mode	USB
  Supply Voltage	DC 5V +/- 5%
  Average Current	<400mA
  Response Time	<10ms
  Touch Accuracy	+/-2mm (over 90% area)
  Touch Durability	Unlimited
  HID Compatibility	Yes USB
  Object Sizes for Touch	5mm
  Mechanical
  Product Dimensions (WxDxH)	1280 x 123 x 751 mm
  Package Dimensions (WxDxH)	1480 x 265 x 930 mm
  Product Weight	29.45 kg
  Package Weight	38.15 kg
  Vesa Mounting	400 x 200 mm
  Bezel Width	B:34 | T:34 | L/R:34 mm
  Environmental Conditions
  Operating Temperature	+40°C / 0°C
  Operating Humidity	90%
  Power
  Power Supply	110 VAC - 240 VAC
  Power Consumption	Typical: 138 W, Maximum: 180 W, Deep Standby: ≤0.5W
  Features
  Main Features	USB-Autoplay, Auto-switch on Failover, Control Button Lock, HDMI Wake-Up
  Mechanical Features	IR Touch, Joystick, IR Extender Support, Rocker Switch, Detachable power cable, Carrying handles,

• Warranty Period: 3-year on-site swap out
  UK Mainland De-Install/Re-Install Warranty.

  Vestel Digital Signage Displays offer a large range of large format displays for use in commercial applications from reception, and conference rooms to classrooms backed by a 3 Year On-Site UK Mainland Warranty.

  They have displays operating from 16 hours per day to non-stop usage displays ideal for the transport industry.

  If you need to discuss your warranty period, please contact us.

• Document Type	Download Link
  Specification Sheet	Downloads
  Commercial Datasheet	Downloads
  Detailed Mechanical Drawing	Downloads
  Detailed Mechanical Drawing	Downloads
  Wall Mount Drawing	Downloads
  Control Document	Downloads
