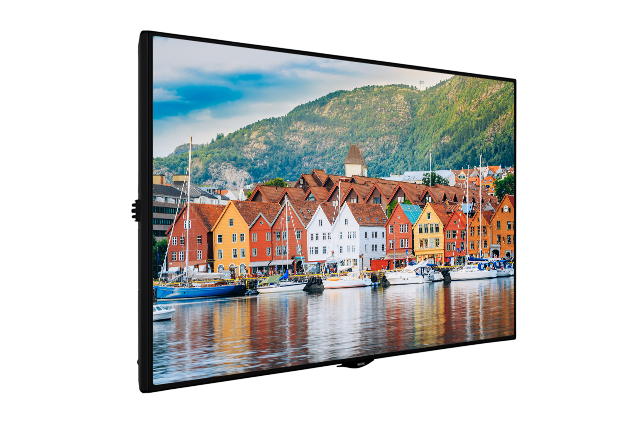

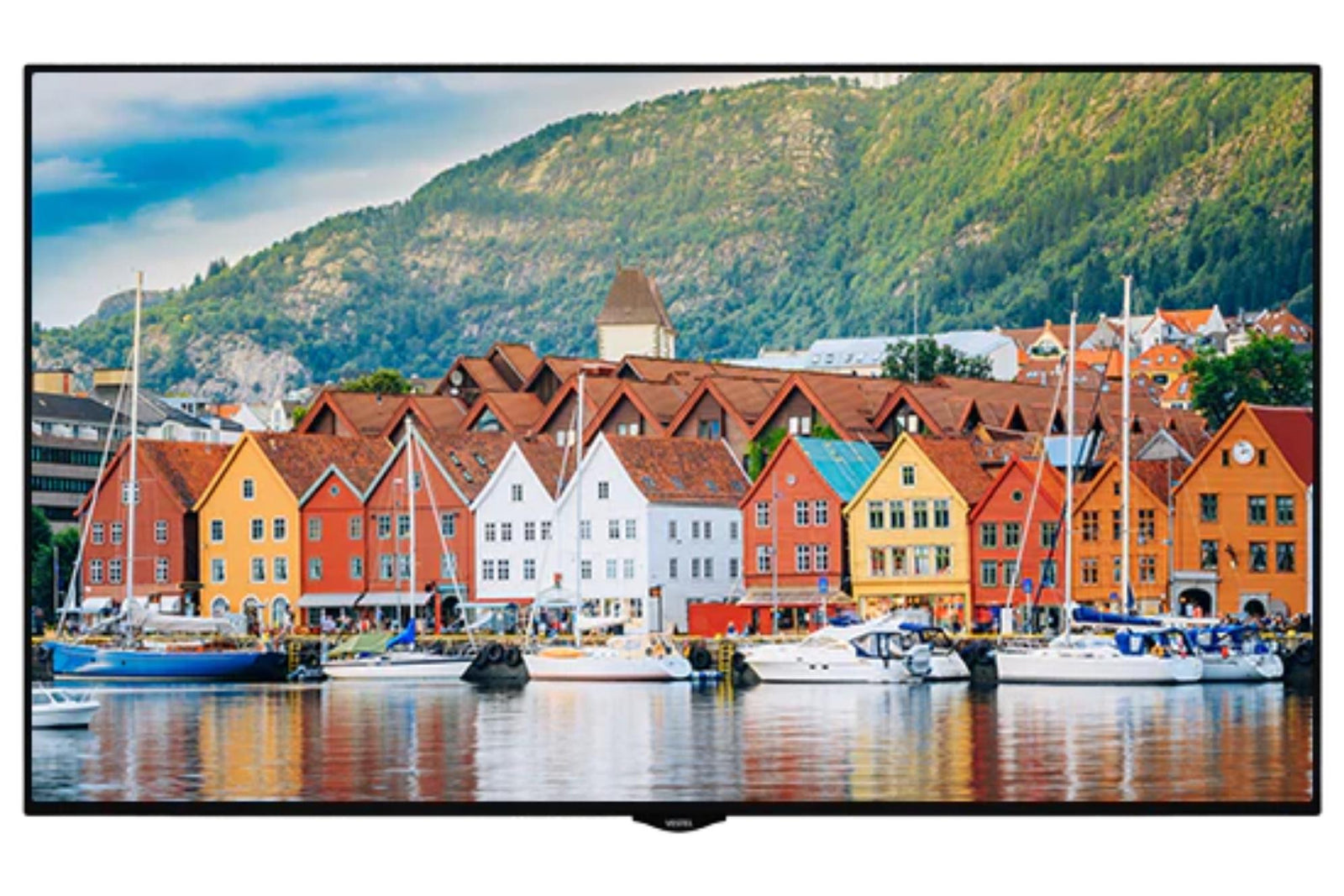

Vestel PDU43UF82/4 - 43" inch UHD Digital Signage Displays

• Description
• Specifications
• Warranty
• Downloads

•
  Auto Launch

  We have made it easy to give any HTML5-based application link to the display within the SoC software. Upon this, the display will start with the given link. The application can either be an offline or an online application, allowing the customers to execute their own application.



  Usb Auto-Play

  You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen and not worry about anything else.



  Scheduler

  The built in scheduler is one of the many important included features. The scheduler allows you to plan daily routines of when the display is powered on or off, along with selection of different sources or USB playlists.



  Display Control

  Digital Signage Display SoC enables the users to control our displays using RS232 commands in a Local Area Network. Together with the full RS232 command list you can change/set volume, turn on/off the monitor, set a schedule for content display, set a webpage link to be displayed and give a wide range of commands in real-time.



  Daisy Chain

  The display can mirror the content (to another display) into its display port out coming from its display port in. This set up creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode.



  Built-in Connectivity

  This series features wired and wireless connectivity such as embedded WiFi and Bluetooth. Due to the wireless capabilities, the displays can easily gather its content without any external device. Moreover, WiFi allows screen sharing to be enjoyed with Miracast.

• Feature	Specification
  Panel	43"
  Screen Size	IPS
  Panel Technology	Direct-Type LED
  Backlight Type	500 cd/m²
  Native Resolution	3840 x 2160 (16:9) - UHD
  Contrast Ratio (typical)	1200:1
  Dynamic Contrast Ratio	50000:1
  Response Time (typical)	8 ms
  Active Area (H x V)	941 x 530mm
  Pixel Pitch (H x V)	0.2451 x 0.2451 mm
  Refresh Rate (Hz)	60 Hz
  Viewing Angle	178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
  Color Value	8bit, 16.7 M colors
  Screen Treatment	3H
  Haze Level	1%
  Refresh Rate	60 Hz
  Orientation	Landscape / Portrait
  Operation Hours	24/7
  Area of Usage	Indoor
  Built-in System	Mainboard Model

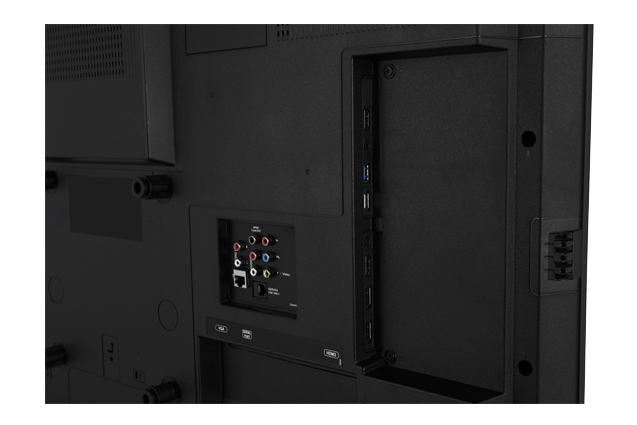

  Monitor Connectivity	RGB Input
  	VGA(DE-15F)
  	RGB Output
  	N/A
  	Video Input
  	4xHDMI2.0 (HDCP2.2),1xDP1.2a, 2xUSB2.0, USB2.0(Internal)
  	Video Output
  	HDMI2.0, DP1.2a
  	Audio Input
  	Line In L/R
  	Audio Output
  	Headphone, Optic SPDIF
  	External Control
  	RS232(DE-9F), Ethernet(RJ45), Service(RJ12)
  	External Sensor
  	RJ12
  Mechanical	Product Dimensions (WxDxH)
  	966 x 106 x 557 mm
  	Package Dimensions (WxDxH)
  	1050 x 178 x 718 mm
  	Product Weight
  	10.3 kg
  	Package Weight
  	13.65 kg
  	Vesa Mounting
  	200 x 200 mm - M6
  	Bezel Width
  	B:9
  Environmental Conditions	Operating Temperature
  	0-40°C
  	Operating Humidity
  	10-90%
  Power	Power Supply
  	110 VAC - 240 VAC - 50/60 Hz
  	Power Consumption
  	Typical: 96 W
  	Maximum: 160 W
  	Deep Standby
  	≤0.5 W
  Features	Main Features
  	Open Content Management Support
  	Scheduler
  	USB-Autoplay
  	Auto-Launch
  	HDMI-CEC
  	HDMI-Wakeup
  	Auto-switch on Failover
  	Panel Lock
  	Mechanical Features
  	Joystick
  	IR Extender Support
  	Rocker Switch
  	Detachable power cable
  	Carrying slots
  	Detachable logo positioning
  	Internal USB cover
  	Cable Holder
  	Optional Features
  	OPS Compliance
  	IR Overlay Touch Compliance
  Speaker	2 x 8 W
  Accessory	Standard
  	QSG, IB, Power Cord, Remote Control, RC Battery, Mounting Kit, Extension Brackets, IR Extender Cable
  Certification	Safety
  	YES
  	EMC
  	YES
  	CE
  	YES

• Warranty Period: 3-year on-site swap out
  UK Mainland De-Install/Re-Install Warranty.

  Vestel Digital Signage Displays offer a large range of large format displays for use in commercial applications from reception, and conference rooms to classrooms backed by a 3 Year On-Site UK Mainland Warranty.

  They have displays operating from 16 hours per day to non-stop usage displays ideal for the transport industry.

  If you need to discuss your warranty period, please contact us.

• Description	Downloads
  Specification Sheet	Download
  Commercial Datasheet	Download
  Detailed Mechanical Drawing	Download
  Wall Mount Drawing	Download
