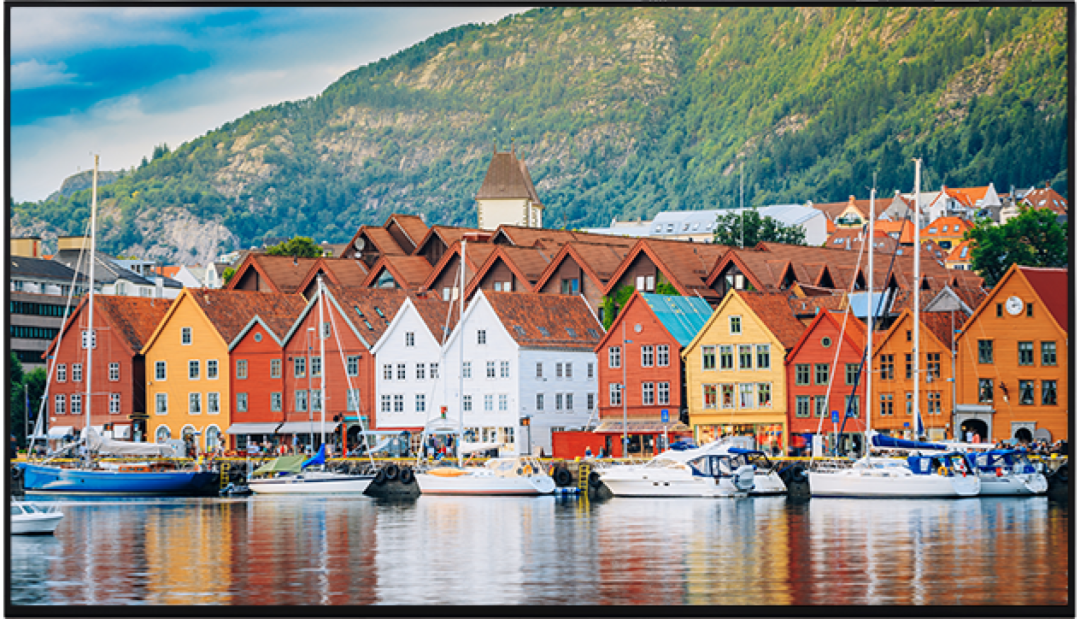

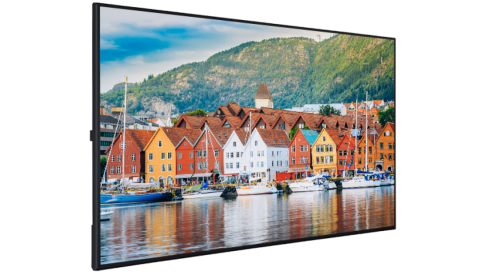

Vestel PDU75UF83/4A - 75" UHD Digital Signage Display

High-Brightness 500 cd/m2 - 24/7 Operation Hours

• Description
• Specifications
• Warranty
• Downloads

•
  Daisy Chain

  The display can mirror the content (to another display) into its display port out coming from its display port in. This set up creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode.



  Open Platform Support

  Our SoC supports API (Application Programming Interface) for solution providers/integrators to develop and integrate any HTML5-based to be installed and used on our displays.



  SoC Content Management

  With quad core SoC (System on Chip), this Series displays are the digital signage monitors for both offline designed content and cloud-based managed content. This helps your digital content to be displayed in the displays by content management systems.



  Subtle Design

  This series’ displays exhibit ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is desirable for its thinnest depth among our digital signage displays.



  Optional OPS Support

  All our products in this series have an optional OPS (Open Pluggable Standard) slot. OPS will empower your screens with enhanced processing power and ability to choose Windows or Android as your operating system to fit your specific application.



  USB Autoplay

  USB Autoplay makes content playback simple and effortless.Simply plug your USB memory containing images or video files and the display can begin playback automatically.



  External Device Connections

  You may want to connect your teleconference system, screen sharing system, set-top box or external PCs via HDMI port. For this purposes, our monitors help you to maximize user experience with HDMI CEC (Consumer Electronics Control) and HDMI Hotplug capabilities.



  Pixel Shifting

  The Pixel Shifting feature can be activated in order to reduce the potential risk of image sticking when static content is displayed over long periods of time. The feature periodically shifts the image on the display, without causing any interference of the visual experience.



  Scheduler

  Digital Signage Monitor Software allows many important features such as Scheduler. Scheduler sets your display turn on/off time easily and lets you not to worry about the status of your displays in any time.



  Display Control

  Digital Signage Display SoC enables the users to control our displays using RS232 commands in a Local Area Network. Together with the full RS232 command list you can change/set volume, turn on/off the monitor, set a schedule for content display, set a webpage link to be displayed and give a wide range of commands in real-time.



  Signal Failover

  Our SoC Software has a protection for “No Signal” scenario. If the USB is unplugged after your content is set to be displayed with USB, the display will either show your customized banner or search for any other signal from other sources (HDMI, Display Port, etc.). This failover protection is constructed for higher user experience.

• Panel
  Screen Size	75"
  Panel Technology	IPS
  Backlight Type	Direct-Type LED
  Brightness (typical)	500 cd/m²
  Native Resolution	UHD: 3840 x 2160 - HDR10
  Contrast Ratio (typical)	1200:1
  Dynamic Contrast Ratio	40000:1
  Panel Life Time (Min.)	50000 Hrs
  Response Time (typical)	8 ms
  Active Area (H x V)	1650 x 928 mm
  Pixel Pitch (H x V)	0.429 x 0.429 mm
  PPI (pixel per inch)	59
  Viewing Angle	178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
  Color Value	1.07G (8bits + FRC)
  Screen Treatment	3H
  Haze Level	1%
  Refresh Rate	60 Hz
  Front Type	Ultra Narrow Bezel
  Orientation	Horizontal / Vertical
  Operation Hours	24/7
  Area of Usage	Indoor
  Built-in System
  Mainboard Model	17MB135VS
  Monitor Connectivity
  RGB Input	VGA(DE-15F)
  RGB Output	N/A
  Video Input	4xHDMI2.0, 1xDP1.2a, 2xUSB2.0, USB2.0(Internal)
  Video Output	HDMI2.0, DP1.2a
  Audio Input	Line In L/R
  Audio Output	Headphone, Optic SPDIF
  External Control	RS232(DE-9F), Ethernet(RJ45), Service(RJ12)
  External Sensor	RJ12
  Mechanical
  Product Dimensions (WxDxH)	1684 x 100 x 967 mm
  Package Dimensions (WxDxH)	1948 x 210 x 1170 mm
  Product Weight	37.2 kg
  Package Weight	50.2 kg
  Vesa Mounting	600 x 400 mm - M6
  Bezel Width	B:21
  Environmental Conditions
  Operating Temperature	0-40°C
  Operating Humidity	10-90%
  Power
  Power Supply	110 VAC - 240 VAC - 50/60 Hz
  Power Consumption	Typical: 240 W
  Maximum	Maximum: 320 W
  Deep Standby	≤0.5 W
  Features
  Main Features	Open Content Management Support, Scheduler, USB-Autoplay, Auto-Launch, HDMI-CEC, HDMI-Wakeup, Auto-switch on Failover, Panel Lock, OSD Rotation, NoSignalPowerOff, Screen Saver, Pixel shift,

• Warranty Period: 3-year on-site swap out
  UK Mainland De-Install/Re-Install Warranty.

  Vestel Digital Signage Displays offer a large range of large format displays for use in commercial applications from reception, and conference rooms to classrooms backed by a 3 Year On-Site UK Mainland Warranty.

  They have displays operating from 16 hours per day to non-stop usage displays ideal for the transport industry.

  If you need to discuss your warranty period, please contact us.

• Document Type	Download Link
  Specification Sheet	Downloads
  Commercial Datasheet	Downloads
  RS232 Control Document	Downloads
  Detailed Mechanical Drawing	Downloads
  Wall Mount Drawing	Downloads
  Detailed Mechanical Drawing	Downloads
