Screen Size |
43" |
Panel Technology |
IPS |
Backlight Type |
Slim DLED |
Brightness (typical) |
500 cd/m² |
Native Resolution |
3840 x 2160 (16:9) - UHD |
Contrast Ratio (typical) |
1200:1 (typ.) |
Dynamic Contrast Ratio |
50000:1 |
Panel Life Time (Min.) |
50000 Hrs |
Response Time (typical) |
8 ms |
Active Area (H x V) |
941.1 (H) × 529.4 (V) mm |
Viewing Angle |
178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
Color Value |
1.07G (8bits + FRC) |
Color Gamut |
72% NTSC |
Haze Level |
1% |
Refresh Rate |
60 Hz |
Orientation |
Landscape |
Operation Hours |
16/7 |
Area of Usage |
Indoor |
Built-in System |
Mainboard Model: 17MB400VS, Operating System: Android 9, Memory: 2 GB DDR4, Storage: 16 GB eMMC, Additional Storage: Micro SD (up to 1TB), CPU: Quad-Core ARM Cortex-A55, GPU: ARM Mali-G31 MP2 |
Wired Connectivity |
10/100/1000 Mbps Ethernet, IEEE 802.1X Authentication |
Wireless Connectivity |
WiFi 5 (802.11 a/b/g/n/ac), IEEE 802.1X Authentication, Bluetooth BT 5.1 |
HTML5 Browser |
Vewd |
Wireless Display |
Miracast |
Monitor Connectivity |

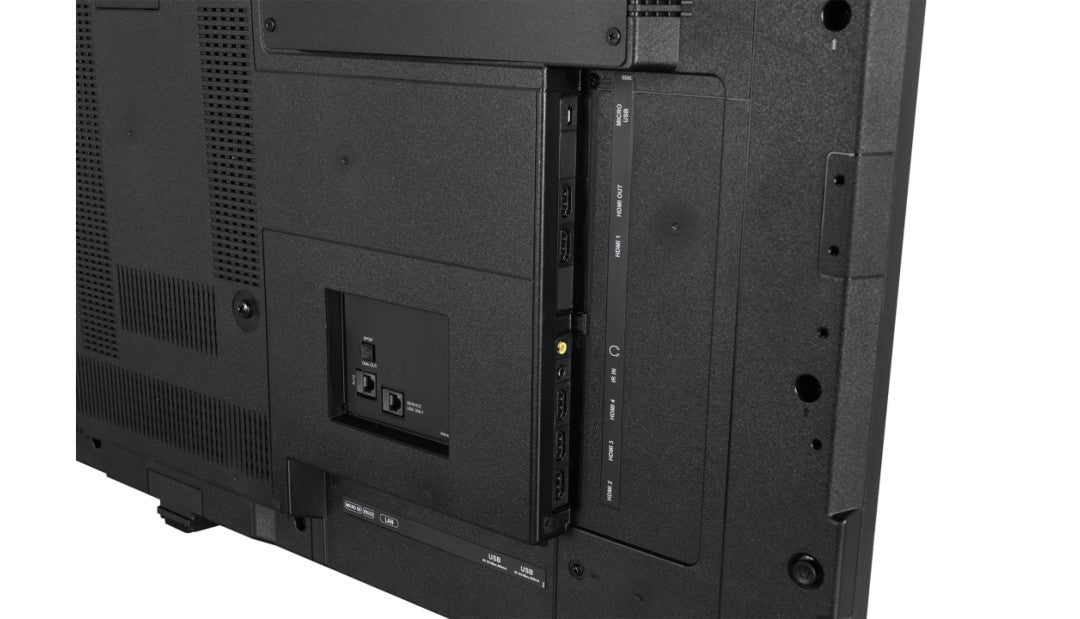

Video Input: 2xHDMI2.0, 1xUSB-A 3.0, 1xUSB-A 2.0, 1xUSB-A 2.0 (Internal), 1x Micro USB, Video Output: 1xHDMI2.0, Audio Output: Headphone, Optic SPDIF, External Control: RS232 (3.5mm jack green), Gigabit Ethernet (RJ45), Service (RJ12), External Sensor: RJ12 |
Mechanical |
Product Dimensions (WxDxH): 963 x 63 x 555 mm, Package Dimensions (WxDxH): 1050 x 178 x 718 mm, Product Weight: 10.4 kg, Package Weight: 13.5 kg, Vesa Mounting: 200 (W) x 200 (H) mm M6, Bezel Width: B: 9 mm, T/L/R: 6 mm |
Environmental Conditions |
Operating Temperature: 0-40°C, Operating Humidity: 10-90% |
Power |
Power Supply: 110 VAC - 240 VAC - 50/60 Hz, Power Consumption: Typical: 127 W, Maximum: 160 W, Deep Standby: ≤0.5 W |
Features |
Main Features: HTML5 CMS Launcher, Android CMS Launcher, Open Content Management Support, Scheduler, USB-Autoplay, Auto-Launch, HDMI-CEC, HDMI-Wakeup, Auto-switch on Failover, Panel Lock, OSD and UI Rotation, Video Rotation, NoSignalPowerOff, Pixel shift, Scheduler, Videowall support, Remote control via LAN, Real Time Clock, Crestron Connected, SNMP, Mechanical Features: Joystick, Rocker Switch, Detachable Power Cable, Detachable Logo, Internal USB Cover |
Speaker |
2x8 W |
Accessory |
Standard: QSG, IB, Power cord, Remote control unit, RC battery, Mounting kit, IR extender cable |
Certification |
Safety: Yes, EMC: Yes, CE: Yes |
