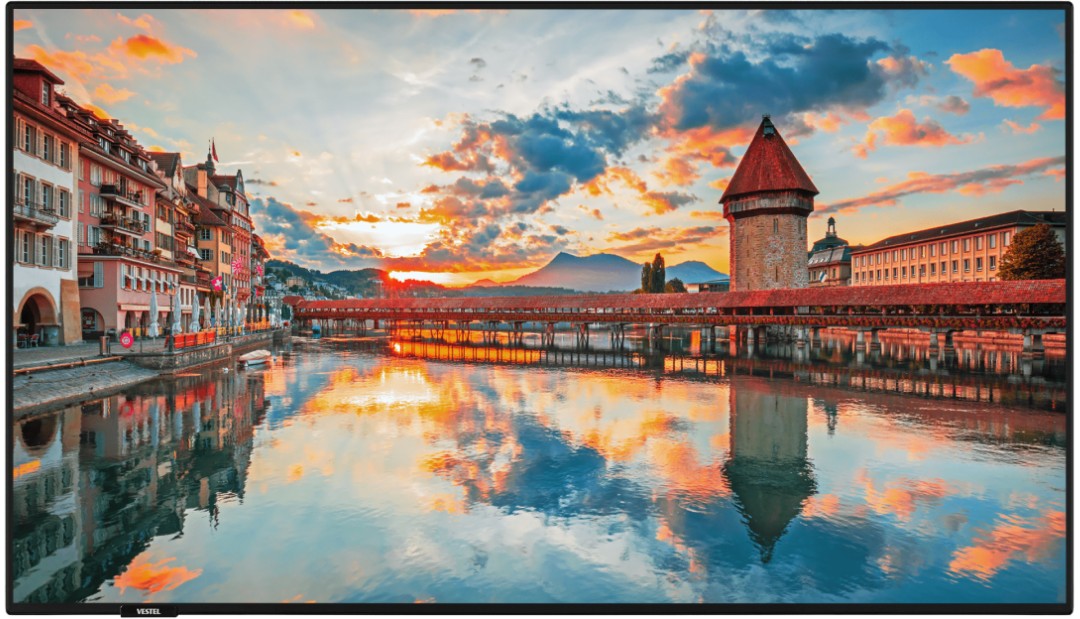

Vestel PN+ Series PN50D-4H 50" 4K Ultra HD Digital Signage Display

Daisy Chain
The display can mirror the content (to another display) into its display port out coming from its display port in. This set up creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode.

Usb Security
This series lets your USB and your content to be secured within the back cover of the display. The cover is protected with a screw not allowing any outside intervention.

Usb Auto-Play
You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen and not worry about anything else.

Subtle Design
This series’ displays exhibit ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is found to be desirable for digital signage specific design: internal usb cover, detachable power plug and IR extender.

SoC Content Management
With quad core SoC (System on Chip), this Series displays are the digital signage monitors for both offline designed content and cloud-based managed content. This helps your digital content to be displayed in the displays by content management systems.

Signal Failover
Our displays have a protection for “No Signal”. If the source is disconnected, the display will either show your customized banner or search for any other signal from video sources. Since blank screen is the worst case scenario for advertisement, failover is one of the critical feature in our signage displays.

Scheduler
The built in scheduler is one of the many important included features. The scheduler allows you to plan daily routines of when the display is powered on or off, along with selection of different sources or USB playlists.

Pixel Shifting
The Pixel Shifting feature can be activated in order to reduce the potential risk of image sticking when static content is displayed over long periods of time. The feature periodically shifts the image on the display, without causing any interference of the visual experience.

Open Platform Support
Our SoC supports API (Application Programming Interface) for solution providers/integrators to develop and integrate any HTML5-based to be installed and used on our displays.

External Device Connections
You may want to connect your teleconference system, screen sharing system, set-top box or external PCs via HDMI port. For this purposes, our monitors help you to maximize user experience with HDMI CEC (Consumer Electronics Control) and HDMI Hotplug capabilities.

Display Control
Digital Signage Display SoC enables the users to control our displays using RS232 commands in a Local Area Network. Together with the full RS232 command list you can change/set volume, turn on/off the monitor, set a schedule for content display, set a webpage link to be displayed and give a wide range of commands in real-time.

Category	Details
Panel
Screen Size	50''
Panel Technology	VA
Backlight Type	Slim DLED
Brightness (typical)	500 cd/m²
Native Resolution	3840 x 2160 (16:9) - UHD
Contrast Ratio (typical)	5000:1 (typ.)
Dynamic Contrast Ratio	50000:1
Panel Life Time (Min.)	50000 Hrs
Response Time (typical)	9.5 ms
Active Area (H x V)	1095.8 (H) x 616.4 (V) mm
Viewing Angle	178° Vert., 178° Hor. @ CR>10
Color Value	1.07B
Color Gamut	72% NTSC
Haze Level	3%
Refresh Rate	60 Hz
Orientation	Landscape / Portrait
Operation Hours	24/7
Area of Usage	Indoor
Built-in System
Mainboard Model	17MB400VS
Operating System	Custom OS (built on Android AOSP)
Memory	2 GB DDR4
Storage	16 GB eMMC
Additional Storage	Micro SD (up to 1TB)
CPU	Quad-Core ARM Cortex-A55
GPU	ARM Mali-G31 MP2
Wired	10/100 Mbps Ethernet, IEEE 802.1X Authentication
WiFi	WiFi 5 (802.11 a/b/g/n/ac)
Bluetooth	BT 5.1
HTML5 Browser	Vewd
Wireless Display	Miracast
Monitor Connectivity
Video Input	4xHDMI2.0, 1xUSB-A 3.0, 1xUSB-A 2.0, 1x Micro USB
Video Output	1xHDMI2.0
Audio Output	Headphone, Optic SPDIF
External Control	RS232 (3.5mm jack), Fast Ethernet (RJ45)
External Sensor	RJ12
Mechanical
Product Dimensions (WxDxH)	1121 x 63 x 646 mm
Package Dimensions (WxDxH)	1215 x 165 x 775 mm
Product Weight	12.8 kg
Package Weight	16.8 kg
Vesa Mounting	200 (W) x 200 (H) mm M6
Bezel Width	B: 13 mm, T/L/R: 9 mm
Environmental Conditions
Operating Temperature	0-40°C
Operating Humidity	10-90%
Power
Power Supply	110 VAC - 240 VAC - 50/60 Hz
Power Consumption (Typical)	121 W
Power Consumption (Maximum)	160 W
Deep Standby	≤0.5 W
Features
Main Features	HTML5 CMS, Auto-Launch, Video Rotation, HDMI-CEC, Failover, LAN Remote Control
Mechanical Features	Joystick, Rocker Switch, Detachable Power Cable, Internal USB Cover
Speaker	2x10 W
Accessory
Standard	QSG, Power cord, Remote control unit, RC battery, Mounting kit, IR extender cable
Certification
Safety	Yes
EMC	Yes
CE	Yes
