Vestel PN43B-2H - 43" UHD Digital Signage Displays

Commercial Grade: 3-year warranty
High-Brightness 500 cd/m2
Can be use Landscape or Portrait
24/7 Operation Hours

Description
Specifications
Warranty
Downloads

Daisy Chain
The display can mirror the content (to another display) into its display port out coming from its display port in. This set up creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode.

USB Security

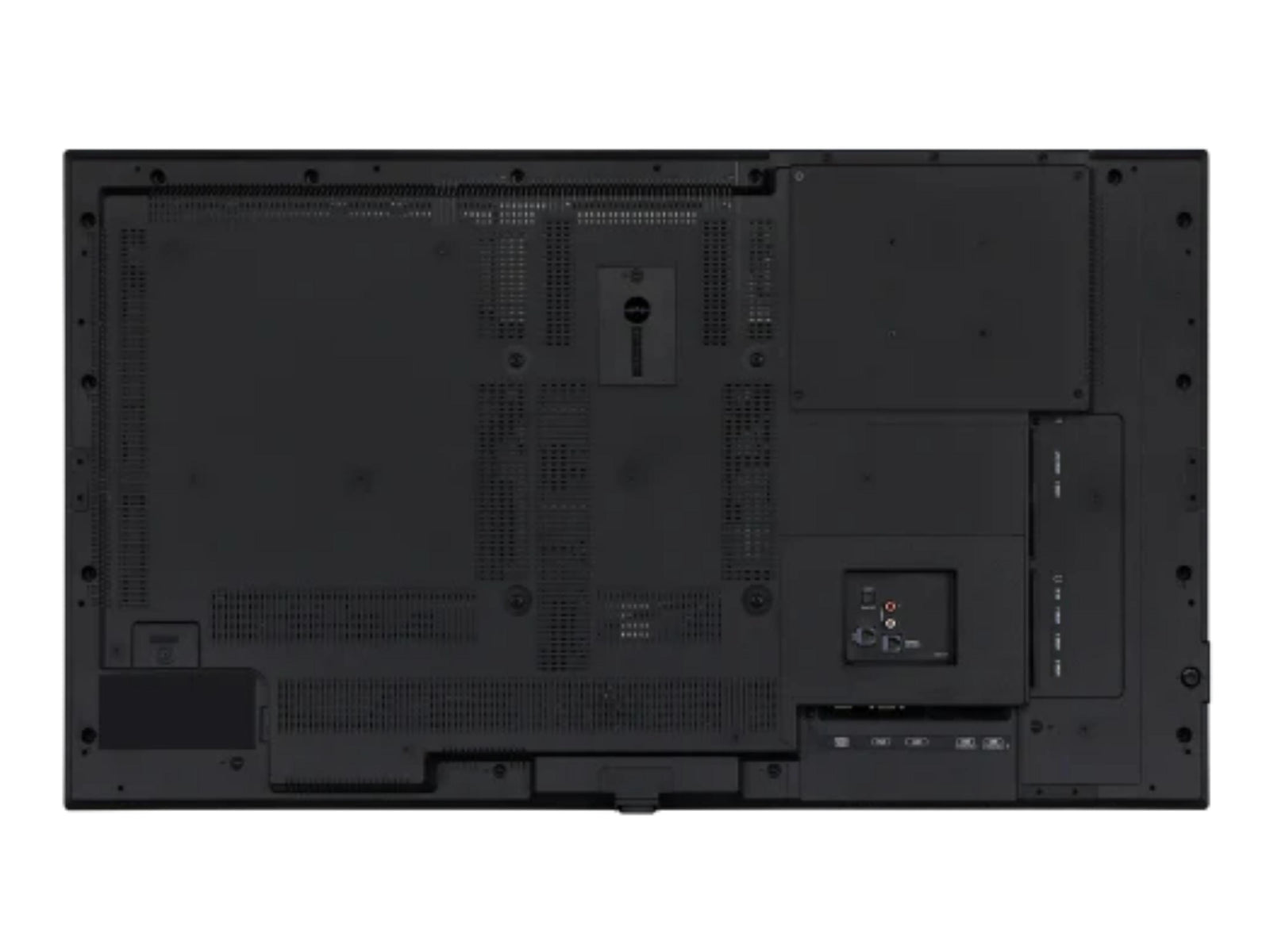

This series lets your USB and your content to be secured within the back cover of the display. The cover is protected with a screw not allowing any outside intervention.

Usb Auto-Play
You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen and not worry about anything else.

Subtle Design
This series’ displays exhibit ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is found to be desirable for digital signage specific design: internal usb cover, OPS-slot, detachable power plug, carrying handles and IR extender.

SoC Content Management
With quad core SoC (System on Chip), this Series displays are the digital signage monitors for both offline designed content and cloud-based managed content. This helps your digital content to be displayed in the displays by content management systems.

Signal Failover
Our displays have a protection for “No Signal”. If the source is disconnected, the display will either show your customized banner or search for any other signal from video sources. Since blank screen is the worst case scenario for advertisement, failover is one of the critical feature in our signage displays.

Scheduler
The built in scheduler is one of the many important included features. The scheduler allows you to plan daily routines of when the display is powered on or off, along with selection of different sources or USB playlists.

Pixel Shifting
The Pixel Shifting feature can be activated in order to reduce the potential risk of image sticking when static content is displayed over long periods of time. The feature periodically shifts the image on the display, without causing any interference of the visual experience.

Optional OPS Support
All our products in this series have an optional OPS (Open Pluggable Standard) slot. OPS will empower your screens with enhanced processing power and ability to choose Windows or Android as your operating system to fit your specific application.

Open Platform Support
Our SoC supports API (Application Programming Interface) for solution providers/integrators to develop and integrate any HTML5-based to be installed and used on our displays.

External Device Connections
You may want to connect your teleconference system, screen sharing system, set-top box or external PCs via HDMI port. For this purposes, our monitors help you to maximize user experience with HDMI CEC (Consumer Electronics Control) and HDMI Hotplug capabilities.

Display Control
Digital Signage Display SoC enables the users to control our displays using RS232 commands in a Local Area Network. Together with the full RS232 command list you can change/set volume, turn on/off the monitor, set a schedule for content display, set a webpage link to be displayed and give a wide range of commands in real-time.

Product Information
Part Number	PN43B-2H
Brand Name	Vestel
Manufacturer	Vestel Electronics
Manufacturer Part Number	10134414
Product Model	PN43B-2H
Product Name	PN43B-2H Digital Signage Display
Product Type	Digital Signage Display

Technical Information
Backlight Technology	Direct LED
Screen Size (mm)	1092.2

Display & Graphics
Display Resolution	3840 x 2160
Screen Size	43"

Physical Characteristics
Colour	Silver
Form Factor	In-ceiling Mount

Product Information
Display Screen Type	LCD
Mount Type	Wall Mount

Video
Brightness	500 cd/m²
Brightness (Nit)	500
Scan Format	2160p

Miscellaneous
Features	Open Platform Support, SoC Content Management
Indoor/Outdoor	Indoor

Warranty Period: 3-year on-site swap out
UK Mainland De-Install/Re-Install Warranty.

Vestel Digital Signage Displays offer a large range of large format displays for use in commercial applications from reception, and conference rooms to classrooms backed by a 3 Year On-Site UK Mainland Warranty.

They have displays operating from 16 hours per day to non-stop usage displays ideal for the transport industry.

If you need to discuss your warranty period, please contact us.
Description Downloads

Vestel PN43B-2H 43" 4K Slim D-LED Digital Signage Display DataSheet Downloads

Vestel PN43B-2H 43" 4K Slim D-LED Digital Signage Display
