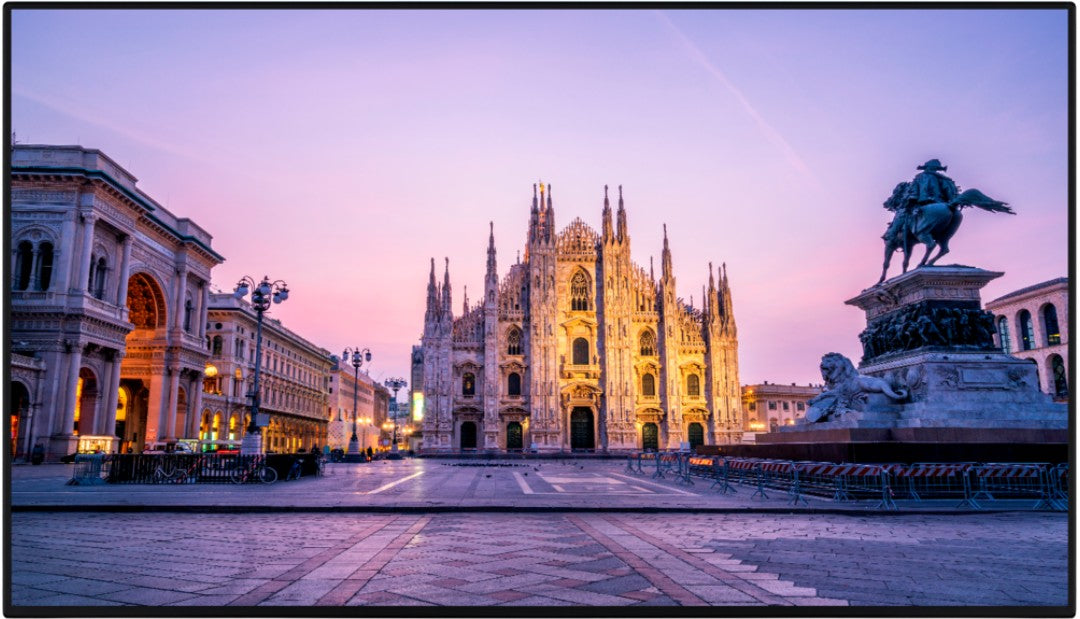

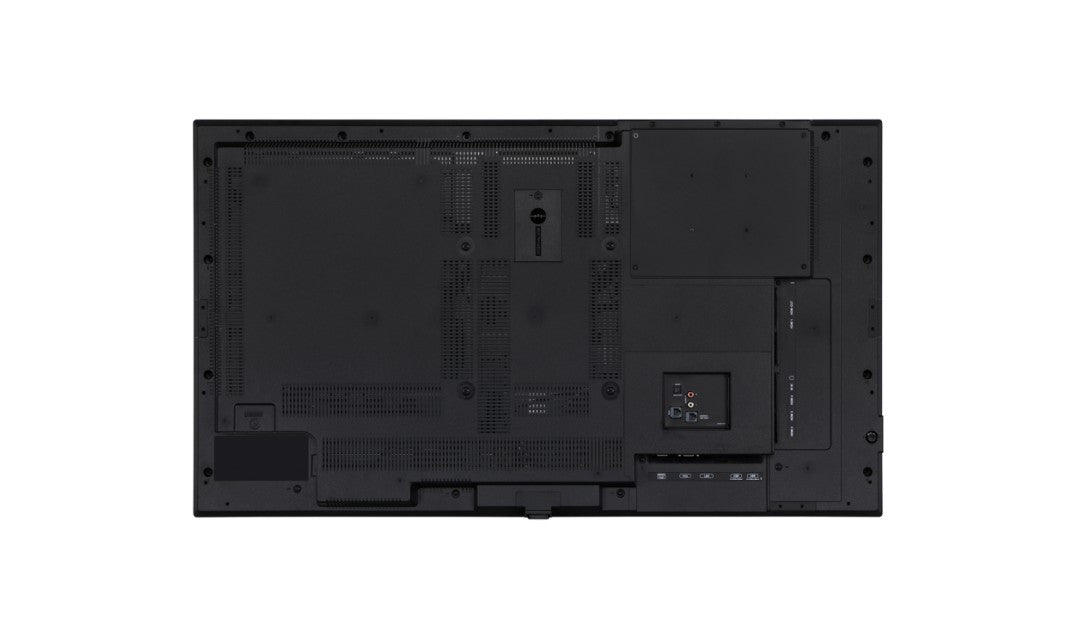

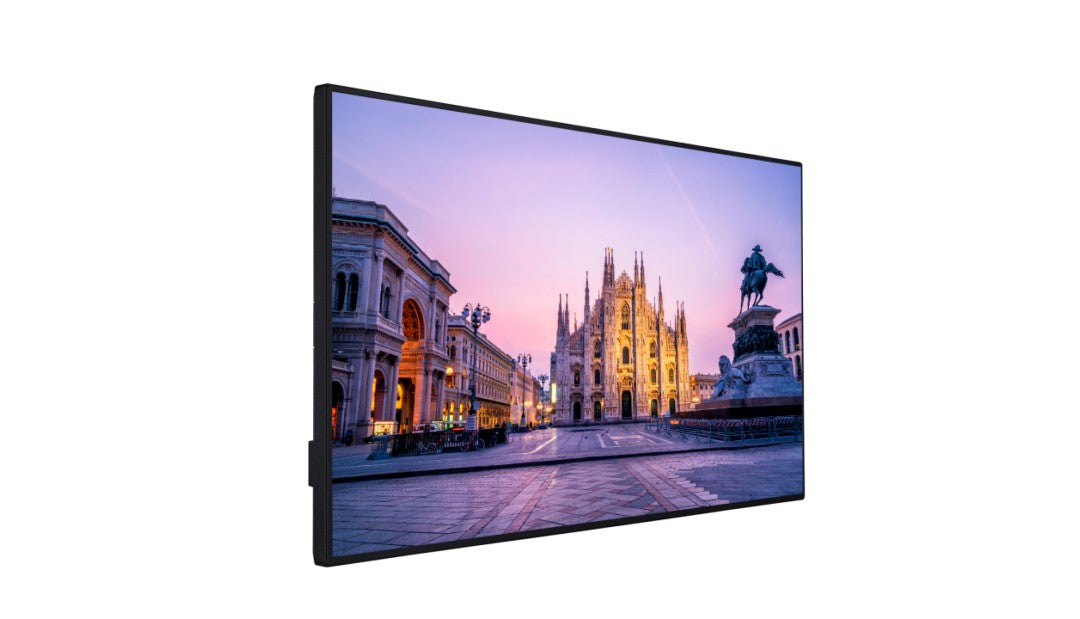

Vestel PR55B-4F 55" UHD Digital Signage Display

High-Brightness 700 cd/m2 - 24/7 Operation Hours

• Description
• Specifications
• Warranty
• Downloads

•
  Daisy Chain

  The display can mirror the content (to another display) into its display port out coming from its display port in. This set up creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode.



  Usb Security

  This series lets your USB and your content to be secured within the back cover of the display. The cover is protected with a screw not allowing any outside intervention.



  Usb Auto-Play

  You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen and not worry about anything else.



  Subtle Design

  This series’ displays exhibit ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is found to be desirable for digital signage specific design: internal usb cover, OPS-slot, detachable power plug, carrying handles and IR extender.



  SoC Content Management

  With quad core SoC (System on Chip), this Series displays are the digital signage monitors for both offline designed content and cloud-based managed content. This helps your digital content to be displayed in the displays by content management systems.



  Signal Failover

  Our displays have a protection for “No Signal”. If the source is disconnected, the display will either show your customized banner or search for any other signal from video sources. Since blank screen is the worst case scenario for advertisement, failover is one of the critical feature in our signage displays.



  Scheduler

  The built in scheduler is one of the many important included features. The scheduler allows you to plan daily routines of when the display is powered on or off, along with selection of different sources or USB playlists.



  Pixel Shifting

  The Pixel Shifting feature can be activated in order to reduce the potential risk of image sticking when static content is displayed over long periods of time. The feature periodically shifts the image on the display, without causing any interference of the visual experience.



  Optional OPS Support

  All our products in this series have an optional OPS (Open Pluggable Standard) slot. OPS will empower your screens with enhanced processing power and ability to choose Windows or Android as your operating system to fit your specific application.



  Open Platform Support

  Our SoC supports API (Application Programming Interface) for solution providers/integrators to develop and integrate any HTML5-based to be installed and used on our displays.



  External Device Connections

  You may want to connect your teleconference system, screen sharing system, set-top box or external PCs via HDMI port. For this purposes, our monitors help you to maximize user experience with HDMI CEC (Consumer Electronics Control) and HDMI Hotplug capabilities.



  Display Control

  Digital Signage Display SoC enables the users to control our displays using RS232 commands in a Local Area Network. Together with the full RS232 command list you can change/set volume, turn on/off the monitor, set a schedule for content display, set a webpage link to be displayed and give a wide range of commands in real-time.

• Panel
  Screen Size	55"
  Backlight Type	Slim DLED
  Brightness (typical)	700 cd/m²
  Native Resolution	3840 x 2160 (16:9) - UHD
  Contrast Ratio (typical)	1200:1(typ.)
  Dynamic Contrast Ratio	70000:1
  Panel Life Time (Min.)	50000 Hrs
  Response Time (typical)	8ms
  Active Area (H x V)	1209.6 (H) × 680.4(V)
  Viewing Angle	178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
  Color Value	1.07 G (8 bit + FRC)
  Screen Treatment	3H
  Haze Level	1%
  Refresh Rate	60Hz
  Orientation	Landscape / Portrait
  Operation Hours	24 / 7
  Area of Usage	Indoor
  Built-in System
  Mainboard Model	17MB135VS
  Monitor Connectivity
  RGB Input	VGA(DE-15F)
  RGB Output	N/A
  Video Input	4xHDMI2.0, DP1.2a, 2xUSB2.0, USB2.0(Internal)
  Video Output	HDMI2.0, DP1.2a
  Audio Input	Line In L/R
  Audio Output	Headphone, Optic SPDIF
  External Control	RS232(DE-9F), Ethernet(RJ45), Service(RJ12)
  External Sensor	RJ12
  Mechanical
  Product Dimensions (WxDxH)	1236 x 83 x 709 mm with OPS/SDM<br>1236 x 63 x 709 mm without OPS/SDM
  Package Dimensions (WxDxH)	1369 x 165 x 874 mm
  Product Weight	17 kg
  Package Weight	22 kg
  Vesa Mounting	400 mm(W) x 400 mm(H) M6
  Bezel Width	9/9/9/11 mm
  Environmental Conditions
  Operating Temperature	0-40°C
  Operating Humidity	10-90%
  Power
  Power Supply	110 VAC - 240 VAC - 50/60 Hz
  Power Consumption	Typical: 138 W
  Maximum	Maximum: 180 W
  Deep Standby	≤0.5 W
  Features
  Main Features	Open Content Management Support, Scheduler, USB-Autoplay, Auto-Launch, HDMI-CEC, HDMI-Wakeup, Auto-switch on Failover, Panel Lock, OSD Rotation, NoSignalPowerOff, Screen Saver, Pixel shift, Scheduler, Videowall support, Remote control via LAN, Real Time Clock
  Mechanical Features	Joystick, Rocker Switch, Detachable Power Cable,

• Warranty Period: 3-year on-site swap out
  UK Mainland De-Install/Re-Install Warranty.

  Vestel Digital Signage Displays offer a large range of large format displays for use in commercial applications from reception, and conference rooms to classrooms backed by a 3 Year On-Site UK Mainland Warranty.

  They have displays operating from 16 hours per day to non-stop usage displays ideal for the transport industry.

  If you need to discuss your warranty period, please contact us.

• Document Type	Download Link
  Specification Sheet	Download
  Commercial Datasheet	Download
  Detailed Mechanical Drawing	Download
