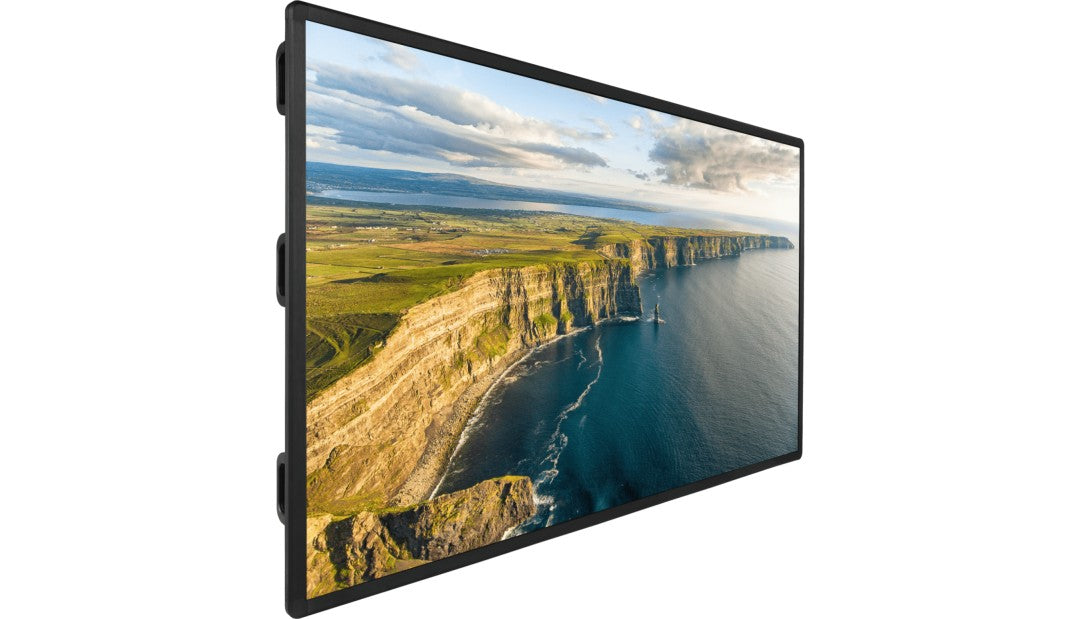

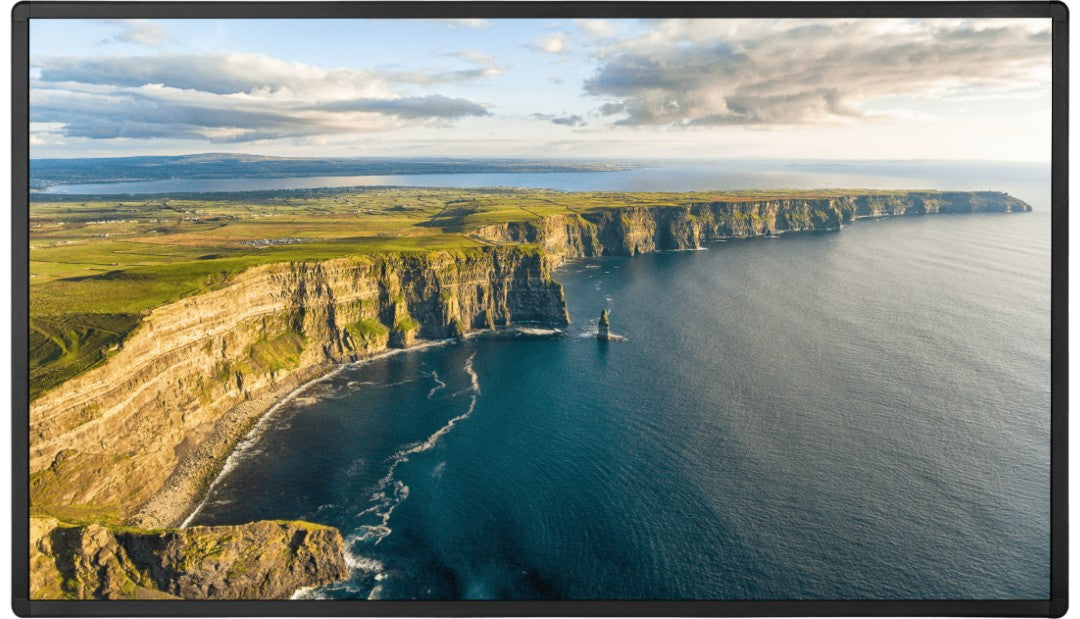

Vestel XD86D-4H - 86" Android Digital Signage Display

High-Brightness 700 cd/m2 - 24/7 Operation Hours

• Description
• Specifications
• Warranty

•
  Daisy Chain
  The display can mirror the content (to another display) into its display port out coming from its display port in. This set up creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode.

  Usb Security

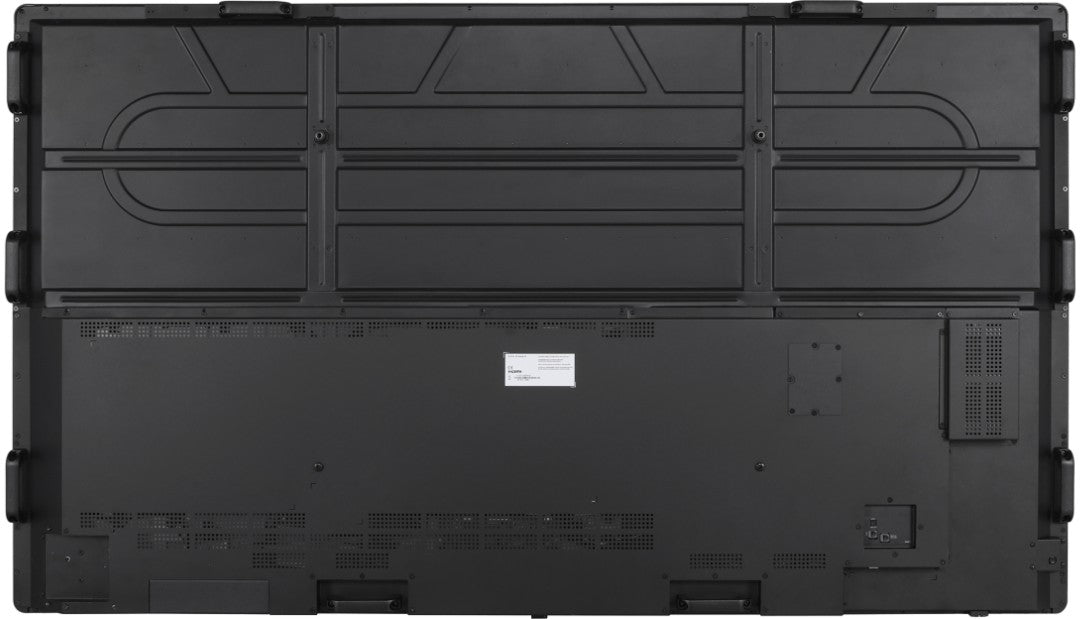

  This series lets your USB and your content to be secured within the back cover of the display. The cover is protected with a screw not allowing any outside intervention.

  Usb Auto-Play
  You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen and not worry about anything else.

  Subtle Design

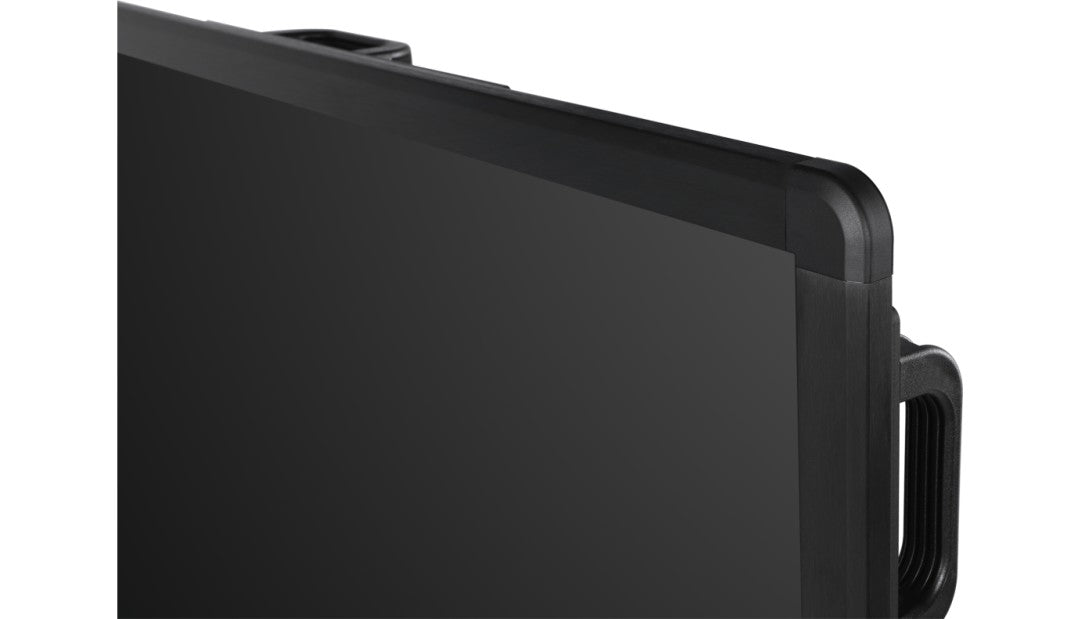

  This series’ displays exhibit ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is found to be desirable for digital signage specific design: internal usb cover, OPS-slot, detachable power plug, carrying handles and IR extender.


  Signal Failover
  Our displays have a protection for “No Signal”. If the source is disconnected, the display will either show your customized banner or search for any other signal from video sources. Since blank screen is the worst case scenario for advertisement, failover is one of the critical feature in our signage displays.


  Pixel Shifting
  The Pixel Shifting feature can be activated in order to reduce the potential risk of image sticking when static content is displayed over long periods of time. The feature periodically shifts the image on the display, without causing any interference of the visual experience.

  Open Platform Support
  Our SoC supports API (Application Programming Interface) for solution providers/integrators to develop and integrate any HTML5-based to be installed and used on our displays.

  External Device Connections
  You may want to connect your teleconference system, screen sharing system, set-top box or external PCs via HDMI port. For this purposes, our monitors help you to maximize user experience with HDMI CEC (Consumer Electronics Control) and HDMI Hotplug capabilities.

  Display Control
  Digital Signage Display SoC enables the users to control our displays using RS232 commands in a Local Area Network. Together with the full RS232 command list you can change/set volume, turn on/off the monitor, set a schedule for content display, set a webpage link to be displayed and give a wide range of commands in real-time.

• Specification	Value
  Screen Size	86"
  Panel Technology	IPS
  Backlight Type	DLED
  Brightness (typical)	400 cd/m²
  Native Resolution	3840 x 2160 (16:9) - UHD
  Contrast Ratio	1200:1 (typ.)
  Dynamic Contrast Ratio	40000:1
  Panel Life Time (Min.)	30000 Hrs
  Response Time (typ.)	8 ms
  Active Area (H x V)	1895 (H) x 1066 (V) mm
  Viewing Angle	178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
  Color Value	1.07G (8bits + FRC)
  Color Gamut	72% NTSC
  Haze Level	25%
  Refresh Rate	60 Hz
  Orientation	Landscape
  Operation Hours	16/7
  Area of Usage	Indoor
  Built-in System	Mainboard Model: 17MB400VS<br>Operating System: Android 9
  Memory	2 GB DDR4
  Storage	16 GB eMMC
  Additional Storage	Micro SD (up to 1TB)
  CPU	Quad-Core ARM Cortex-A55
  GPU	ARM Mali-G31 MP2
  Wired	10/100/1000 Mbps Ethernet, IEEE 802.1X Authentication
  WiFi	WiFi 5 (802.11 a/b/g/n/ac), IEEE 802.1X Authentication
  Bluetooth	BT 5.1
  HTML5 Browser	Vewd
  Wireless Display	Miracast
  Monitor Connectivity	Video Input: 4xHDMI2.0, 1xUSB-A 3.0, 1xUSB-A 2.0,<br>1xUSB-A 2.0 (Internal), 1x Micro USB<br>Video Output: 1xHDMI2.0<br>Audio Output: Headphone, Optic SPDIF<br>External Control: RS232 (3.5mm jack green),<br>Gigabit Ethernet (RJ45), Service (RJ12)<br>External Sensor: RJ12
  Product Dimensions	1962 x 79 x 1133 mm
  Package Dimensions	2163 x 380 x 1490 mm
  Product Weight	62 kg
  Package Weight	83 kg
  VESA Mounting	800 (W) x 600 (H) mm M8
  Bezel Width	B/T/L/R: 25 mm
  Operating Temperature	0-40°C
  Operating Humidity	10-90%
  Power Supply	110 VAC - 240 VAC - 50/60 Hz
  Power Consumption	Typical: TBD<br>Maximum: 400 W<br>Deep Standby: ≤0.5 W
  Main Features	HTML5 CMS Launcher, Android CMS Launcher,<br>Open Content Management Support, Scheduler,<br>USB-Autoplay, Auto-Launch, HDMI-CEC,<br>HDMI-Wakeup, Auto-switch on Failover,<br>Panel Lock, OSD and UI Rotation,<br>Video Rotation, NoSignalPowerOff,<br>Pixel shift, Scheduler, Videowall support,<br>Remote control via LAN, Real Time Clock,<br>Crestron Connected, SNMP
  Mechanical Features	Joystick, Rocker Switch, Detachable Power Cable,<br>Detachable Logo, Internal USB Cover
  Speaker	2x12 W
  Standard Accessory	QSG, IB, Power cord, Remote control unit,<br>RC battery, Mounting kit, IR extender cable
  Certification	Safety, EMC, CE

• Warranty Period: 3-year on-site swap out
  UK Mainland De-Install/Re-Install Warranty.

  Vestel Digital Signage Displays offer a large range of large format displays for use in commercial applications from reception, and conference rooms to classrooms backed by a 3 Year On-Site UK Mainland Warranty.

  They have displays operating from 16 hours per day to non-stop usage displays ideal for the transport industry.

  If you need to discuss your warranty period, please contact us.
