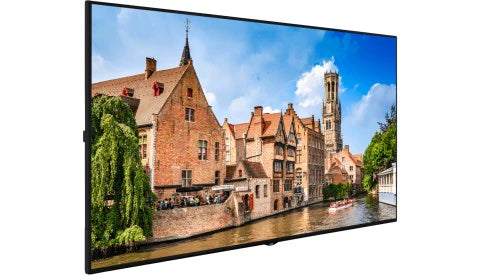

Vestel XN75D-2H 75" 4K Android Digital Signage Display Landscape/Portrait
SKU: XN75D-2H
£535.77 (Excl. VAT)
- Display Size75"
- Operating SystemAndroid 9
- VESA Patterns600x400
- Panel TypeIPS Panel
- ResolutionUltra HD (4K)
- Screen TypeFlat
Book a Free Product Demo
Remote or on-site. No obligation.
Integrator or Installer?
Trade pricing, volume discounts, same-day collection.
Education & Public Sector Solutions
Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.
- Description
- Specifications
- Warranty
- Downloads
-

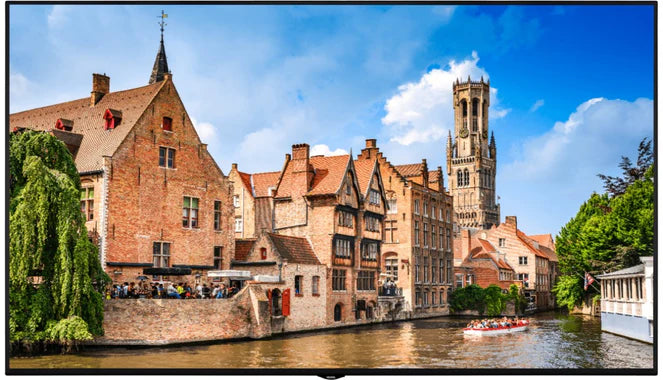

Vestel XN75D-2H 75" 4K Android Digital Signage Display
High-Brightness 500 cd/m2 - 24/7 Operation Hours
Daisy Chain
The display can mirror the content (to another display) into its display port out coming from its display port in. This set up creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode.
Usb Security

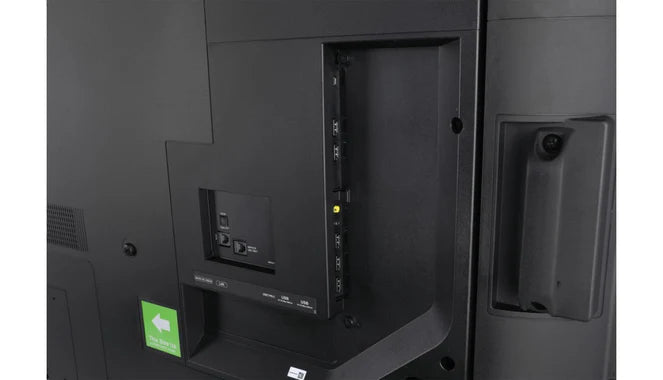

This series lets your USB and your content to be secured within the back cover of the display. The cover is protected with a screw not allowing any outside intervention.
Usb Auto-Play
You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen and not worry about anything else.
Subtle Design
This series’ displays exhibit ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is found to be desirable for digital signage specific design: internal usb cover, OPS-slot, detachable power plug, carrying handles and IR extender.
Signal Failover
Our displays have a protection for “No Signal”. If the source is disconnected, the display will either show your customized banner or search for any other signal from video sources. Since blank screen is the worst case scenario for advertisement, failover is one of the critical feature in our signage displays.
Pixel Shifting
The Pixel Shifting feature can be activated in order to reduce the potential risk of image sticking when static content is displayed over long periods of time. The feature periodically shifts the image on the display, without causing any interference of the visual experience.
Open Platform Support
Our SoC supports API (Application Programming Interface) for solution providers/integrators to develop and integrate any HTML5-based to be installed and used on our displays.
External Device Connections
You may want to connect your teleconference system, screen sharing system, set-top box or external PCs via HDMI port. For this purposes, our monitors help you to maximize user experience with HDMI CEC (Consumer Electronics Control) and HDMI Hotplug capabilities.
Display Control
Digital Signage Display SoC enables the users to control our displays using RS232 commands in a Local Area Network. Together with the full RS232 command list you can change/set volume, turn on/off the monitor, set a schedule for content display, set a webpage link to be displayed and give a wide range of commands in real-time. -
Specification Value Screen Size 75" Panel Technology IPS Backlight Type DLED Brightness (typical) 500 cd/m² Native Resolution 3840 x 2160 (16:9) - UHD Contrast Ratio (typ.) 1200:1 Dynamic Contrast Ratio 50000:1 Panel Life Time (Min.) 30000 Hrs Response Time (typical) 8 ms Active Area (H x V) 1650 (H) × 928 (V) mm Viewing Angle 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 Color Value 1.07G (8bits + FRC) Color Gamut 72% NTSC Haze Level 3% Refresh Rate 60 Hz Orientation Landscape / Portrait Operation Hours 24/7 Area of Usage Indoor Built-in System Mainboard Model Operating System Android 9 Memory 2 GB DDR4 Storage 16 GB eMMC Additional Storage Micro SD (up to 1TB) CPU Quad-Core ARM Cortex-A55 GPU ARM Mali-G31 MP2 Wired 10/100/1000 Mbps Ethernet, IEEE 802.1X Authentication WiFi WiFi 5 (802.11 a/b/g/n/ac), IEEE 802.1X Authentication Bluetooth BT 5.1 HTML5 Browser Vewd Wireless Display Miracast Video Input 4xHDMI2.0, 1xUSB-A 3.0, 1xUSB-A 2.0, 1xUSB-A 2.0 (Internal), 1x Micro USB Video Output 1xHDMI2.0 Audio Output Headphone, Optic SPDIF External Control RS232 (3.5mm jack green), Gigabit Ethernet (RJ45), Service (RJ12) External Sensor RJ12 Product Dimensions (WxDxH) 1684 x 73 x 967 mm Package Dimensions (WxDxH) 1948 x 210 x 1170 mm Product Weight 37.5 kg Package Weight 50.3 kg Vesa Mounting 600 (W) x 400 (H) mm M8 Bezel Width B: 14 mm, T/L/R: 11 mm Operating Temperature 0-40°C Operating Humidity 10-90% Power Supply 110 VAC - 240 VAC - 50/60 Hz Power Consumption Typical: 240 W, Maximum: 320 W, Deep Standby: ≤0.5 W Main Features HTML5 CMS Launcher, Android CMS Launcher, Open Content Management Support, Scheduler, USB-Autoplay, Auto-Launch, HDMI-CEC, HDMI-Wakeup, Auto-switch on Failover, Panel Lock, OSD and UI Rotation, Video Rotation, NoSignalPowerOff, Pixel shift, Scheduler, Videowall support, Remote control via LAN, Real Time Clock, Crestron Connected, SNMP Mechanical Features Joystick, Rocker Switch, Detachable Power Cable, Detachable Logo, Internal USB Cover Speaker 2x12 W Accessory QSG, IB, Power cord, Remote control unit, RC battery, Mounting kit, IR extender cable Certification Safety, EMC, CE -
Warranty Period: 3-year on-site swap out
UK Mainland De-Install/Re-Install Warranty.
Vestel Digital Signage Displays offer a large range of large format displays for use in commercial applications from reception, and conference rooms to classrooms backed by a 3 Year On-Site UK Mainland Warranty.
They have displays operating from 16 hours per day to non-stop usage displays ideal for the transport industry.
If you need to discuss your warranty period, please contact us. -
Description Downloads Specification Sheet Downloads Commercial Datasheet Downloads Mechanical Drawing Downloads Wall Mount Drawing Downloads
