The display can mirror the content (to another display) into its display port out coming from its display port in. This set up creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode.

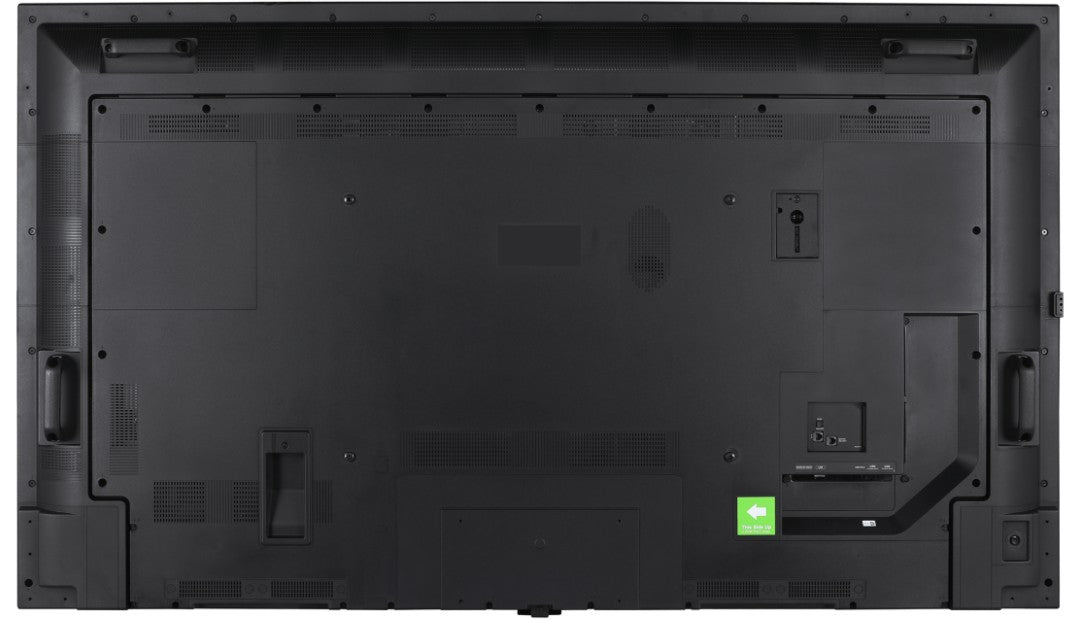

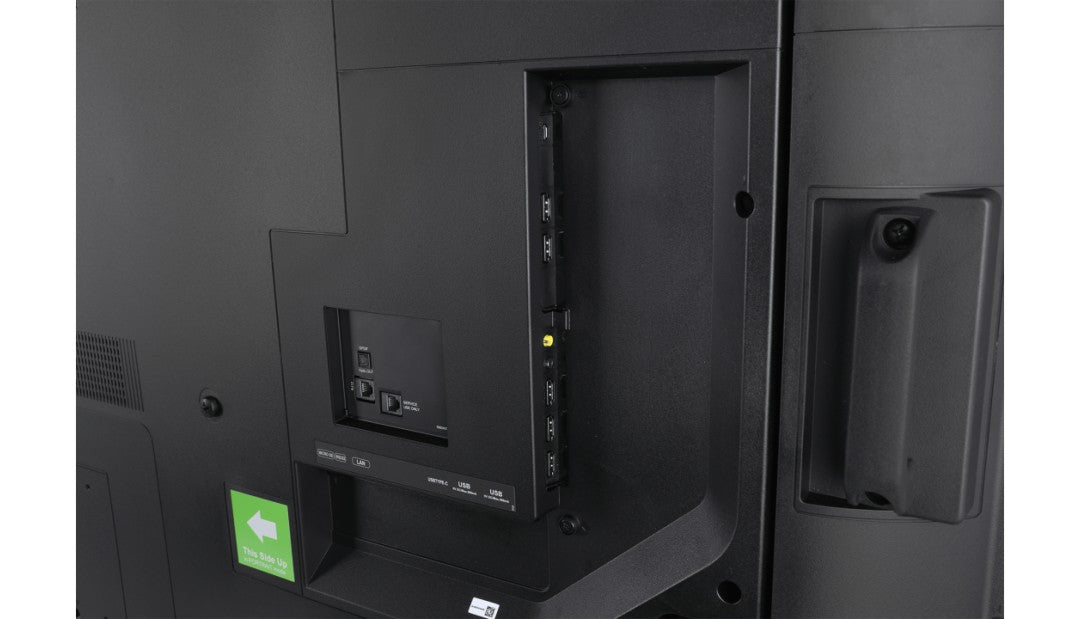

This series lets your USB and your content to be secured within the back cover of the display. The cover is protected with a screw not allowing any outside intervention.
You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen and not worry about anything else.

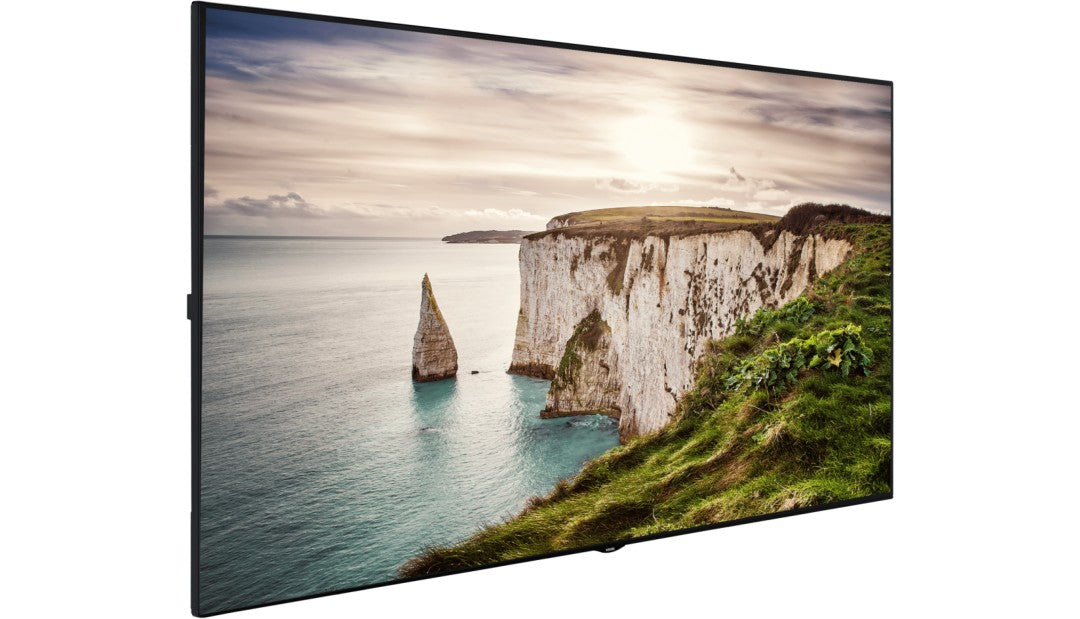

This series’ displays exhibit ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is found to be desirable for digital signage specific design: internal usb cover, OPS-slot, detachable power plug, carrying handles and IR extender.
Our displays have a protection for “No Signal”. If the source is disconnected, the display will either show your customized banner or search for any other signal from video sources. Since blank screen is the worst case scenario for advertisement, failover is one of the critical feature in our signage displays.
The Pixel Shifting feature can be activated in order to reduce the potential risk of image sticking when static content is displayed over long periods of time. The feature periodically shifts the image on the display, without causing any interference of the visual experience.
You may want to connect your teleconference system, screen sharing system, set-top box or external PCs via HDMI port. For this purposes, our monitors help you to maximize user experience with HDMI CEC (Consumer Electronics Control) and HDMI Hotplug capabilities.
Digital Signage Display SoC enables the users to control our displays using RS232 commands in a Local Area Network. Together with the full RS232 command list you can change/set volume, turn on/off the monitor, set a schedule for content display, set a webpage link to be displayed and give a wide range of commands in real-time.
Open Platform Support
Our SoC supports API (Application Programming Interface) for solution providers/integrators to develop and integrate any HTML5-based to be installed and used on our displays.
| Panel | |
|---|---|
| Screen Size | 75" |
| Panel Technology | IPS |
| Backlight Type | DLED |
| Brightness (typical) | 500 cd/m² |
| Native Resolution | 3840 x 2160 (16:9) - UHD |
| Contrast Ratio (typical) | 1200:1 (typ.) |
| Dynamic Contrast Ratio | 50000:1 |
| Panel Life Time (Min.) | 30000 Hrs |
| Response Time (typical) | 8 ms |
| Active Area (H x V) | 1650 (H) × 928 (V) mm |
| Viewing Angle | 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
| Color Value | 1.07G (8bits + FRC) |
| Color Gamut | 72% NTSC |
| Haze Level | 25% |
| Refresh Rate | 60 Hz |
| Orientation | Landscape / Portrait |
| Operation Hours | 24/7 |
| Area of Usage | Indoor |
| Built-in System | |
| Mainboard Model | 17MB400VS |
| Operating System | Android 9 |
| Memory | 2 GB DDR4 |
| Storage | 16 GB eMMC |
| Additional Storage | Micro SD (up to 1TB) |
| CPU | Quad-Core ARM Cortex-A55 |
| GPU | ARM Mali-G31 MP2 |
| Wired | 10/100/1000 Mbps Ethernet, IEEE 802.1X Authentication |
| WiFi | WiFi 5 (802.11 a/b/g/n/ac), IEEE 802.1X Authentication |
| Bluetooth | BT 5.1 |
| HTML5 Browser | Vewd |
| Wireless Display | Miracast |
| Monitor Connectivity | |
| Video Input | 4xHDMI2.0, 1xUSB-A 3.0, 1xUSB-A 2.0, 1xUSB-A 2.0 (Internal), 1x Micro USB |
| Video Output | 1xHDMI2.0 |
| Audio Output | Headphone, Optic SPDIF |
| External Control | RS232 (3.5mm jack green), Gigabit Ethernet (RJ45), Service (RJ12) |
| External Sensor | RJ12 |
| Mechanical | |
| Product Dimensions (WxDxH) | 1684 x 73 x 967 mm |
| Package Dimensions (WxDxH) | 1948 x 210 x 1170 mm |
| Product Weight | 37.5 kg |
| Package Weight | 50.3 kg |
| Vesa Mounting | 600 (W) x 400 (H) mm M8 |
| Bezel Width | B: 14 mm, T/L/R: 11 mm |
| Environmental Conditions | |
| Operating Temperature | 0-40°C |
| Operating Humidity | 10-90% |
| Power | |
| Power Supply | 110 VAC - 240 |
| Description | Downloads |
|---|---|
| Vestel XN75D-4HH - 75" Android Digital Signage Display DataSheet | Download |
