  • Brightness (Lumens) 3000 - 5000
  • Contrast Ratio 15,000:1 – 20,000:1
  • Native Resolution WXGA
  • Throw Ratio 0.52
  • Light Source Lamp
  • Native Aspect Ratio 16:10 Widescreen
  • Description
  • Specifications
  • Downloads

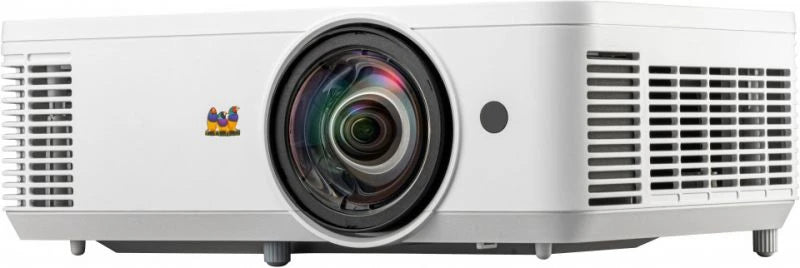

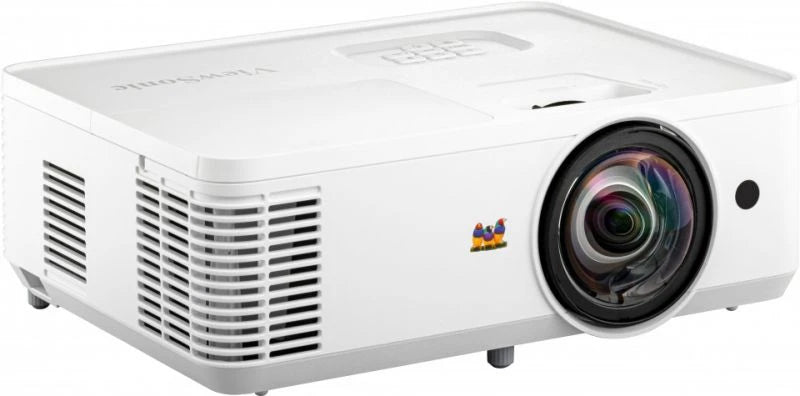

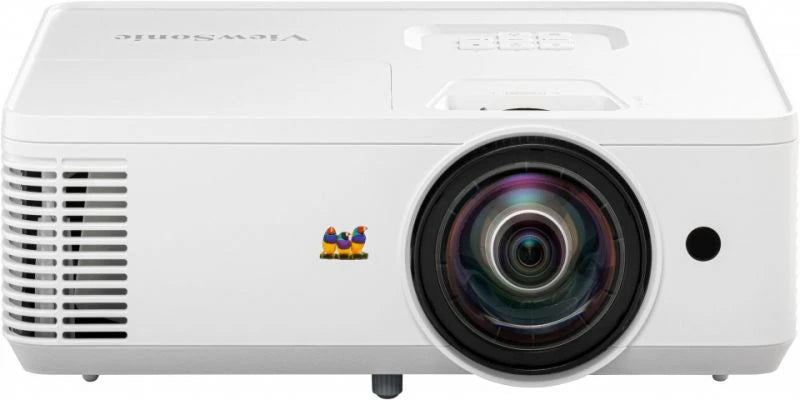

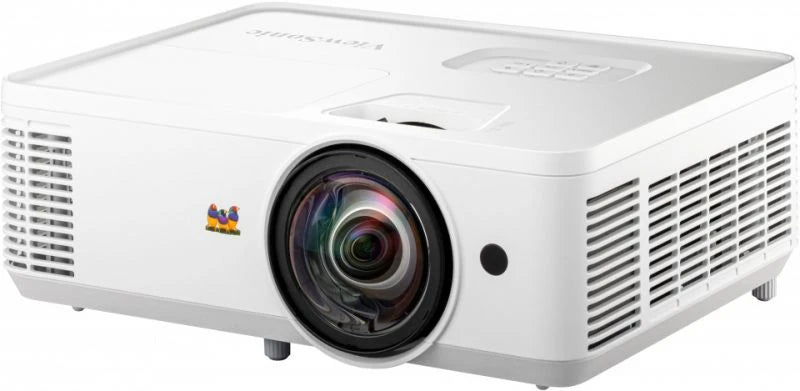

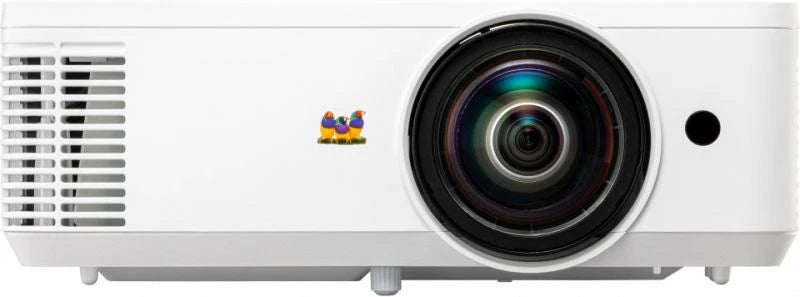

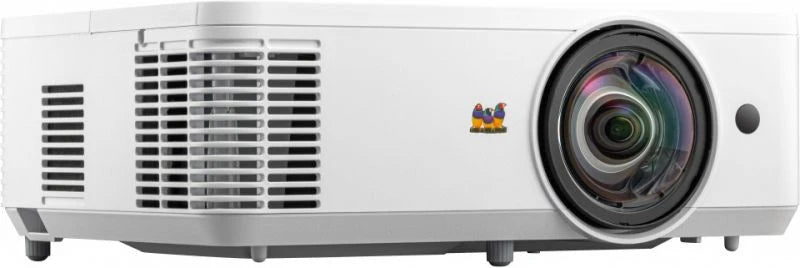

  • ViewSonic 4000 Lumens 16:10 WXGA Throw Business & Education Projector

    OVERVIEW
    The PS502W is ViewSonic’s high brightness WXGA short throw business/education projector. Boasting 4,000 ANSI Lumens of high brightness, the projector offers clear images of up-to-300” large screen in meeting rooms, classrooms, or any other bright environment. With 0.52 short throw ratio, the projector can provide 100” large screen size from only 1.1 m away without being obstructed by shadows, allowing for a large screen even in small spaces. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switching between content sources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless content streaming more convenient. The projector also allows software updates via USB cable connection with simply your laptops, skipping trips to service centers.

    High Brightness for Business & Education Environments
    Thanks to 4,000 ANSI Lumens brightness, you're guaranteed clear visuals of vibrancy, which are perfectly suitable for spaces with a lot of ambient light.
    4,000 ANSI Lumens

    Big Screen for Small Spaces
    The PS502W’s 0.52 short throw projection gives you 100” from only 1.3m away when positioning the projector. Presenters will stay clear of the projector beam, eliminating eye glare and shadows on the projection screen.
    0.52 Short Throw

    Ultra-large screen with Lower Cost-per-inch
    The projector allows for an up-to-300” image size, which is much larger and easier to install than commercial displays.
    Up to 300"

    Easy and Flexible Connection
    The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices. You no longer have to unplug your existing device to switch to a new one. Simply use the on-screen display to select and change the input source.
    Dual HDMI Ports

    Vibrant Colours for Captivating Presentations
    Impress any audience with ViewSonic’s exclusive color technology and elevate your presentation with a true-to-life colour experience.

    A Simpler Way to Update Projector Software
    Skip trips to the service center by keeping software up to date easily and onsite via USB cable connection with your laptop.
    Learn more: https://youtu.be/irlhJLpDHas
    *The latest projector software update can be found in the download section at the bottom of the page when available.

    USB Type A Power Supply
    A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming your multimedia content.

    Audio Right Out of the Box
    The projector comes equipped with a 16W speaker, allowing for audio to be delivered during presentations without the need for external speakers.
    Built-in 16W Speakers

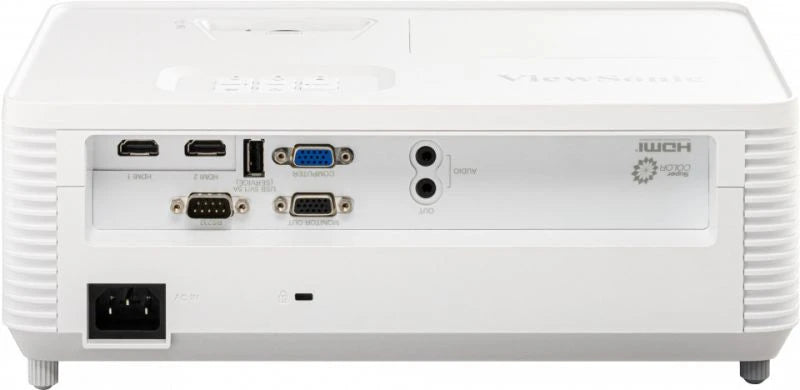

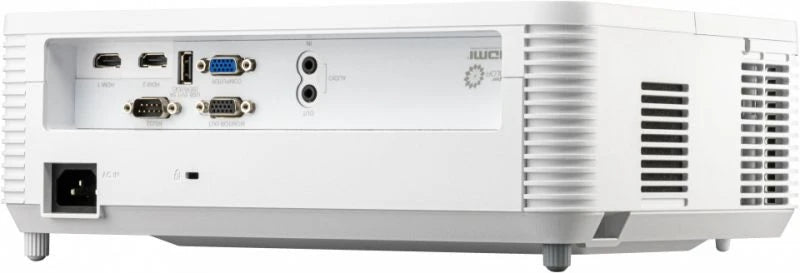

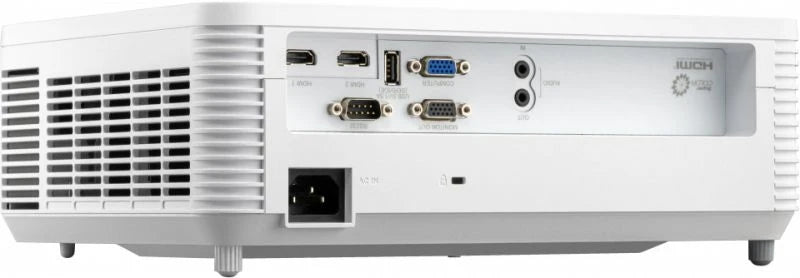

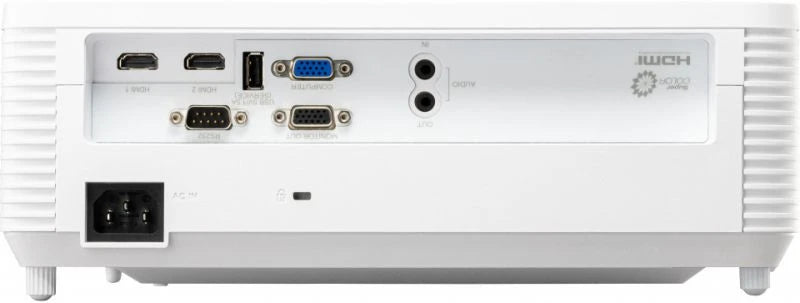

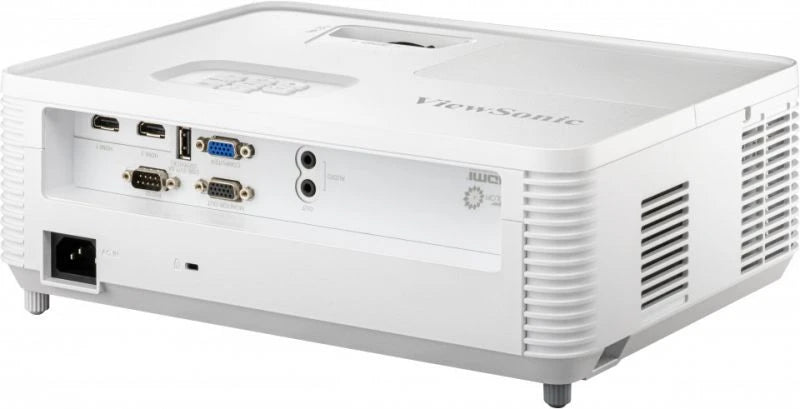

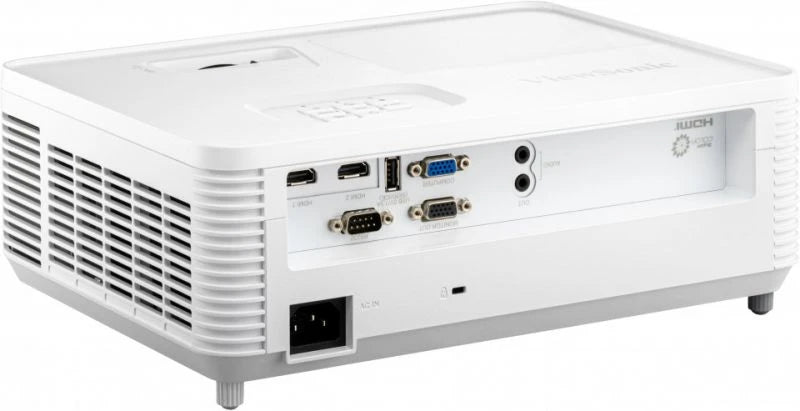

    Dimensions & I/O Ports

  • Specification Details
    Projection System 0.65" WXGA
    Native Resolution 1280x800
    Brightness 4000 (ANSI Lumens)
    Contrast Ratio (SuperEco) 15000:1
    Display Color 1.07 Billion Colors
    Light Source Type 240W UHP Lamp
    Light Source Life (Normal) 4000 hours
    Light Source Life (SuperEco) 12000 hours
    Lens F=2.8, f=7.51mm
    Projection Offset 112.4%+/-4%
    Throw Ratio 0.52
    Optical Zoom Fixed
    Digital Zoom 0.8x-2.0x
    Image Size 60"-300"
    Throw Distance 0.67m-3.36m (87"@0.97m)
    Keystone +19°/-19° (V)
    Audible Noise (Normal) 34dB
    Audible Noise (Eco) 25dB
    Input Lag 33.2ms
    Resolution Support VGA(640 x 480) to FullHD(1920 x 1080)
    HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility NTSC, PAL, SECAM
    Horizontal Frequency 15K-102KHz
    Vertical Scan Rate 23-120Hz
    Input
    Computer in (share with component) 1
    HDMI 2 (HDMI 1.4/ HDCP 1.4)
    Audio-in (3.5mm) 1
    Output
    Monitor out 1
    Audio-out (3.5mm) 1
    Speaker 16W
    USB Type A (Power) 1 (5V/1.5A)
    Control
    RS232 (DB 9-pin male) 1
    USB Type A (Services) 1 (share with USB A Output)
    Others
    Power Supply Voltage 100-240V+/- 10%, 50/60Hz (AC in)
    Power Consumption Normal: 295W
    Standby <0.5W
    Operating Temperature 0~40℃
    Carton Brown
    Weight and Dimensions
    Net Weight 2.87kg
    Gross Weight 4.08Kg
    Dimensions (WxDxH) with Adjustment Foot 309x234x115mm
    Packing Dimensions 400x337x168mm
    Languages
    OSD Language English, German, French, Swedish, Spanish, Portuguese, Polish, Dutch, T. Chinese, S.Chinese, Finnish, Korean, Russian, Hungarian, Czech, Arabic, Thai, Turkish, Vietnamese, Indonesian, Greek, Italian (Total 22 languages)
    User Guide Language English, S-Chinese, T-Chinese, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish (Total 15 languages)
    Standard Accessory
    Power Cord 1
    VGA Cable 1

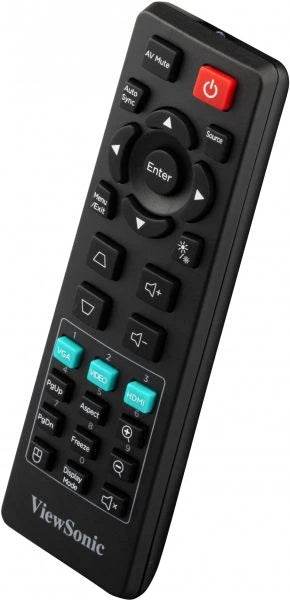

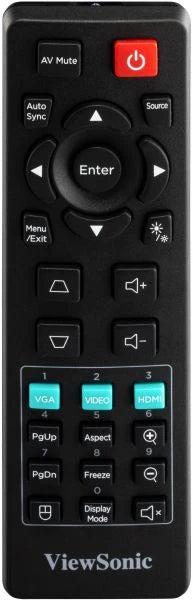

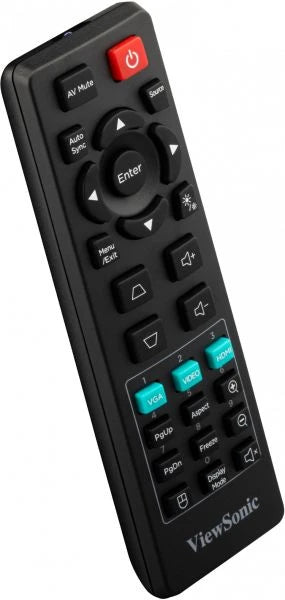

    Remote Control 1
    QSG (Quick Start Guide) Yes
    Lens Cover Yes
    Air Filter Yes (CN Only)
    Warranty Card Yes (CN Only)
    Optional Accessory
    Lamp/Light Source RLC-128
    Air Filter RSPL
    Wall/Ceiling Mount PJ-WMK-305, PJ-WMK-007
    Carry Bag PJ-CASE-008
