ViewSonic CDE6530

65" 4K Presentation Large Format Display

Wireless Presentation for Upgraded Efficiency:
Enables wireless presentation capabilities, allowing users to share content from their devices (e.g., laptops, smartphones) wirelessly.
Enhances collaboration and efficiency during meetings, presentations, and conferences by eliminating the need for physical cable connections.

Single Cable via USB-C with 65W Power Delivery:
Provides a single USB-C cable for connectivity, which also supports power delivery with a 65W capacity.
Simplifies setup and reduces cable clutter while ensuring that connected devices are charged simultaneously.

24/7 Sustainable Video Playback:
Offers sustainable video playback capabilities designed for continuous operation, making it suitable for applications like digital signage, information displays, and video conferencing.
Ensures reliable and uninterrupted content delivery, even during extended usage periods.

Description
Specifications
Warranty

OVERVIEW
With stunning 4K Ultra HD resolution, high brightness, and landscape and portrait modes, the CDE30 Series offers continuous and sustainable 24/7 display for both corporate and campus communication. Purpose-engineered for ease of use, the display is equipped with a Quad Core SoC to run multiple operations seamlessly, and its USB-C one-cable solution sorts for effortless connection with external devices. Designed for easy-to-operate continuous multimedia playback, the CDE30 Series offers cable-free screen casting and screen sharing through myViewBoard Display and ViewBoard Cast, which also supports Airplay and Chromecast. Remote management via the intuitive myViewBoard Manager makes changing content, broadcasting, and software updates a breeze. Available in 6 sizes ranging from 43" to 98", complete with daisy-chain compatibility, the CDE30 Series meets and exceeds the communication needs of any campus or corporate spaces.

CDE30 Series
Sleek Design with Versatile Connectivity

Features for Presentation Display

Connection Made Efficient
The CDE30 Series, with its USB-C connectivity, has been designed to enable ease of operation and upgraded efficiency. This all-in-one solution brings together single-cable speedy-data transfers and multimedia broadcasting while powering your connected device and providing it with fast and stable internet access.

Wireless Content Sharing
The CDE30 Series comes complete with cable-free sharing solutions. myViewBoard Display delivers instant browser-based castings for screen-mirroring with no cable or download necessary, making it perfect for quick presentations and guest users. For more advanced features, ViewBoard Cast offers split, extended, and grouped screen capabilities from any device. It also supports AirPlay and Chromecast so users can effortlessly share their screens.

Optional Windows Slot-in PC
Equipped with a slot-in PC operating on Windows OS, the CDE30 Series will further enhance your productivity. The mighty combination of dual-band Wi-Fi and Bluetooth, up to a powerful Intel® Core™ i7 Processor, 8GB (up to 64GB) RAM, and 256GB SSD storage offer you all the computing power you need to operate CPU-intensive applications.

Disclaimer:The feature is only available with certain model:CDE6530, CDE7530, CDE8630, CDE9830

Features for Large Format Display

Non-stop Operation Hours
Alongside its ability to run 24/7 for continuous message delivery, the CDE30 Series smoothly operates in both landscape and portrait modes to deliver the most efficient communication format. The display's brightness ensures captivating visual quality, and its daisy-chain compatibility caters for easy network topology and deployment.

SoC-powered Performance

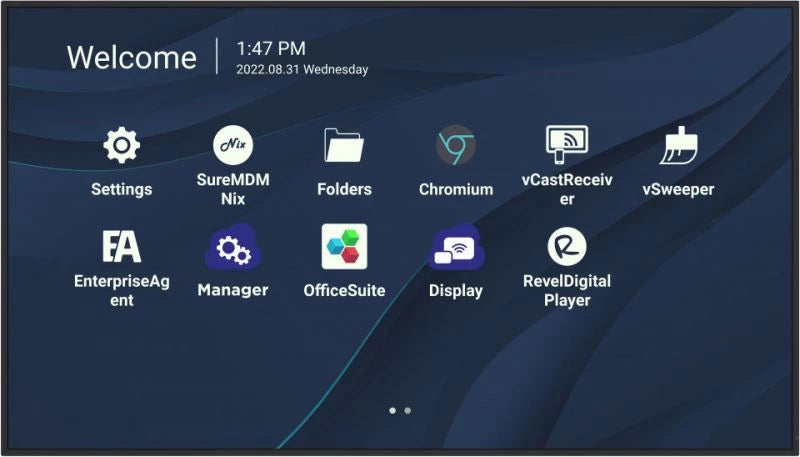

The CDE30's built-in Quad Core SoC with embedded Android 11 and capable memory can execute several tasks at once while providing smooth content playback without requiring a media player. This all-in-one digital signage solution reduces both costs and your carbon footprint, while delivering a top-notch performance without needing a PC or any additional cables.

Central Management and Control

Corporate Communication Simplified
ViewSonic myViewBoard Manager is a web-based software for IT teams and administrators that centralises message broadcasting. With just one device, you can easily synchronise information on multiple Presentation Displays, aligning corporate communication on all levels. No matter whether it’s a general announcement, an emergency message, or a multimedia asset. You are guaranteed a reduced workload.

*For even more features, make sure to check myViewBoard Manager Advanced.

Insight Report and Remote Desktop
ViewSonic myViewBoard Manager offers better operational efficiency thanks to its browser-based centralised management system. IT admins can remotely track devices, apps, and input sources, as well as measure and optimise tool usage with clear metrics and insights reports. The Remote Desktop feature streamlines maintenance, allowing for instant support without requiring on-site IT services.

Disclaimer: Device usage status is only available with myViewBoard Manager Advanced.

Compatible with Creston, AMX, Extron
Compatible with Creston Connected V1, AMX, and Extron systems, the CDE30 Series allows for an always-on mode with complete remote control of all lightning, audio, displays, and other AV control systems both on-site and off-site.

Environmentally Friendly

Sustainable solutions
The CDE30 Series has been awarded EPEAT certification in the US — currently, the highest environmental rating achieved by any large format displays — for meeting the required criteria on energy consumption, supply chain carbon emissions, and end-of-life management. Committed to sustainability, ViewSonic has been actively implementing advanced energy-efficient and eco-friendly practices across all its product lines.

Dimensions & I/O Ports

Attribute	Details
Panel Size	65"
Type/ Tech	TFT LCD Module. ADS type, DLED backlight
Display Area (mm)	1428.48 (H) × 803.52 (V) (64.5” diagonal)
Native Resolution	3840 x 2160
Aspect Ratio	16:9
Colors	1.07G (8bits + FRC-)
Brightness	450 nits (typ.)
Contrast Ratio	1200:1 (typ.), 5000:1 (DCR enabled)
Response Time	8ms
Viewing Angles	H = 178, V = 178 typ.
Backlight Life	50,000 hours
Surface Treatment	Anti-Glaire, 3H hardness, Haze 25%
Bezel	14.7/14.7/14.7/14.7 mm (L/R/T/B)
Orientation	Landscape & Portrait

Platform:

Attribute	Details
Processor	Quad-core ARM Cortex A55
RAM	4GB
Storage	32GB

INPUT:

Attribute	Details
HDMI	2.1x3 ( 3840x2160 @60Hz, HDMI 1 support ARC)
RS-232	x 1
OPS Slot	x 1
WiFi Slot	x 1

OUTPUT:

Attribute	Details
HDMI	2.0 x1 ( 3840x2160 @60Hz )
SPDIF	x 1

LAN:

Attribute	Details
RJ45	x 1

USB:

Attribute	Details
Type A	2.0 x 1, 3.0 x 1
Type C	x 1 ( (DP1.2, PD 65W, USB2.0, 100M ethernet)

SPEAKERS:

Attribute	Details
Speakers	10W x 2

Embedded OS:

Attribute	Details
Embedded OS	Android 11

POWER:

Attribute	Details
Voltage	100-240 VAC +/- 10%
Consumption	88 W(typ.) < 0.5W(off)

OPERATING CONDITIONS:

Attribute	Details
Temperature (º C)	0 to 40℃
Humidity	10%-90% RH
Operating Hours	7/24

DIMENSIONS:

Attribute	Physical (inch / mm)	Packaging (inch / mm)
Width	57.61 x 33.0 x 3.21in/ 1463.3 x 838.3 x 81.6mm	63.78 x 37.09 x 8.19 in./1620 x 942 x 208 mm

WEIGHT:

Attribute	Details
Net	56.0 lbs/25.4 kg
Gross	73.3 lbs/33.25 kg

REGULATIONS:

Attribute	Details
Regulations	cTUVus, FCC/ICES003, Energy star 8.0, EPEAT, Mexico NOM , Mexico Energy, EMC/CE , CB, EAC, UkrSEPRO, RCM, LBL, Flicker free, Green BOM, RoHS , ErP, REACH, SCIP, WEEE , Annex I, Annex II, TPCH , Packing waste, CA65
