OVERVIEW

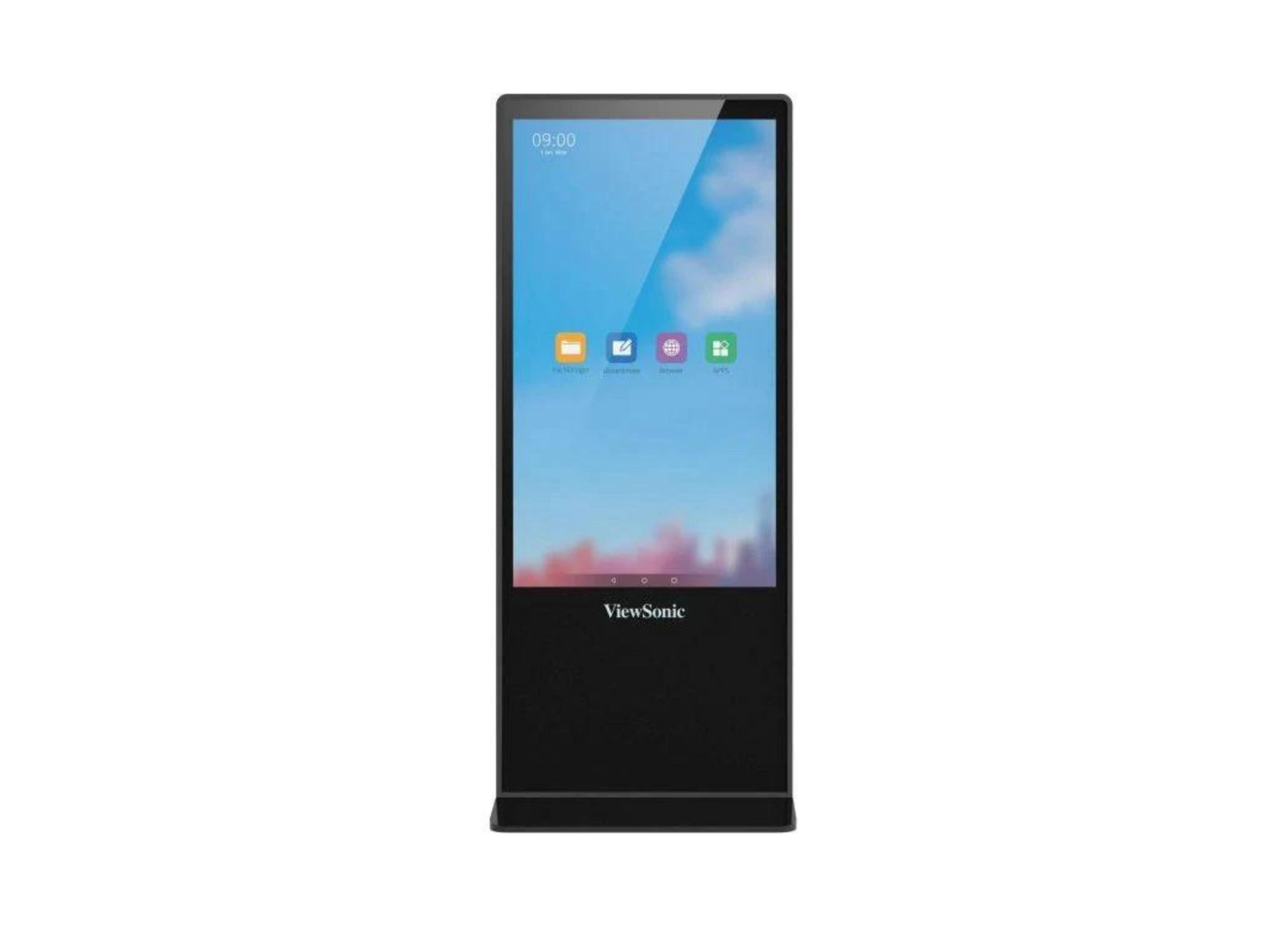

Uber-sleek and slim, the freestanding ViewSonic EP5542 is the ideal digital ePoster kiosk for high-impact visual messaging. Designed with a scratch-proof glass faceplate for added durability, it delivers unsurpassable visibility regardless of dust or ambient light. The 4K UHD IPS panel is equipped with dual 10W stereo speakers, 178° wide-angle viewing, and 450 nits of brightness, projecting crisp, vivid images and videos to engage the crowd. The EP5542 allows seamless multimedia playback with its embedded Quad-core media player and 16GB worth of internal memory. Made for effortless remote control, manage content and multiple devices wherever via the vController app integrated with RS232 and LAN command.

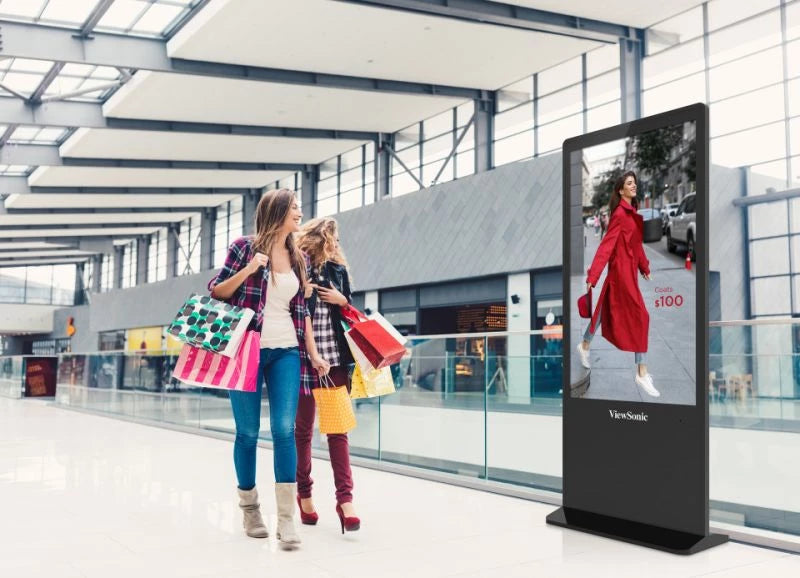

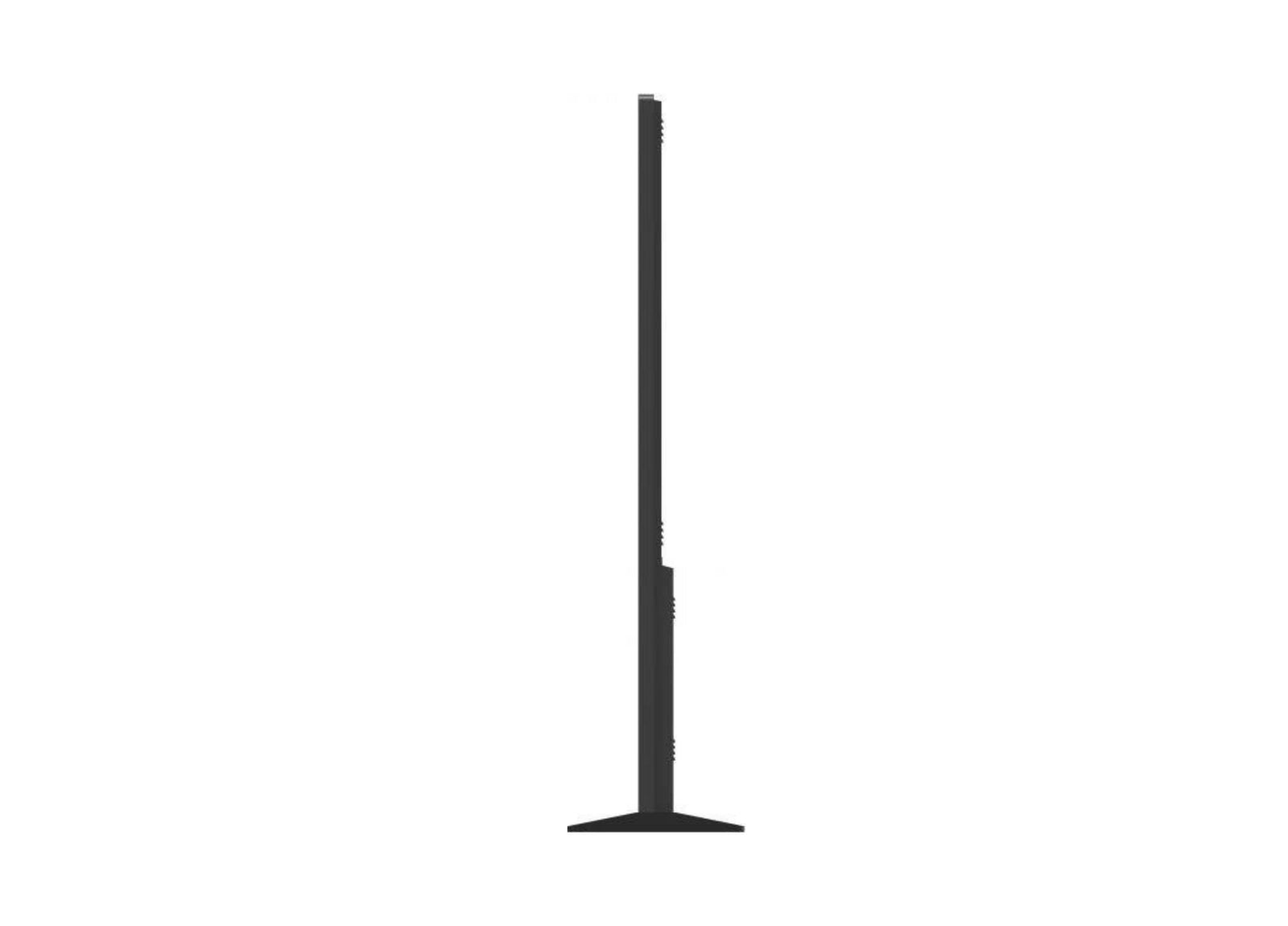

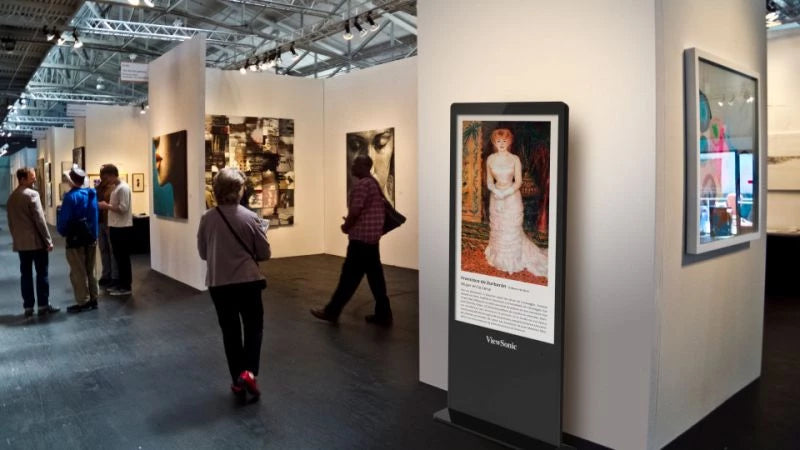

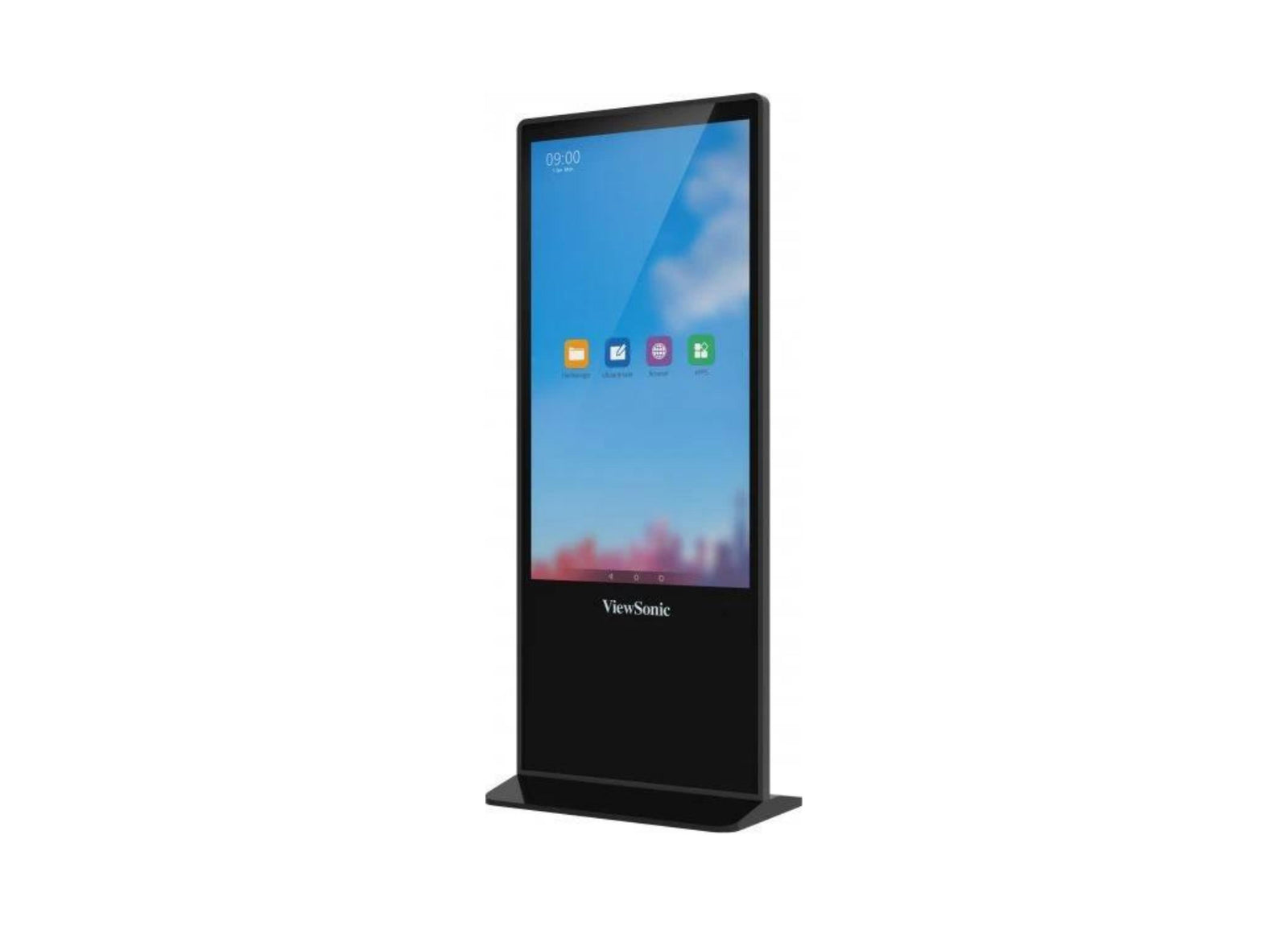

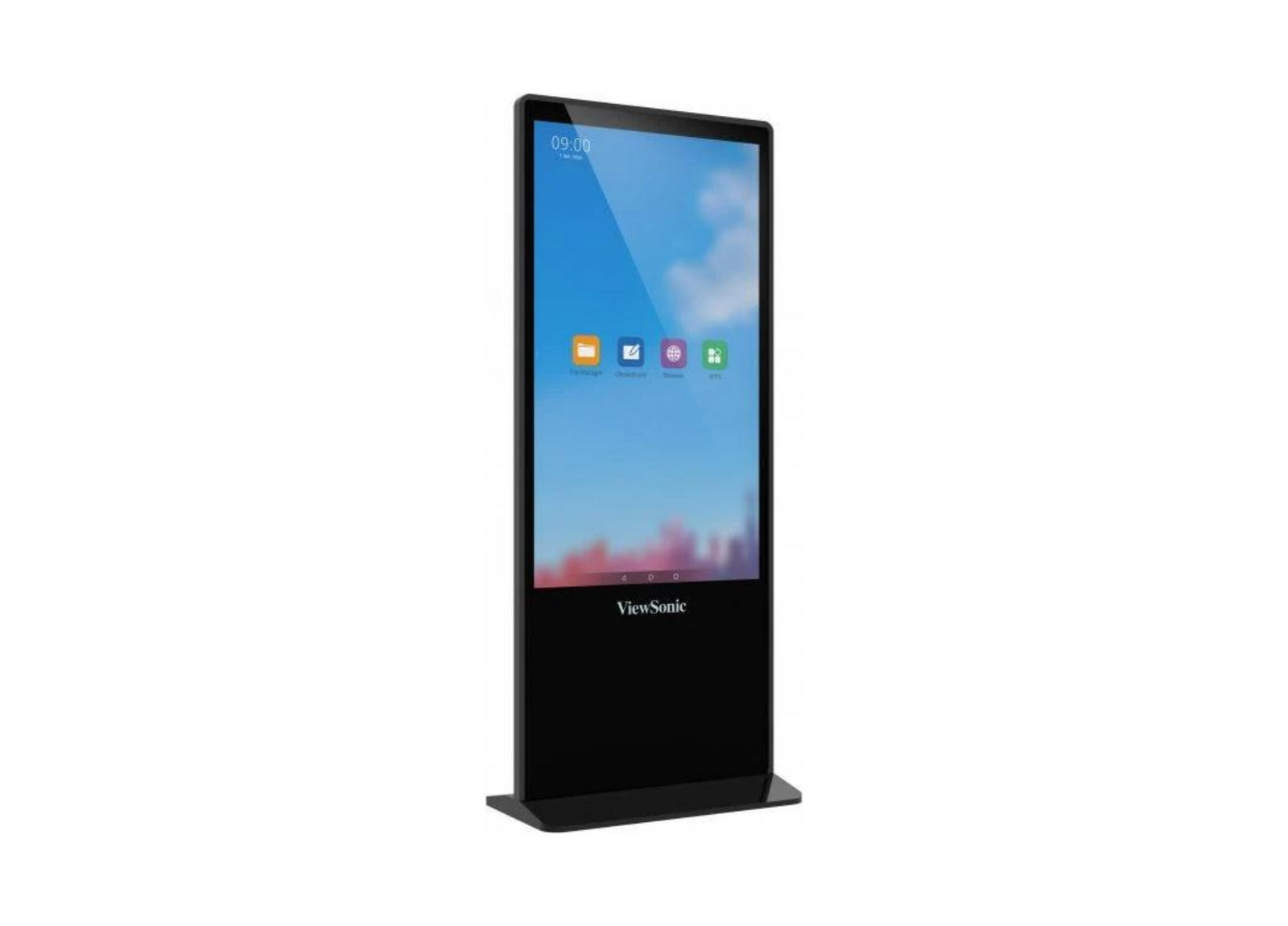

Freestanding, slim design for modern spaces

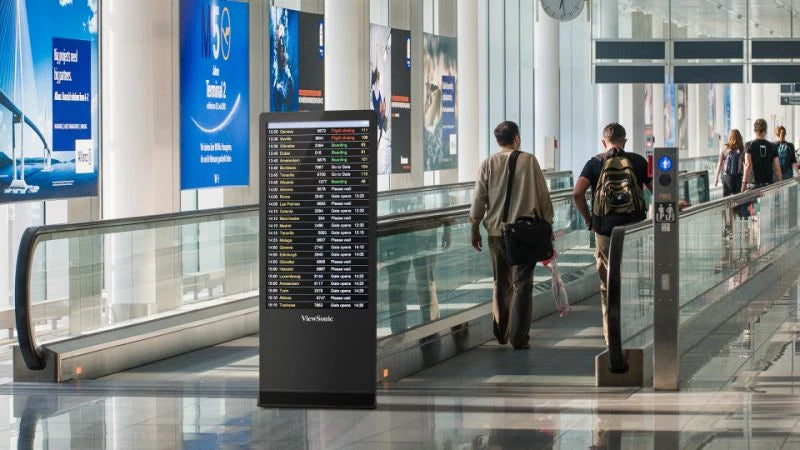

The sleek, slim ePoster display blends seamlessly into any environment. With its freestanding design, the all-in-one kiosk throws engaging content that will stand out from the crowd in any space.

Perfect picture quality

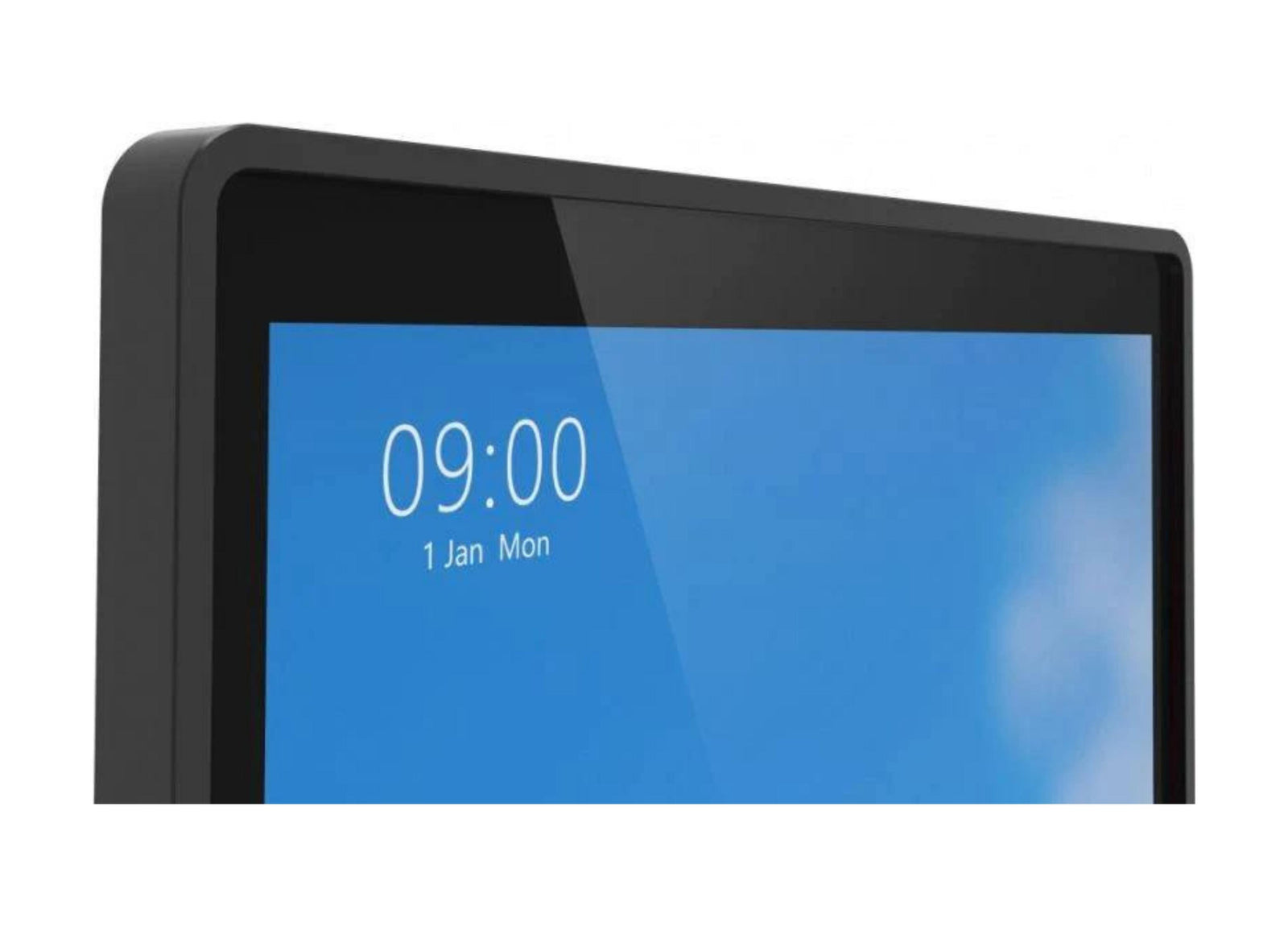

With exceptional 4K Ultra HD resolution, this sleek 2160 x 3840 display delivers immersive images that are larger than life. Designed with a scratch-proof, anti-glare 7H tempered glass faceplate, deliver an impactful viewing experience regardless of ambient light year after year.

Powerful performance
Experience superb performance from a quad-core processor and 16GB storage, boasting seamless content playback without any external media player. Equipped with ViewSonic Embedded Signage Platform, a Linux-based Kernal OS, enjoy easy development, reinforced capability with multiple web formats and standards, and secured protection.

Convenient connectivity and playback
Deliver compelling content instantly with an effortless plug-and-play method. Store your images, videos, and music onto your portable USB drive and connect it to the ePoster for instantaneous playback.

Streamlined device management
Using a user-friendly on-screen interface, manage connected devices efficiently with an intuitive vController™ software through a RS232 or RJ45 (LAN) connection, enabling easy scheduling and OSD control capabilities, such as on-and-off settings, audio, and display signal source.

Remote content management solution
The ePoster kiosk supports Revel Digital - an optional content management software* with comprehensive content management tools, offering total control of formats, schedules, and playback settings wherever you are.*Trial version only (license sold separately)

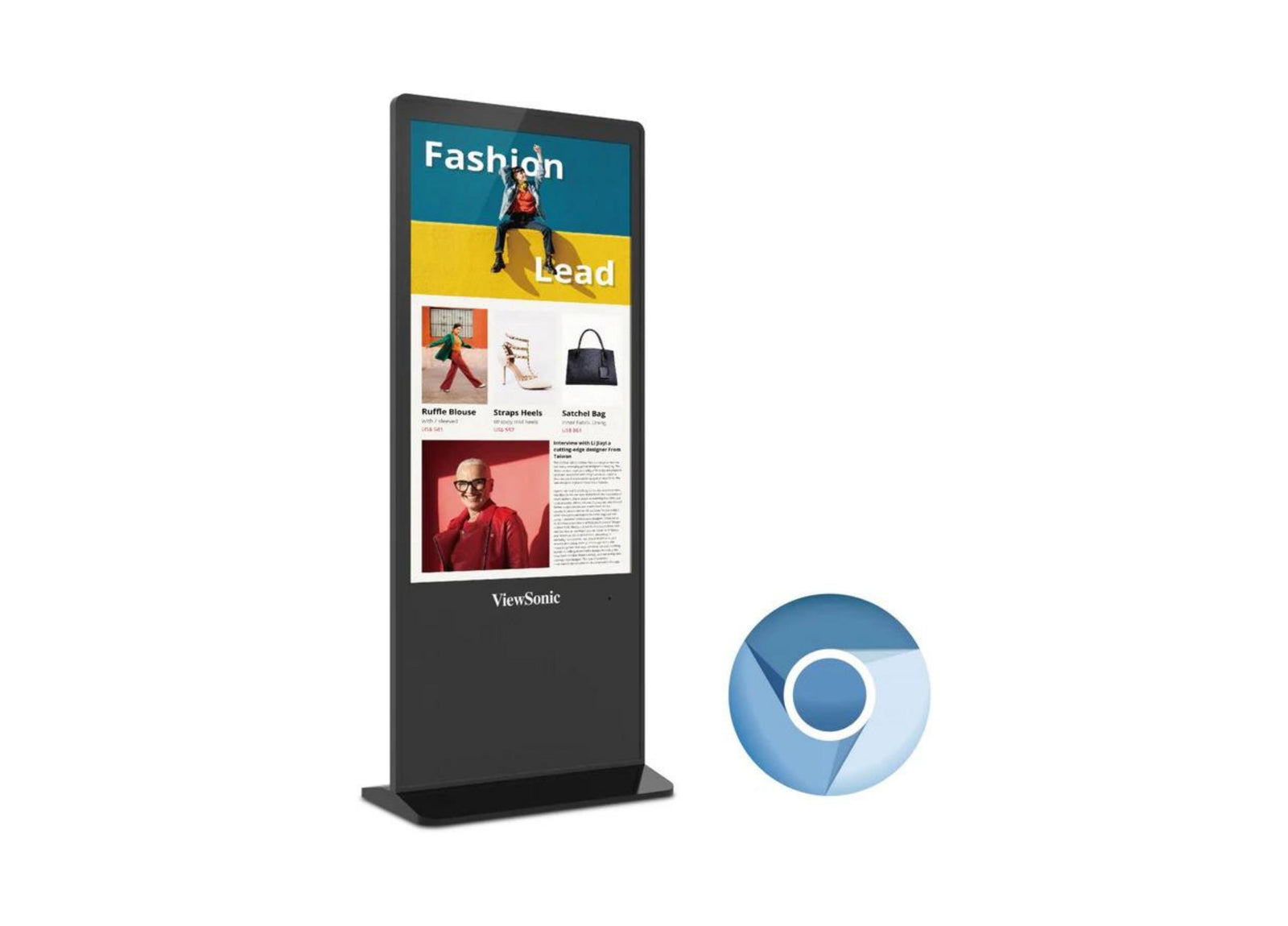

A better way to browse
Enjoy effortless access to online content through convenient web browsing capabilities. Integrated with RJ45 connectivity, you can source videos and photos from your favourite sites without the need for additional peripherals.

Timed to your convenience
Schedule captivating photos and videos to your preferred time and date with a user-friendly interface. Available conveniently onscreen, you can fix the device's operation hours and content playback period at the tips of your fingers.

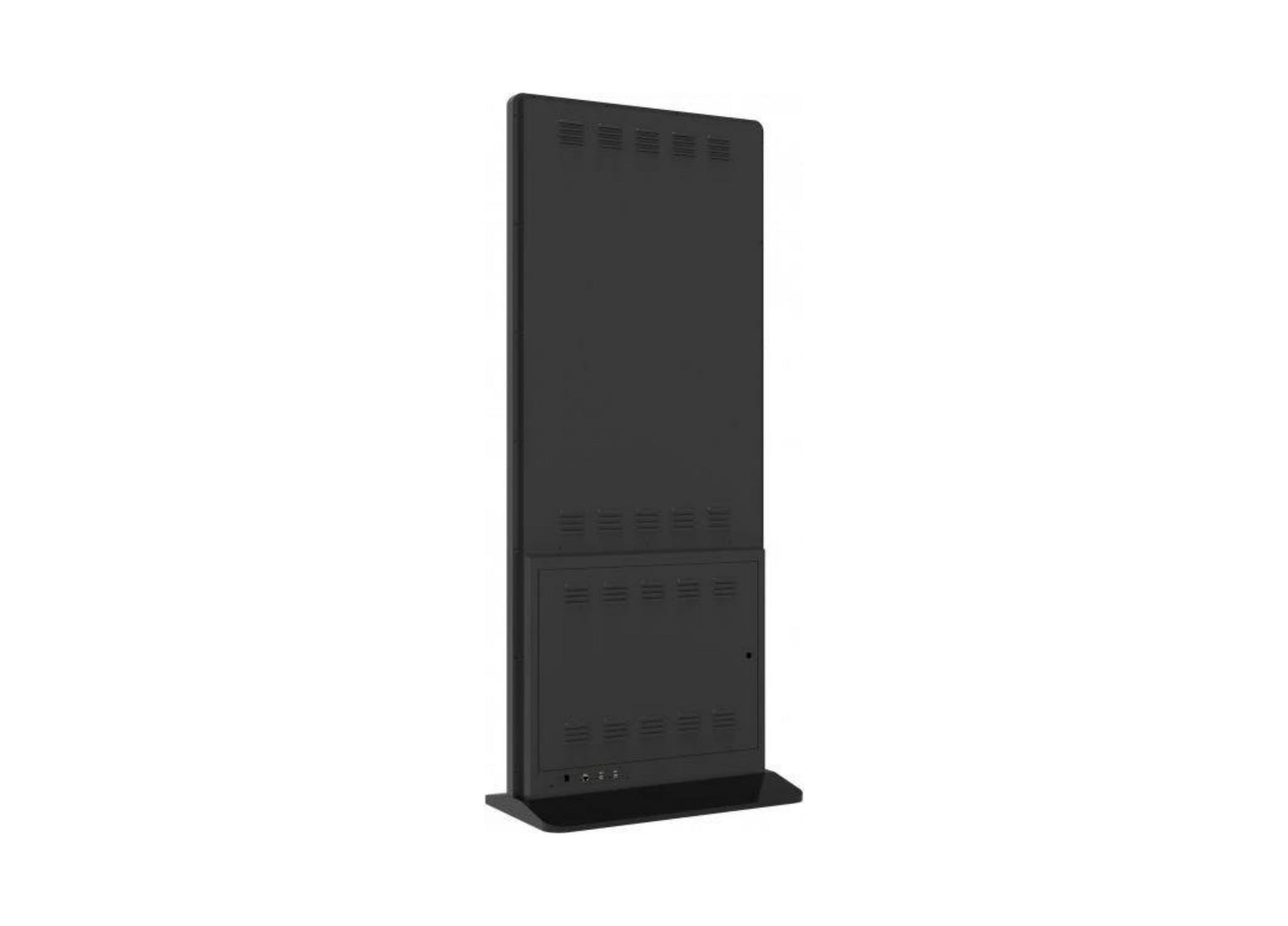

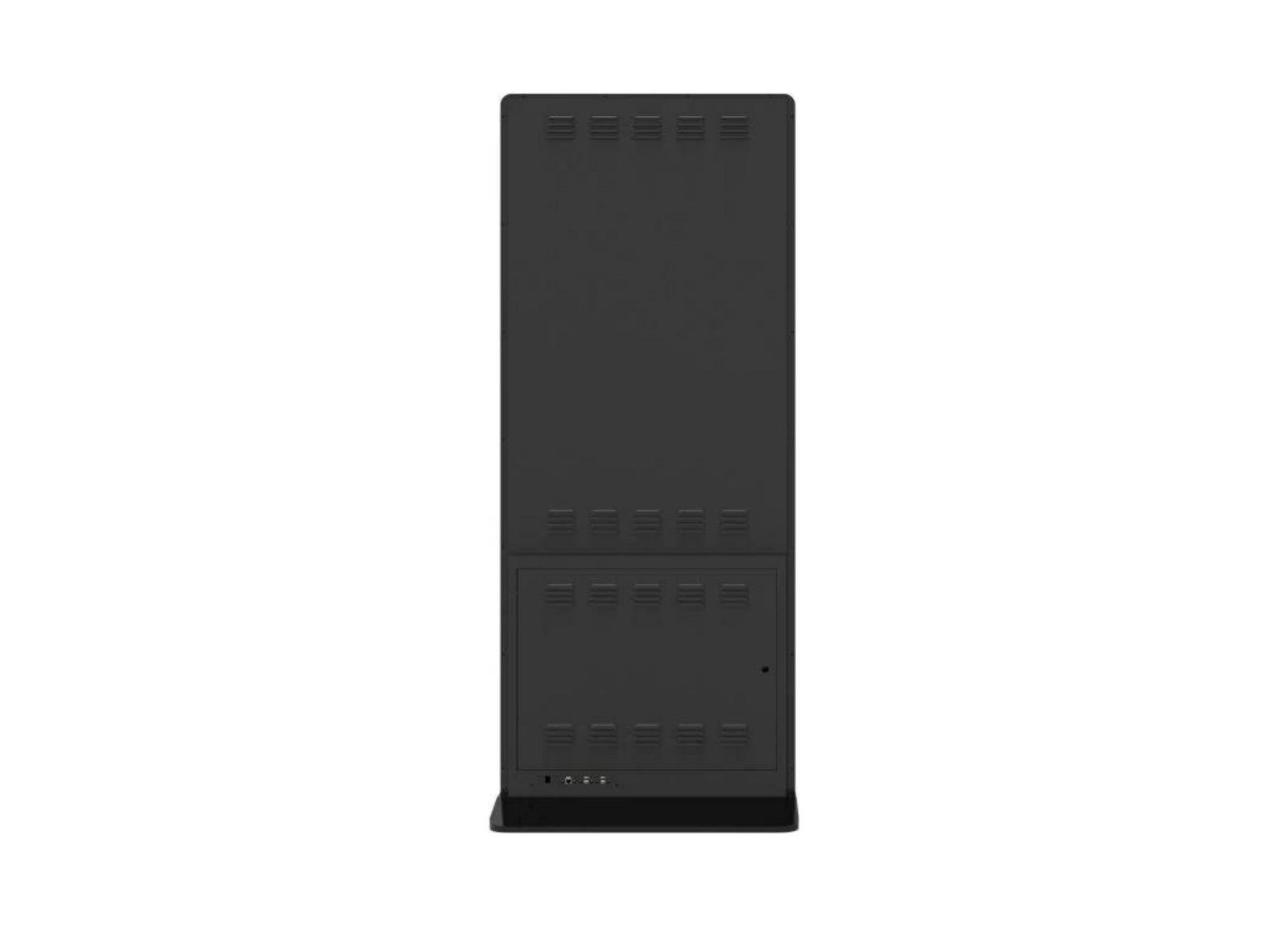

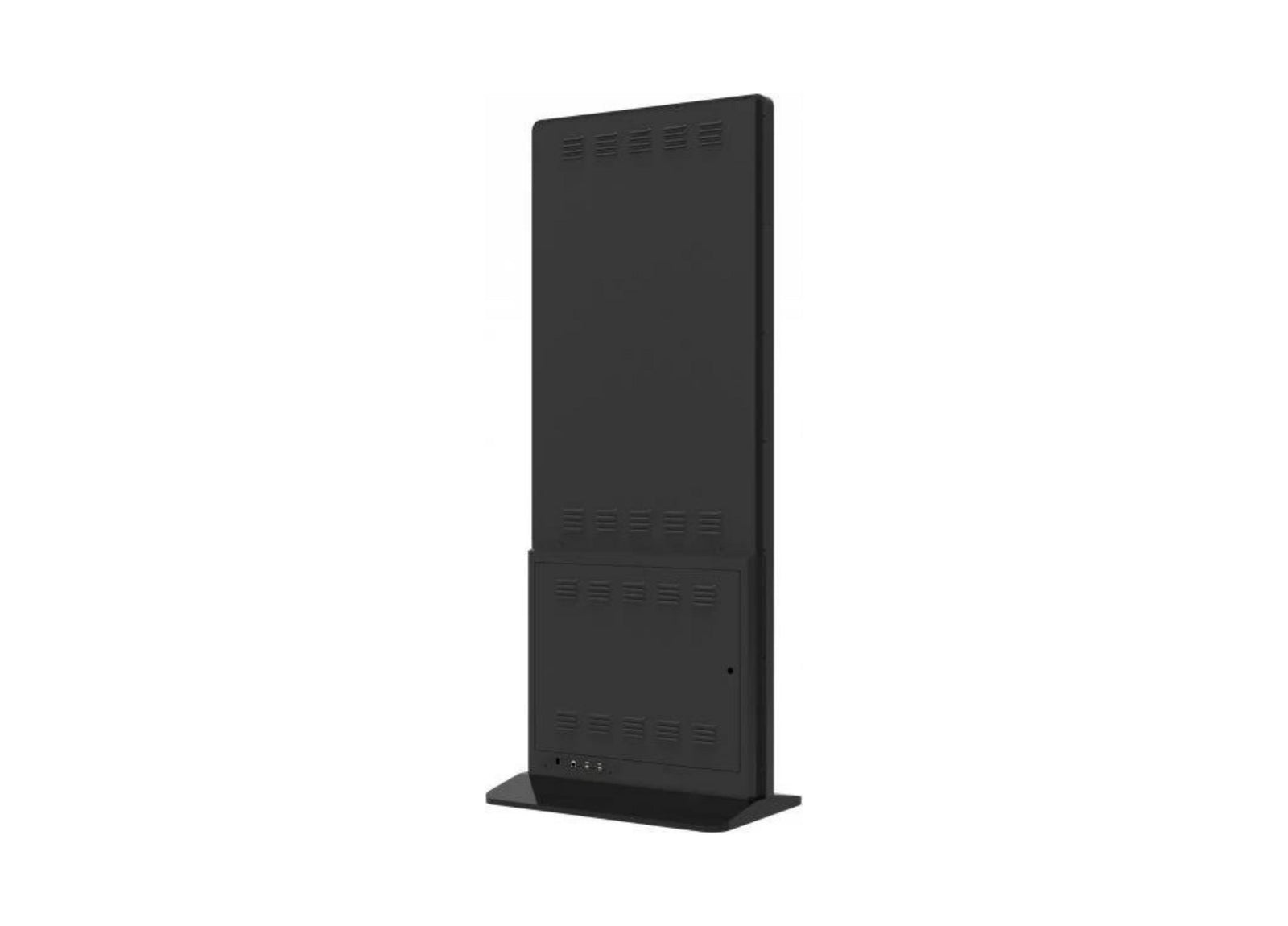

Built for complete security
The ePoster kiosk comes with a lockable door that allows you to hold an additional PC or media player securely. Integrated with a built-in power supply, you can charge the additional device without the need of external outlets or fussy cables.

High-fidelity stereo sound
Integrated with dual speakers, complement the brilliant image quality with rich, immersive surround sound for a truly cinematic multimedia experience.
-
Display |
|
Panel Size |
55" |
Type/Tech |
TFT LCD (VA type, DLED Backlight) |
Display Area (mm) |
1209.6 (H) x 680.4 (V) |
Aspect Ratio |
9:16 |
Native Resolution |
2160 x 3840 |
Colours |
1.07B |
Brightness |
450 nits (typ.) |
Contrast Ratio |
1300:1 (typ.) |
Response Time |
9 ms (typ. G to G) |
Viewing Angles |
H = 178, V = 178 typ. |
Backlight Life |
30,000 Hours Typ. |
Surface Treatment |
Anti-Glare 3H, Haze = 2% |
Orientation |
Portrait |
INPUT |
|
HDMI |
(2.0) x 3 |
RGB / VGA |
x1 |
DisplayPort |
(1.2) x 1 |
Audio |
x1 PC audio (3.5 mm) |
RS232 |
x1 |
OUTPUT |
|
Audio |
x1 (Earphone out) |
SPDIF |
x1 |
SPEAKERS |
|
Speakers |
10W x 2 |
COMPATIBILITY |
|
RGB PC/HDMI PC |
1920 x 1080 @60Hz |
HDMI |
2160 x 3840 @60Hz |
DisplayPort |
2160 x 3840 @60Hz |
Android Version |
|
Android Version |
8 |
Multimedia |
|
Image |
JPG, BMP, PNG |
Video |
MP4, MOV, MKV, DAT, MPG, MPEG, AVI, TS, WMV, RM, RMVB |
Audio |
MP3, WAV, AAC |
Bundle Software |
|
Bundle Software |
Revel Digital, SureMDM (license sold separately) |
Power |
|
Voltage |
100-240VAC +/- 10% Wide Range |
Consumption |
126 W (Normal), 149 W (Max.), < 0.5W (Off) |
OPERATING CONDITIONS |
|
Temperature (º C) |
0°C to 40°C |
Humidity |
20% ~ 80% non-condensing |
DIMENSIONS (W x H x D) |
|
Physical (inch / mm) |
30.26 x 73.62 x 17.72 in / 768.5 x 1870 x 450 mm |
Packaging (inch / mm) |
38.19 x 80.08 x 23.98 in / 970 x 2034 x 609 mm |
WEIGHT |
|
Net (lb / kg) |
138.23 lbs / 62.7 kg |
Gross (lb / kg) |
164.69 lbs / 74.7 kg |
REGULATIONS |
|
Regulations |
cTUVus, FCC, Energy Star 8.0, CE, CB, RoHS, ErP, EEI, WEEE, BSMI |
PACKAGE CONTENTS |
|
Package Contents |
1. Power Cord |
|
2. Remote control with battery |
|
3. Quick Start Guide |
|
4. Key |
-
Warranty
ViewSonic provides customers with the security of a manufacturer’s warranty against defected products. We are keen to provide our customers with great peace of mind and confidence in our product. With that in mind, we are now providing 3 years limited warranty on selected*
ViewSonic Interactive ViewBoards.
-
DATASHEETS |
Download Link |
EP5542 Datasheet (short version) |
Downloads |
USER GUIDES |
Download Link |
EP5542 User Guide (English) |
Downloads |
QUICK START GUIDE |
Download Link |
EP5542 Quick Start Guide |
Downloads |
