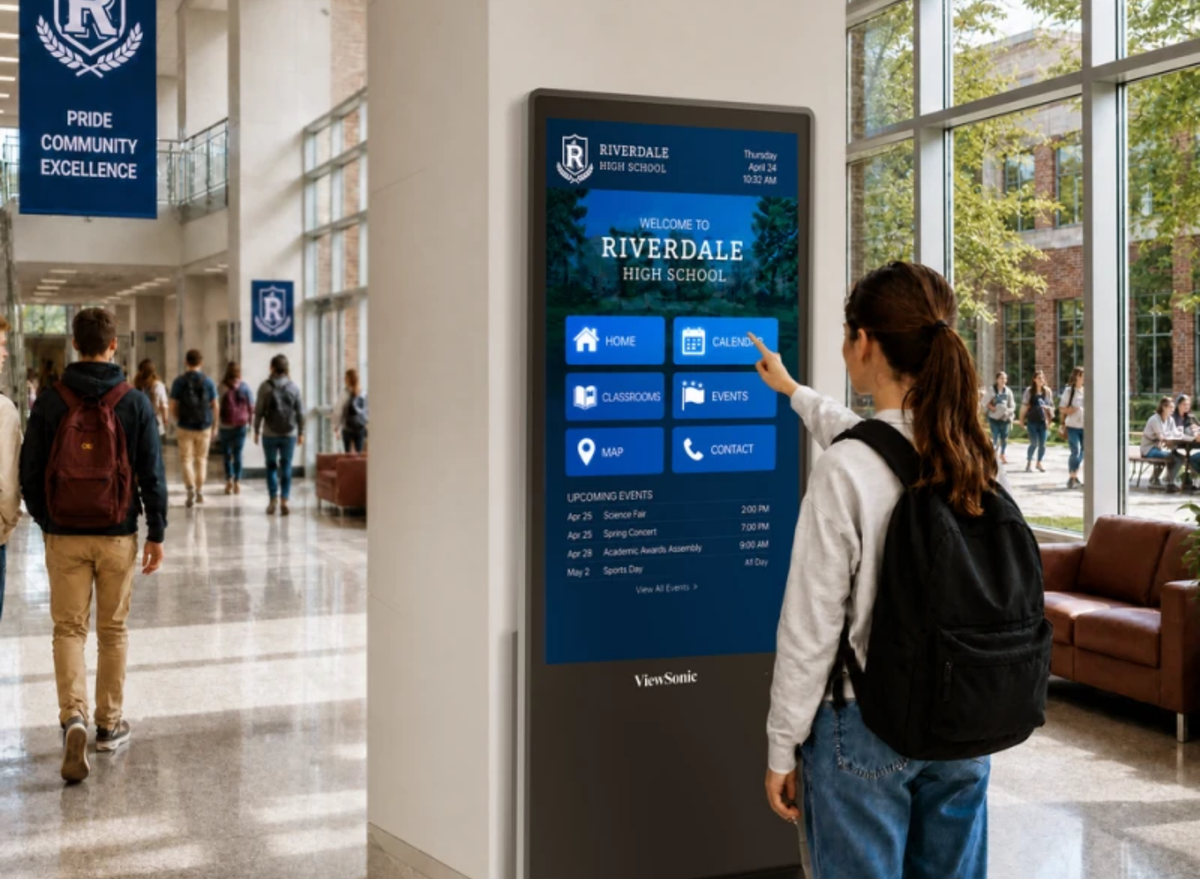

Experience Seamless Interactions

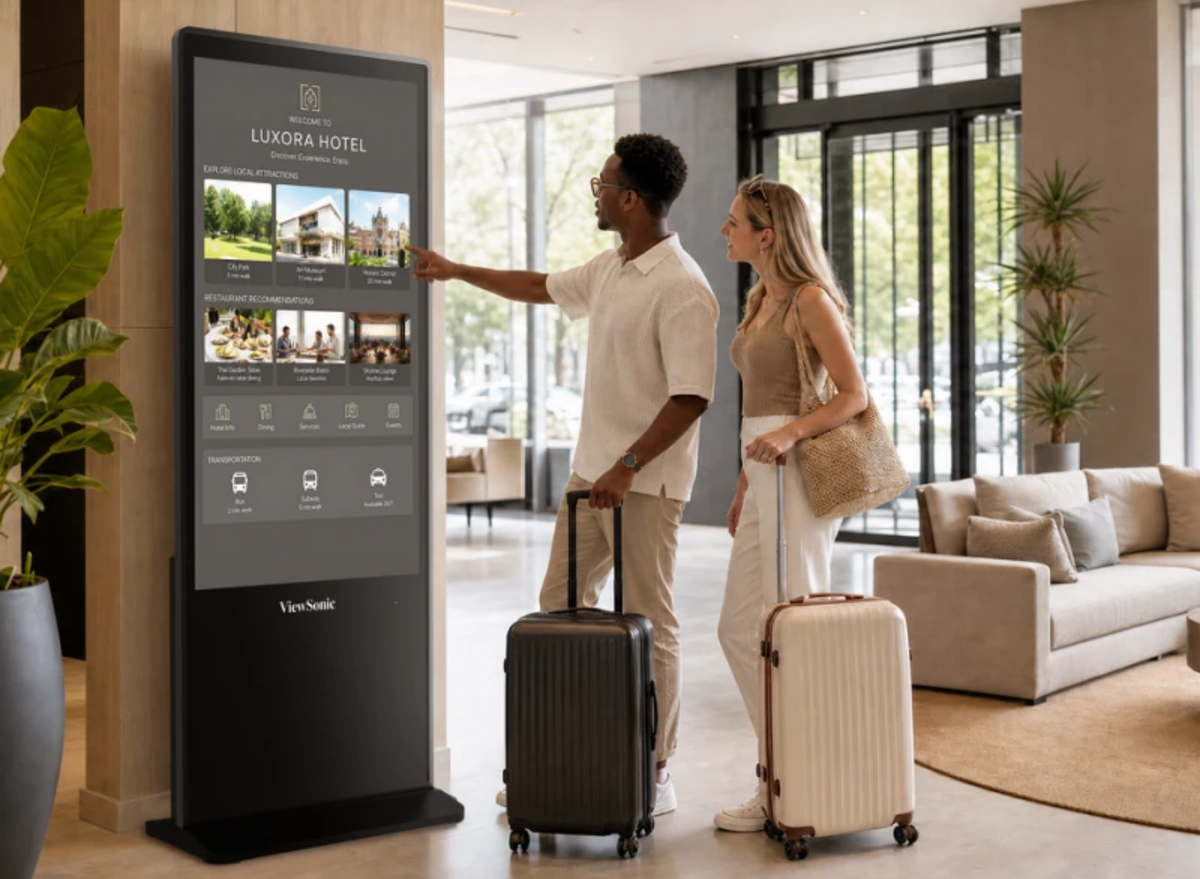

Featuring a responsive 10-point capacitive touchscreen, the EP5543 enables smooth multi-touch navigation across menus, schedules, and interactive content.
Clear Visibility in Bright Spaces
Featuring a 700-nit anti-glare display, the ePoster delivers clear, readable visuals in bright indoor environments while minimizing reflections during continuous 24/7 operation.
See Every Detail in 4K
Native 4K UHD resolution paired with SuperClear® IPS technology delivers sharp text, vivid visuals, and fine detail clarity for presentations, signage, and informational content.
Smooth Performance. Powered for Every Scenario
Powered by an octa-core processor, the display delivers responsive playback, smooth multitasking, and reliable 24/7 performance across demanding commercial environments.
Flexible Playback. Built for Every Setup
Connect media sources easily through USB, HDMI, LAN, and Android-based CMS platforms for seamless integration across commercial AV and signage environments.
Concealed Routing for a Clutter-Free, Secure Setup
Integrated power passthrough, concealed cable routing, and dual LAN connectivity create cleaner installations with fewer exposed cables behind the display.

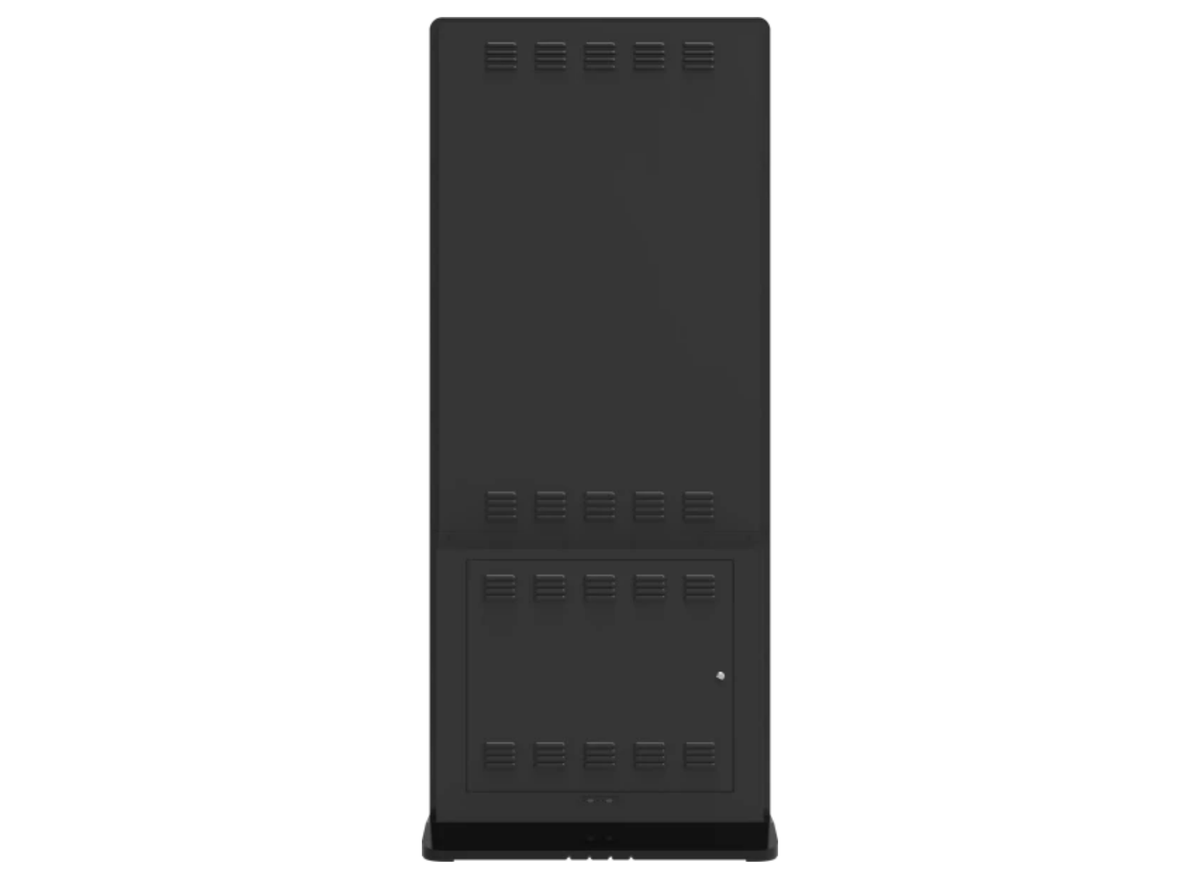

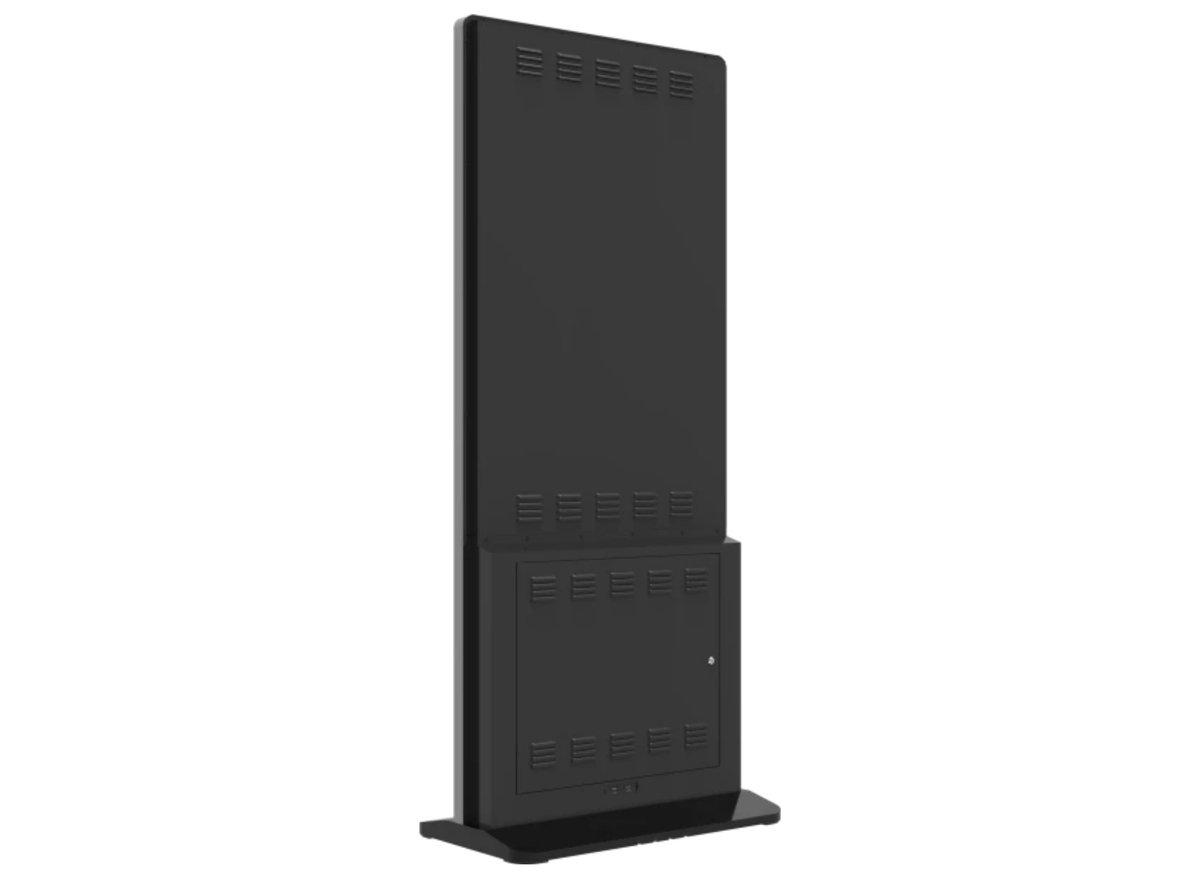

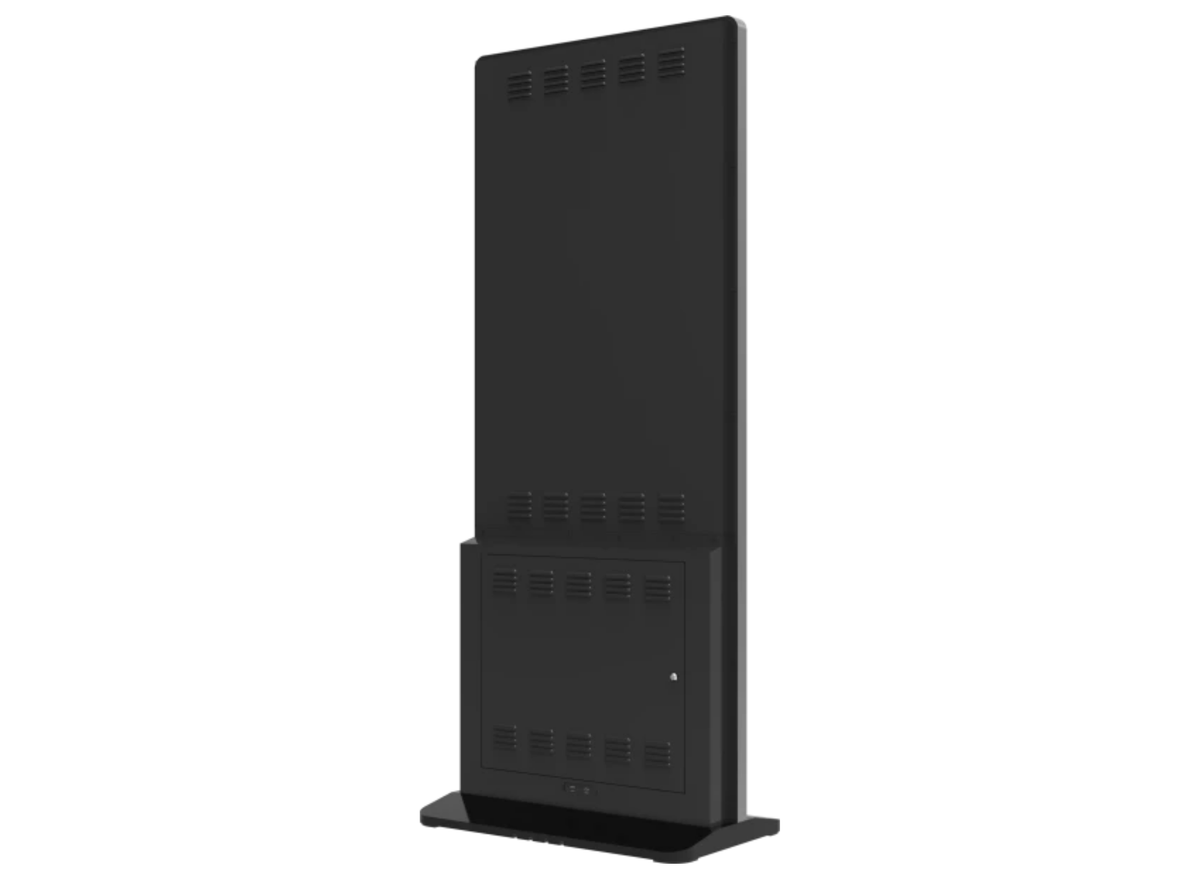

Media Player Cradle with Security Door
Featuring a built-in lockable compartment, the ePoster securely conceals media players and mini PCs while preserving a clean, professional installation.
Manage Every Display Remotely
ViewSonic Manager™ gives IT teams centralized tools to monitor device status, manage settings, and maintain control across multiple displays and locations.
Works With Your Preferred CMS
Featuring pre-installed Revel Digital support, the display enables remote content scheduling and playback management directly from a preferred CMS platform.
Built-In Scheduling Control
Schedule playlists, messages, and operating hours directly through the on-screen interface without relying on external devices or additional software.
Energy-Efficient Commercial Performance
ENERGY STAR certified design reduces power consumption while supporting continuous commercial operation in demanding environments.

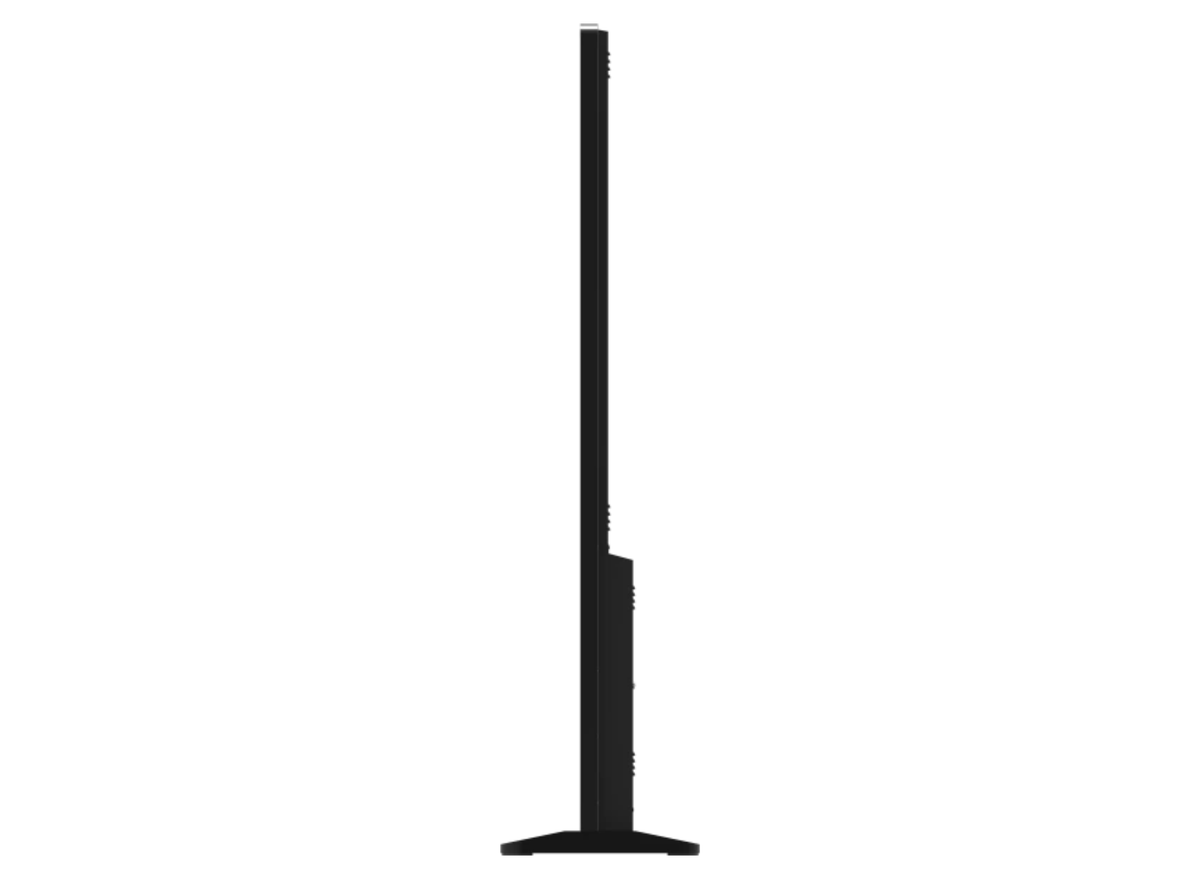

Durable Design. Built to Last.
A slim all-in-one form factor paired with durable 7H tempered glass creates a clean professional appearance built for long-term commercial use.
Clear Audio Without External Speakers
Dual 20W stereo speakers deliver clear, immersive sound for announcements, presentations, and multimedia playback without requiring external audio equipment.

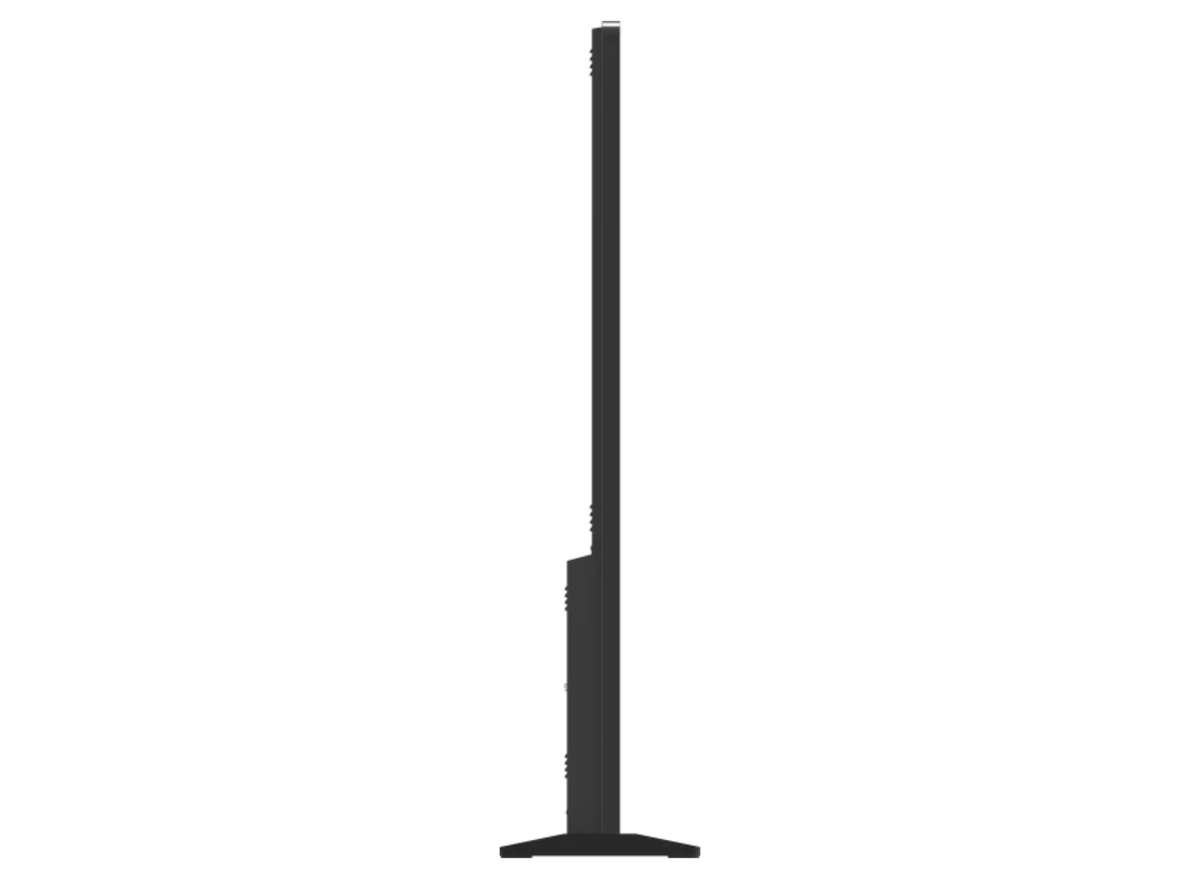

Dimensions & I/O Ports
1-Remote IR sensor
2-Internal Speakers
3-AC-IN & Power switch
4-AC Out
5-USBx2 (rear housing)
6-HDMI-Out
7-HDMI-In
8-DP-In x1 & HDMI-In x1
9-USB Type C
10-USB Type A 3.2 Gen 1 x2
11-USB Type A 2.0 x2
12-VGA In
13-Audio In
14-Mic In
15-Audio Out
16-SPDIF
17-RS-232
18-LAN x2 (In & Out)
| Display | |||
| Panel Size | 55" | Type / Technology | TFT LCD (ADS type, DLED backlight) |
| Display Area | 1209.6 (H) x 680.4 (V) mm | Aspect Ratio | 9:16 |
| Native Resolution | 2160 x 3840 | Colours | 1.07 billion (8-bit + FRC) |
| Brightness | 700 nits (typical) | Contrast Ratio | 1200:1 (typical) |
| Response Time | 8 ms | Viewing Angles | 178° (H) / 178° (V), typical |
| Backlight Life | 30,000 hours (typical) | Surface Treatment | Anti-glare, 7H pencil hardness, 25% haze |
| Orientation | Portrait | ||
| Touch Technology | |||
| Touch Type / Technology | IR Recognition | Touch Resolution | 32768 x 32768 |
| Touch Points | 10 points | ||
| Input Connections | |||
| HDMI Input | HDMI 2.0 x 2 | RGB / VGA Input | x 1 |
| DisplayPort Input | DisplayPort 1.2 x 1 | Audio Input | 3.5 mm x 1 |
| Microphone Input | 3.5 mm x 1 | RS232 | x 1 |
| Output Connections | |||
| HDMI Output | x 1 | Audio Output | Earphone output x 1 |
| SPDIF Output | x 1 | ||
| LAN & USB Connectivity | |||
| RJ45 LAN Ports | x 2 | USB Type-A | x 4 (USB 2.0 x 2; USB 3.0 x 2) |
| USB Type-C | x 1 (USB 2.0, DP 1.2, PD 15W) | ||
| Speakers & Compatibility | |||
| Built-in Speakers | 20W x 2 | RGB PC / HDMI PC | 1920 x 1080 @ 60Hz |
| HDMI Compatibility | 2160 x 3840 @ 60Hz | DisplayPort Compatibility | 2160 x 3840 @ 60Hz |
| Operating System & Multimedia | |||
| Android Version | Android 14.0 | Supported Photo Formats | JPG, BMP, PNG |
| Supported Video Formats | MP4, MOV, MKV, DAT, MPG, MPEG, AVI, TS, WMV, RM, RMVB, FLV | Supported Audio Formats | MP3, WAV, AAC, AVI, MKV |
| Preloaded Software | |||
| Digital Signage Software | RevelDigital Player | Device Management Software | Manager |
| Revel Digital Licensing | Activation requires a separate subscription licence, sold separately for Revel Digital. | ||
| Power Specifications | |||
| Power Supply Voltage | 100–240VAC ±10% (wide range) | Typical Power Consumption | 61.7W |
| Maximum Power Consumption | 230W | Standby Power Consumption | < 0.5W |
| Off Mode Power Consumption | < 0.3W | ||
| Operating Conditions | |||
| Operating Temperature | 0°C to 40°C | Operating Humidity | 20%–80% (non-condensing) |
| Dimensions & Weight | |||
| Physical Dimensions (W x H x D) | 778.5 x 1875 x 450 mm / 30.64 x 73.82 x 17.72 inches | Packaging Dimensions (W x H x D) | 970 x 2034 x 609 mm / 38.19 x 80.08 x 23.98 inches |
| Net Weight | 63 kg / 138.89 lbs | Gross Weight | 72.5 kg / 159.84 lbs |
| Regulations & Certifications | |||
| Certifications & Compliance | cTUVus, FCC, Energy Star 8.0, CE, CB, RoHS, ErP, EEI, WEEE | ||
| Package Contents | |||
| Power Cord | Included | Remote Control | Included |
| Bottom Metal Cover & Screws | Included | Key | Included |
| Quick Start Guide | Included | Compliance Statement | Included |
| Description | Downloads |
|---|---|
| Datasheet | Download |
| User Guide | Download |
