Official Partner
ViewSonic IFP6562
65" 4K Touch Enabled ViewBoard Smart Display
ULTRA HD RESOLUTION: 65 Inch 4K Ultra HD (3840x2160p) with a bezel-less PCAP Touch Display
TOUCH PRECISION: 20-point PCAP touch technology lets multiple users write on the screen with their fingers and active styluses
ONE CABLE SOLUTION: Convenient USB-C for connected devices
BE HEARD: Built-in Microphone Array with echo cancellation and noise reduction technology
Product Overview

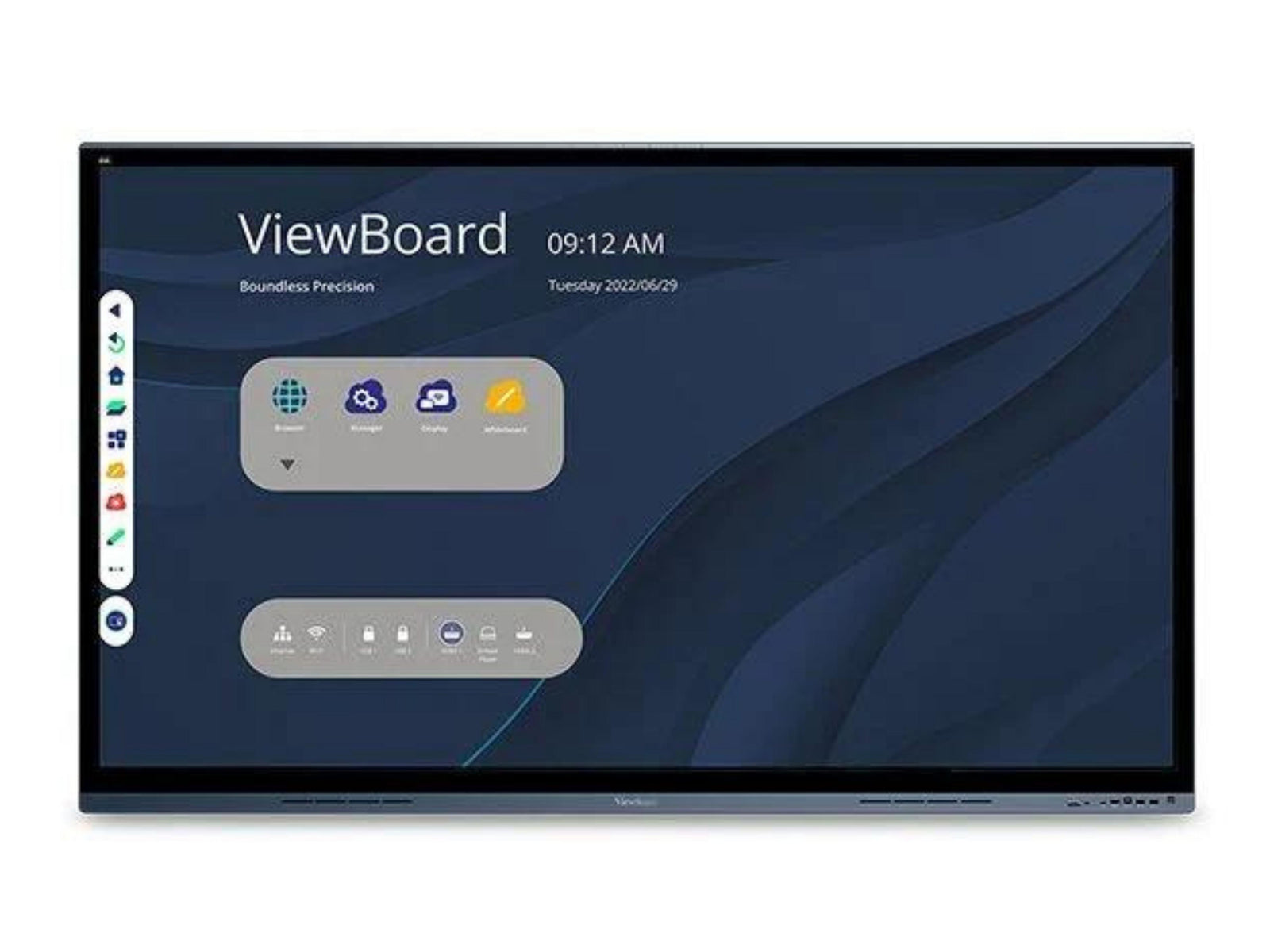

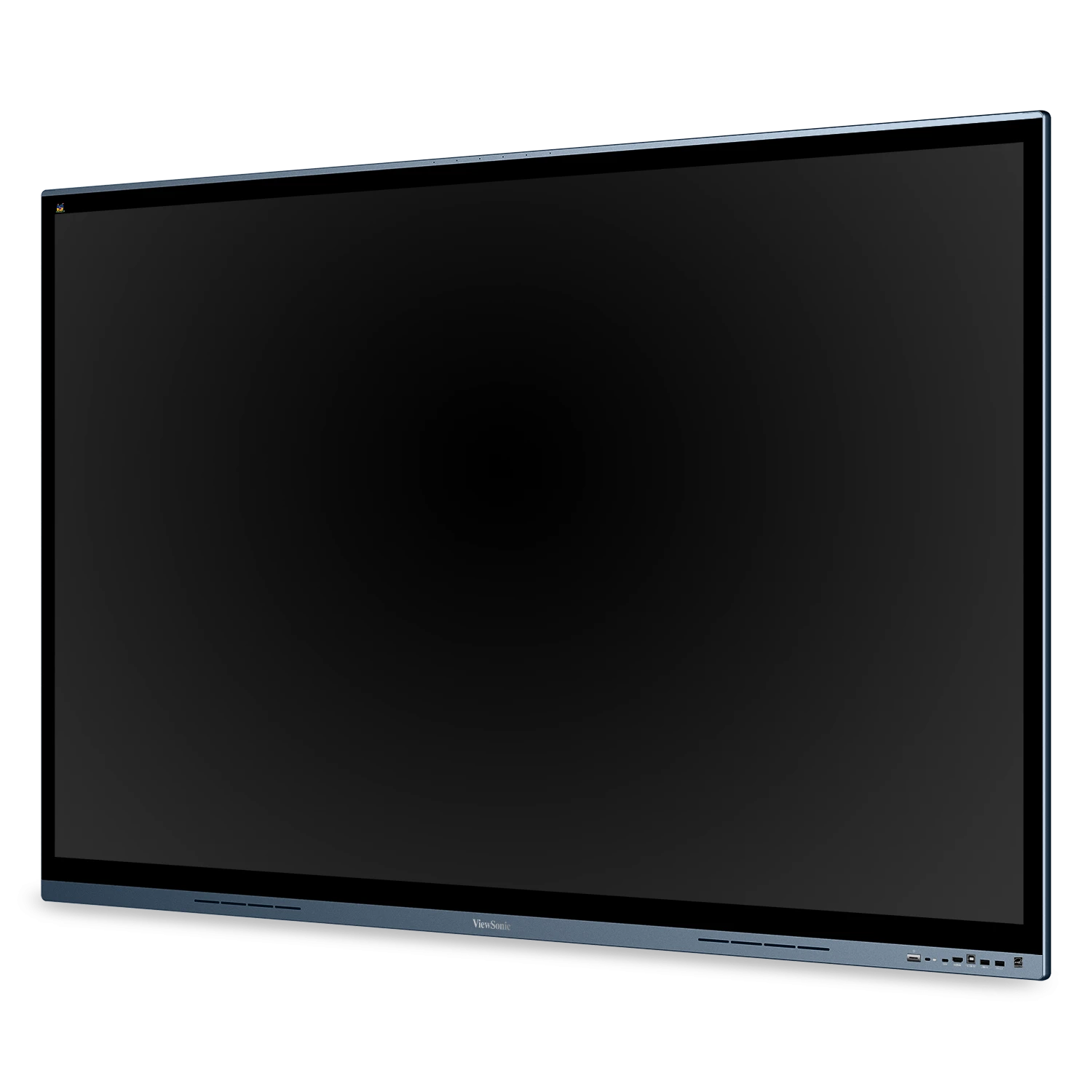

From executive boardrooms to interactive huddle spaces, the ViewSonic® ViewBoard® IFP6562 enables limitless collaboration and endless innovation. Designed to help teams connect, collaborate, and create, this next-generation digital whiteboard delivers exactly what you need to move your ideas forward. A premium, state-of-the-art design features a bezel-less PCAP (projected capacitive) touchscreen with an incredible 4K Ultra HD resolution. This highly accurate interactive screen provides for an incredibly natural and responsive handwriting experience. Using fingers, styluses, or both, multiple users can simultaneously write or draw on the huge 65” ViewBoard panel. What’s more, meetings and presentations start fast thanks to convenient one-wire USB-C connectivity.
High-Performance 4K Touchscreen
Perfect for heavy usage in meeting rooms or classrooms, this display features an anti-glare and tempered glass screen for enhanced durability and clarity. 20-point PCAP (projected capacitive) touch technology delivers an ultra-smooth and natural handwriting experience, while 4K Ultra HD resolution provides incredibly vivid and lifelike images.
Sleek and Slim Design

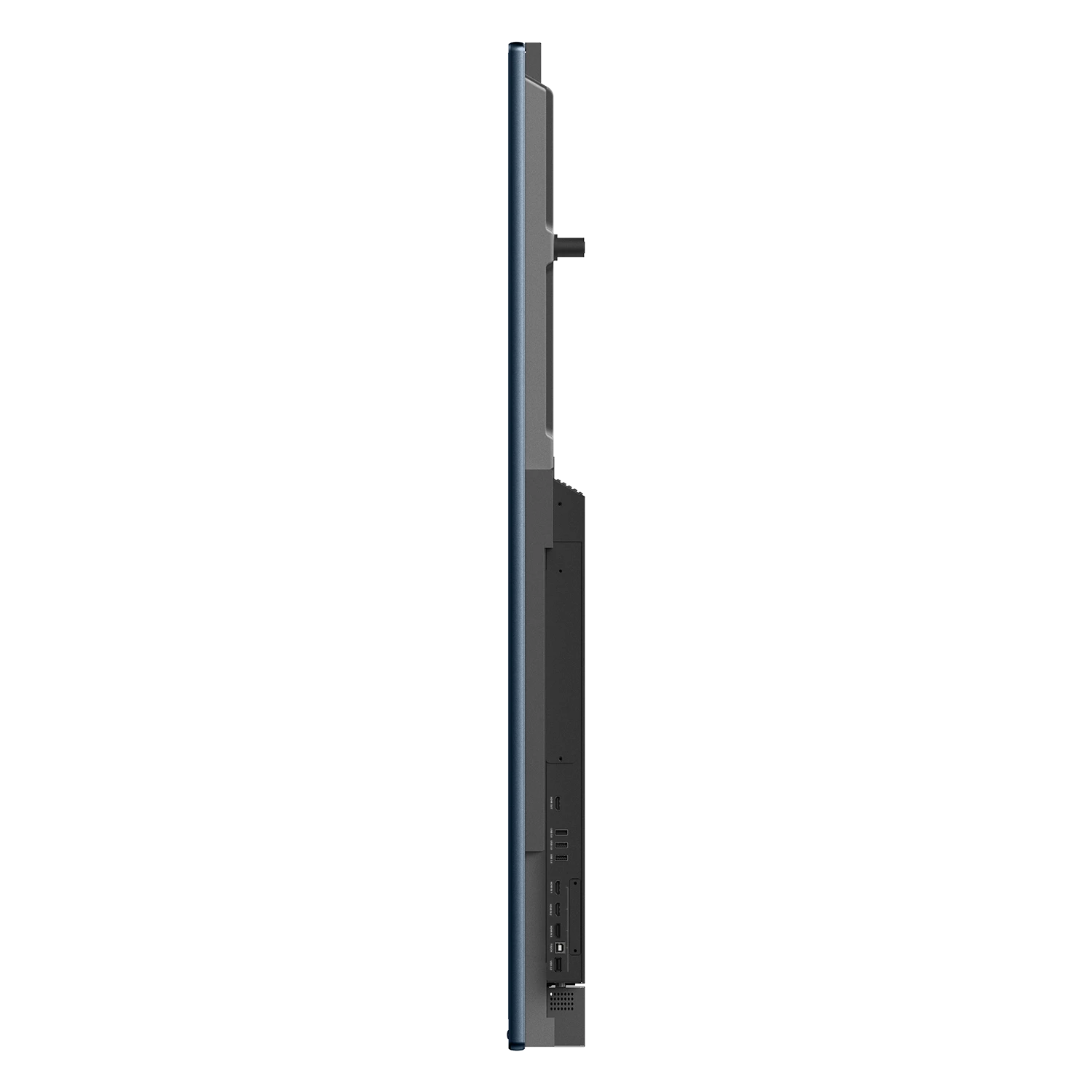

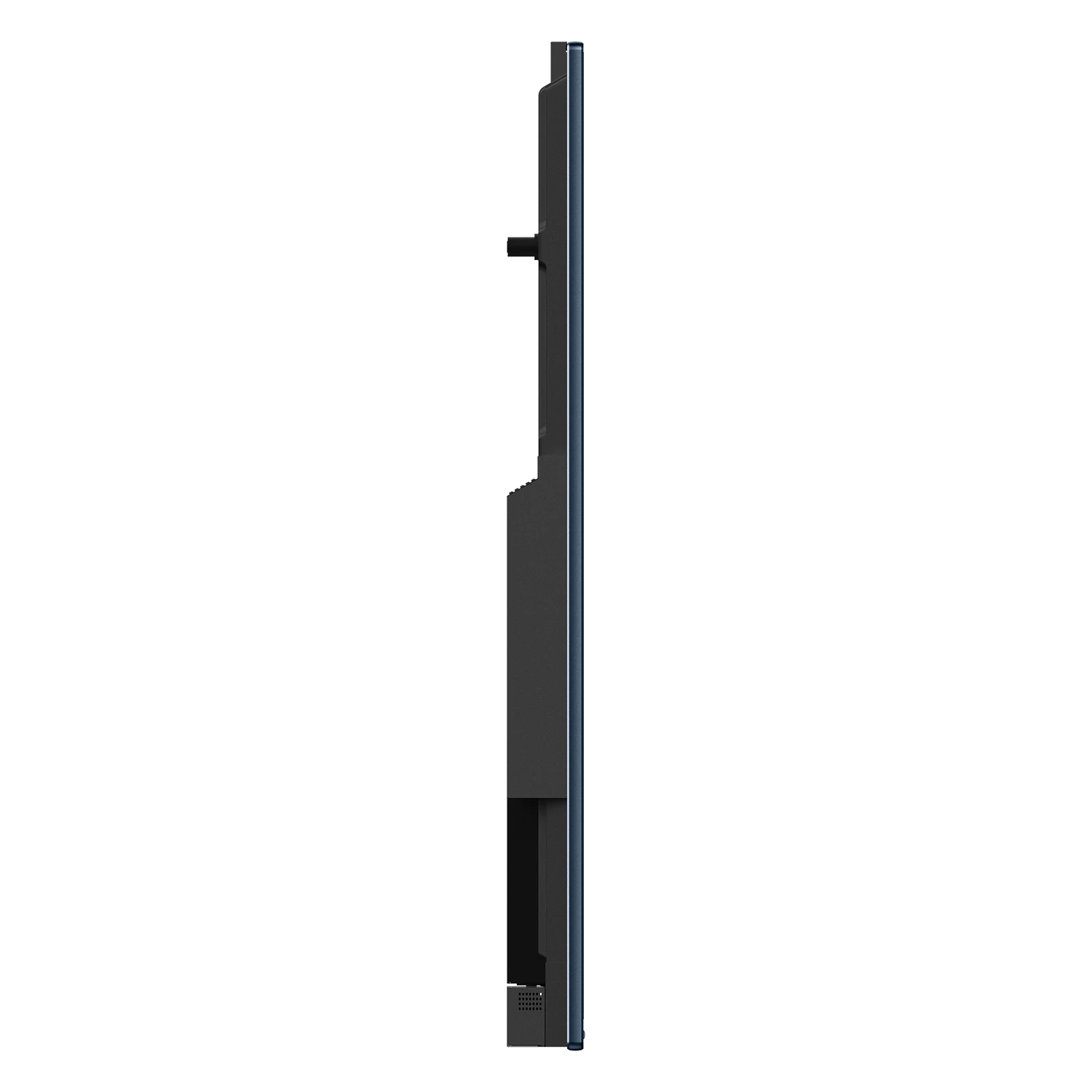

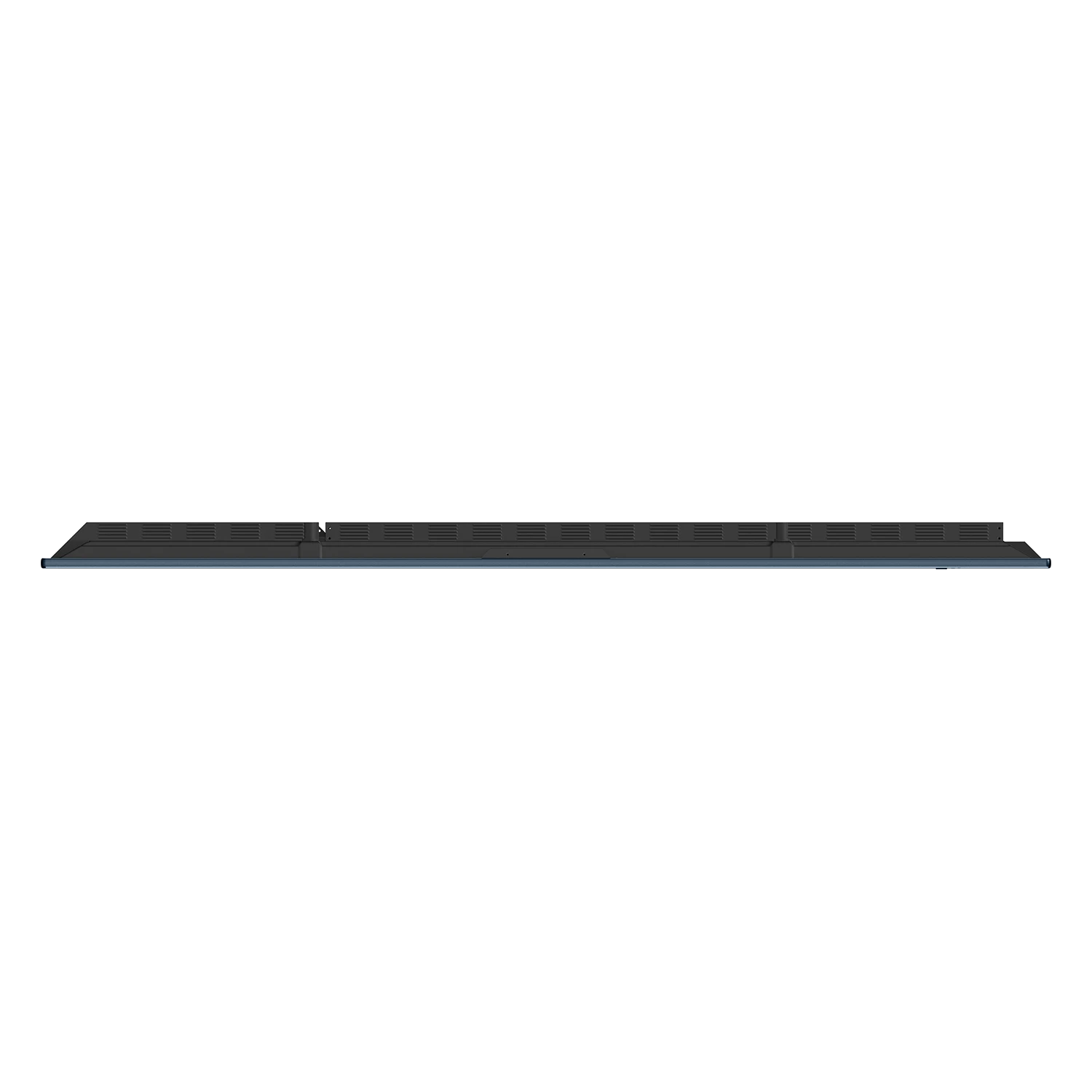

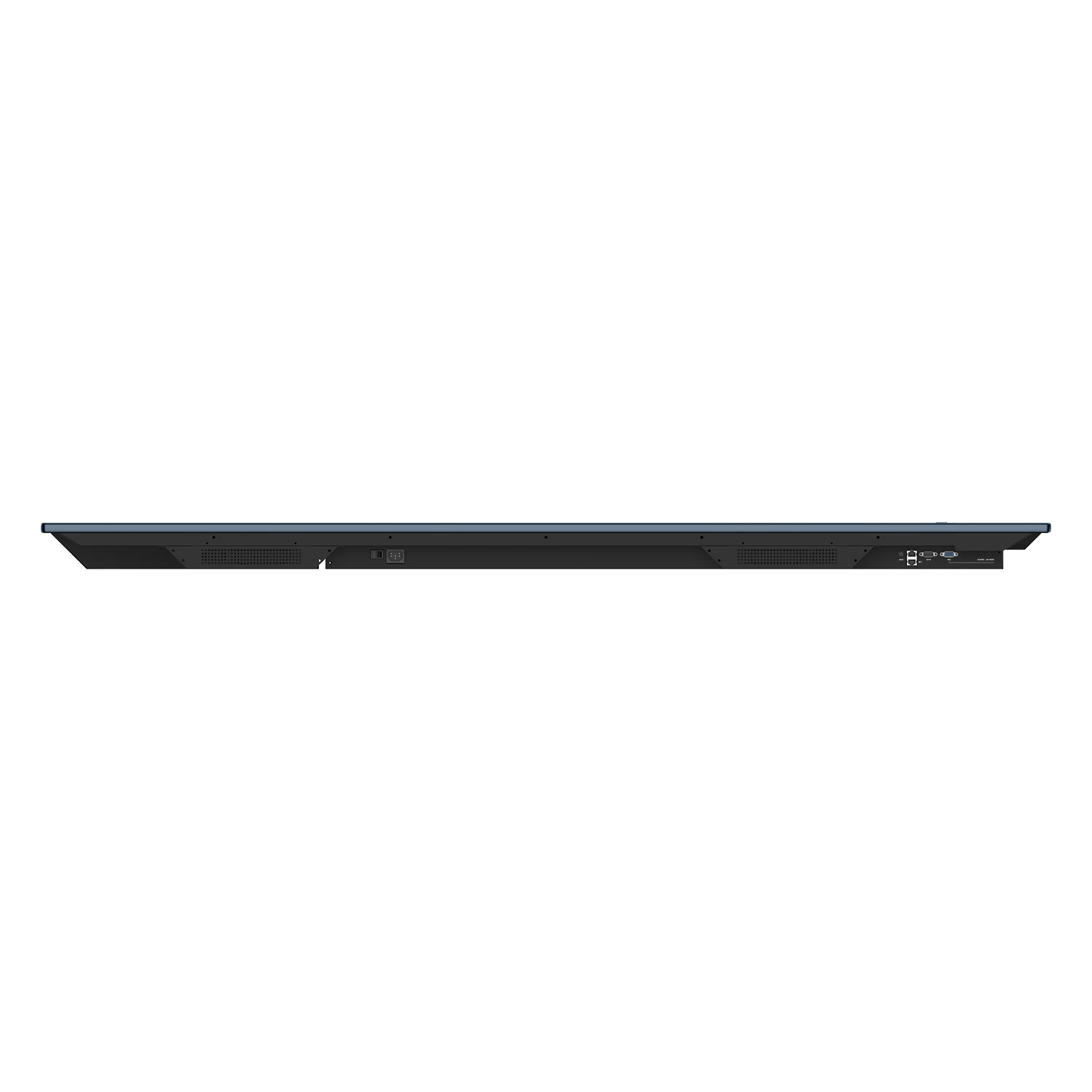

Sleek, slim, and less than an inch thick, this premium LCD looks as good as it performs. An edge-to-edge glass screen and bezel-less design enhance interactivity and viewing.
Convenient USB Type-C
Meetings and presentations start fast with single-cable USB Type-C connectivity. Users can simply walk into a room, plug in their device, and immediately begin sharing info on the ViewBoard display. In addition to fast data, audio, and video transfer, USB Type-C also provides quick 65W charging and touch pass-through over a single cable.
Built-in Microphone Array
An integrated microphone array with echo cancellation and noise reduction technology delivers clear speech and sound during video conferences. The microphone can also pick up sound from up to 26 feet away.
Optional Slot-in PC
Based on your specific collaboration needs, you can choose an optional ViewSonic slot-in PC to provide additional computing power and advanced features. Options include Intel Core i5 and i7 processors.
myViewBoard™ Annotation Software
myViewBoard digital whiteboarding software combines enterprise-level security with cloud-based portability and annotation tools to enhance the way your team connects and collaborates. Convenient features include secure single sign-on to your favorite cloud drives, easy conversion of common office files, QR code sharing, and much more.
Device Management
myViewBoard Manager is an easy-to-use web-based application to help you securely set up, manage, and maintain all of your displays from a centralized dashboard.
Immersive Stereo Sound
Designed with dual stereo speakers and a 15W subwoofer, this display combines incredible room-filling sound with amazing screen performance for an immersive multimedia experience.
myViewBoard™ Annotation Software
myViewBoard digital whiteboarding software combines enterprise-level security with cloud-based portability and annotation tools to enhance the way your team connects and collaborates. Convenient features include secure single sign-on to your favorite cloud drives, easy conversion of common office files, QR code sharing, and much more.
ViewBoard Cast Content Sharing Software
ViewBoard Cast™ enables content to be streamed from mobile devices onto the display over wireless or cable networks. Multiple users can simultaneously annotate content (such as documents, cloud files, multimedia, etc.) on their devices in real-time, and then stream and share that content onto the ViewSonic large format display.
| Warranty | 3-year limited warranty on parts, labor, and backlight, onsite warranty |
|---|---|
| Recycle/Disposal | Please dispose of in accordance with local, state, or federal laws. |
| Package Contents | - IFP6562 display<br> - Power cable<br> - HDMI cable<br> - USB cable Type C<br> - USB Cable for Touch<br> - Passive Stylus x 2<br> - RS232 Adapter<br> - Clamp x 5<br> - Remote control with batteries<br> - Camera plate<br> - Screw x 8<br> - Quick Start Guide |
| Regulations | CTUVus, FCC, Energy 8.0, EPEAT, Mexico, CE, CB, ErP, REACH, UKCA |
| VESA Compatible | 600 x 400 mm |
| Packaging (mm) | 1607.0 x 1010.0 x 215.0 |
| Physical (mm) | 1492.0 x 907.0 x 78.0 |
| Packaging (in.) | 63.3 x 39.8 x 8.5 |
| Physical (in.) | 58.7 x 35.7 x 3.1 |
| Net (kg) | 37.4 |
| Gross (kg) | 48.9 |
| Net (lbs) | 82.5 |
| Gross (lbs) | 107.8 |
| Touch Technology | Projective Capacitive |
| Touch Points | Windows: 20, Android: 20 |
| Tip Detection | Finger or Active Pen |
| Temperature | 32-104º F (0 - 40º C) |
| Humidity (non-condensing) | 10-90% |
| Voltage | 100-240 VAC |
| Consumption (max) | 390W |
| Consumption (typical) | 115W |
| Stand-by | <0.5W |
| HDMI 2.0 In | 4 |
| HDMI 4K Out | 1 |
| 3.5mm Audio Out | 1 |
| SPDIF Audio Out | 1 |
| USB 3.0 | 5 |
| USB 2.0 | 1 |
| USB 3.1 Type C | 1 |
| Slot-in PC Slot | 1 |
| USB B Touch Port | 2 |
| RS232 | 1 |
| Ethernet LAN (RJ45) | 2 |
| WIFI Module Slot | 1 |
| Intel® OPS Slot In (80-pin) | 1 |
| Internal Speakers | 12W (x2) |
| Subwoofer | 15W (x1) |
| OS | Android 8.0 |
| CPU | ARM Quad-Core Cortex A73 |
| CPU Processor Speed | 1.2GHz |
| Memory | 3GB |
| Storage | 32GB |
| Ethernet LAN | (10/100/1000M) (USB Type-C & Android 10/100, PC 10/100/1000) |
| Display Type | LCD |
| Screen Size | 65 |
| Viewable Area (in.) | 64.5 |
| Light Source | LED |
| Display Resolution | 3840 x 2160 |
| Aspect Ratio | 16:9 |
| Static Contrast Ratio | 5,000:1 |
| Backlight Life (Hours) | 50,000 |
| Brightness | 350 cd/m2 |
| Response Time (Typical GTG) | 8ms |
| Viewing Angles | 178º horizontal, 178º vertical |
| Panel Surface | Anti-glare 9H tempered glass |
| Download Type | Download Link |
|---|---|
| User Guides | Download |
| Quick Start Guide | Download |
| Driver & Software | Download |
| Technical Document | Download |
| Reports | Download |
