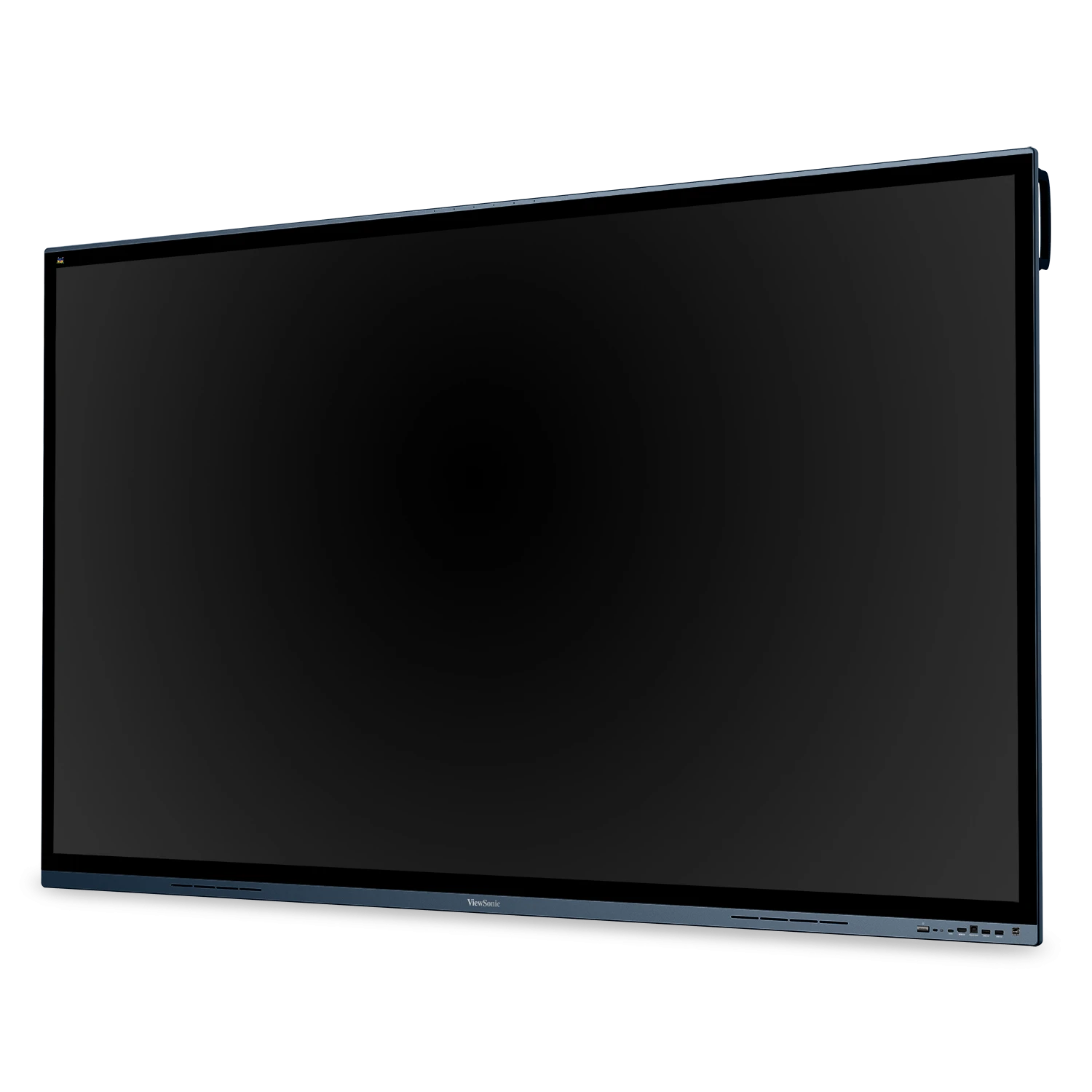

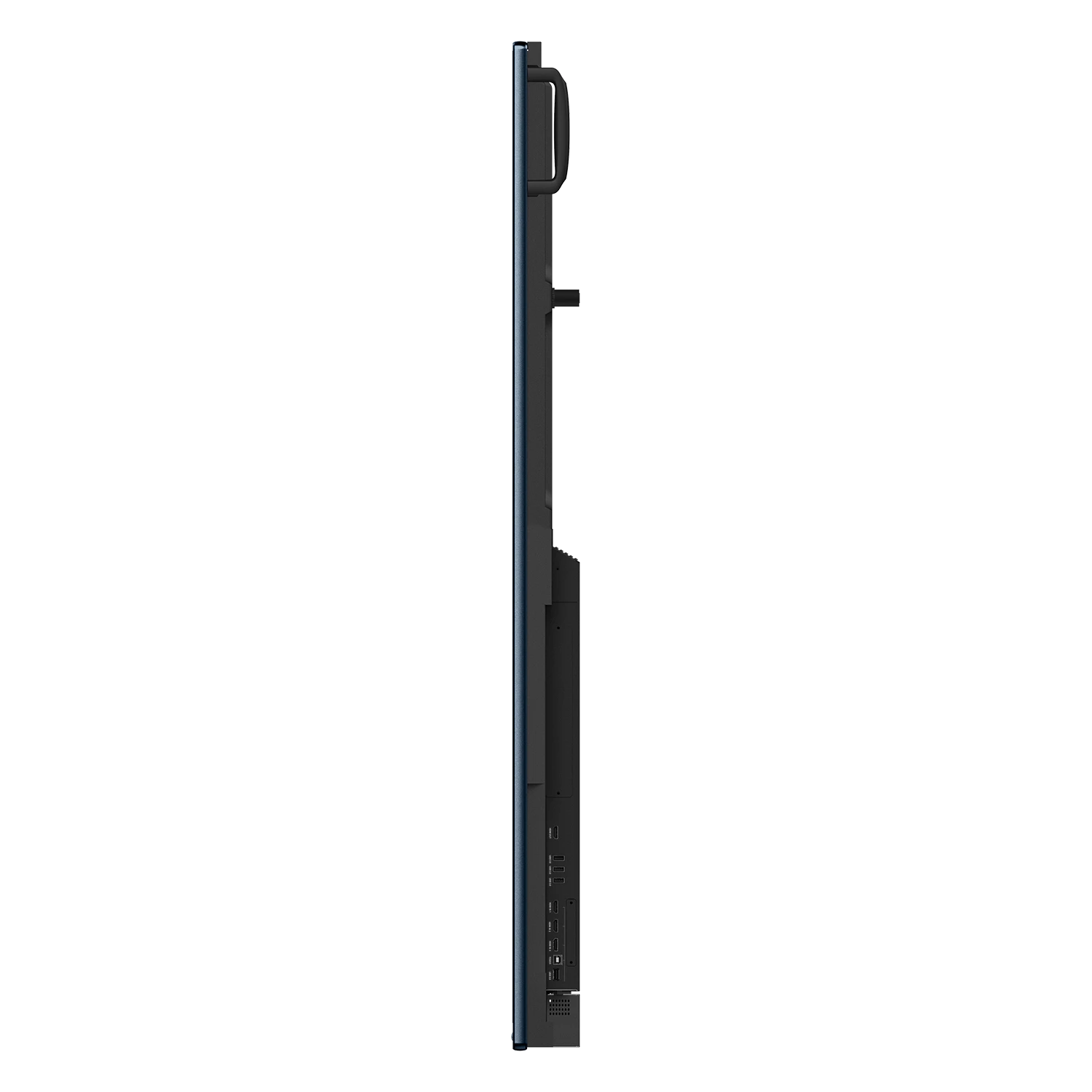

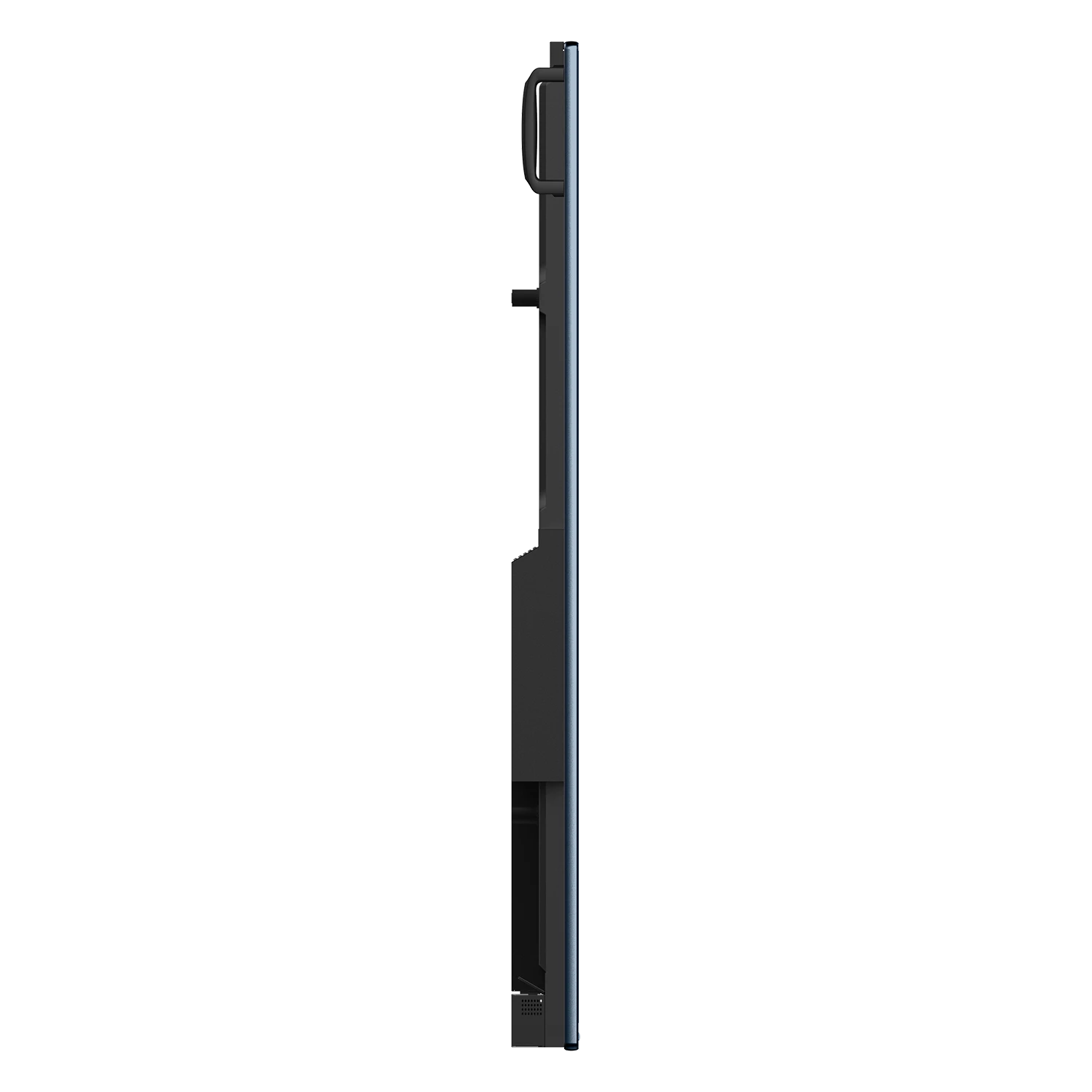

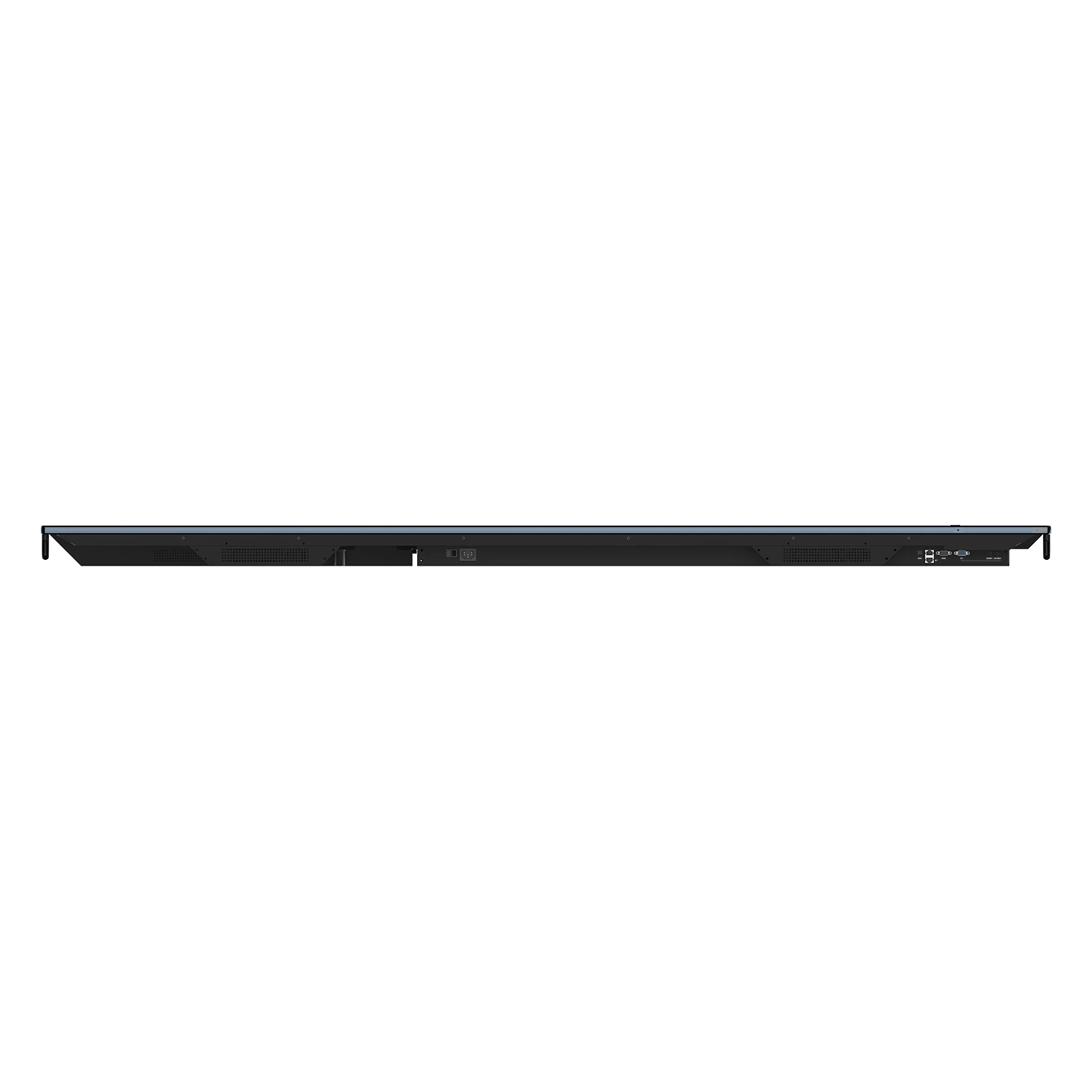

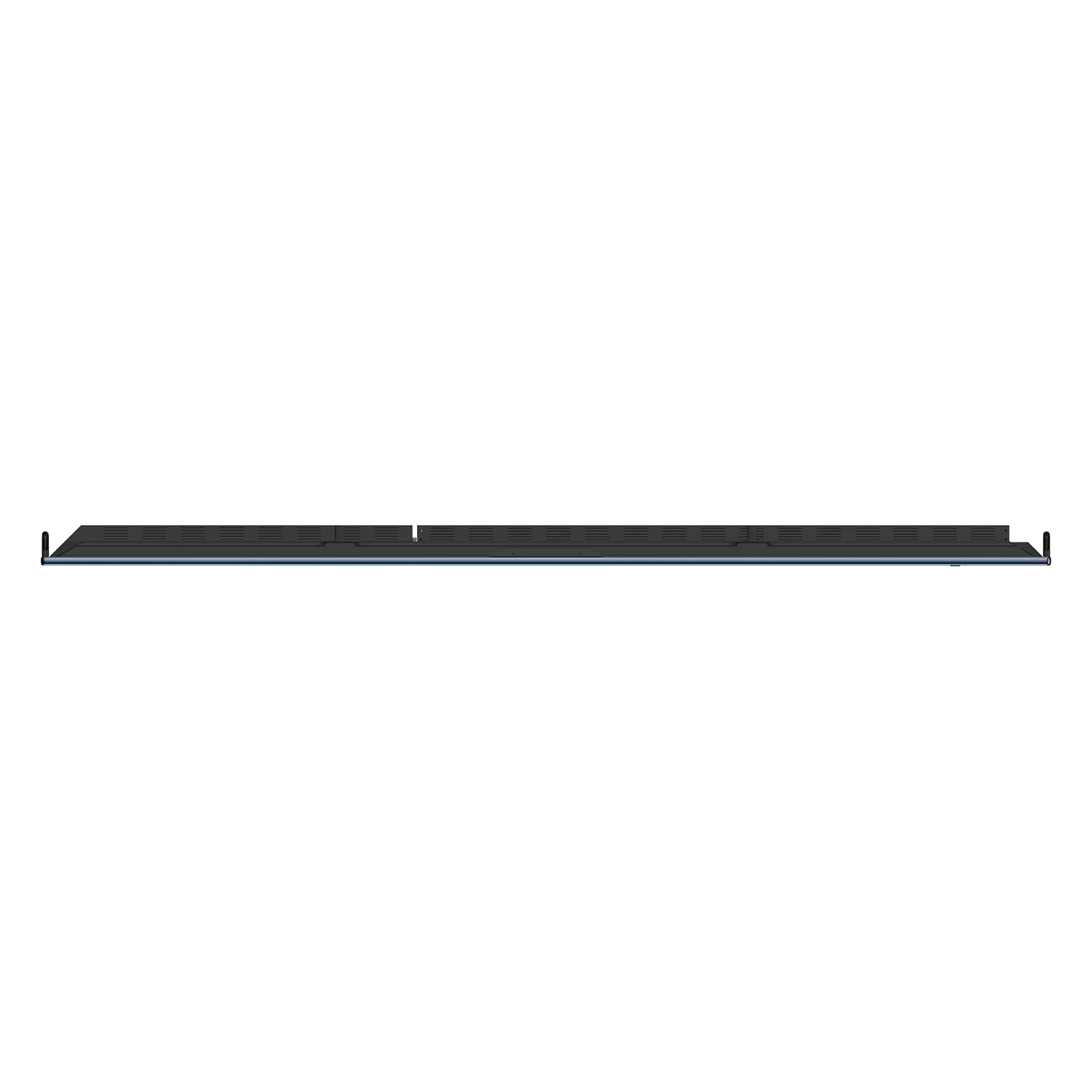

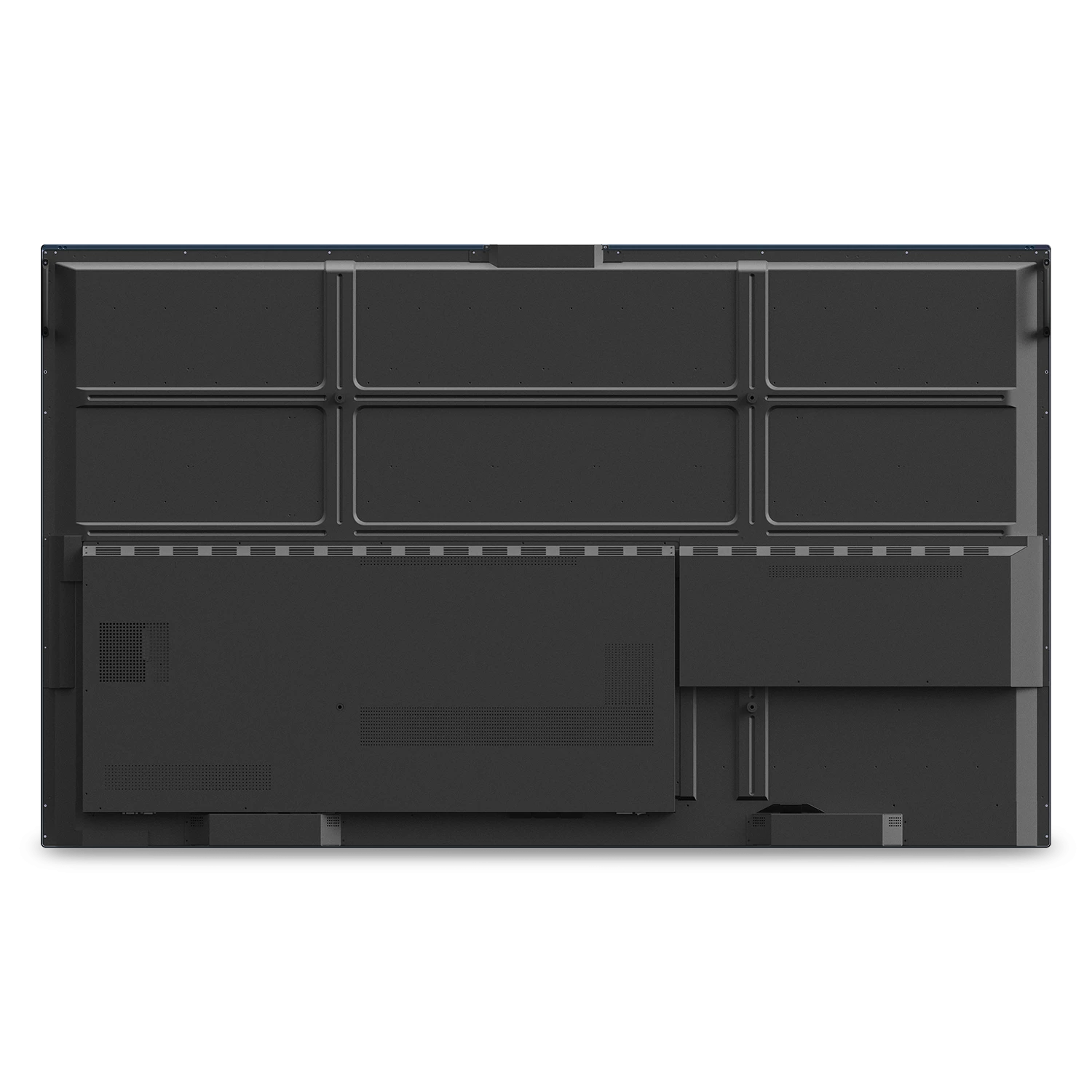

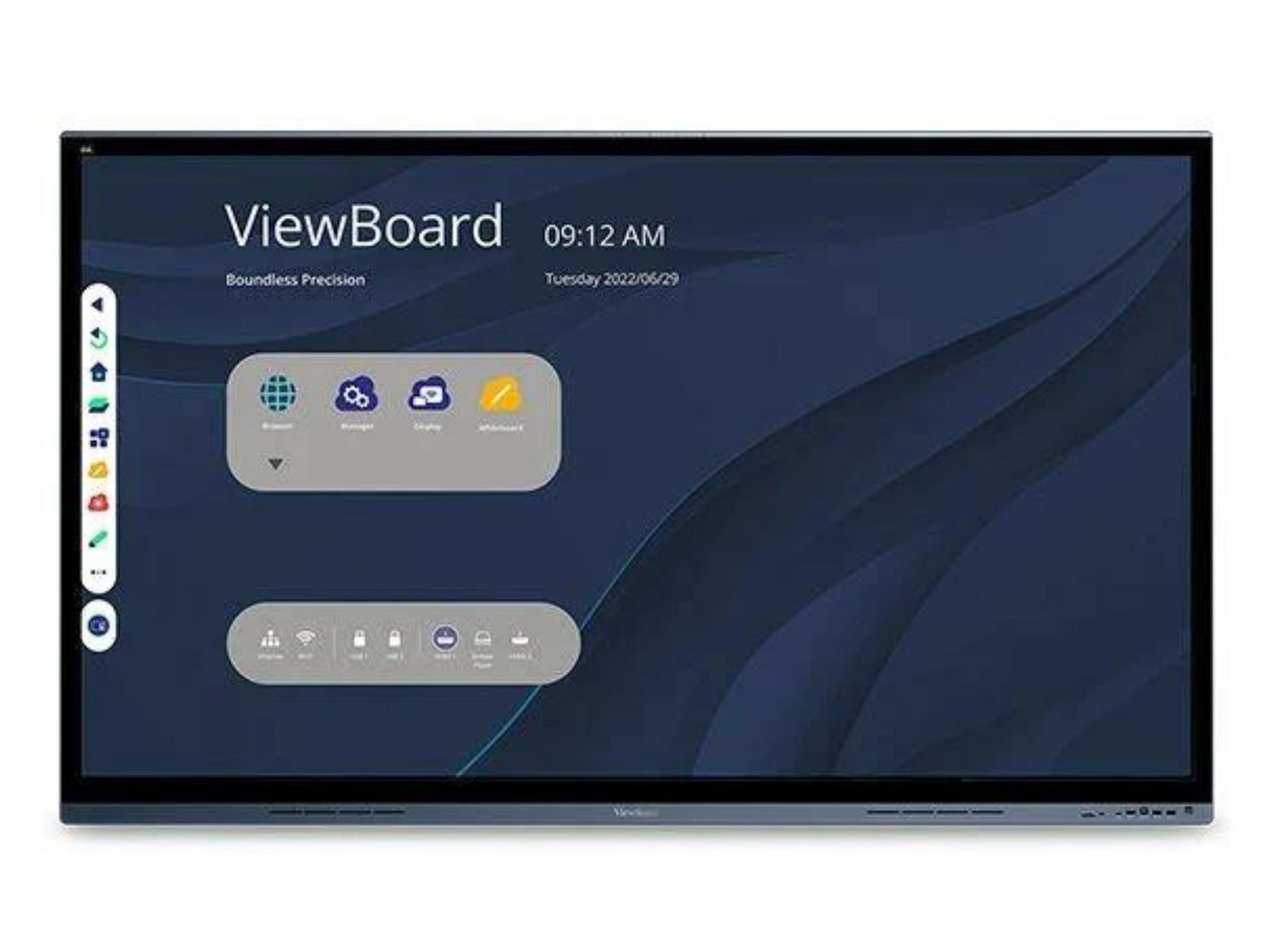

ViewSonic IFP8662 - 86" 4K Touch Enabled ViewBoard Smart Display
SKU: IFP8662
£4,226.00 (Excl. VAT)
- Display Size86"
- Touch Capabilities20pt multi-touch
- Net Weight64 kg
- Operating SystemAndroid 8
- VESA Patterns800x600
- Panel TypeLED Panel
- ResolutionUltra HD (4K)
- Screen TypeFlat
- Response Time8ms
- Screen Ratio16:9
- Brightness350 cd/m2
- Operating Hours16/7
- Description
- Specifications
- Warranty
-
ViewSonic IFP8662
86" 4K Touch Enabled ViewBoard Smart Display
ULTRA HD RESOLUTION: 86 Inch 4K Ultra HD (3840x2160p) with a bezel-less Interactive Display
TOUCH PRECISION: 20-point PCAP touch technology lets multiple users write on the screen with their fingers and active styluses
ONE CABLE SOLUTION: Convenient USB-C for connected devices
BE HEARD: Built-in Microphone Array with echo cancellation and noise reduction technology
Product Overview
From executive boardrooms to interactive huddle spaces, the ViewSonic® ViewBoard® IFP8662 enables limitless collaboration and endless innovation. Designed to help teams connect, collaborate, and create, this next-generation digital whiteboard delivers exactly what you need to move your ideas forward. A premium, state-of-the-art design features a bezel-less PCAP (projected capacitive) touchscreen with incredible 4K Ultra HD resolution. This highly accurate interactive screen provides for an incredibly natural and responsive handwriting experience. Using fingers, styluses, or both, multiple users can simultaneously write or draw on the huge 86” ViewBoard panel. What’s more, meetings and presentations start fast thanks to convenient one-wire USB-C connectivity.
Built-in Microphone Array
An integrated microphone array with echo cancellation and noise reduction technology delivers clear speech and sound during video conferences. The microphone can also pick up sound from up to 26 feet away.
Optional Slot-in PC
Based on your specific collaboration needs, you can choose an optional ViewSonic slot-in PC to provide additional computing power and advanced features. Options include Intel Core i5 and i7 processors, as well as Windows 10 Pro and Zoom Room systems. -
Parameter Specification UPC 766907012088 Display Type LCD Screen Size 86 Viewable Area (in.) 85.6 Light Source LED Display Resolution 3840 x 2160 Aspect Ratio 16:9 Static Contrast Ratio 1,200:1 Backlight Life (Hours) 50,000 Brightness 350 cd/m2 Response Time (Typical GTG) 8ms Viewing Angles 178º horizontal, 178º vertical Panel Surface Anti-glare 9H tempered glass Ethernet LAN (10/100/1000M) (USB Type-C & Android 10/100, PC 10/100/1000) OS Android 8.0 CPU ARM Quad Core Cortex A73 CPU Processor Speed 1.2GHz Memory 3GB Storage 32GB Internal Speakers 12W (x2) Subwoofer 15W (x1) HDMI 2.0 In 4 HDMI 4K Out 1 3.5mm Audio Out 1 SPDIF Audio Out 1 USB 3.0 5 USB 2.0 1 USB 3.1 Type C 1 Slot-in PC Slot 1 USB B Touch Port 2 RS232 1 Ethernet LAN (RJ45) 2 WIFI Module Slot 1 Intel® OPS Slot In (80-pin) 1 Voltage 100-240 VAC Consumption (max) 580W Consumption (typical) 160W Stand-by <0.5W Temperature 32-104º F (0 - 40º C) Humidity (non-condensing) 10-90% Touch Technology Projective Capacitive Touch Points Windows: 20, Android: 20 Tip Detection Finger or Active Pen Net (lbs) 140.4 Gross (lbs) 185.7 Net (kg) 63.7 Gross (kg) 84.3 Packaging (in.) 83.2 x 50.8 x 10.6 Physical (in.) 77.2 x 46.1 x 3.1 Packaging (mm) 2113.0 x 1290.0 x 270.0 Physical (mm) 1960.0 x 1171.0 x 80.0 VESA Compatible 800 x 600 mm Warranty 3-year limited warranty on parts, labor and backlight, onsite warranty Recycle/Disposal Please dispose of in accordance with local, state or federal laws. Package Contents IFP8662 display, power cable, HDMI cable, USB cable Type C, USB Cable for Touch, Passive Stylus x 2, RS232 Adapter, Clamp x 5, remote control with batteries, Camera plate, screw x 8, Quick Start Guide Regulations CTUVus, FCC, Energy 8.0, EPEAT, Mexico, CE, CB, ErP, REACH, UKCA -
Warranty
ViewSonic provides customers with the security of a manufacturer’s warranty against defected products. We are keen to provide our customers with great peace of mind and confidence in our product. With that in mind, we are now providing 3 years limited warranty on selected*
ViewSonic Interactive ViewBoards.
