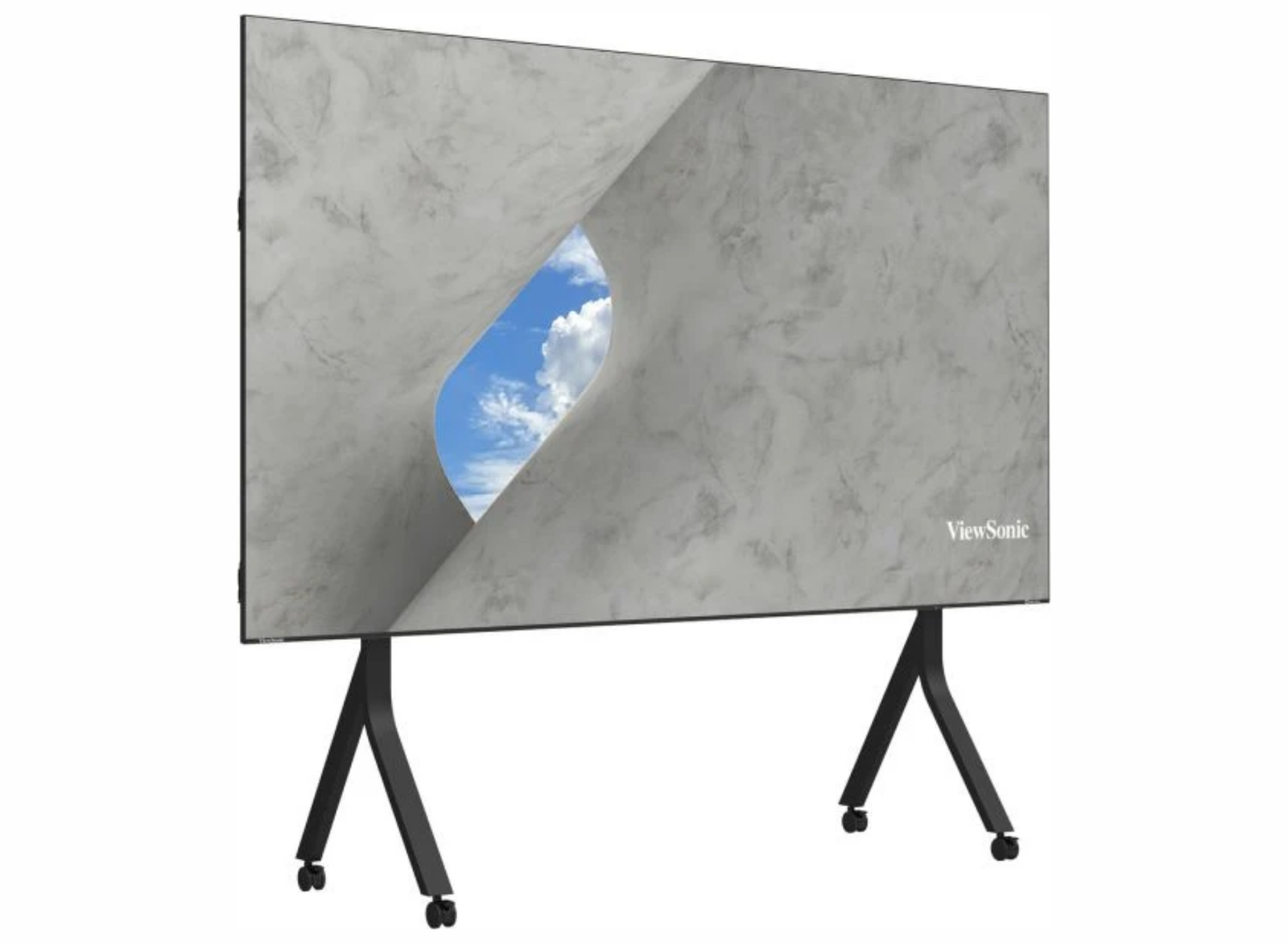

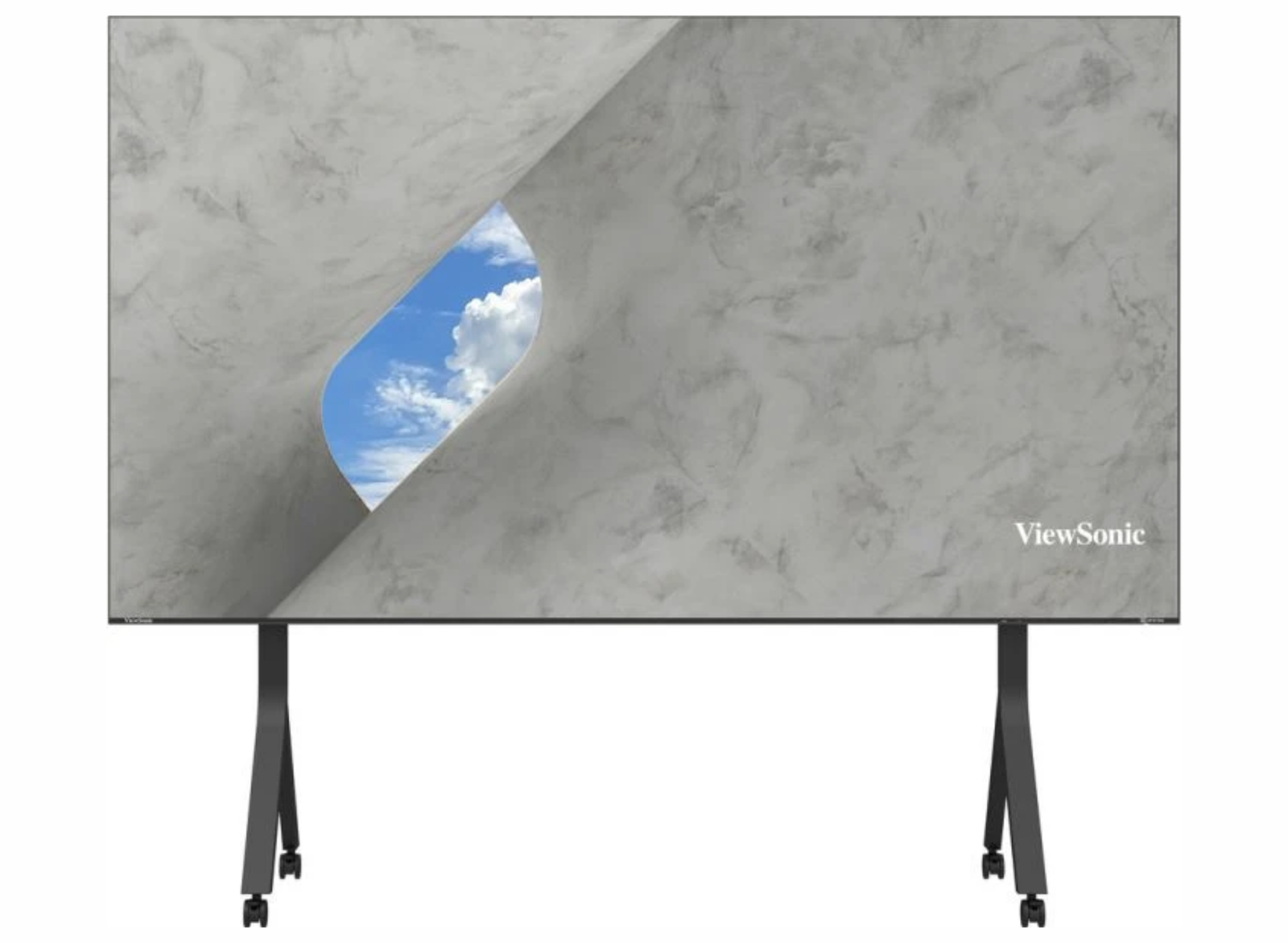

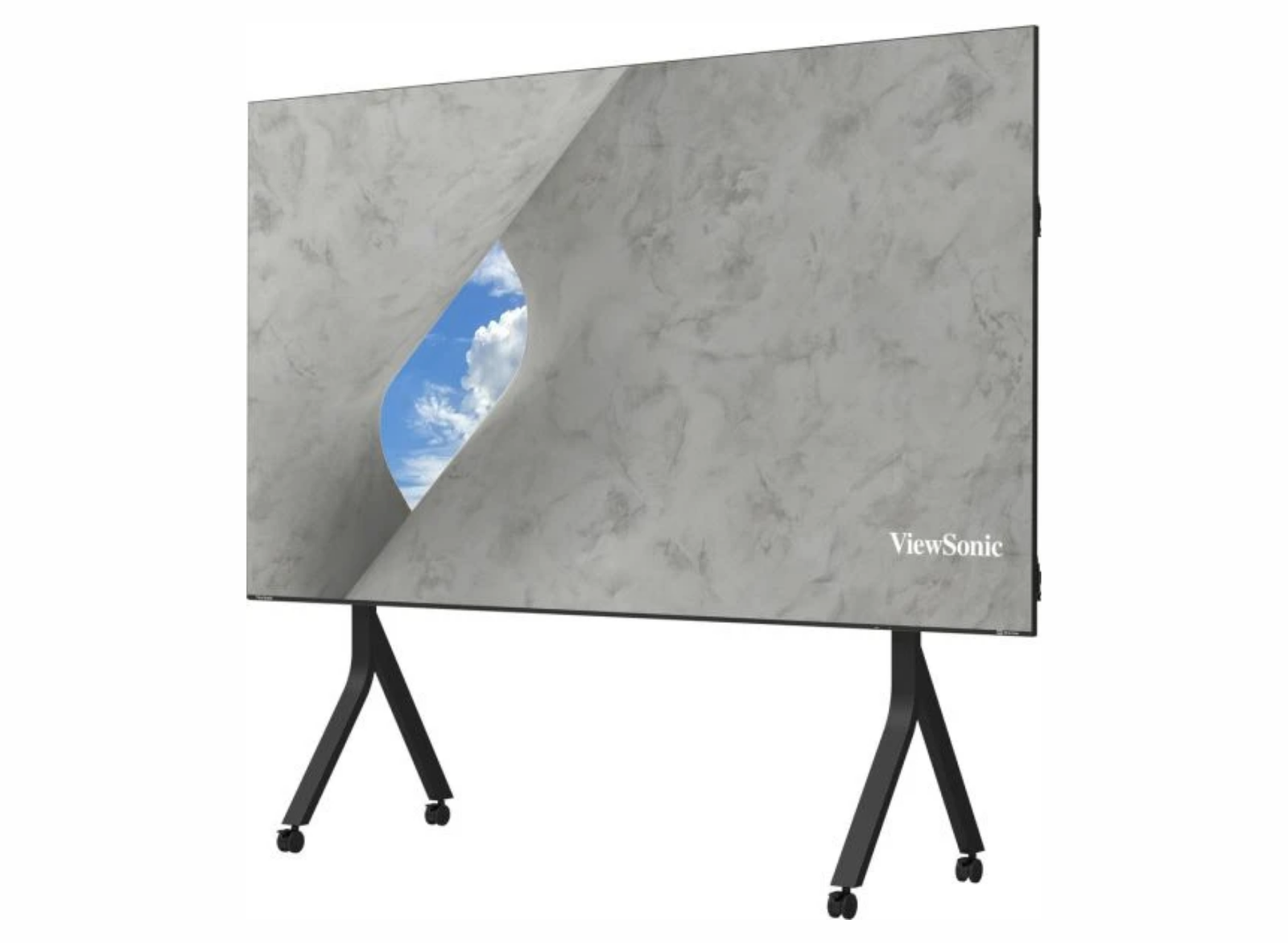

ViewSonic LDE136G-152 136” All-in-One Direct View LED Display

Seamless 136” All-in-One LED Display for Modern Spaces

The ViewSonic LDE136G-152 is a 136“ accessible All-in-One LED display designed to deliver impressive visual clarity and dependable performance for corporate, educational, and public settings. A pre-built control box simplifies installation and helps achieve a lighter, more integrated build. The lighter design and slim 52 mm profile make wall mounting easier, while the 99% screen-to-body ratio creates a sleek, bezel-free look that blends seamlessly into modern interiors. Durable Glue-on-Board (GOB) surface protection resists impact, dust, and moisture, achieving IP54 and IK06 ratings for long-lasting reliability in high-traffic areas. The OS architecture restricts access to apps, network connectivity, and user storage to ensure simplified, secure operation and a reliable plug-and-play experience. Q-SYS-certified compatibility enables seamless integration with control systems for unified AV management and smoother workflows, and HDMI CEC support allows automatic power and device synchronization for simplified operation. With 600 nits of brightness and a 6,500:1 contrast ratio, the LDE series delivers vivid, high-impact visuals for meetings, lectures, and presentations.

Innovative All-in-One Integration for Effortless Installation
The ViewSonic All-in-One LED display combines power, control, display and image stitching into a single system for efficient installation. The LDE Series builds on this concept by integrating power and control components directly into the cabinet, eliminating the external control box. This next-generation design simplifies setup, enables faster installation, and achieves a 99% screen-to-body ratio, delivering a seamless viewing surface and a polished, modern look.
Pre-built Control Box

Enhanced Durability with GOB Surface Treatment

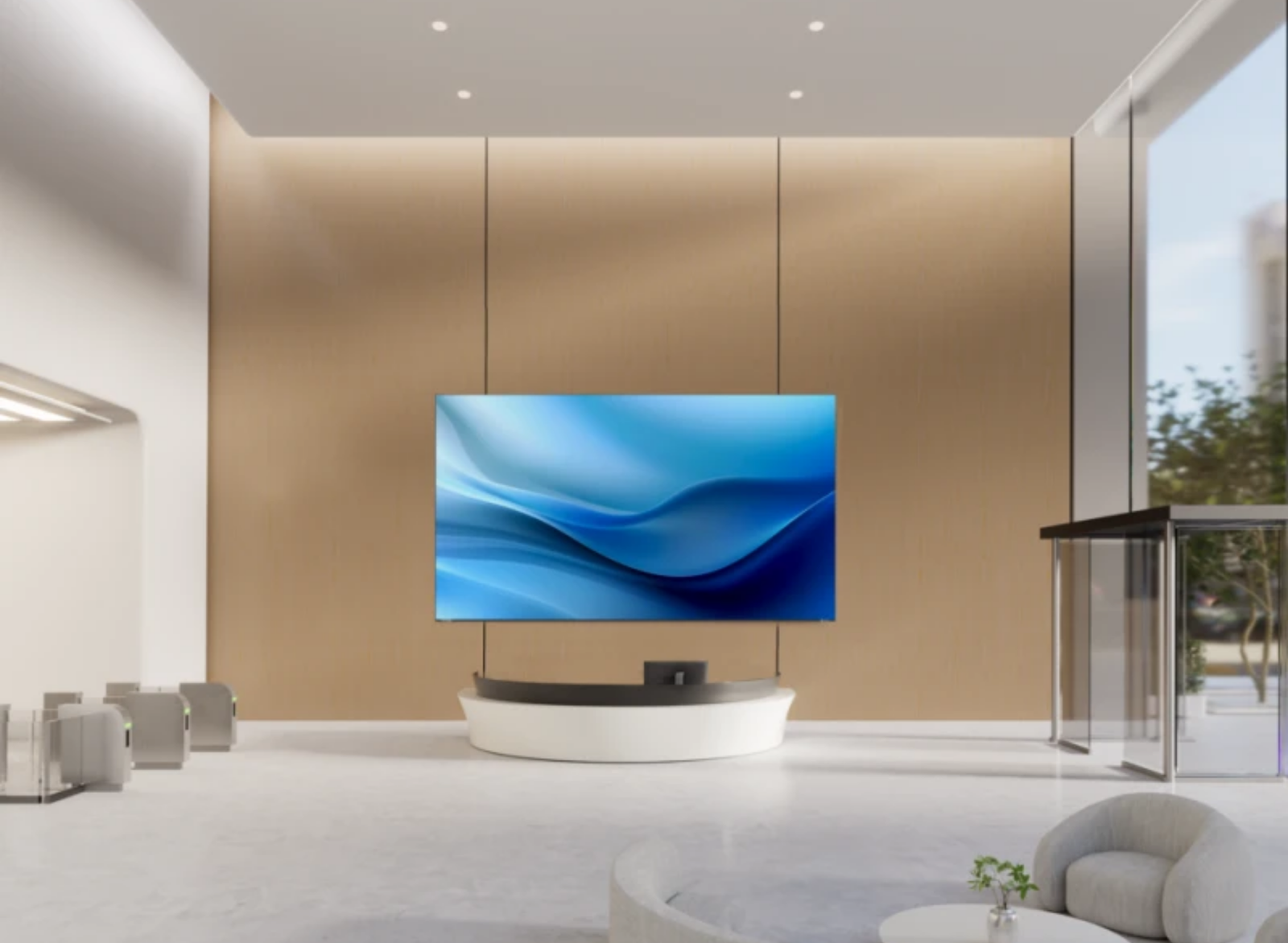

Crafted for exceptional durability, this display features Glue-on-Board (GOB) surface treatment technology—a protective process that seals the LED module surface with transparent epoxy glue, enhancing protection during installation and use. Achieving an IP54 and IK06 rating*, it provides resistance against collisions, dust, and moisture, making it an ideal choice for public spaces such as lobbies, shopping malls, and transportation hubs.
*Only the LED module surface is rated IP54 and IK06
IP54 & IK06 Certified Protection

Full Front Maintenance
Instead of relocating an entire set of display for maintenance, users can effortlessly replace any defective piece with the hot-swappable front LED modules using the electric vacuum suction tool – it's easy to use regardless of technical expertise.
Hot-Swappable Modules

Streamlined with a Simplified OS
The LDE Series features a simplified OS that enables controlled, predictable operation. With no pre-installed apps, Wi-Fi connectivity, or user-accessible storage, it offers true plug-and-play convenience and a more secure experience for effortless everyday use.

Pro AV Control System Integration
The LDE Series offers remote management over LAN. Certified for Q-SYS compatibility, it also integrates seamlessly with other control systems to enable efficient, centralized device management at scale
Compatibility with AV Control Systems

Synchronized Power and Device Control
With HDMI CEC, the LDE Series powers on and off automatically with a connected source device such as a media player or PC. This simplifies daily operation by reducing the number of remote controls and enabling instant startup in corporate and educational environments.
*For details on compatible devices, please refer to the user guide.
HDMI CEC

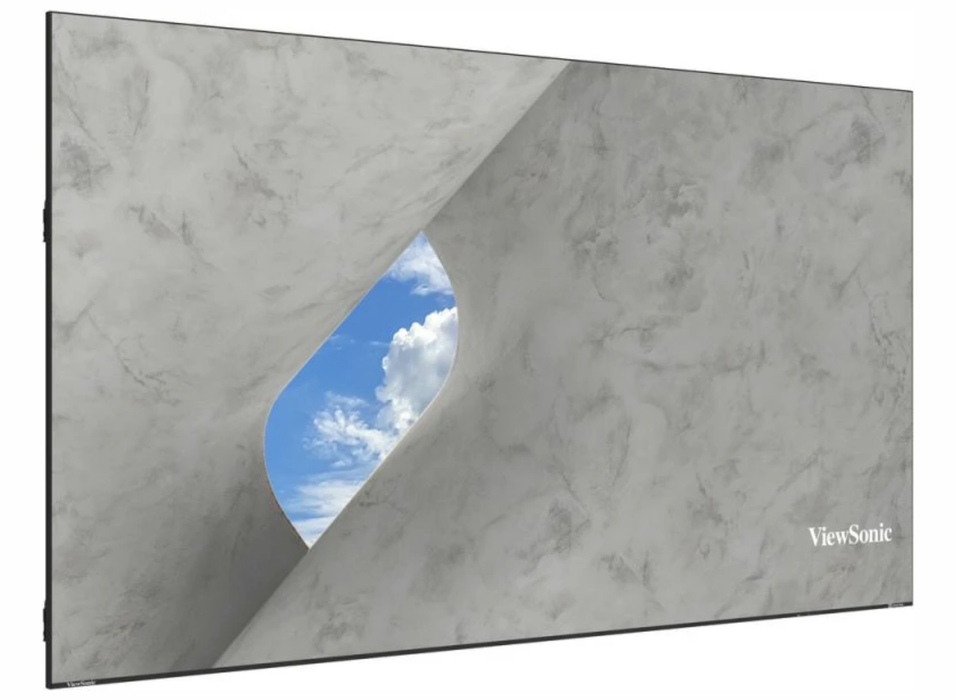

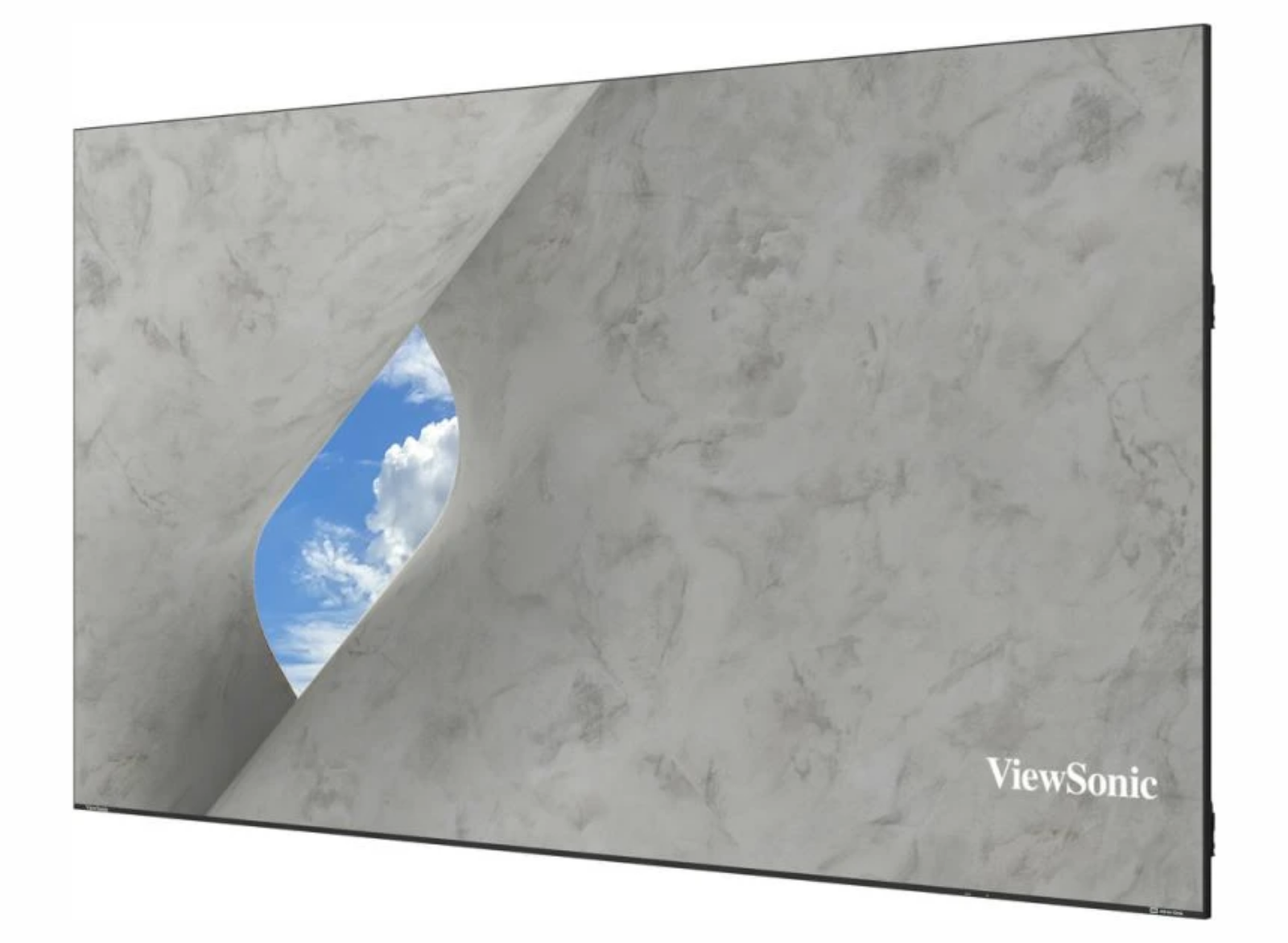

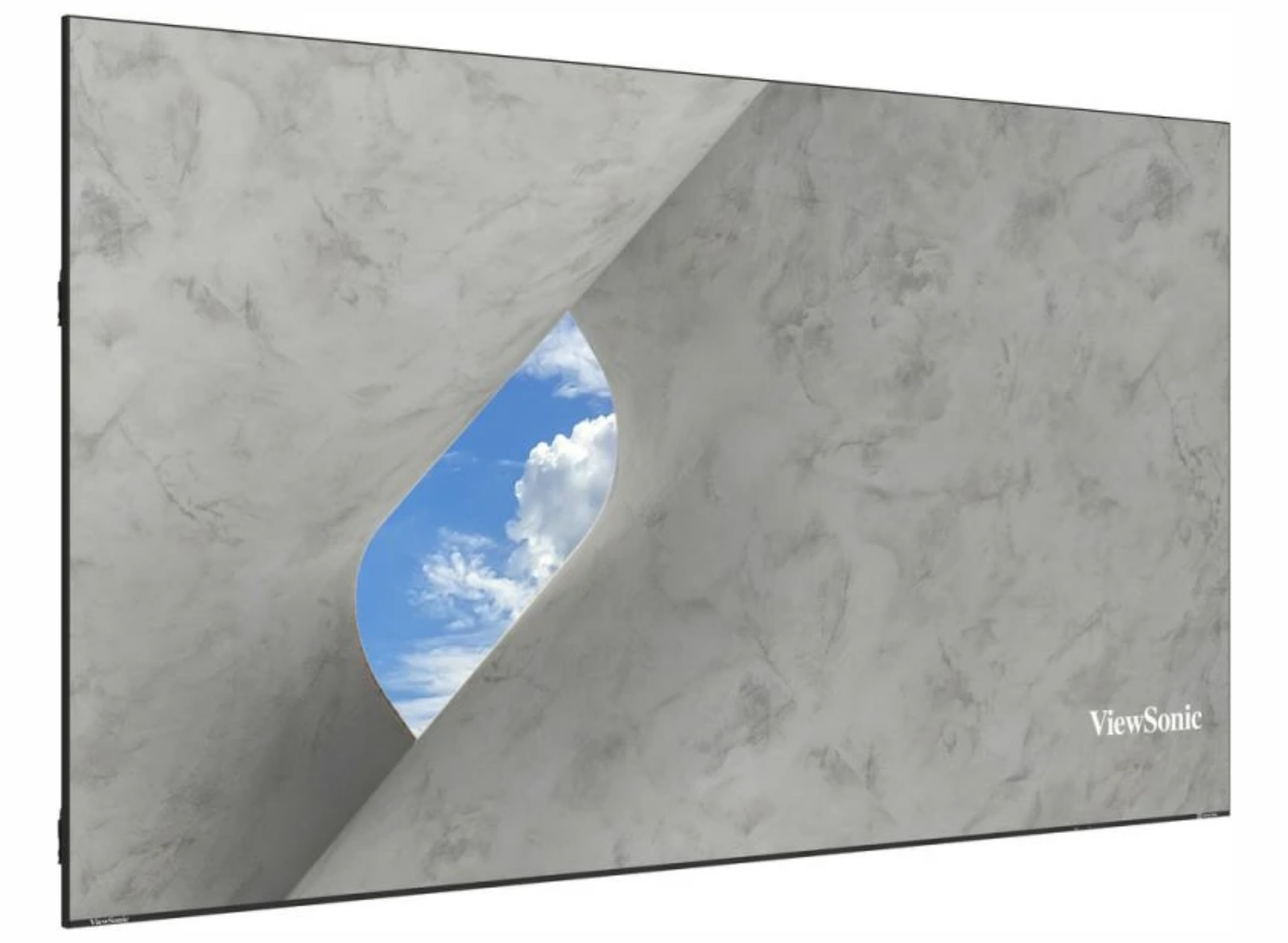

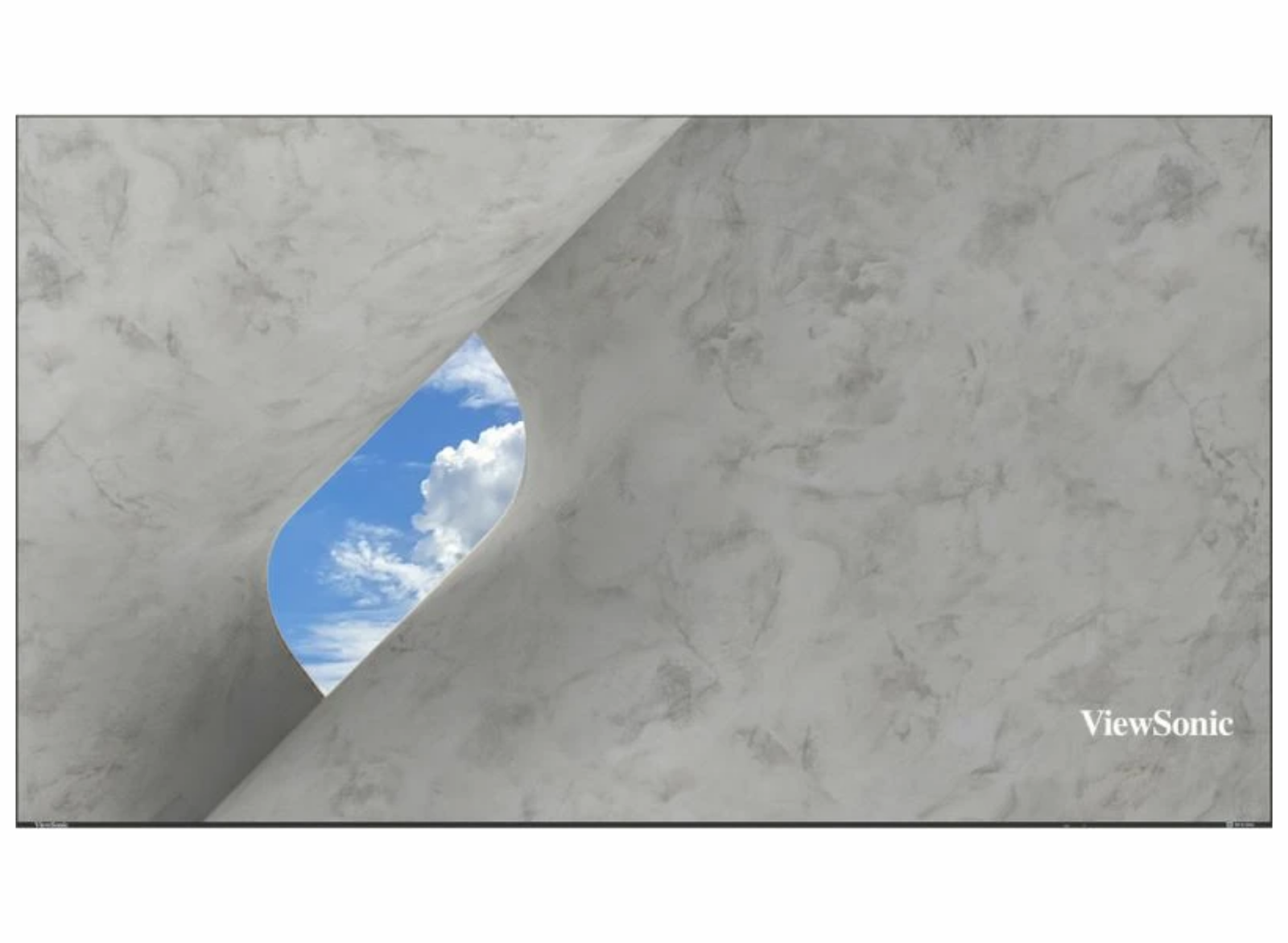

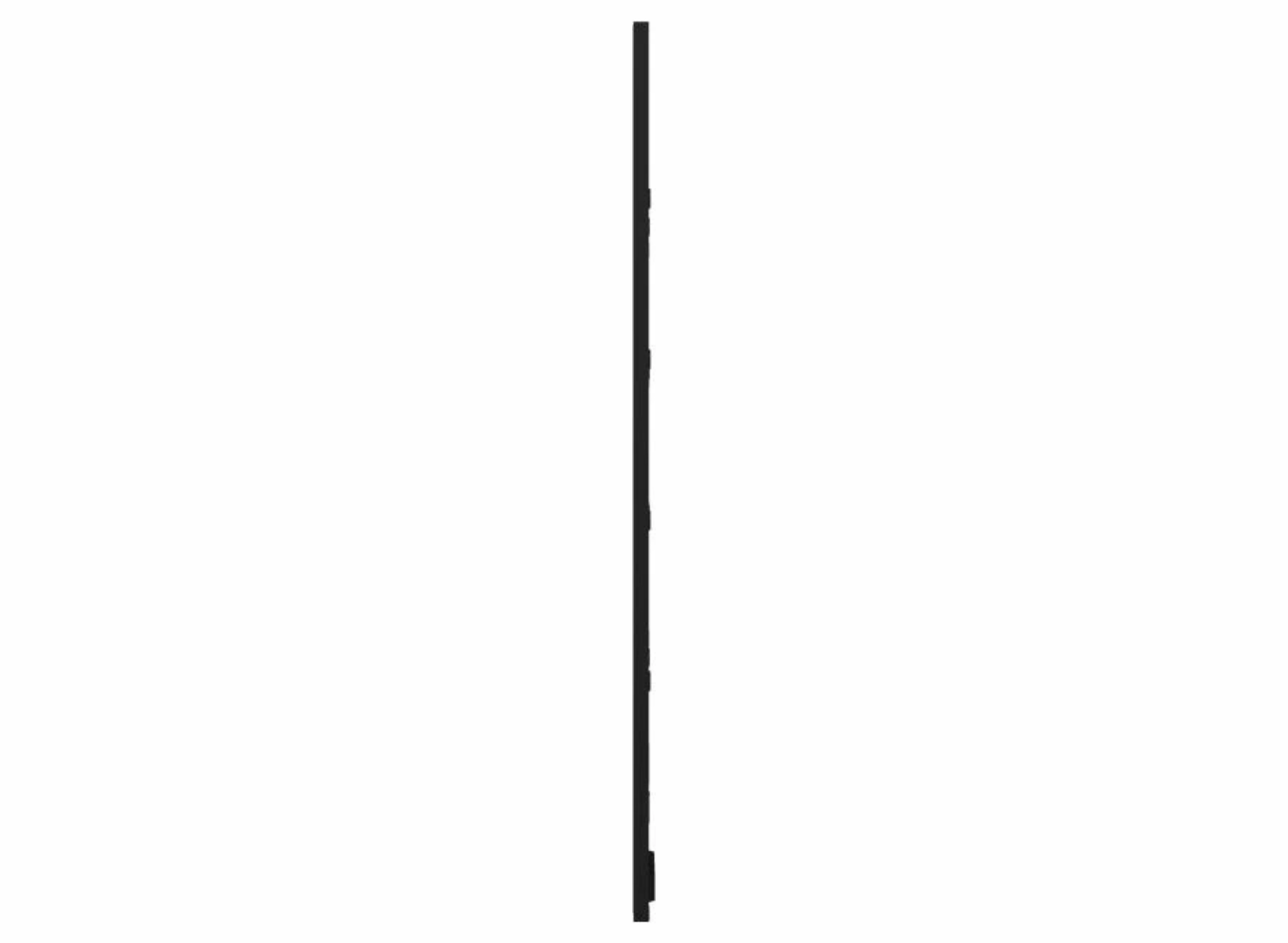

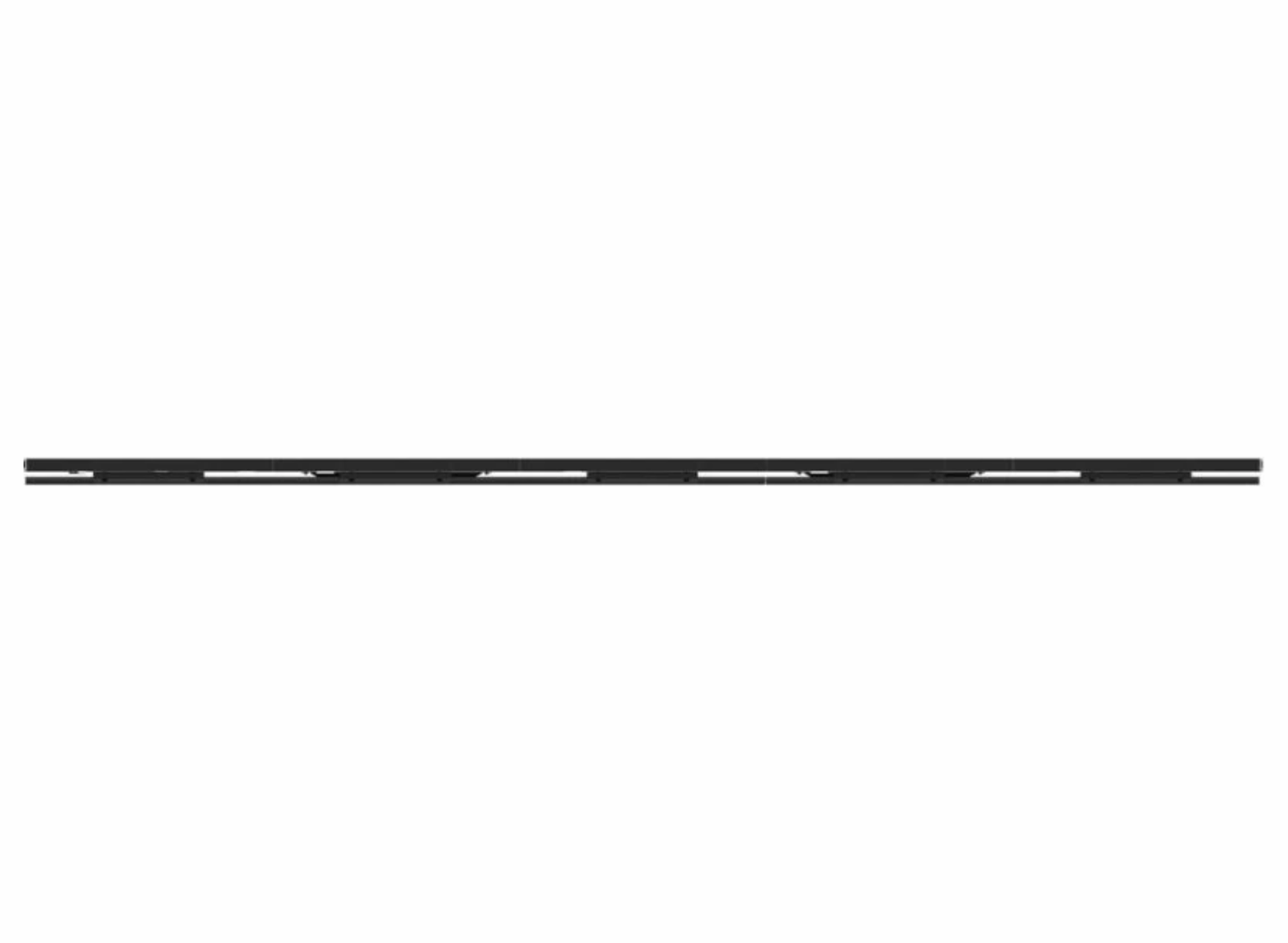

Premium Aesthetics with Ultra-Slim, Bezel-Free Design
The LDE Series features an expansive 136” screens, respectively equivalent to nine 46” LCD displays combined. The bezel-free design, ultra-slim 52 mm profile, and 99% screen-to-body ratio give the display a sleek, modern look that integrates smoothly into professional environments.

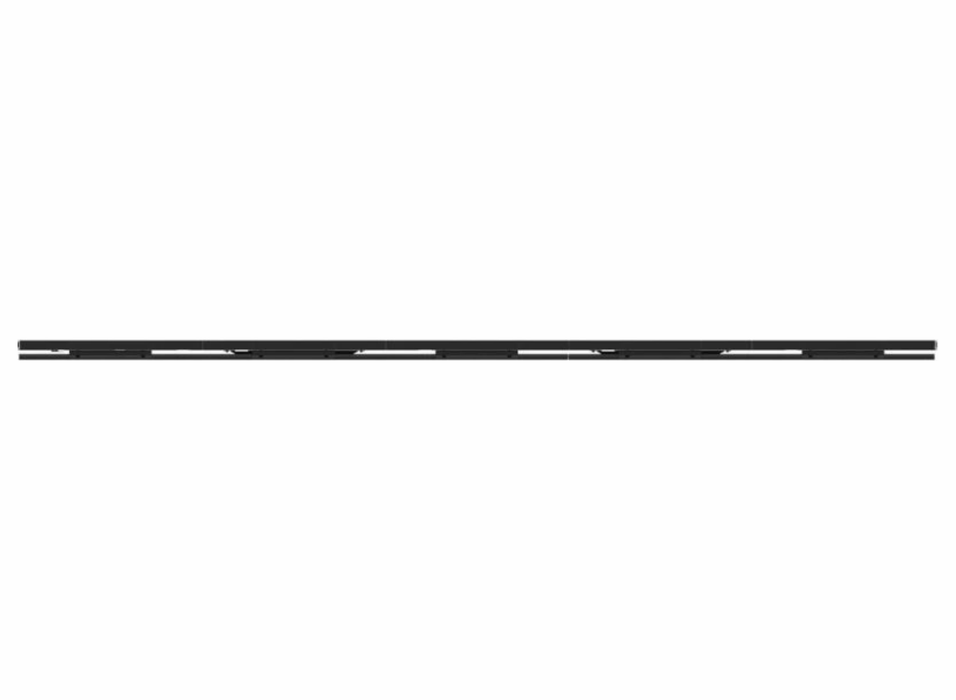

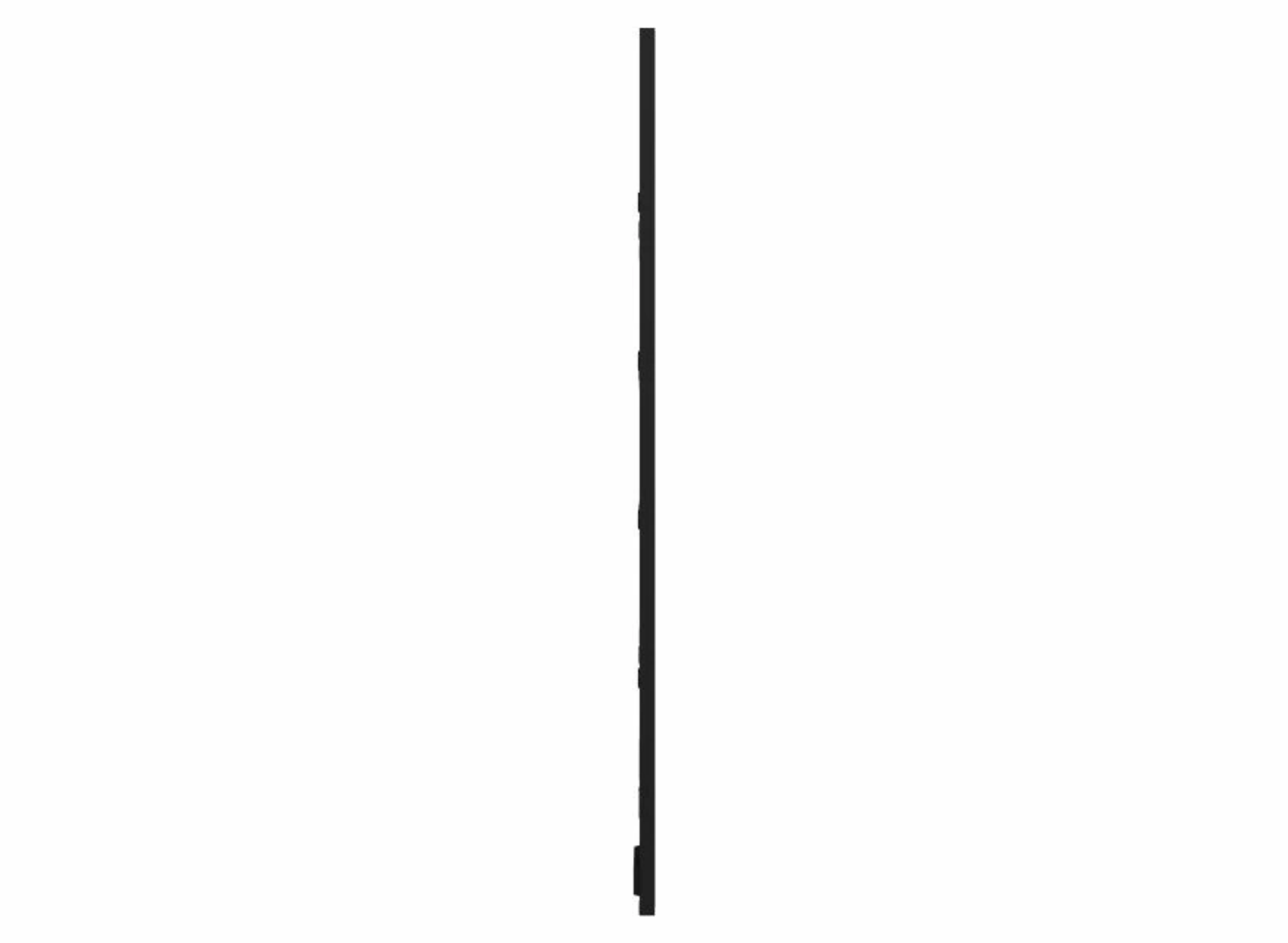

136” Screen, 52 mm Profile, 99% Screen-to-body Ratio

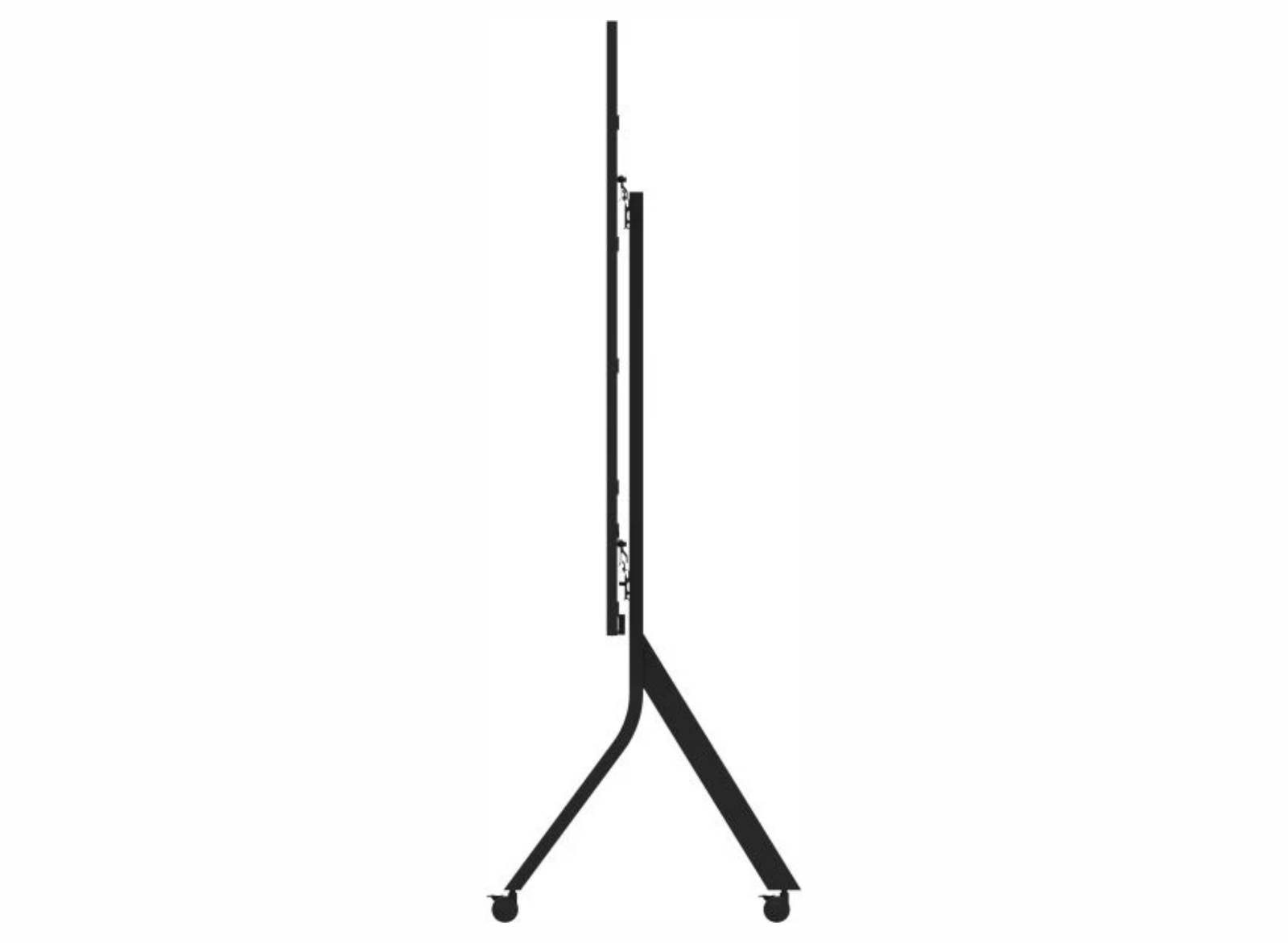

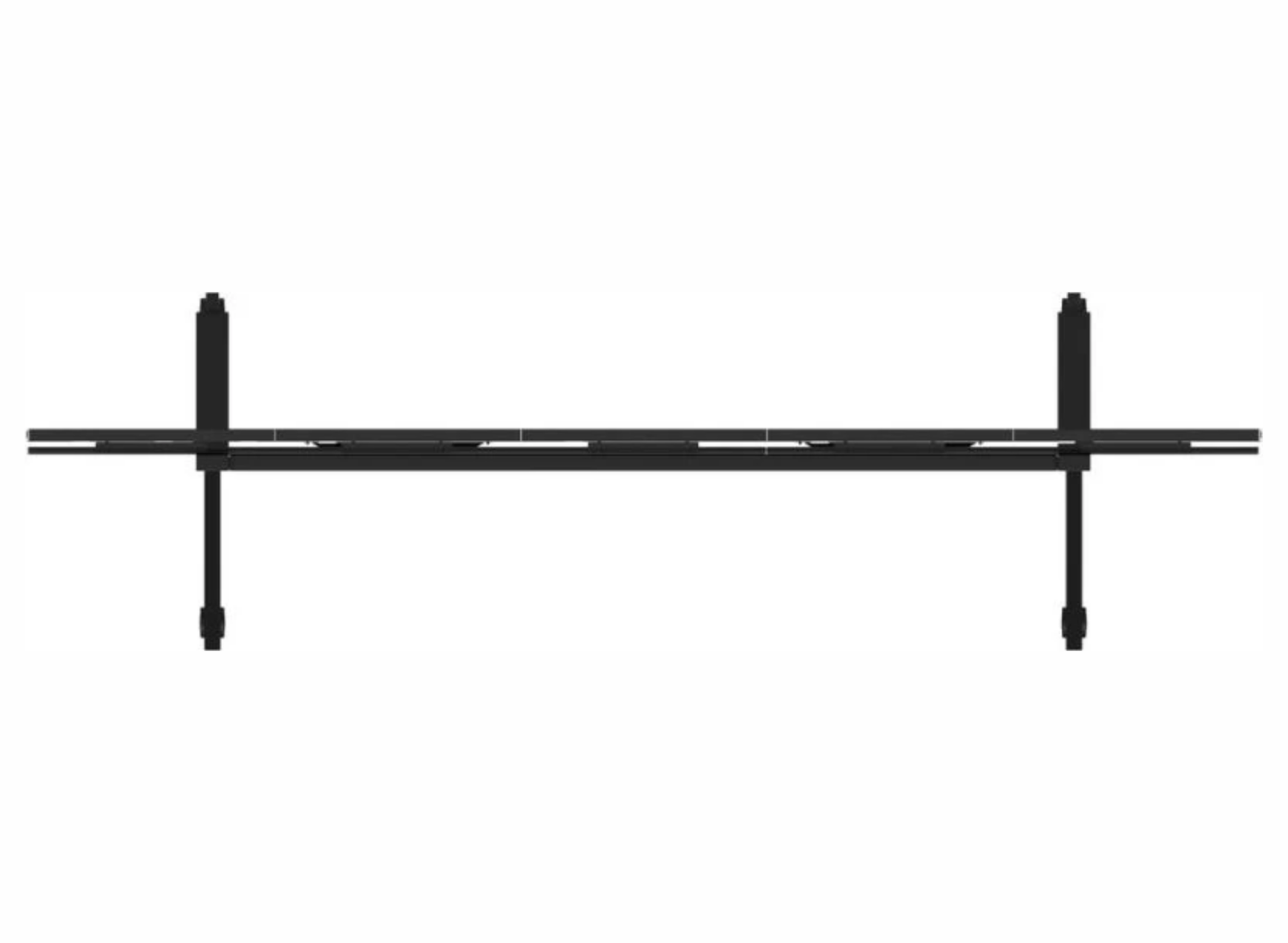

Lightweight Design for Easier Wall Mounting
The LDE Series features an innovative all-in-one design that eliminates the external control box. This reduces overall weight by 16.6% with competing models. The lighter structure makes wall mounting easier and installation more efficient.

Flexible Flat Cable for Cleaner Installation
The LDE Series replaces traditional RJ45 wiring with a flexible flat cable for cleaner layout and more efficient installation. With fewer connectors and simplified wiring, the design allows faster assembly and long-term reliability, minimizing connection failures in professional AV environments.
LVDS FFC Cabling

Modular Design for Easy Installation
This modular display features a user-friendly design for a simplified installation experience. Each LED module automatically configures and calibrates to its specific location and settings during installation, ensuring a smooth and effortless process.
Modular Design

Captivating Visuals that Shine Bright
Experience stunning clarity with an impressive brightness of 600 Nits, featuring 100-level adjustments and an outstanding 6,500:1 contrast ratio. This display delivers captivating, crystal-clear visuals, effortlessly shining in large venues with ambient lighting. Boasting a lightning-fast 3,840 Hz refresh rate, it effortlessly elevates every presentation to an unparalleled level of excellence.
600 nits, 100-level adjustments, 6,500:1 contrast ratio

Dimension & I/O Ports

1.Speakers
2.USB 3.0
3.IR Receiver
4.Indicator Light
5.Power Key
6.RJ232
7.Audio Out
8.USB 3.0
9.HDMI Out
10.HDMI 2.0 In
11.HDMI 1.4 In
12.LAN
