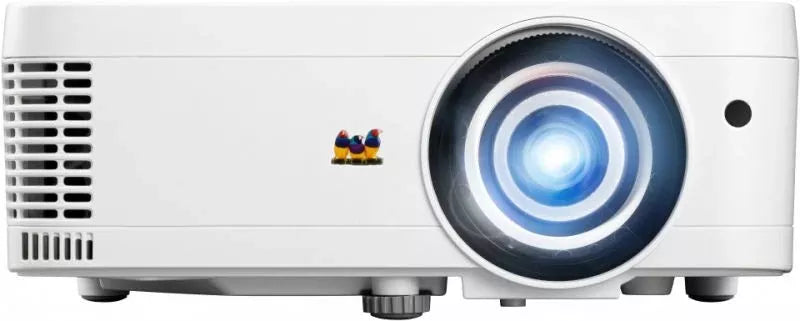

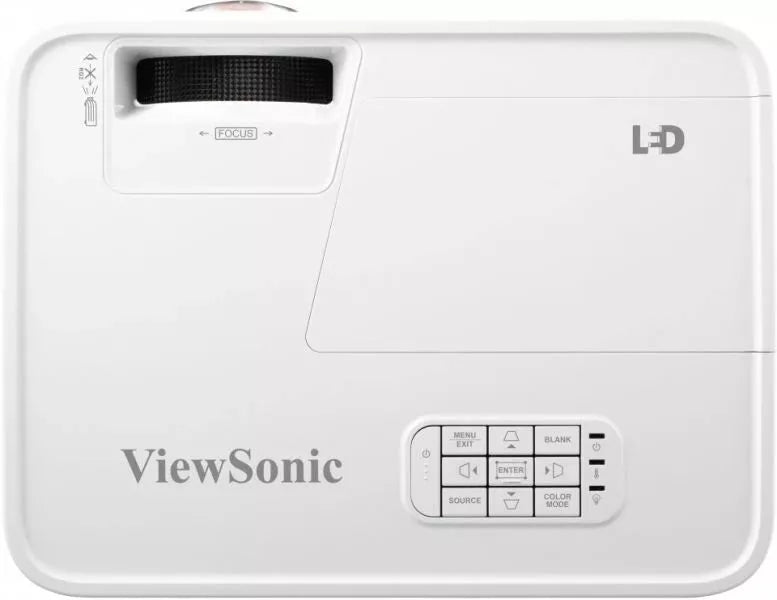

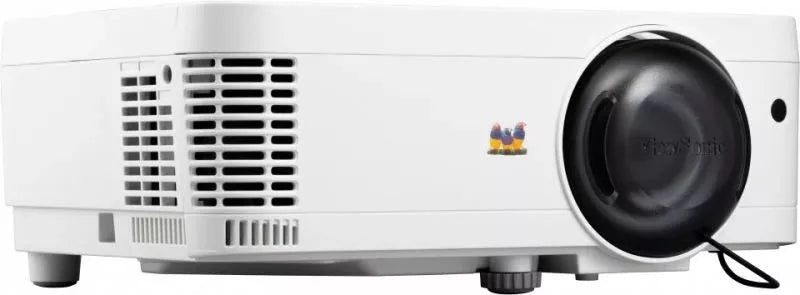

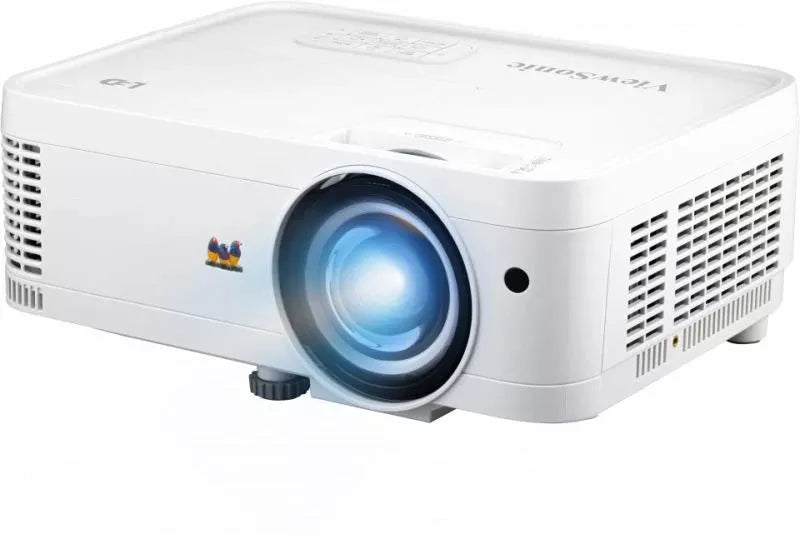

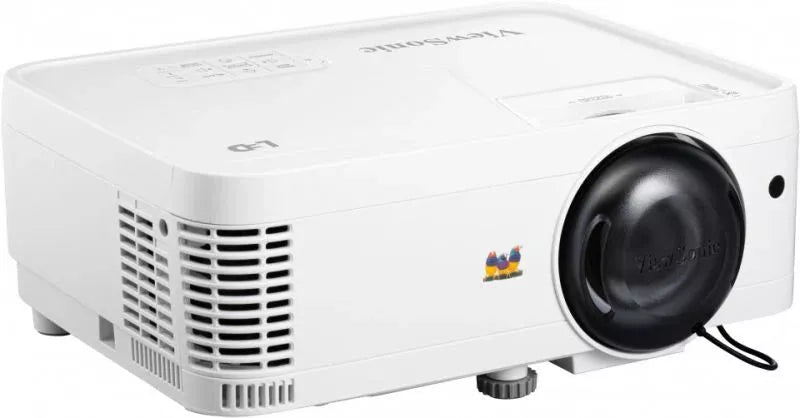

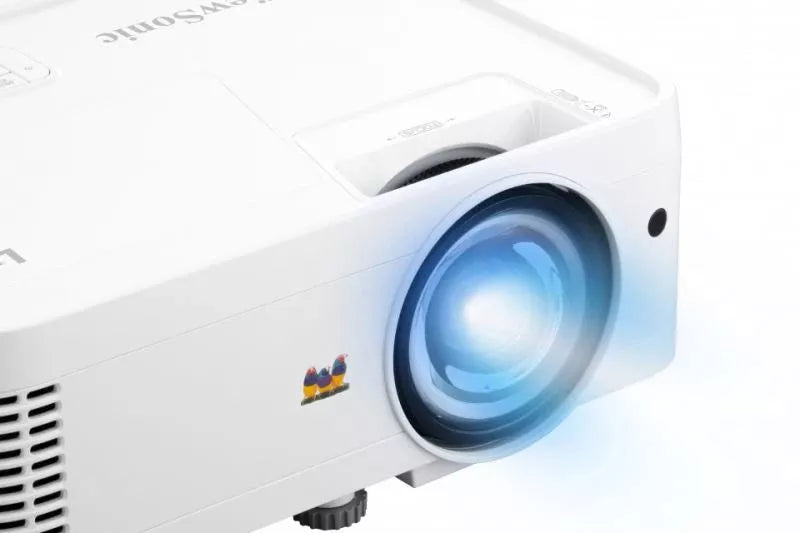

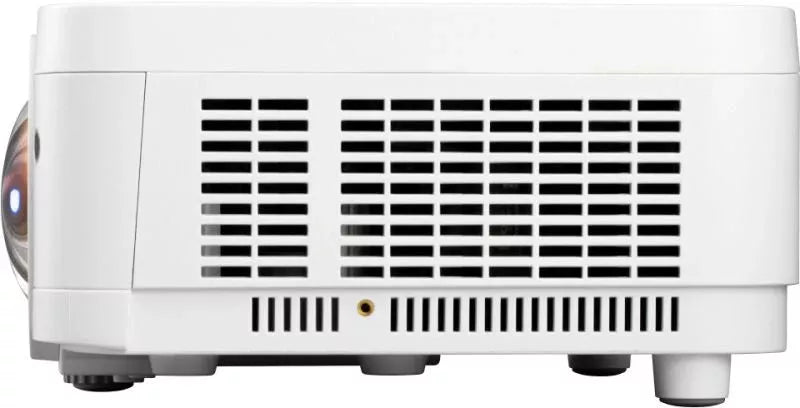

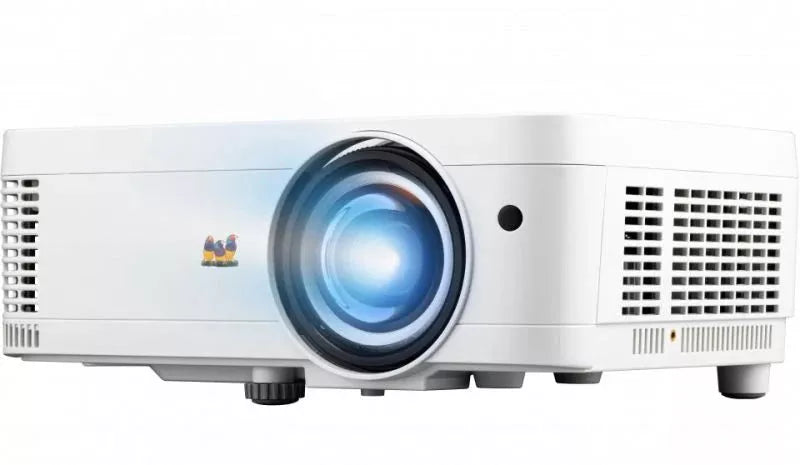

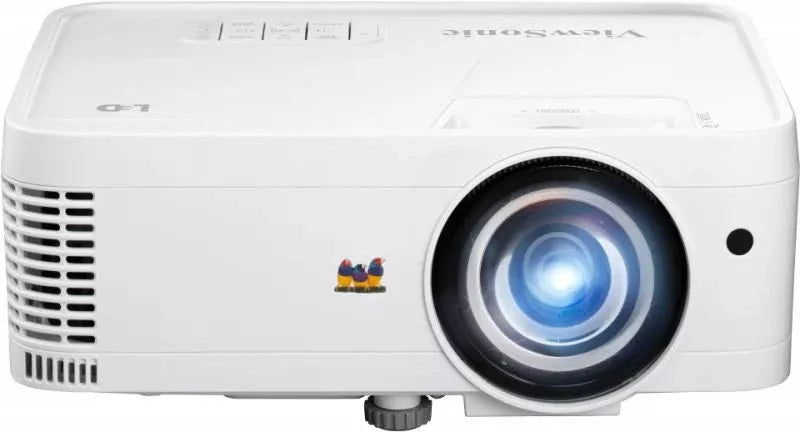

ViewSonic LS550WH Business/Education Projector - 2,000 ANSI Lumens WXGA

SKU: LS550WH
2000 - 3000Brightness
3,000,000:1Contrast ratio
WXGANative resolution
0.49Throw ratio
LEDLight source
16:10 WidescreenAspect ratio
3 Year WarrantyWarranty

Product description

  • Description
  • Specifications
  • Downloads
  • ViewSonic LS550WH Business/Education Projector

    2,000 ANSI Lumens WXGA
    ViewSonic LS550WH Business/Education Projector - 2,000 ANSI Lumens WXGA

    OVERVIEW
    The LS550WH is ViewSonic’s first lamp-free high brightness WXGA short throw projector for business and education. Built with advanced 3rd generation LED technology, the LS550WH provides 2,000 ANSI Lumens and eliminates frequent lamp replacement and toxic mercury for a safer and greener environment, offering a phenomenal lifespan of 30,000 hours, less power consumption, true-to-life colors with 125% Rec.709, and instant power on/off capability for efficient use. The 0.49 short throw lens provides a 100” screen from just 1.06m away, delivering exceptional space efficiency and freeing presenters from blinding lights. Installation and setup are hassle-free with 360° tilt angle projection, H/V Keystone, and 4 corner adjustment capabilities while its comprehensive LAN control eases multiple device management and is compatible with Crestron, AMX, Extron, PJ Link, ATEN, and ViewSonic’s vController.

    Advanced 3rd LED Technology
    The latest 3rd generation LED technology eliminates toxic mercury and the cost and effort of frequent lamp replacement, offering consistently impressive brightness for up to 30,000 hours.
    Lamp Free, Mercury Free, Maintenance Free
    ViewSonic LS550WH Business/Education Projector - 2,000 ANSI Lumens WXGA
    Higher Power Efficiency
    Adopting ams OSRAM’s Ostar Projection Power LED technology, the LS550WH saves nearly 50% more energy than competing lamp-based projectors.
    Energy-Saving
    ViewSonic LS550WH Business/Education Projector - 2,000 ANSI Lumens WXGA
    Cinema SuperColor+™ Technology
    Impress any audience with ViewSonic’s exclusive Cinema SuperColor+™ Technology, covering 125% Rec.709 wide color gamut for a rich, true-to-life color experience.
    ViewSonic LS550WH Business/Education Projector - 2,000 ANSI Lumens WXGA
    Efficient Instant Power On/Off
    Eliminate waiting times before and after use with instant power on/off capability, delivering immediate full brightness for timely starts with no cooling period required.
    ViewSonic LS550WH Business/Education Projector - 2,000 ANSI Lumens WXGA
    Enhanced Brightness for Business/Education Environments
    With the latest LED technology, the LS550WH achieves a major brightness breakthrough to 2,000 ANSI Lumens, ensuring bright and detailed images in dim or lit environments.
    ViewSonic LS550WH Business/Education Projector - 2,000 ANSI Lumens WXGA
    Big Screen Fits for Small Spaces
    The LS550WH's 0.49 short throw projection gives you 100” from only 1.06m distance when positioning the projector. Presenters will stay clear of the projector beam, eliminating eye glare and shadows on the projection screen.
    Short Throw
    ViewSonic LS550WH Business/Education Projector - 2,000 ANSI Lumens WXGA
    Effortless Image Adjustment
    Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.
    ViewSonic LS550WH Business/Education Projector - 2,000 ANSI Lumens WXGA
    360° Projection for Versatile Application
    The projector can freely rotate at any angle vertically to aid with creative applications, allowing projection onto ceilings, walls, or angled signage.
    ViewSonic LS550WH Business/Education Projector - 2,000 ANSI Lumens WXGA
    Centralized Control for Management Efficiency
    This projector is compatible with Crestron, AMX, PJ Link, ATEN and Extron systems and comes equipped with ViewSonic vController, an easy-to-use network management tool.
    Comprehensive LAN Control
    ViewSonic LS550WH Business/Education Projector - 2,000 ANSI Lumens WXGA
    A Simpler Way to Update Projector Software
    Skip trips to the service center by keeping software up to date easily and onsite via USB cable connection with your laptop.

    *The latest projector software update can be found in the download section at the bottom of the page when available.
    ViewSonic LS550WH Business/Education Projector - 2,000 ANSI Lumens WXGA
    USB Type A Power Supply
    The built-in 5V/2A USB output conveniently delivers power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming multimedia content.
    ViewSonic LS550WH Business/Education Projector - 2,000 ANSI Lumens WXGA
    Sealed Optical Engine with IP5X
    Maintain crystal-clear image quality and product longevity with an advanced sealed optical engine that prevents dust from entering and affecting the thermal system.

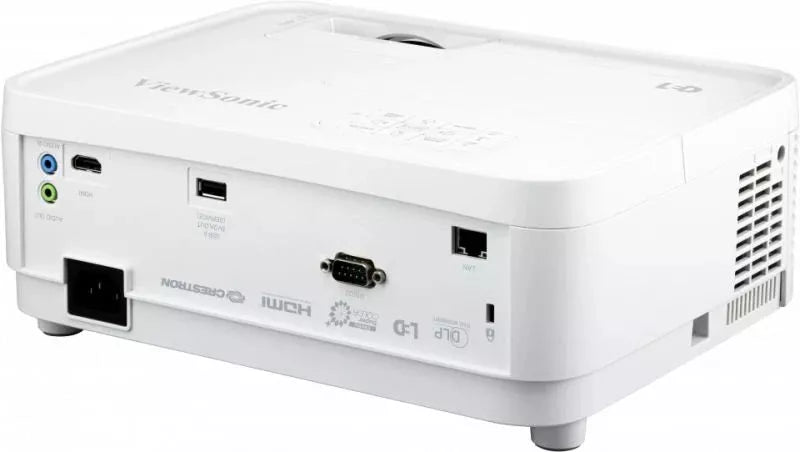

    Dimension & I/O Ports
    ViewSonic LS550WH Business/Education Projector - 2,000 ANSI Lumens WXGA
    ViewSonic LS550WH Business/Education Projector - 2,000 ANSI Lumens WXGA

  • Specification Details
    Projection System 0.65'' WXGA
    Native Resolution 1280x800
    Brightness 2000 (ANSI Lumens)
    Contrast Ratio 3000000:1
    Display Color 1.07 Billion Colors
    Light Source Type LED
    Light Source Life (hrs) Normal Mode: 30000
    Lens F=2.6, f=6.9mm
    Projection Offset 110%+/-5%
    Throw Ratio 0.49
    Optical Zoom Fixed
    Digital Zoom 0.8x-2.0x
    Image Size 60"-300"
    Throw Distance 0.63m-1.58m (87"@0.92m)
    Keystone H:+/-40° , V:+36°/-40°
    Audible Noise (Normal) 30dB
    Audible Noise (Eco) 26dB
    Input Lag 16ms
    Resolution Support VGA(640 x 480) to FullHD(1920 x 1080)
    HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Horizontal Frequency 15K-102KHz
    Vertical Scan Rate 23-120Hz
    Interactive Camera Optional (vTouch-10s)
    Input HDMI: 1 (HDMI 1.4/ HDCP 1.4)
    Audio-in (3.5mm): 1
    Output Audio-out (3.5mm): 1
    Speaker: 2W
    USB Type A (Power): 1 (5V/2A)
    Control RS232 (DB 9-pin male): 1
    RJ45 (LAN control): 1
    USB Type A (Services): 1 (share with USB A Output)
    Others Power Supply Voltage: 100-240V+/- 10%, 50/60Hz (AC in)
    Power Consumption: Normal: 157W
    Standby: <0.5W
    Operating Temperature 0~40℃
    Carton Brown
    Net Weight 2.45kg
    Gross Weight 3.55kg
    Dimensions (WxDxH) With Adjustment Foot: 293x221x115mm
    Packing Dimensions 365x300x188mm
    OSD Language English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Hungarian (Total 24 languages)
    User Guide Language English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese (Total 20 languages)
    Standard Accessory Power Cord: 1

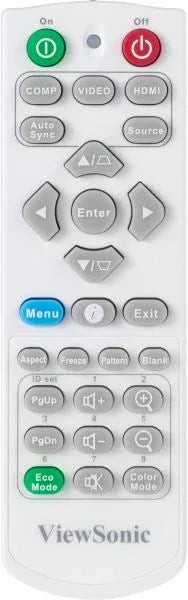

    Remote Control: 1
    QSG: Yes
    Lens Cover: Yes
    Warranty Card: Yes (CN Only)
    Optional Accessory Wall/Ceiling Mount: PJ-WMK-305
    PJ-WMK-007
    Carry Bag: PJ-CASE-008
  • Document Type Download Link
    Datasheets Download
    User Guides Download
    Quick Start Guide Download
    Driver & Software Download
    Technical Document Download
    Safety Compliance Download
