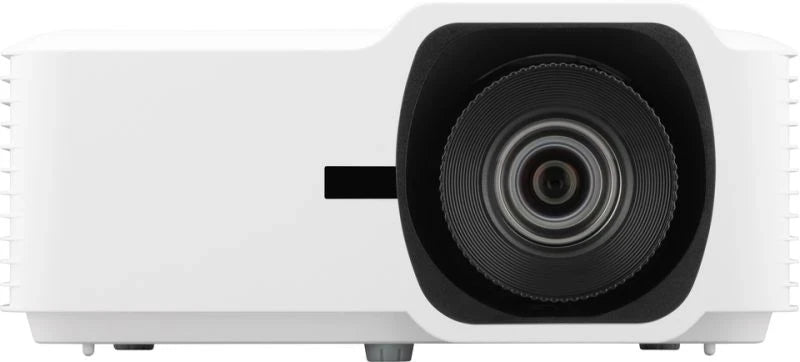

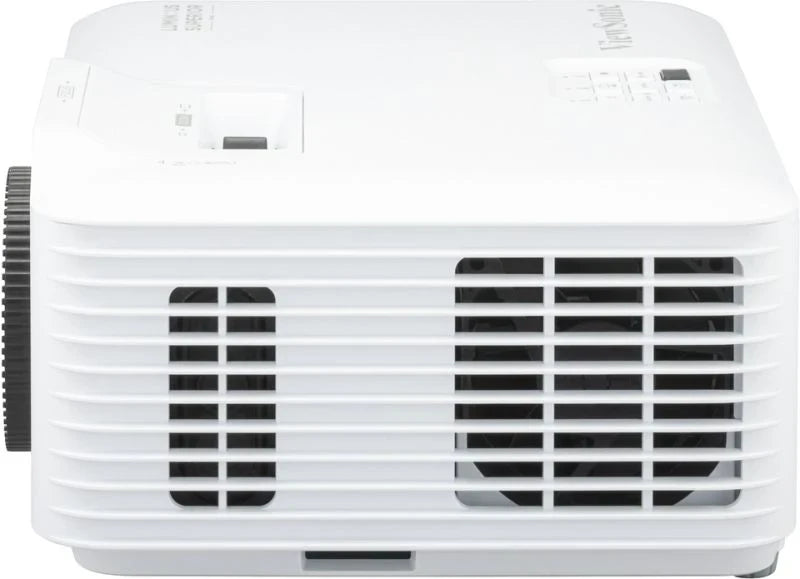

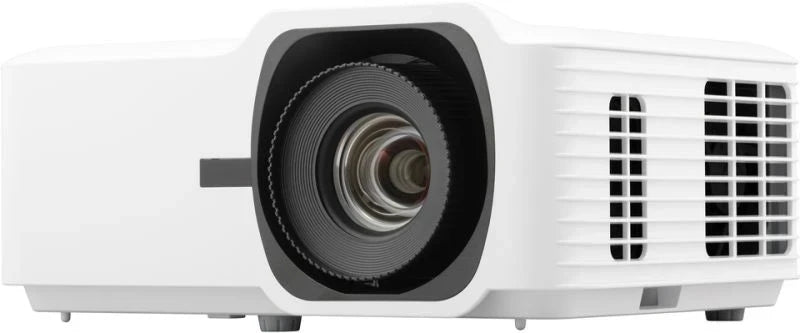

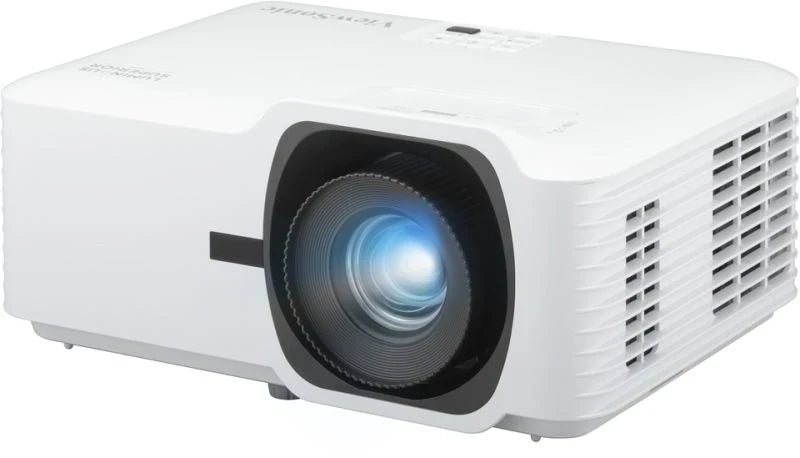

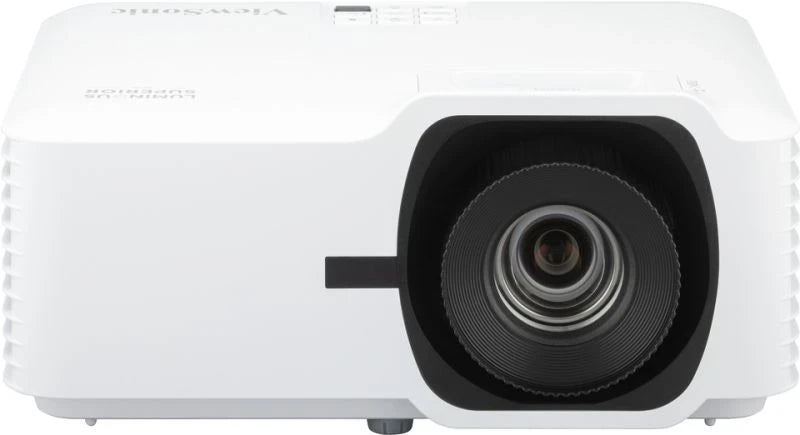

ViewSonic LS741HD 1080p Laser Installation Projector - 5000 Lumens

SKU: LS741HD
Part Number: LS741HD
Condition: Brand New
Purchase Orders Accepted
Sold out
Original price £1,599.99
Inc. VAT
Original price £1,599.99 - Original price £1,599.99
Original price £1,599.99

£1,152.49 (Excl. VAT)

Current price - £1,382.99 Inc. VAT
£1,382.99 - £1,382.99
Current price- - £1,382.99
(Inc. VAT )
Availability:
Out of stock

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads
  • ViewSonic LS741HD 1080p Laser Installation Projector - 5000 Lumens

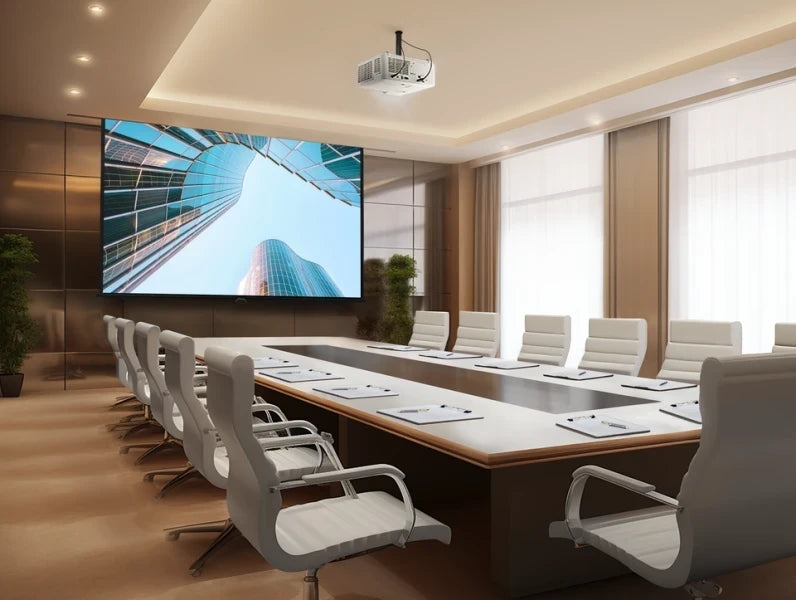

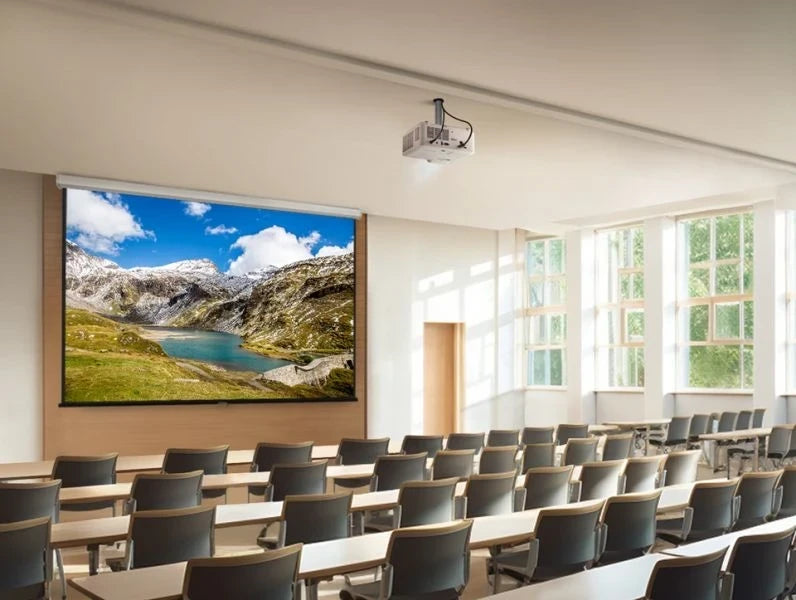

    The LS741HD is part of ViewSonic’s Luminous Superior Series, a lamp-free projector lineup designed for commercial and educational spaces. It can project up to a 300” ultra-large screen in 1080p Full HD resolution with high native contrast. This DLP projector uses 3rd generation laser phosphor technology, delivering a brightness of 5,000 ANSI Lumens for up to 30,000 hours. Its lamp-free design offers an eco-friendly and cost-effective solution with less power consumption, while its lightweight and compact build reduces transportation costs. Equipped with features like a 1.6x optical zoom, H/V keystone, and 360° projection capabilities, the LS741HD offers flexible setup possibilities. Additionally, its comprehensive LAN control allows centralized management, making it perfect for boardrooms, lecture halls, and public spaces.

    Bright, Compact, Durable
    The LS741HD incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.
    3rd Generation Laser Phosphor Technology

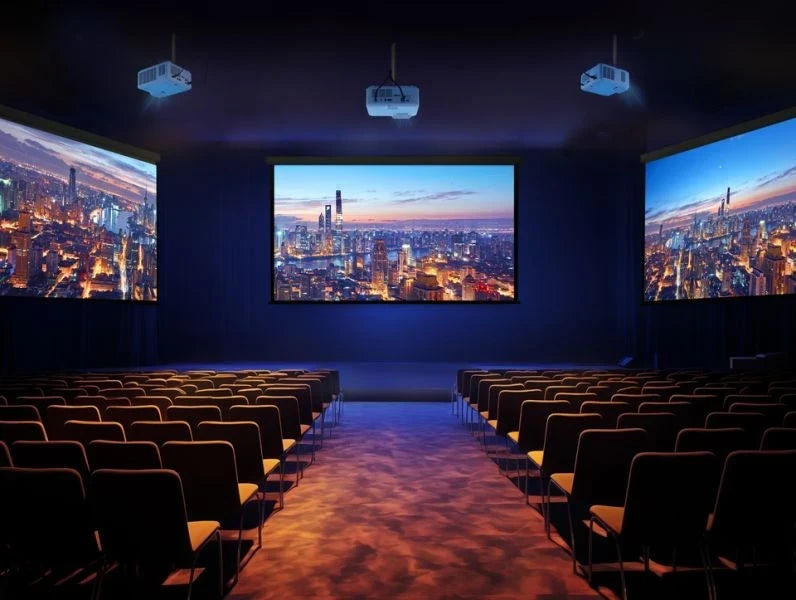

    Bright Images for Large Venues
    Delivering 5,000 ANSI Lumens, the LS741HD provides vibrant and sharp projection in 1080p FHD in all lighting conditions for gallery, restaurant, gym, and other expansive spaces.
    5,000 ANSI Lumens

    Save on Costs and Energy
    With its advanced lamp-free light source, the LS741HD offers a highly energy-efficient and cost-saving display solution by consuming up to 51% less power than competing projectors.
    Less Power Consumption

    Unmatched Contrasts, Enhanced Visibility
    This projector utilizes the advanced 0.65" DMD chip from Texas Instruments, surpassing the capabilities of the 0.47” standard chip. It offers a high native contrast ratio for deeper blacks, resulting in clearer, more legible images with enhanced visual depth.
    0.65” DMD Chip, High Native Contrast Ratio

    Enhanced Installation Flexibility

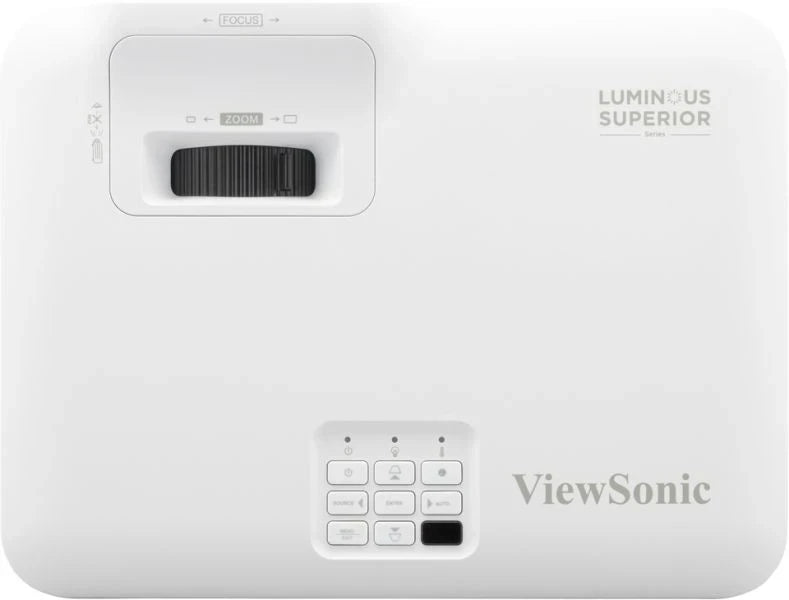

    Equipped with a 1.6x optical zoom, the projector allows users to choose the most ideal set-up location within a range, getting the desired image size without needing to change the existing interior design. ​
    1.6x Optical Zoom

    Centralized Control for Management Efficiency
    The LS741HD is compatible with Crestron, AMX, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency​.
    Comprehensive LAN Control

    Easy and Cost-effective Installation
    The LS741HD is 33% lighter in weight and 32% smaller in size compared to its predecessor and even most competing projectors in the market, greatly reducing the cost of transportation and increasing the ease of installation.​
    Lighter Weight, Compact Size

    Ultra-large Screen with Lower Cost-per-inch
    This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.​
    Up to 300”

    Upgrade Your Projector with Wireless Content Casting
    Enhance your projector with the WPD-700 Wireless Screen Casting Kit for seamless wireless content sharing. The projector's built-in 5V/1.5A USB-A output powers the dongle, enabling simultaneous multimedia streaming and power charging without adapters.
    WPD-700, USB-A Power Supply

    Get ​​Perfectly-shaped Images Effortlessly
    Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.
    H/V Keystone Correction, 4 Corner Adjustment

    Improved Dust Resistance for Enhanced Durability
    This DLP projector's innovative sealed engine, rated IP6X, prevents dust from affecting internal components without using an air filter. It ensures longer product life and consistent image quality, even in environments with poor air quality, saving on maintenance costs and efforts.
    Filter-free, Sealed Engine

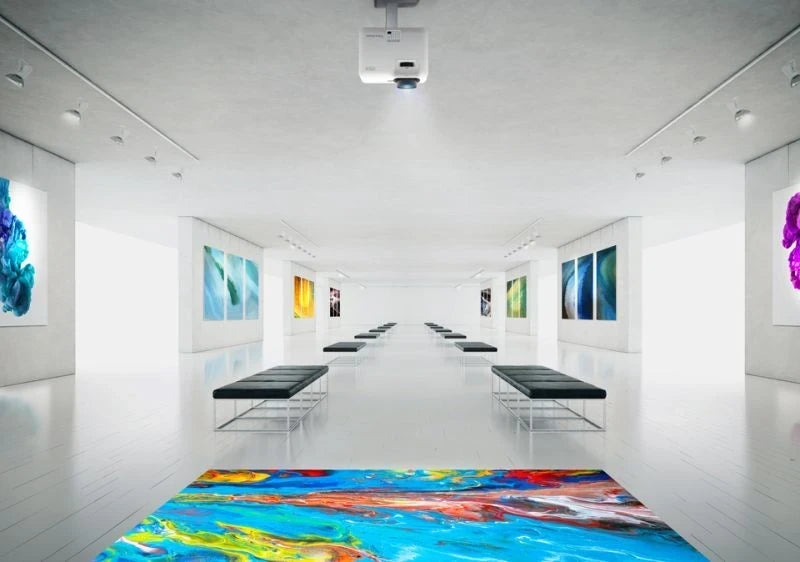

    Versatile Creative Application​s
    The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors, and its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications.
    360° Projection, 90° Portrait Mode

    Non-stop 24/7 Operation

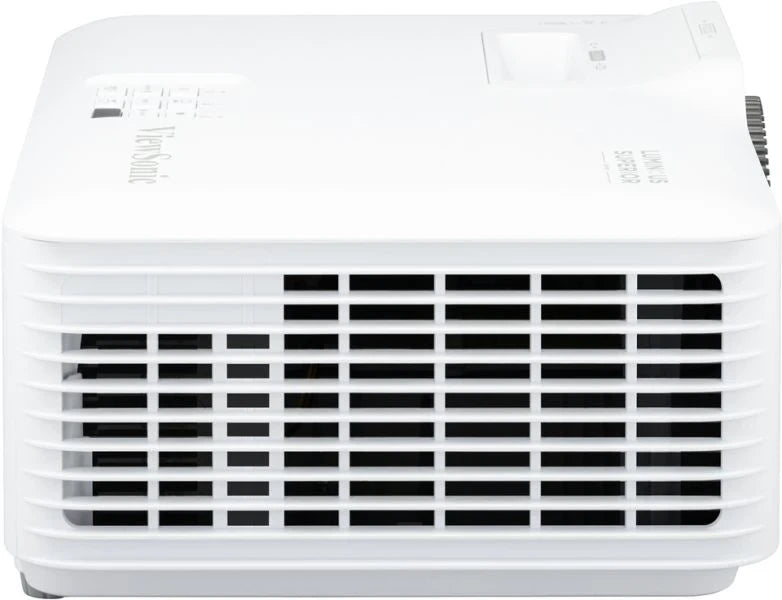

    The projector's advanced cooling design enables 24/7 operation without any degradation in image quality or performance. This makes it the go-to solution for applications that require continuous projection in retail stores, malls, museums, airports, and other public spaces.

    A Simpler Way to Update Projector Software
    Skip trips to the service center by keeping software up to date easily via USB cable connection with your own laptop.

    *The latest projector software update can be found in the download section at the bottom of the page when available.

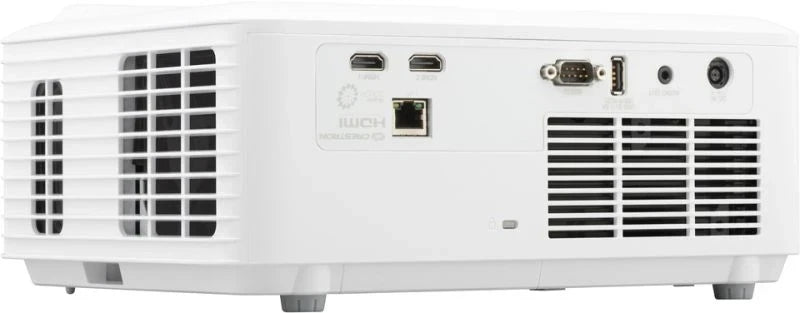

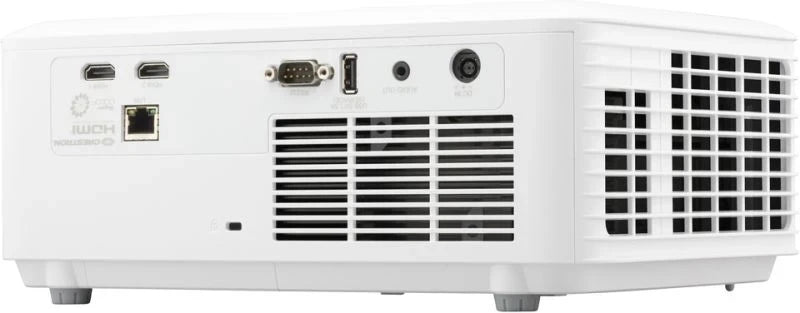

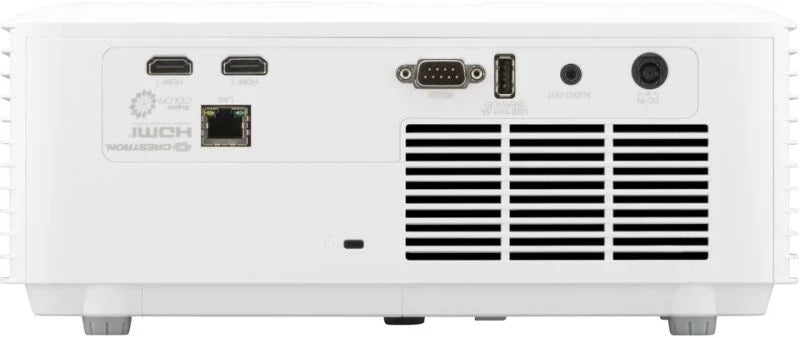

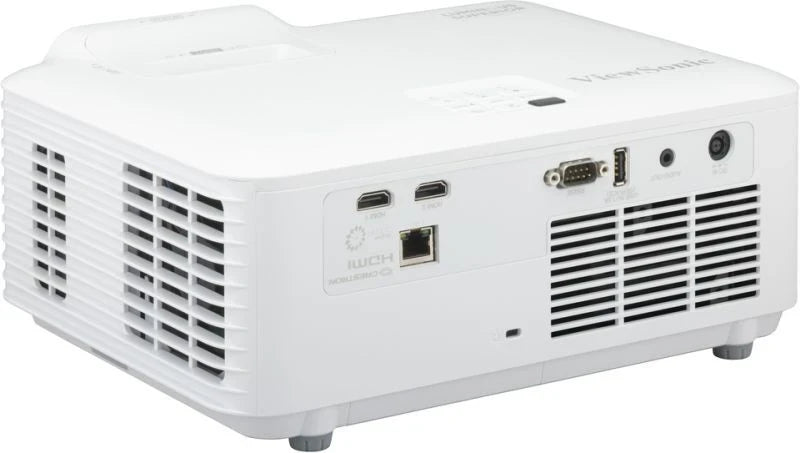

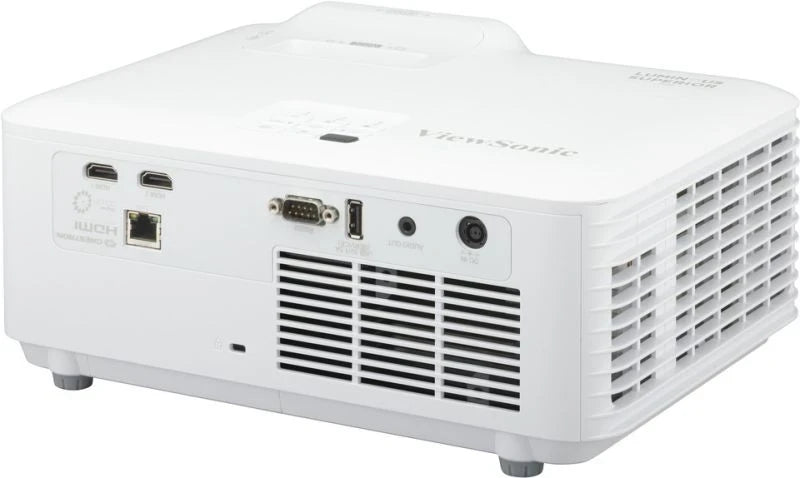

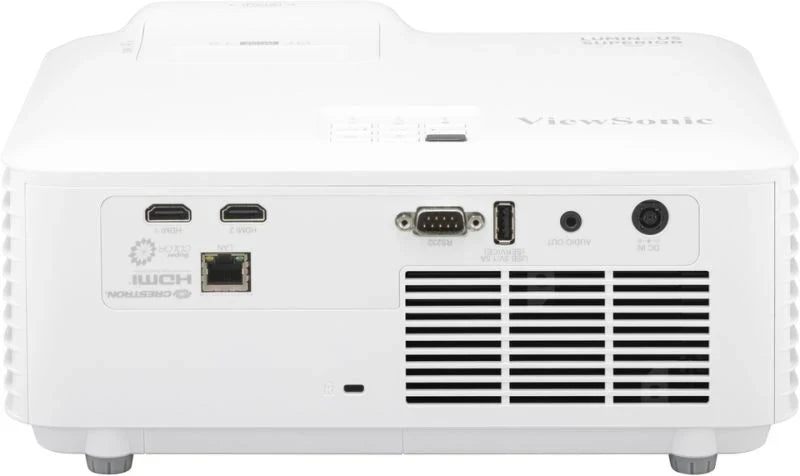

    Dimensions & I/O Ports

  • Feature Specification
    Projection System 0.65" 1080P
    Native Resolution 1920x1080
    Brightness 5000 (ANSI Lumens)
    Contrast Ratio 3000000:1
    Display Color 1.07 Billion Colors
    Light Source Type Laser Phosphor
    Light Source Life (Normal Mode) 20000 hours
    Light Source Life (SuperEco Mode) 30000 hours (Eco)
    Lens F=2.5-3.26, f=20.911-32.62mm
    Projection Offset 132%+/-10%
    Throw Ratio 1.4-2.24
    Optical Zoom 1.6X
    Digital Zoom 0.8x-2.0x
    Image Size 30"-300"
    Throw Distance 0.93-14.88m (100"@3.10m)
    Keystone H:+/-30° , V:+/-30°
    Audible Noise (Normal) 30dB
    Audible Noise (Eco) 24dB
    Input Lag 49.5ms
    Resolution Support VGA(640x480) to WUXGA RB(1920x1200)*RB-Reduced Blanking
    HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Horizontal Frequency 15K-102KHz
    Vertical Scan Rate 24-120Hz
    Input
    HDMI 2 (HDMI 1.4/ HDCP 1.4)
    Output
    Audio-out (3.5mm) 1
    Speaker 15W
    USB Type A (Power) 1 (5V/1.5A)
    Control
    RS232 (DB 9-pin male) 1
    RJ45 (LAN control) 1
    USB Type A (Services) 1 (share with USB A Output)
    Others
    Power Supply Voltage Input: 100~240V, Output: 19.5VDC / 11.79A
    Power Consumption Normal: 210W, Standby: <0.5W
    Operating Temperature 0~40℃
    Carton Brown
    Net Weight 3.00kg
    Gross Weight 4.70kg
    Dimensions (WxDxH) with Adjustment Foot 286x216x129mm
    Packing Dimensions 400x280x155mm
    OSD Language English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Hungarian, Norsk
    User Guide Language English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese
    Standard Accessory
    Power Cord 1

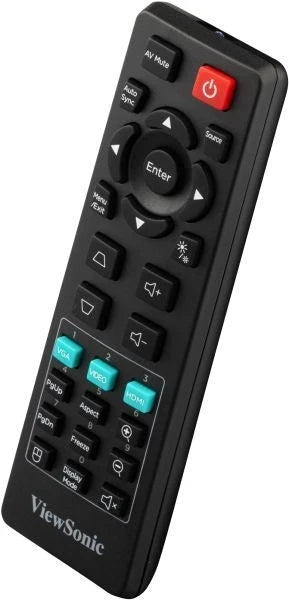

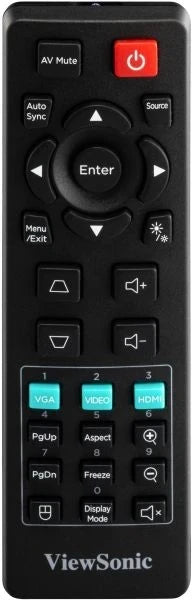

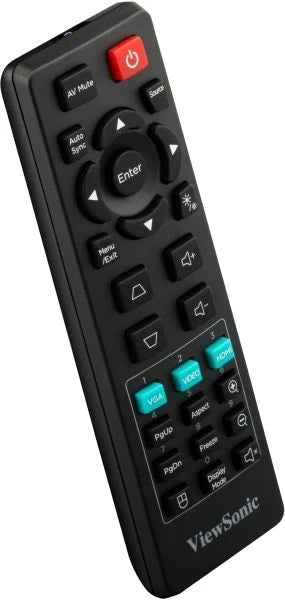

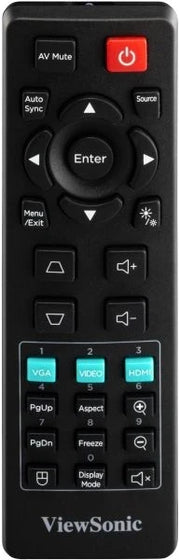

    Remote Control 1
    QSG Yes
    Optional Accessory
    Wall/Ceiling Mount PJ-WMK-007
    Carry Bag PJ-CASE-008
