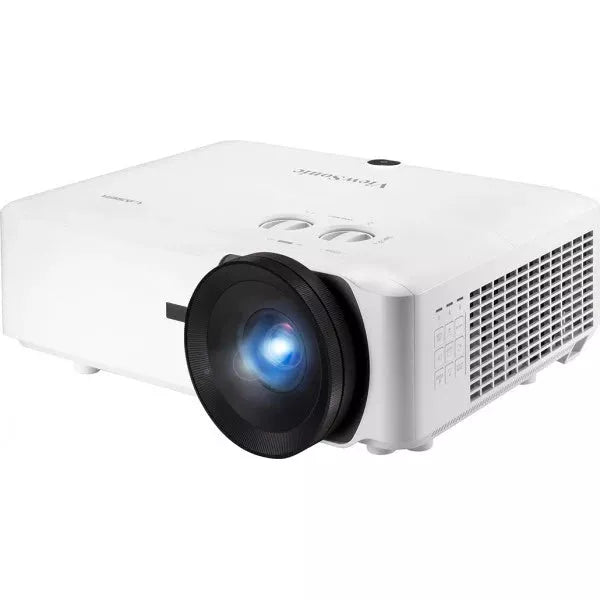

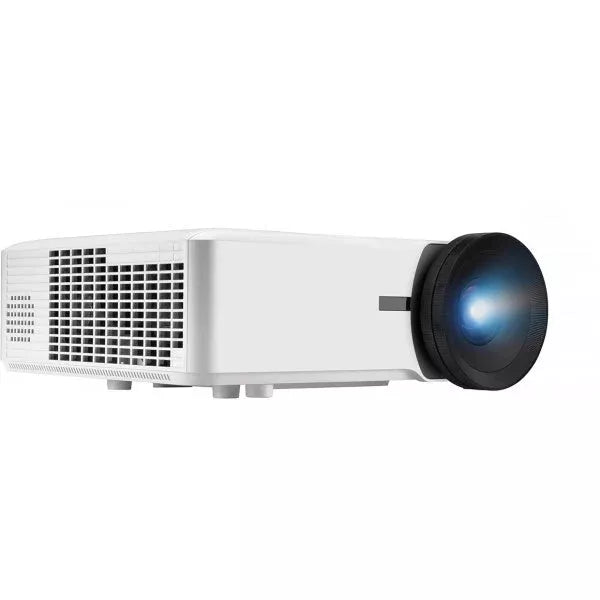

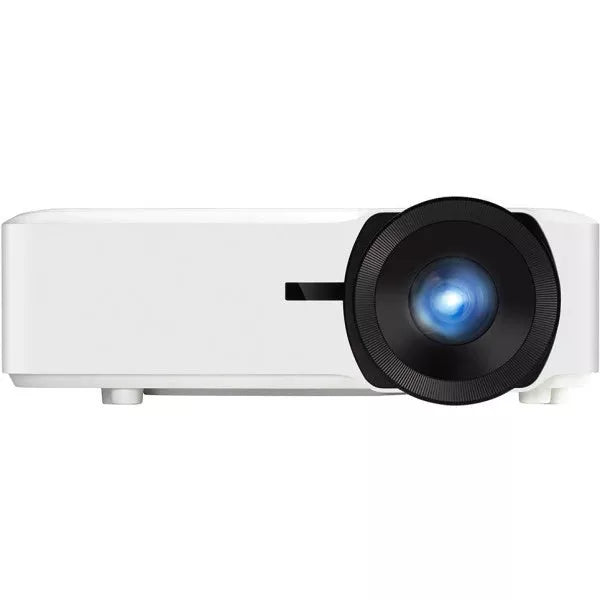

ViewSonic LS860WU Laser Installation Projector - 5000 Lumens, 16:10 WUXGA

Part Number: LS860WU
Condition: Brand New
Purchase Orders Accepted
Sold out
Original price £3,306.04
Original price £3,306.04 - Original price £3,306.04
Original price £3,306.04
Current price £2,674.79
£2,674.79 - £2,674.79
Current price £2,674.79
Inc. VAT
Out of stock
Send an enquiryExpress delivery UKTrustpilot rated


Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at

ViewSonic LS860WU Laser Installation Projector

5000 Lumens, 16:10 WUXGA

  • Description
  • Specifications
  • Downloads
    ViewSonic LS860WU is an advanced 5,000 ANSI Lumens WUXGA short throw installation projector. Adopting the 2nd generation laser phosphor technology, it offers high and consistent brightness for a reliable light source life of 20,000 hours. Short throw ratio, 1.1x optical zoom, wide lens shift, 360° projection and portrait mode together build up amazing flexibility to create an overwhelmingly immersive experience, especially ideal for blending projection applications in simulation/experience centres, restaurants and gyms. Adding on to that are the compact size and built-in HDBaseT, ensuring the cost-effectiveness desired.

    High Brightness
    Packed with 5,000 ANSI Lumens, it is guaranteed to produce high levels of brightness suitable for large spaces with a lot of ambient light.

    5,000 ANSI Lumens

    Ultra-high Contrast Ratio
    Boasting a 3,000,000:1 ultra-high contrast ratio, even the finest shades of colour are enhanced – a key characteristic for delivering razor-sharp images.

    3M:1 Contrast Ratio

    2nd Generation Laser Phosphor Technology
    The ViewSonic new laser projector adopts the 2nd generation laser phosphor technology. In addition to inheriting excellent colour performance, lamp-free design, and instant on/off switch from the previous generation, technology on the new generation improves around 20% of brightness, better heat-resistance, and a smaller module design, making the images consistent in ambient settings as well as increased reliability with a more compact size for extended use in various scenarios.

    2nd Generation
    Laser Phosphor Technology

    Long-lasting Lifespan
    Laser technology offers a lifespan up to 20,000 hours (4 hours per day for more than 13 years), delivering reliable long-term performance with no degradation in brightness over time so that your installations are consistently vibrant.

    20,000 hours

    No shadows, No blinding lights.
    With the latest projection technologies from ViewSonic, you'll enjoy all the benefits a short throw projector can offer. When projecting on to a video wall, there are no distracting shadows on the screen image, offering excellent edge blending projection. Plus, a 1.1x optical zoom provides a higher level of flexibility to fit some of the most challenging installation environments.

    0.81-0.89 Short Throw
    1.1x Optical Zoom

    Installation Flexibility

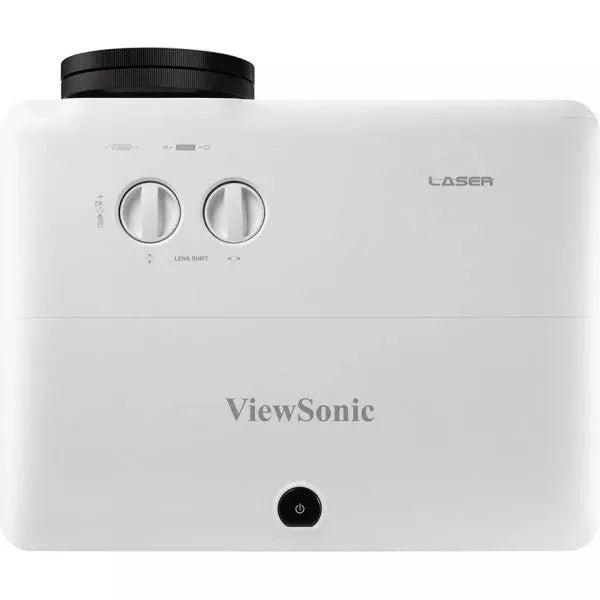

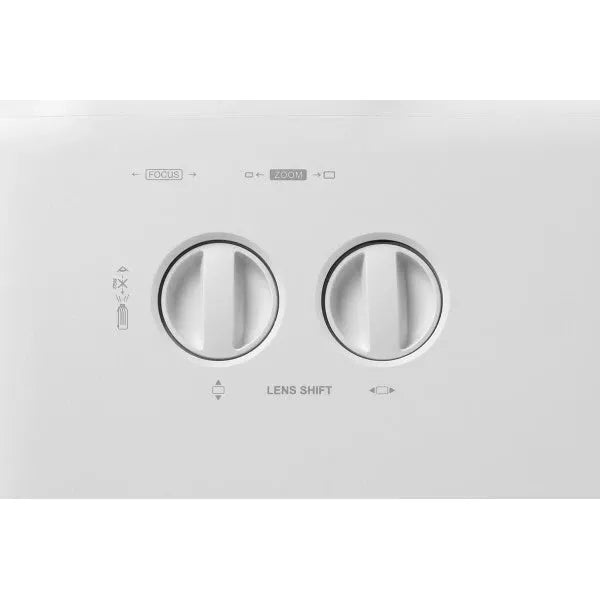

    The tool-free, lens shift control knobs make adjusting the projection lens up, down, left, and right easy. It provides flexible installation options with a wide adjustable range (H: +/- 23%, V: +/-50%) and less placement restrictions.

    Wide H/V Lens Shift

    360° Creative Applications
    The projector can freely rotate at any angle vertically to help with creative applications, allowing projection onto ceilings, walls, or angled signage.


    90° Portrait Mode
    Portrait mode allows users to turn the projector 90 degrees to increase the vertical field of view and add more applications for projection mapping, staging, and advertising.

    Portrait Mode

    Lighter Weight and Compact Size
    It is almost half the weight and 35% smaller in size compared to its predecessor, which reduces the cost of transportation and enhances the ease of installation.

    Lighter Weight
    Compact Size

    Built-in HDBaseT Receiver
    Its built-in HDBaseT receiver is a cost-effective solution to transmit uncompressed high resolution audio and video at a lengthy distance (100 meters for 1080p) when combined with a Cat.5e/6 cable and is compatible with any certified HDBaseT transmitter.


    Non-stop 24/7 Operation

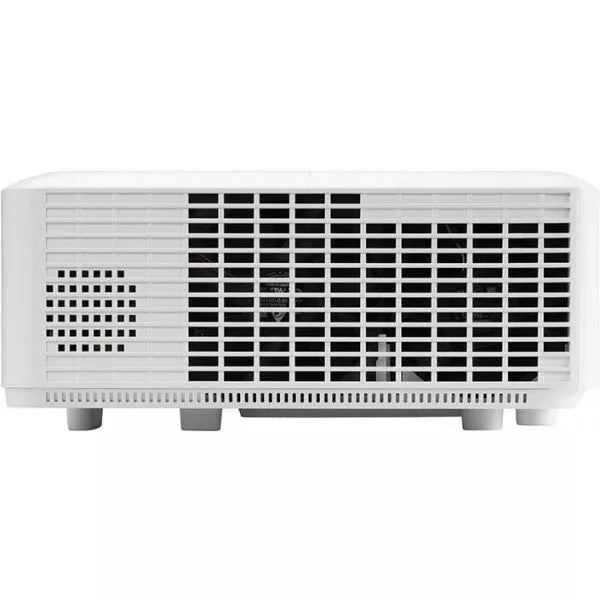

    With an advanced cooling design, it enables 24/7 operation without degradation of quality or performance, making the projector ideal for applications that require continuous projection.

    24/7 Operation

    Network Management
    This projector comes equipped with Control 4, Crestron, AMX, Extron and ViewSonic vController, an easy-to-use network management tool.
    * The Control 4 driver will be built into the device in advance and get certification once it has finished the verification process.

    LAN Control

    A Simpler Way to Update Projector Software
    ViewSonic Projector Software Update is available online and gives you the ability to keep your projector firmware up to date easily and conveniently; no need to take your projector in to a service centre for software updates.

    Projector Software Update & LAN Update

    Easy Image Adjustment
    Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.

    H/V Keystone
    4 Corner Adjustment

    Amazing Colour Accuracy
    ViewSonic’s proprietary SuperColor™ Technology displays a wide colour range, ensuring that users enjoy a true-to-life colour performance in both bright and dark environments without sacrificing image quality.


    Sealed Optical Engine with IP5X
    The advanced sealed optical engine prevents dust and moisture from entering the projector and affecting the thermal system to ensure that the image quality and long lifespan are maintained.


    Reduced Energy Consumption
    When no signal has been detected, the projector will automatically power off to conserve energy and therefore prolongs its lifespan.

    Auto Power Off

    Energy Efficiency
    Power Saving Mode allows users to extend the projector’s lifespan and minimise energy consumption. When in Power Saving Mode, the projector will automatically switch into Eco Mode and SuperEco Mode whenever there is no signal input detected.

    Power saving

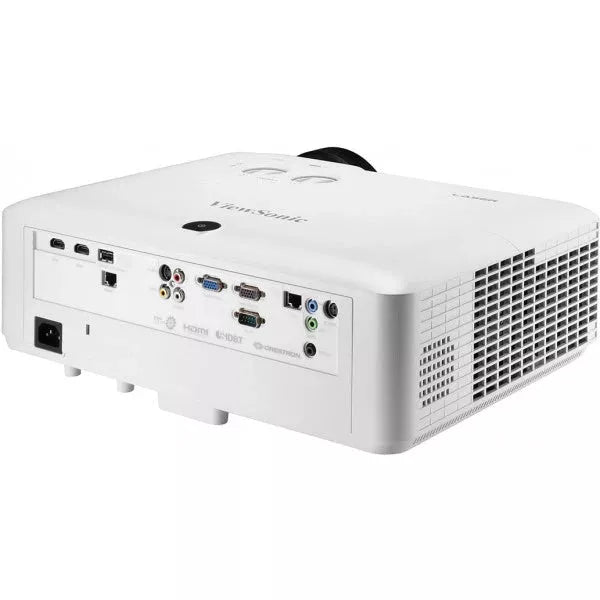

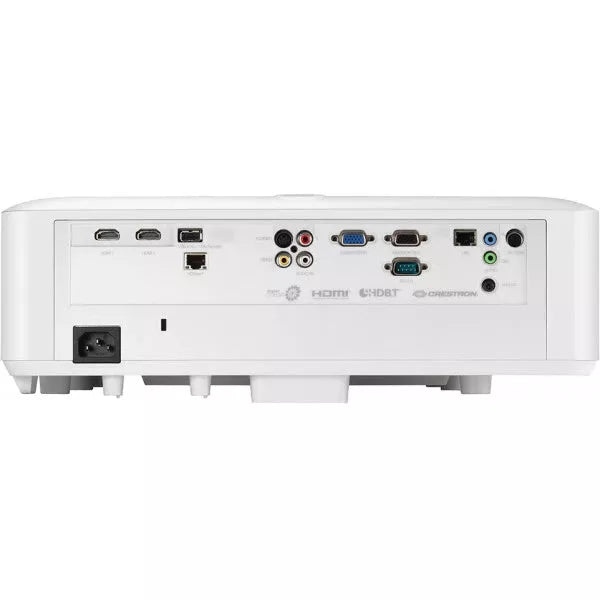

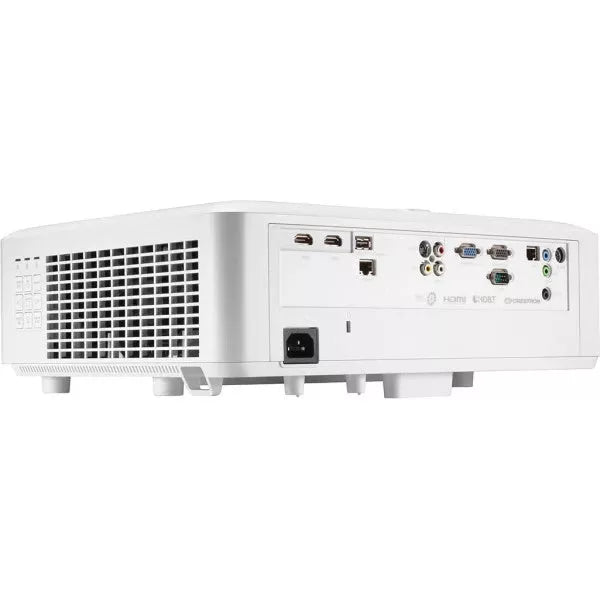

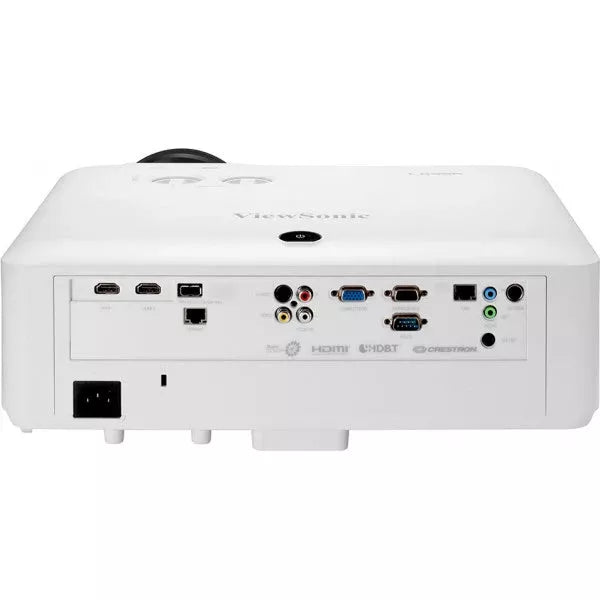

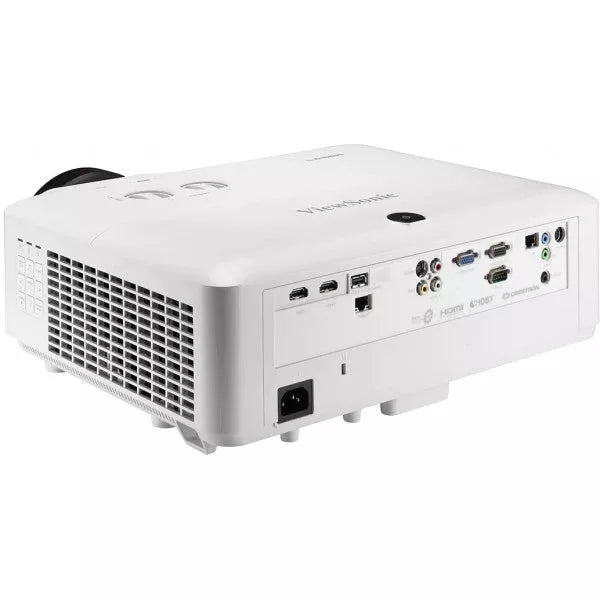

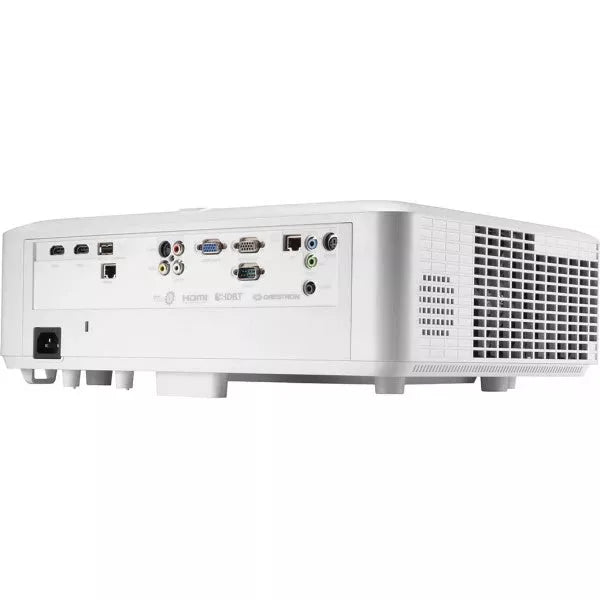

    Exterior & Rear I/O Connectors

  • Specification Details
    Projection System 0.48" WUXGA
    Native Resolution 1920x1200
    Brightness 5000 ANSI Lumens
    Contrast Ratio 3000000:1
    Display Colour 1.07 Billion Colours
    Light Source Type Laser Phosphor system
    Light Source Life (hours) with Normal Mode 20000
    Light Source Life (hours) with SuperEco Mode 30000 (Eco)
    Lamp Watt Nichia 67W x2
    Lens F=1.83-1.86, f=9.6-9.4mm
    Projection Offset 0%
    Throw Ratio 0.81-0.89
    Optical Zoom 1.1X
    Digital Zoom 0.8x-2.0x
    Image Size 60"-200"
    Throw Distance 1.04-3.83m (100"@1.74m)
    Keystone H:+/-40°, V:+/-40°
    Lens Shift V. Range Yes (+50%, -50%)
    Lens Shift H. Range Yes (+23%, -23%)
    Audible Noise (Normal) 36dB
    Audible Noise (Eco) 29dB
    Input Lag 16ms
    Resolution Support VGA(640 x 480) to WUXGA(1920 x 1200)
    HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility NTSC, PAL, SECAM
    Horizontal Frequency 15K-102KHz
    Vertical Scan Rate 23-120Hz
    Computer in (share with component) 1
    Composite 1
    S-Video 1
    HDMI (HDMI 1.4a/HDCP1.4 x2) 2
    Audio-in (3.5mm) 1
    Audio-in (RCA R/L) 1
    3D VESA (Sync) 1
    HDBaseT 1
    RJ45 Input (LAN control) 1
    Monitor out 1
    Audio out (3.5mm) 1
    Speaker 10W x2
    USB Type A (Power) (share with service) 1 (5V/ 1.5A)
    12V Trigger (3.5mm) 1 (3.5mm)
    RS232 (DB 9-pin male) 1
    RJ45 1
    Power Supply Voltage 100-240V+/- 10%, 50/60Hz (AC in)
    Power Consumption Normal: 430W
    Standby <0.5W
    Operating Temperature 0~40℃
    Net Weight 6.6kg
    Dimensions (WxDxH) with Adjustment Foot 405x305x145mm
    OSD Language English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek (total 23 languages)
    Standard Accessory
    Power Cord 1
    VGA Cable 1

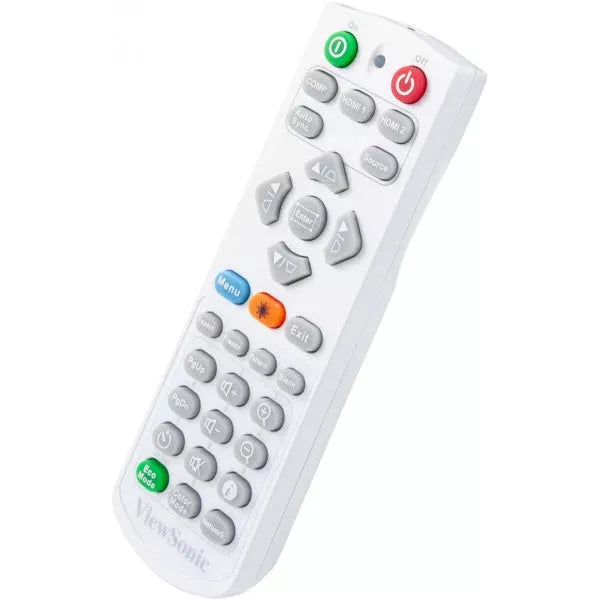

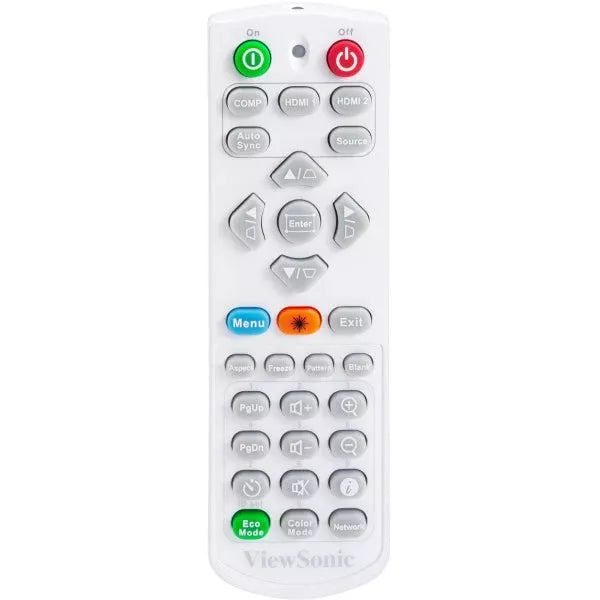

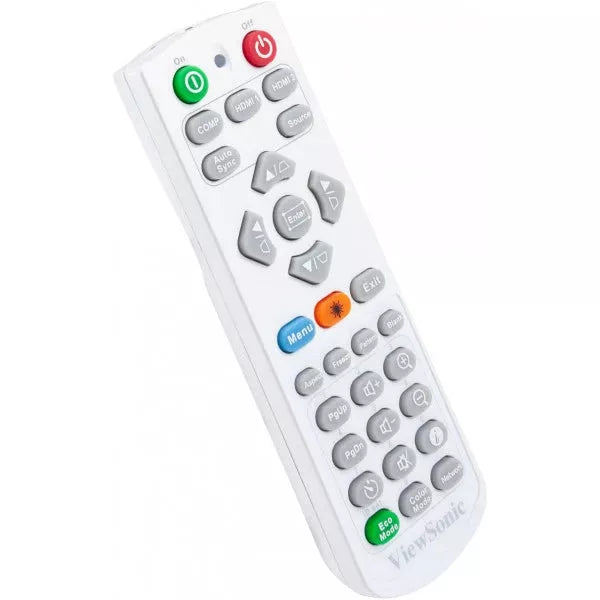

    Remote Control (w/ laser pointer) 1
    QSG 1
  • Resource Download Link
    Datasheets Download
    User Guides Download
    Quick Start Guide Download
    Driver & Software Download
    Technical Document Download
