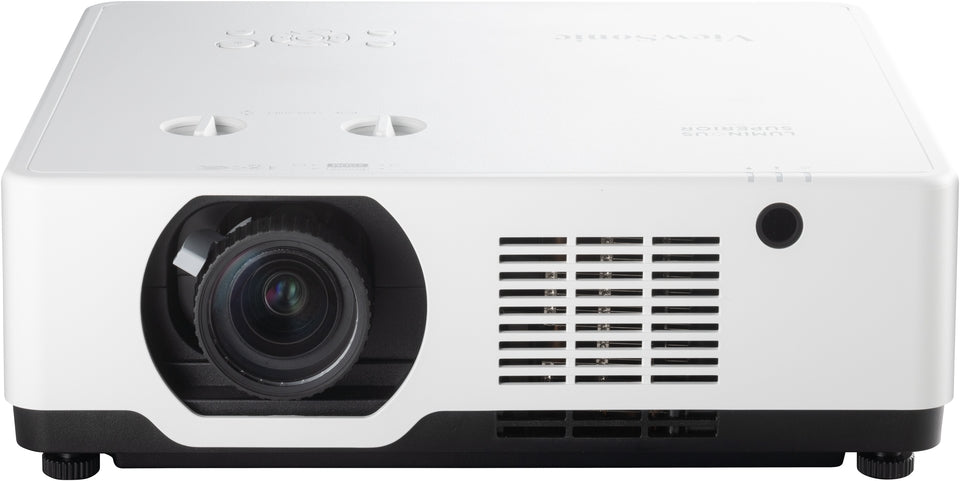

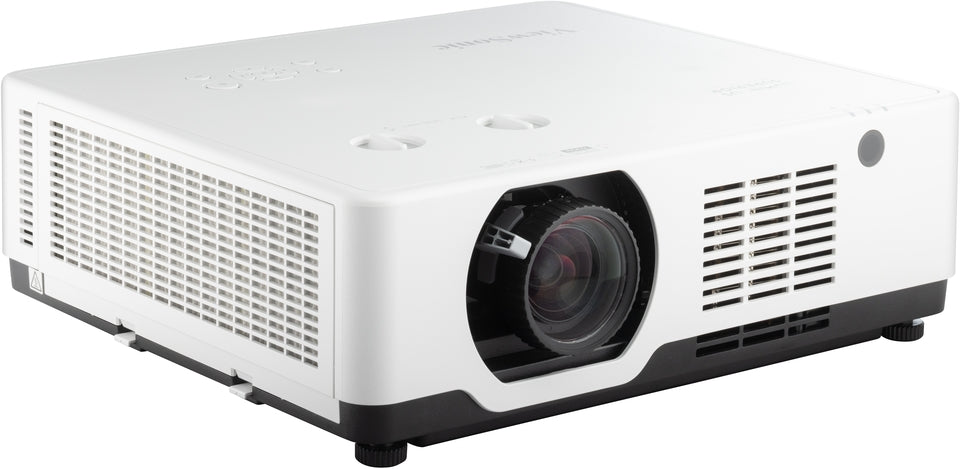

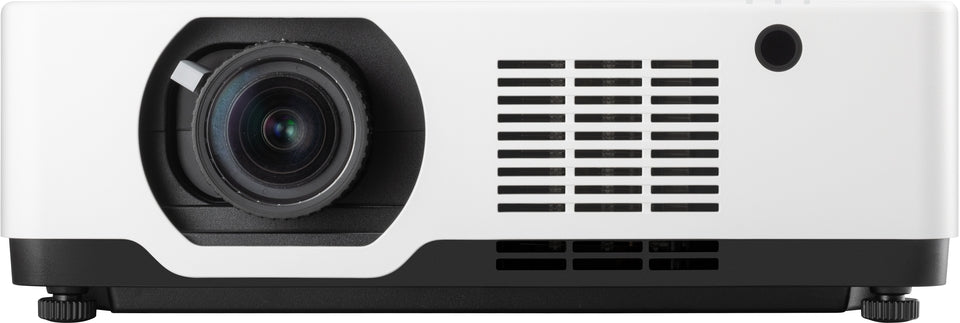

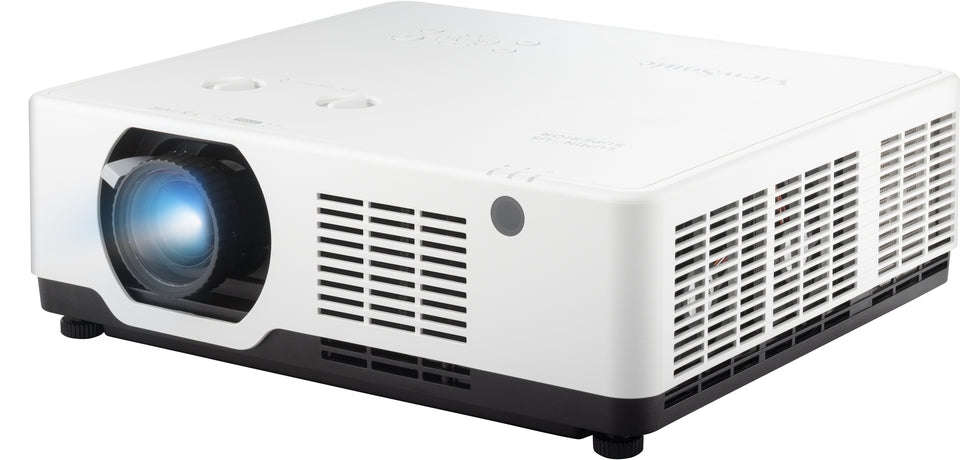

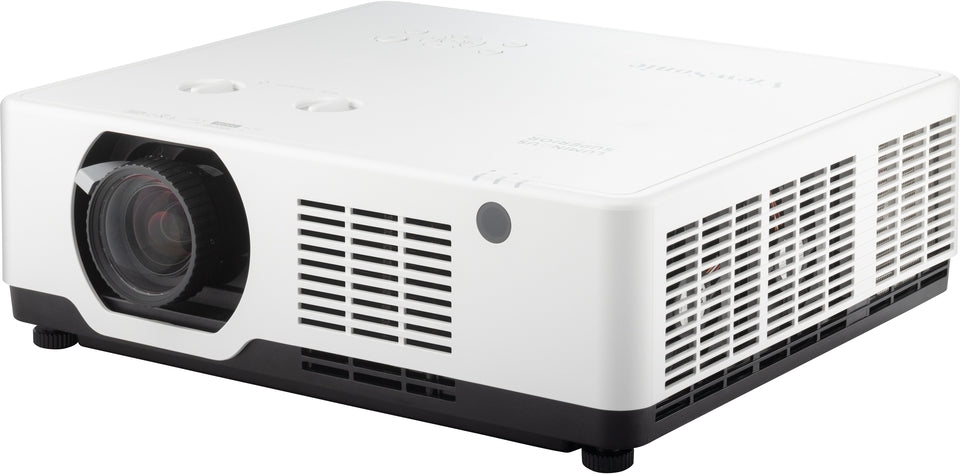

ViewSonic LSC651WU WUXGA Laser Installation Projector - 6500 Lumens
SKU: LSC651WU
£2,443.92 (Excl. VAT)
- Brightness (Lumens) 5100 - 10000
- Contrast Ratio 3,000,000:1
- Native Resolution WUXGA
- Throw Ratio 1.2 - 2.0
- Light Source Laser
- Native Aspect Ratio 16:10 Widescreen
- Description
- Specifications
- Downloads
-
Next-Gen Visuals Powered by Laser Phosphor Technology
Bright Images for Large Venues

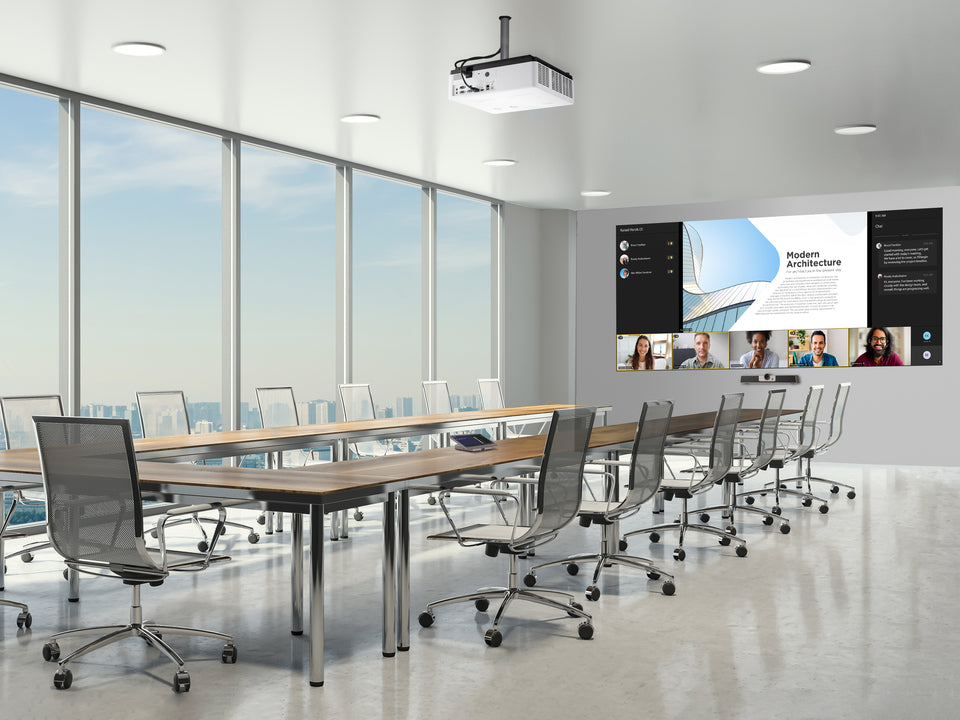

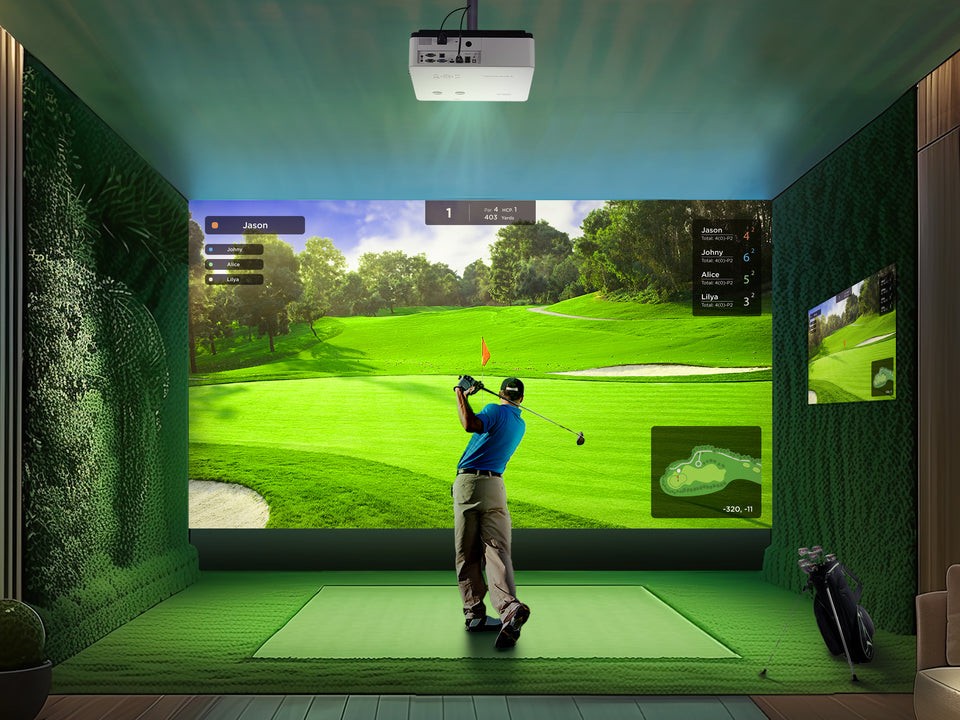

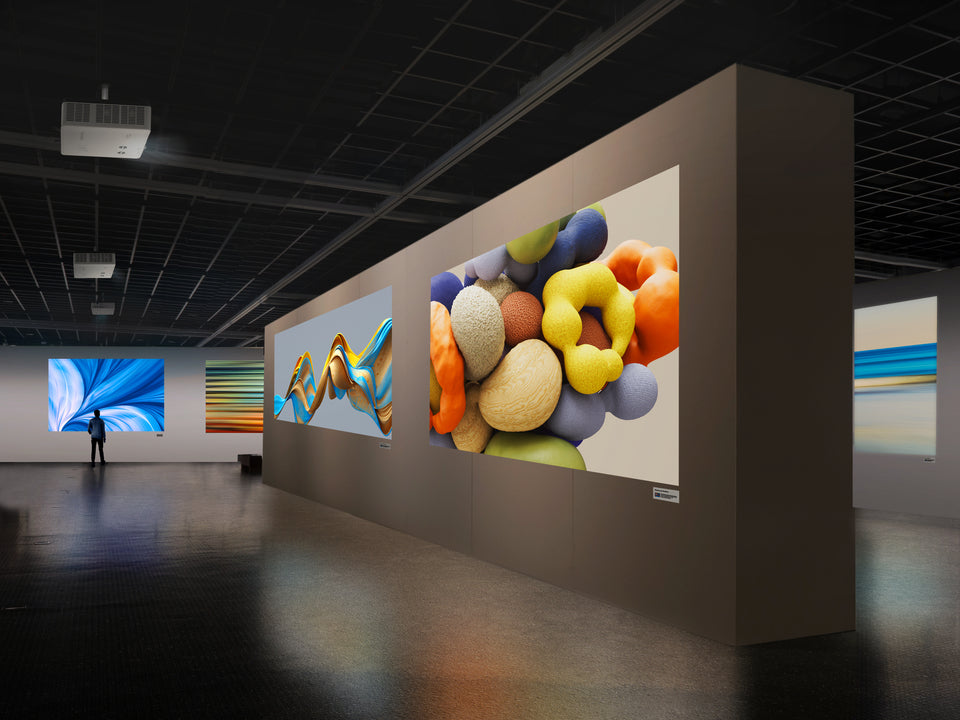

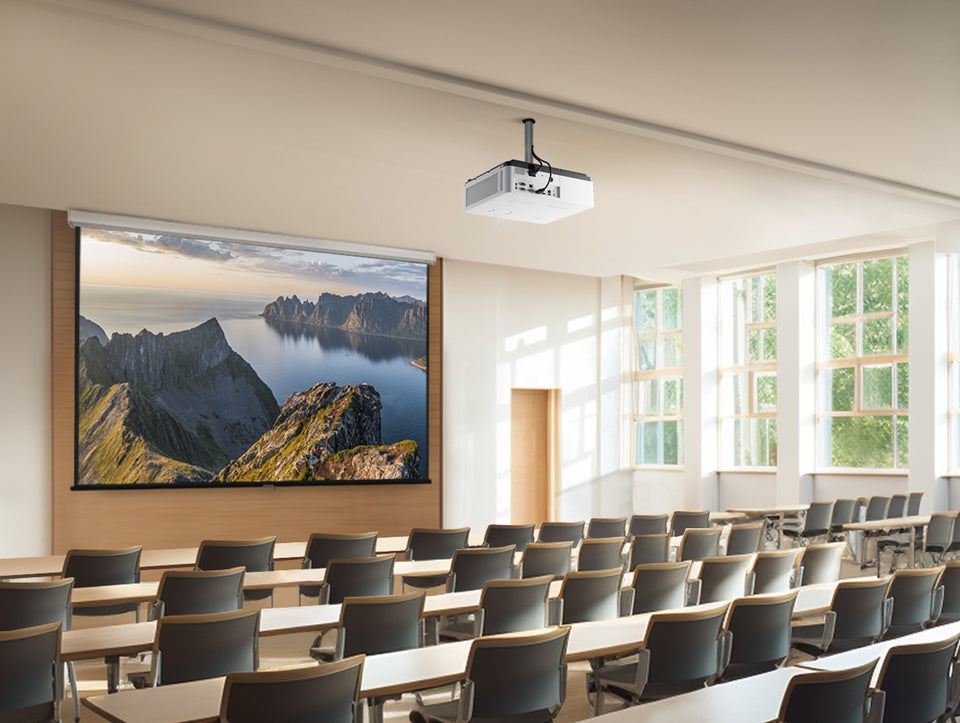

Delivering 6,500 ANSI Lumens, the projector provides vibrant and sharp projection in all lighting conditions, making it ideal for boardrooms, lecture halls, galleries, simulation experience venues, and other expansive spaces.
6,500 ANSI Lumens
Ultra-large Screen with Lower Cost-per-inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.
Up to 300”
Next-Gen Meeting Experience with 21:9 Aspect Ratio
The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant video feeds, fostering a highly engaging and collaborative environment.
21:9 for MTR
Adaptable to Any Environment

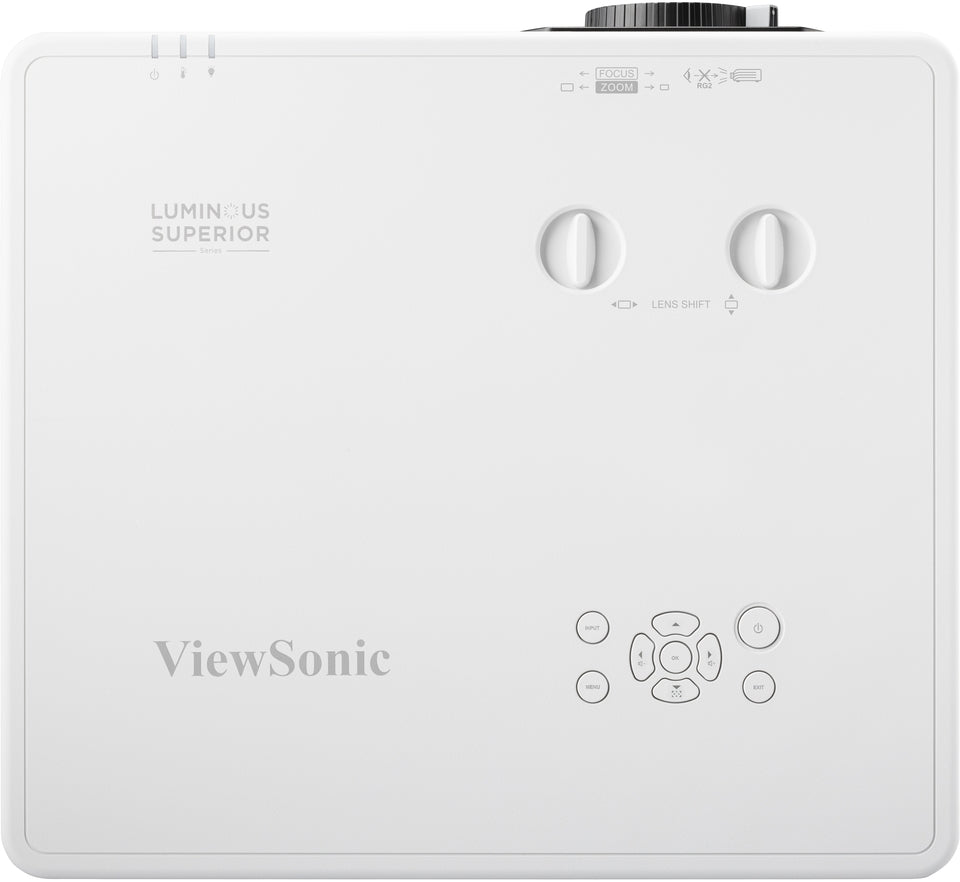

Featuring tool-free lens shift control knobs, 1.6x optical zoom, H/V keystone correction, and 4-corner adjustment capabilities, this projector allows image adjustments without relocation, ensuring it fits any environment.
H/V Lens Shift, Keystone Correction, 1.6x Optical Zoom
2nd Generation Laser Phosphor Technology
The projector adopts the 2nd generation laser phosphor technology. In addition to inheriting excellent color performance, lamp-free design, and instant power on/off from the previous generation, technology on the new generation improves around 20% of brightness, better heat-resistance, and a smaller module design, making the images consistent in ambient settings as well as increased reliability with a more compact size for extended use in various scenarios.
Up to 30,000-hour Lifespan
Centralized Control for Management Efficiency
The projector is compatible with Crestron, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency.
Comprehensive LAN Control

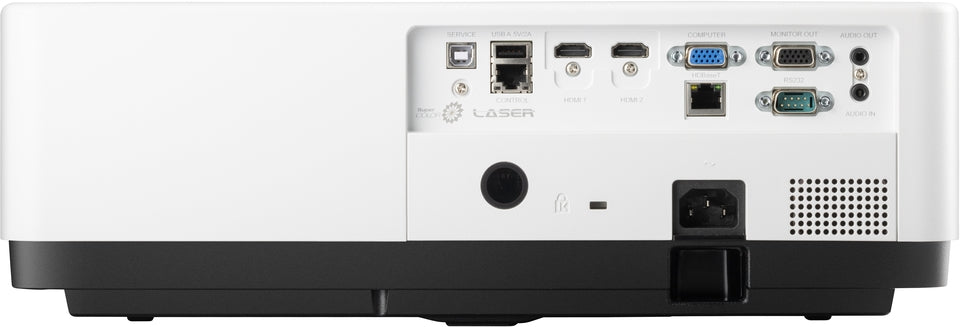

Dimensions & I/O Ports
1-Zoom Ring
2-Focus Ring
3-Front IR
4-Rear IR
5-RJ45
6-Service
7-USB-A (5V/2A)
8-HDMI 2.0/HDCP 2.2
9-HDBaseT
10-Computer
11-RS232
12-Monitor Out
13-Audio Out
14-Audio In
15-AC In
16-LED Indicator
17-Keypad
18-Lens Shift Control Knob x2 -
Projection System 3LCD (3x0.64" with MLA) Native Resolution 1920x1200 Brightness 6500 ANSI Lumens Brightness (Center Lumens) 7000 Contrast Ratio 3,000,000:1 Display Color 1.07 Billion Colors Light Source Type Laser Phosphor Light Source Life (Normal) 20,000 Hours Light Source Life (Eco) 30,000 Hours Lens F=1.5-2.08, f=17.2-27.7mm Projection Offset 0% ±5% Throw Ratio 1.2 - 2.0 Optical Zoom 1.6x Digital Zoom 1.0x - 4.0x Image Size 30" - 300" Throw Distance 0.78 - 12.99m (100"@2.58m) Keystone H:+/-30°, V:+/-30° Lens Shift (Vertical) +60%, 0% Lens Shift (Horizontal) +29%, -29% Audible Noise (Normal) 36dB Audible Noise (Eco) 26dB Input Lag 60ms Resolution Support VGA(640x480) to 4K(3840x2160) HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p Horizontal Frequency 15K - 100KHz Vertical Scan Rate 23 - 85Hz Computer In 1 (share with component) HDMI 2 (HDMI 1.4 / HDCP 1.4) Audio-in (3.5mm) 1 USB Type A 1 (5V/2A) HDBaseT 1 Monitor Out 1 Audio-out (3.5mm) 1 Speaker 16W USB Type A (Power) 1 (5V/2A) RS232 (DB 9-pin) 1 RJ45 (LAN Control) 1 USB Type B (Service) 1 Power Supply Voltage 100-240V ±10%, 50/60Hz (AC In) Power Consumption Normal: 340W / Standby: <0.5W Operating Temperature 0~40℃ Carton Brown Net Weight 7.9kg Gross Weight 10.93kg Dimensions (WxDxH) 405x358x137mm (with Adjustment Foot) Packing Dimensions 510x498x260mm OSD Language 25 Languages (English, German, French, etc.) User Guide Language 20 Languages (English, Chinese, Turkish, etc.) Standard Accessories Power Cord, Remote Control, QSG, Air Filter, Warranty Card (CN Only) Optional Accessories Air Filter, Wall/Ceiling Mount (PJ-WMK-007) -
Description Downloads Datasheet Download
