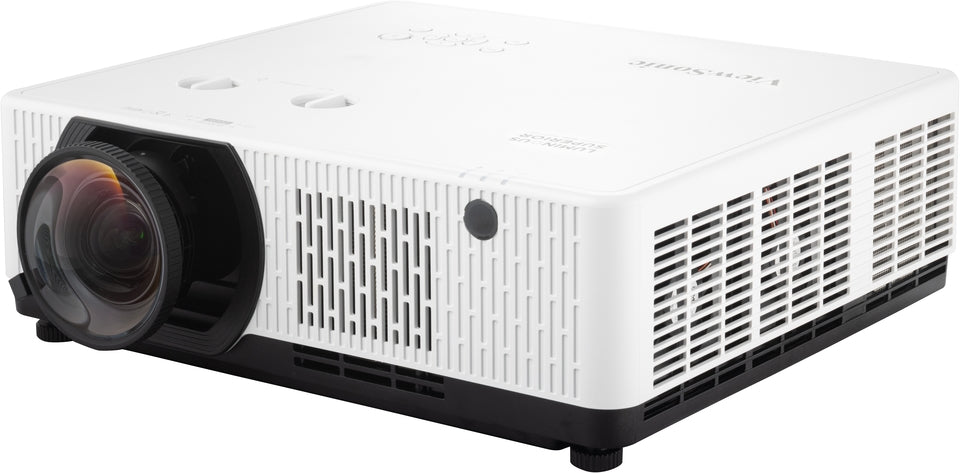

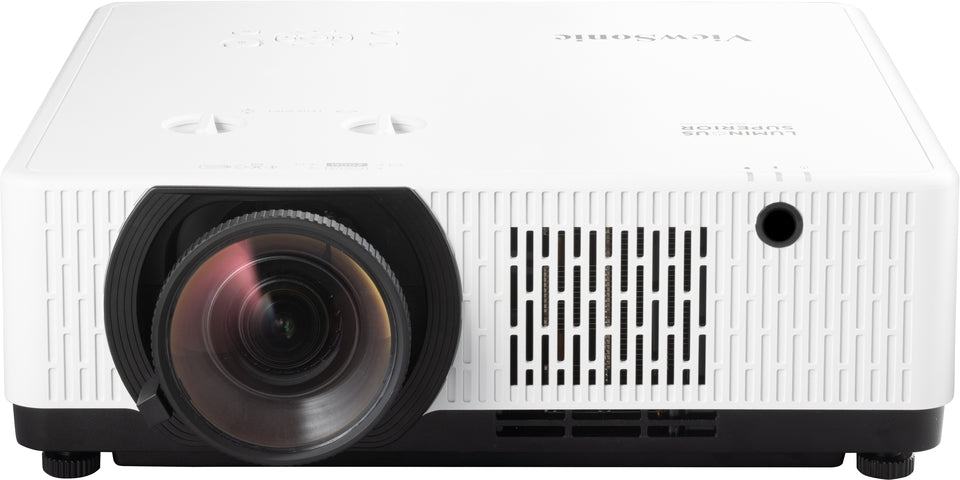

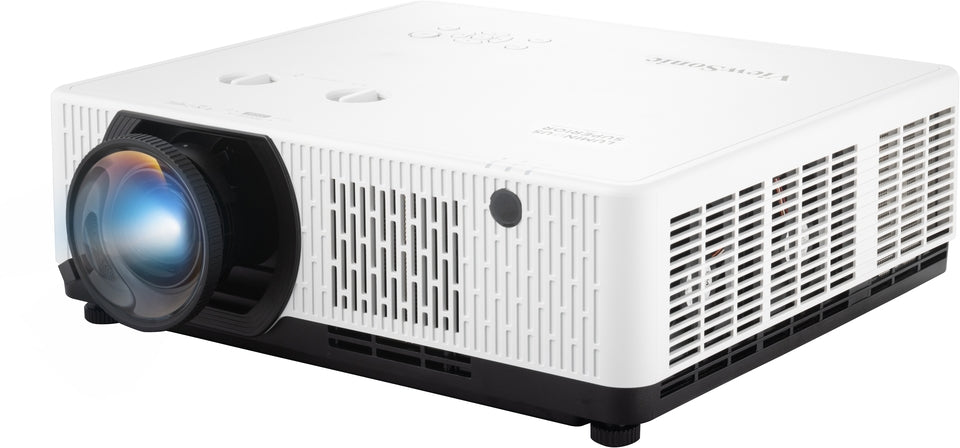

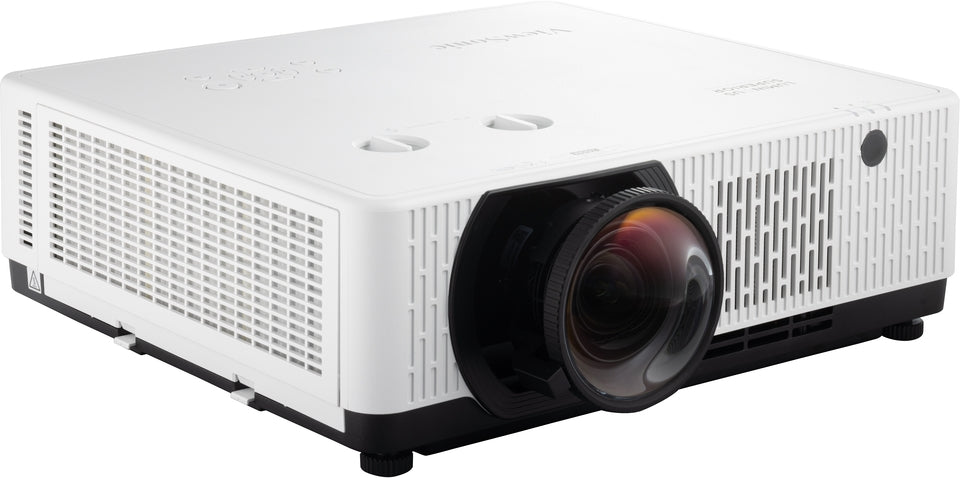

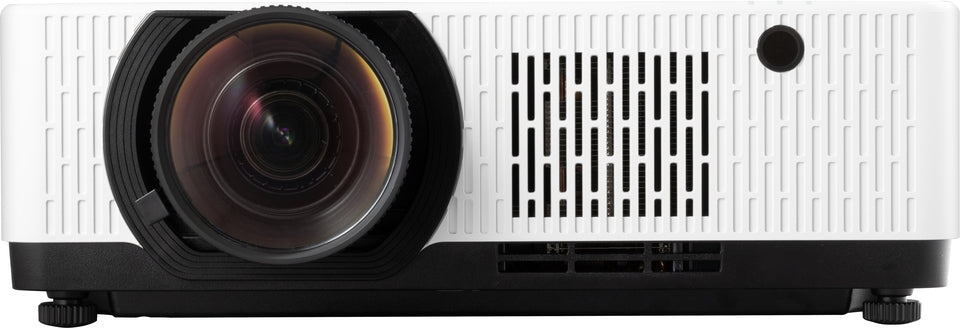

ViewSonic LSC731WU-ST WUXGA Short Throw Laser Installation Projector - 7300 Lumens
SKU: LSC731WU-ST
£2,950.00 (Excl. VAT)
- Brightness (Lumens) 5100 - 10000
- Contrast Ratio 3,000,000:1
- Native Resolution WUXGA
- Throw Ratio 0.679-0.821
- Light Source Laser
- Native Aspect Ratio 16:10 Widescreen
- Description
- Specifications
- Downloads
-
Brilliant WUXGA Laser Projection with 2nd-Gen Phosphor Technology
Bright Images for Large Venues

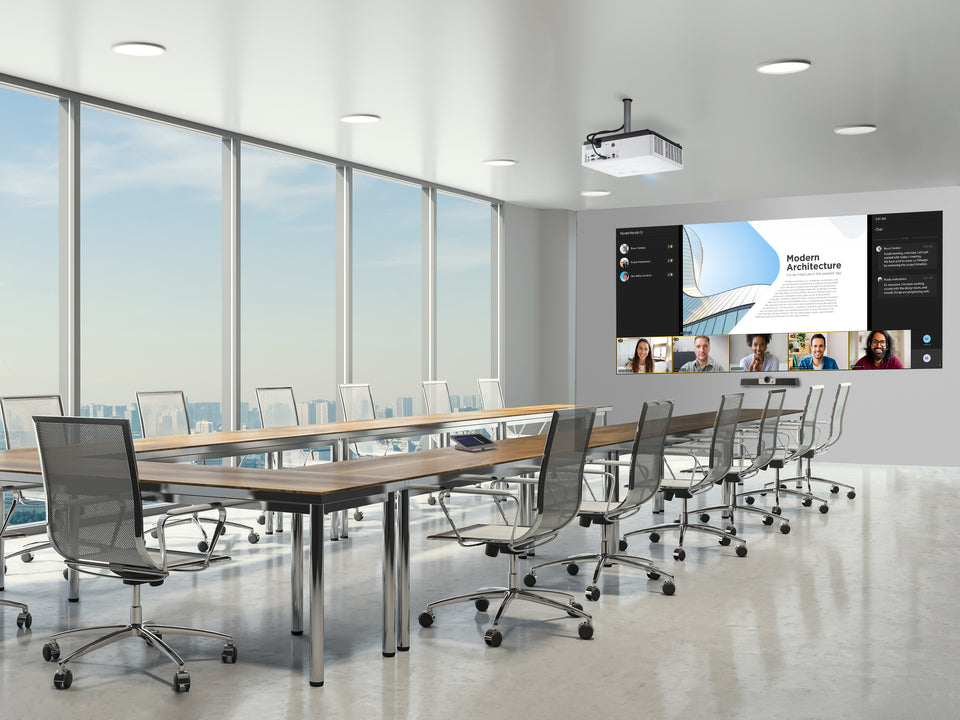

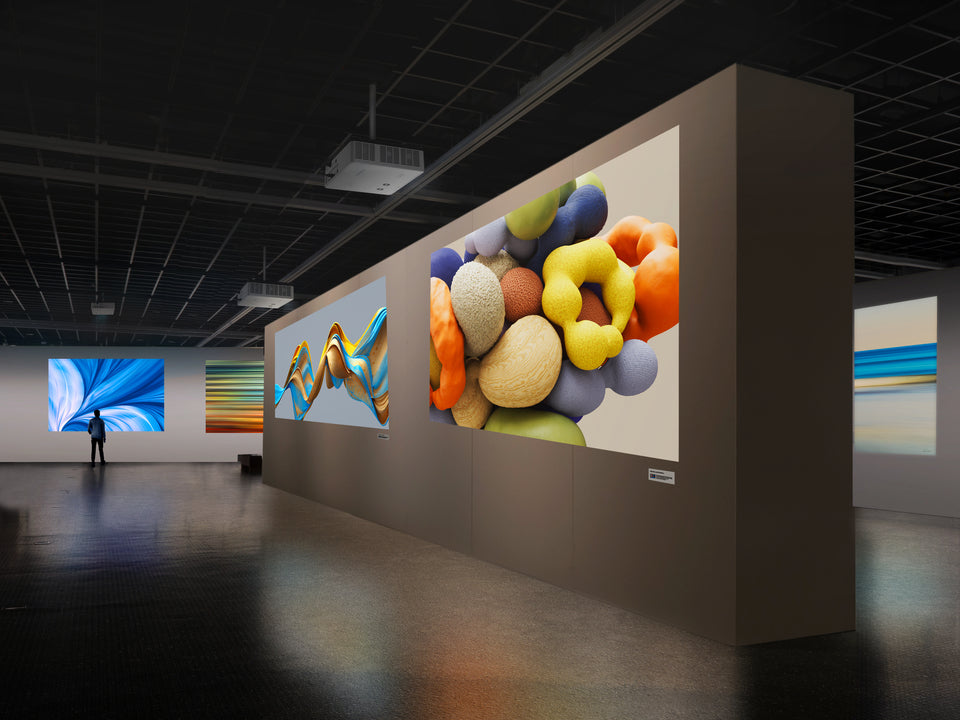

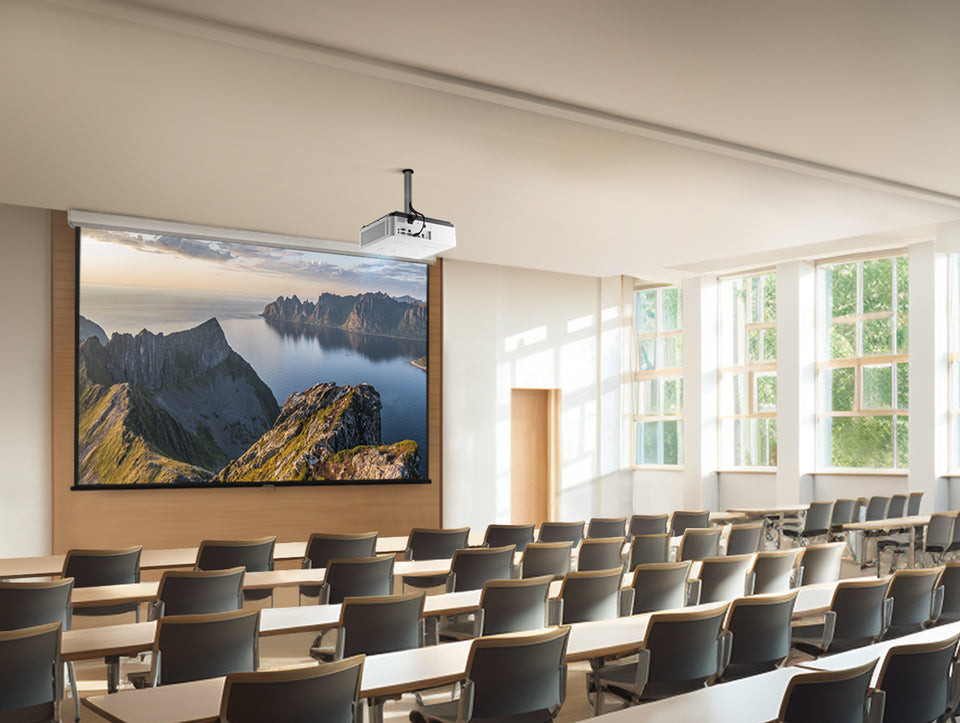

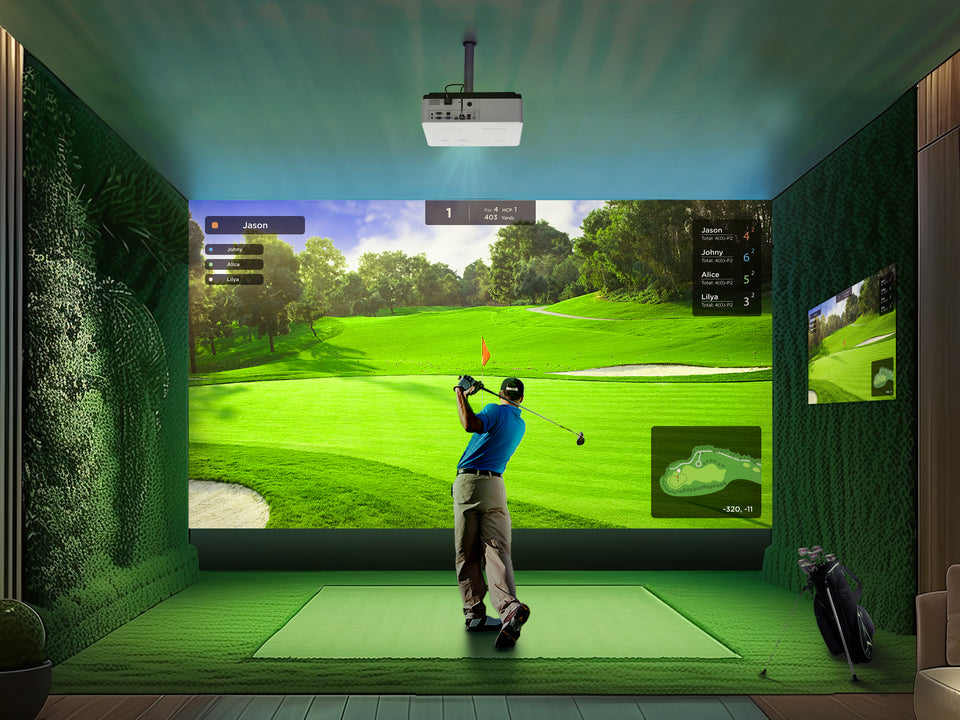

Delivering 7,300 ANSI Lumens, the projector provides vibrant and sharp projection in all lighting conditions, making it ideal for boardrooms, lecture halls, galleries, simulation experience venues, and other expansive spaces.
7,300 ANSI Lumens
Ultra-large Screen with Lower Cost-per-inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.
Up to 300”
No Shadows, No Blinding Lights
The 0.68-0.82 short throw offers a 100” visuals from only 1.46m away. When projecting onto a wall, there are no distracting shadows, providing seamless viewing experience.
Short Throw Ratio
Next-Gen Meeting Experience with 21:9 Aspect Ratio
The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant video feeds, fostering a highly engaging and collaborative environment.
21:9 for MTR
2nd Generation Laser Phosphor Technology
The projector adopts the 2nd generation laser phosphor technology. In addition to inheriting excellent color performance, lamp-free design, and instant power on/off from the previous generation, technology on the new generation improves around 20% of brightness, better heat-resistance, and a smaller module design, making the images consistent in ambient settings as well as increased reliability with a more compact size for extended use in various scenarios.
Up to 30,000-hour Lifespan
Centralised Control for Management Efficiency
The projector is compatible with Crestron, PJ Link, ATEN, and Extron systems, allowing for centralised device management for better operational efficiency.
Comprehensive LAN Control

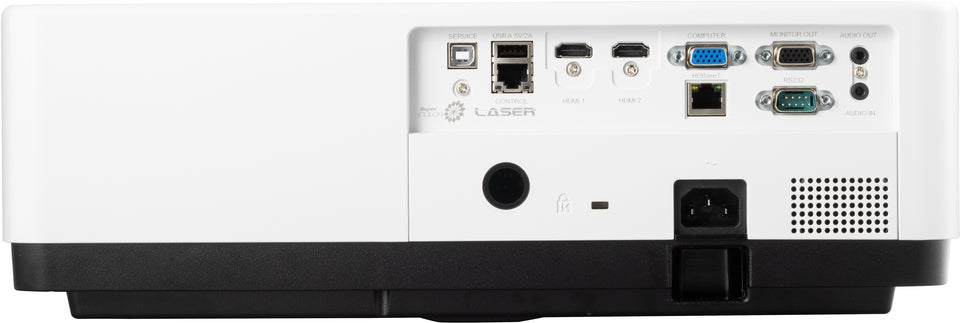

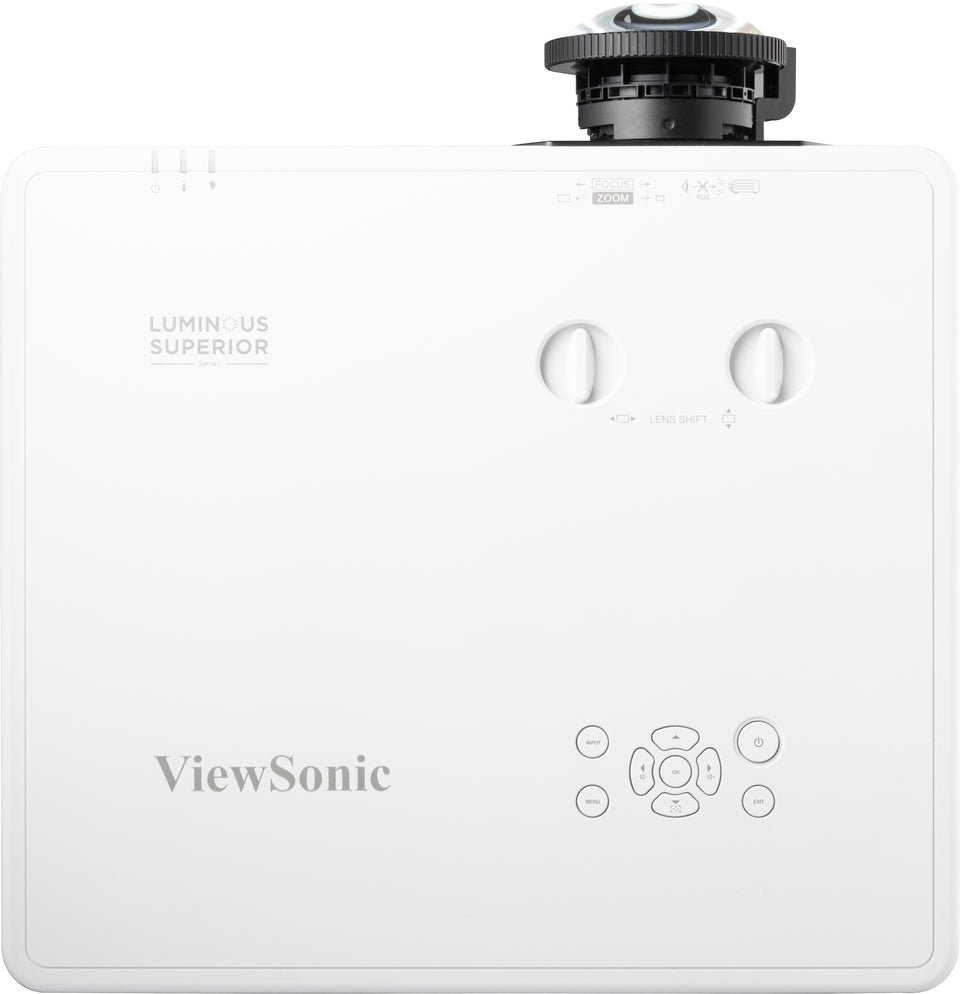

Dimensions & I/O Ports
1-Front IR
2-Service
3-USB-A (5V/2A)
4-HDMI x2
5-Computer
6-Monitor Out
7-RS232
8-Audio Out
9-Audio In
10-RJ45
11-Rear IR
12-HDBaseT
13-AC In
14-LED Indicator
15-Keypad
16-Focus Ring
17-Zoom Ring
18-Lens Shift Control Knob x2
19-Power Button -
Projection System 3LCD (3x0.64" with MLA) Native Resolution 1920x1200 Brightness 7300 (ANSI Lumens) Brightness (Center Lumens) 8300 Contrast Ratio 3000000:1 Display Color 1.07 Billion Colors Light Source Type Laser Phosphor Light Source Life (Normal) 20000 Hours Light Source Life (Eco) 30000 Hours (SuperEco) Lens F=1.7-1.8, f=9.66-11.65mm Projection Offset 0% ±5% Throw Ratio 0.679-0.821 Optical Zoom 1.2X Digital Zoom 1.0x-4.0x Image Size 50"-300" Throw Distance 0.73-5.31m (100"@1.46m) Keystone H:+/-15°, V:+/-10° Lens Shift (V Range) +50%, 0% Lens Shift (H Range) +23%, -23% Audible Noise (Normal) 37dB Audible Noise (Eco) 27dB Input Lag 60ms Resolution Support VGA(640x480) to 4K(3840x2160) HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p Horizontal Frequency 15K-100KHz Vertical Scan Rate 23-85Hz Computer In 1 (share with component) HDMI 2 (HDMI 1.4/HDCP 1.4) Audio-in (3.5mm) 1 USB Type A 1 (5V/2A) HDBaseT 1 Monitor Out 1 Audio-out (3.5mm) 1 Speaker 16W USB Type A (Power) 1 (USB2.0 - 5V/2A, shared with Input) RS232 (DB 9-pin male) 1 RJ45 (LAN Control) 1 USB Type B (Service) 1 Power Supply Voltage 100-240V ±10%, 50/60Hz (AC in) Power Consumption Normal: 385W, Standby: <0.5W Operating Temperature 0~40℃ Carton Brown Net Weight 8.1kg Gross Weight 11.13kg Dimensions (WxDxH) 405x425x137mm Packing Dimensions 525x520x280mm OSD Language 25 Languages including English, German, French, Spanish, Japanese, Chinese, Turkish, and more User Guide Language 20 Languages including English, Chinese, French, German, Spanish, Turkish, and more Standard Accessory Power Cord x1, Remote Control x1, QSG, Air Filter, Warranty Card (CN Only) Optional Accessory Air Filter, Wall/Ceiling Mount: PJ-WMK-007 -
Description Downloads ViewSonic LSC731WU-ST WUXGA Short Throw Laser Installation Projector - 7300 Lumens Datasheet Download
