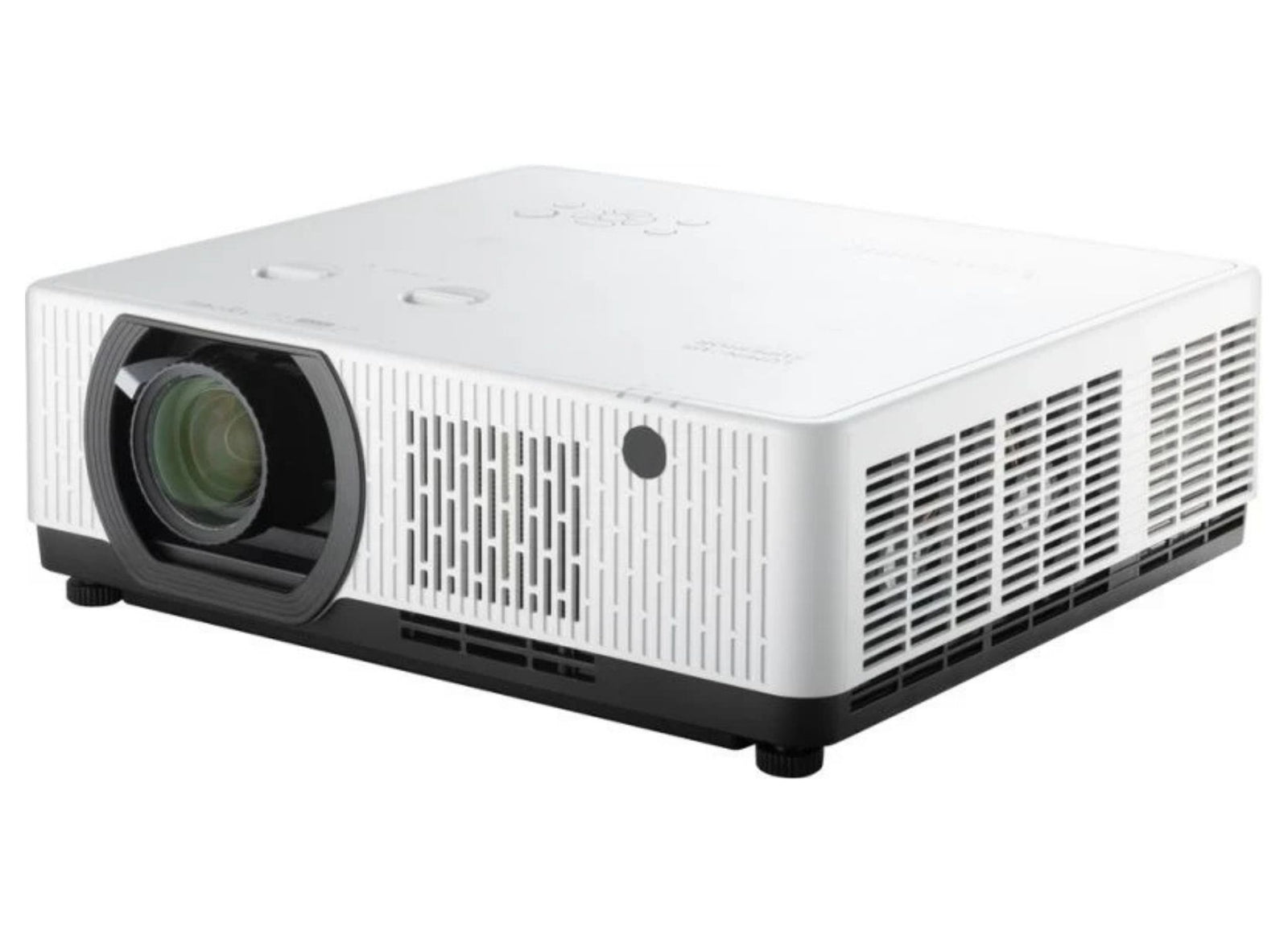

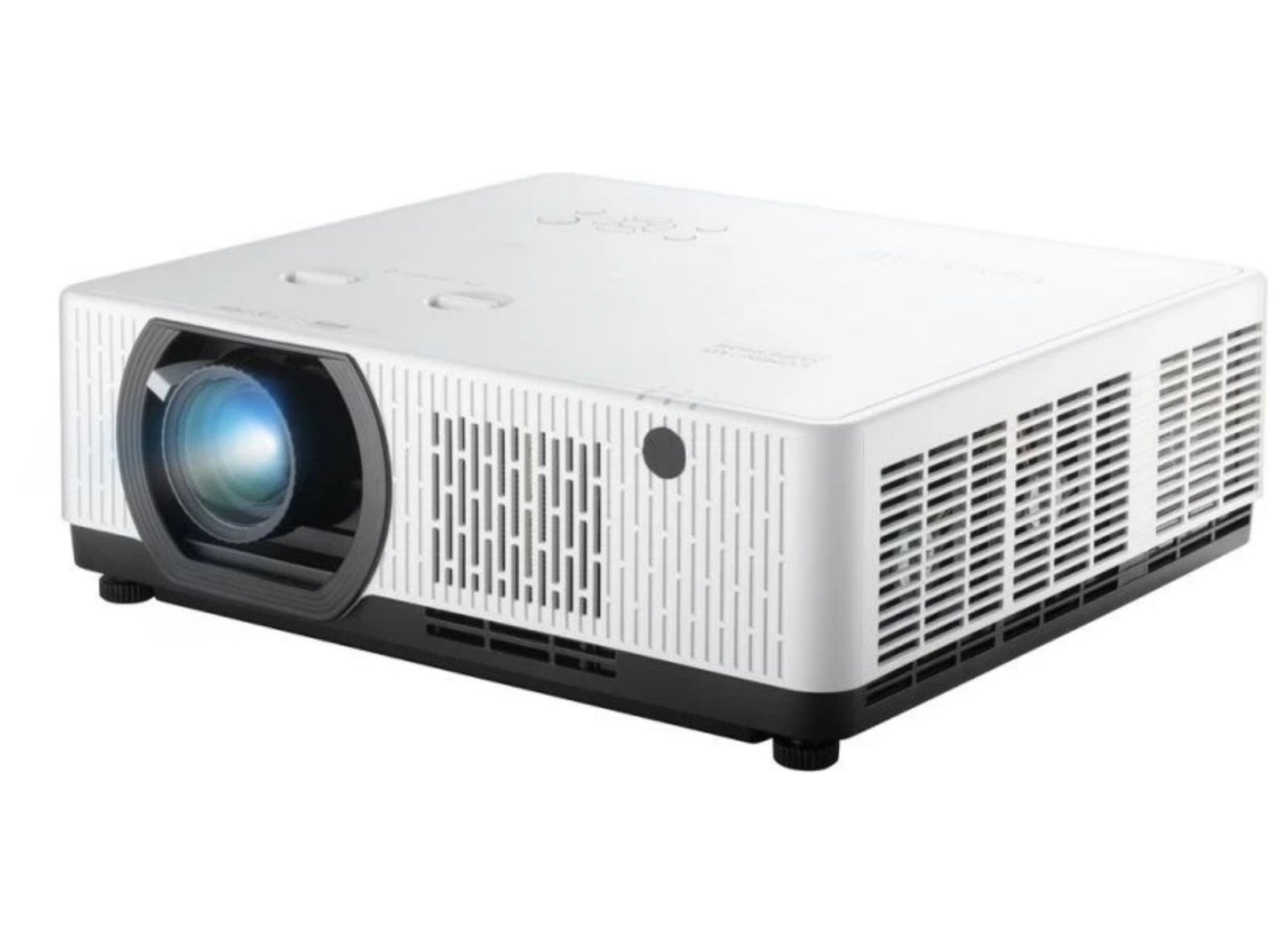

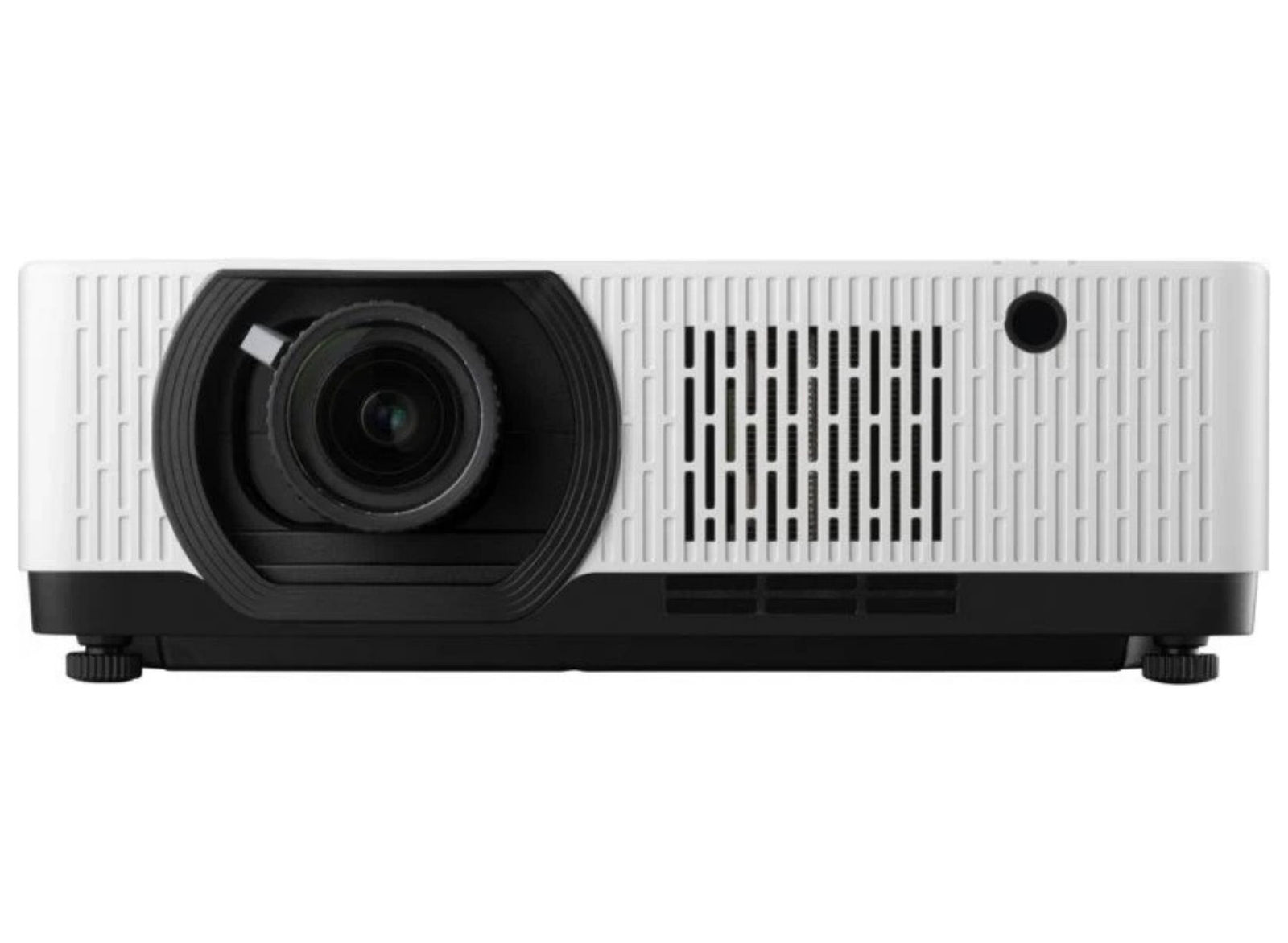

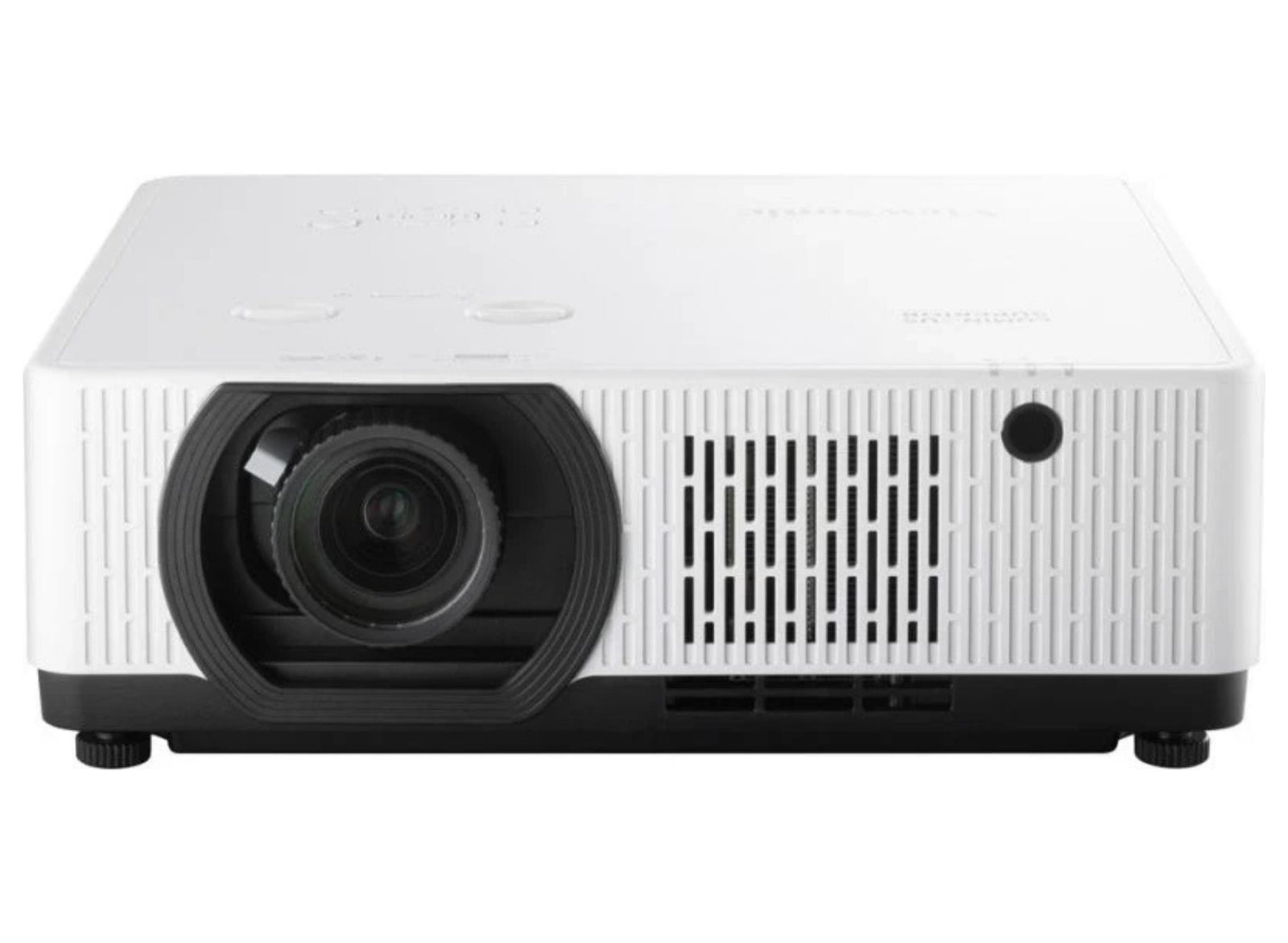

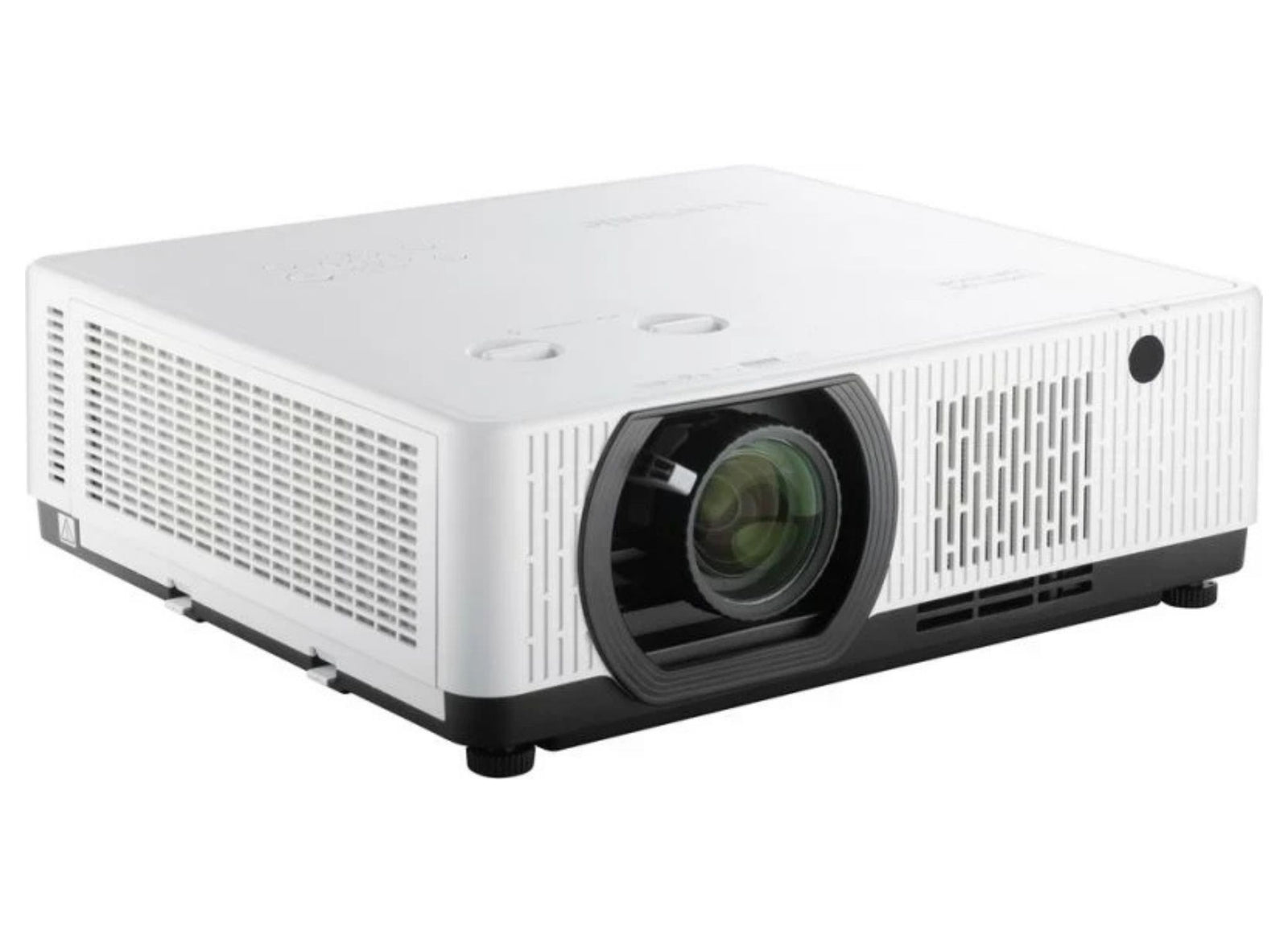

ViewSonic LSC801WU WUXGA Laser Installation Projector - 8000 Lumens
SKU: LSC801WU
£2,550.00 (Excl. VAT)
- Brightness (Lumens) 5100 - 10000
- Contrast Ratio 3,000,000:1
- Native Resolution WUXGA
- Throw Ratio 1.2 - 2.0
- Light Source Laser
- Native Aspect Ratio 16:10 Widescreen
- Description
- Specifications
- Downloads
-
21:9 Aspect Ratio for Immersive Collaboration
Bright Images for Large Venues
Delivering 8,000 ANSI Lumens, the projector provides vibrant and sharp projection in all lighting conditions, making it ideal for boardrooms, lecture halls, galleries, simulation experience venues, and other expansive spaces.
8,000 ANSI Lumens
Ultra-large Screen with Lower Cost-per-inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.
Up to 300”
Next-Gen Meeting Experience with 21:9 Aspect Ratio
The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant video feeds, fostering a highly engaging and collaborative environment.
21:9 for MTR
Adaptable to Any Environment

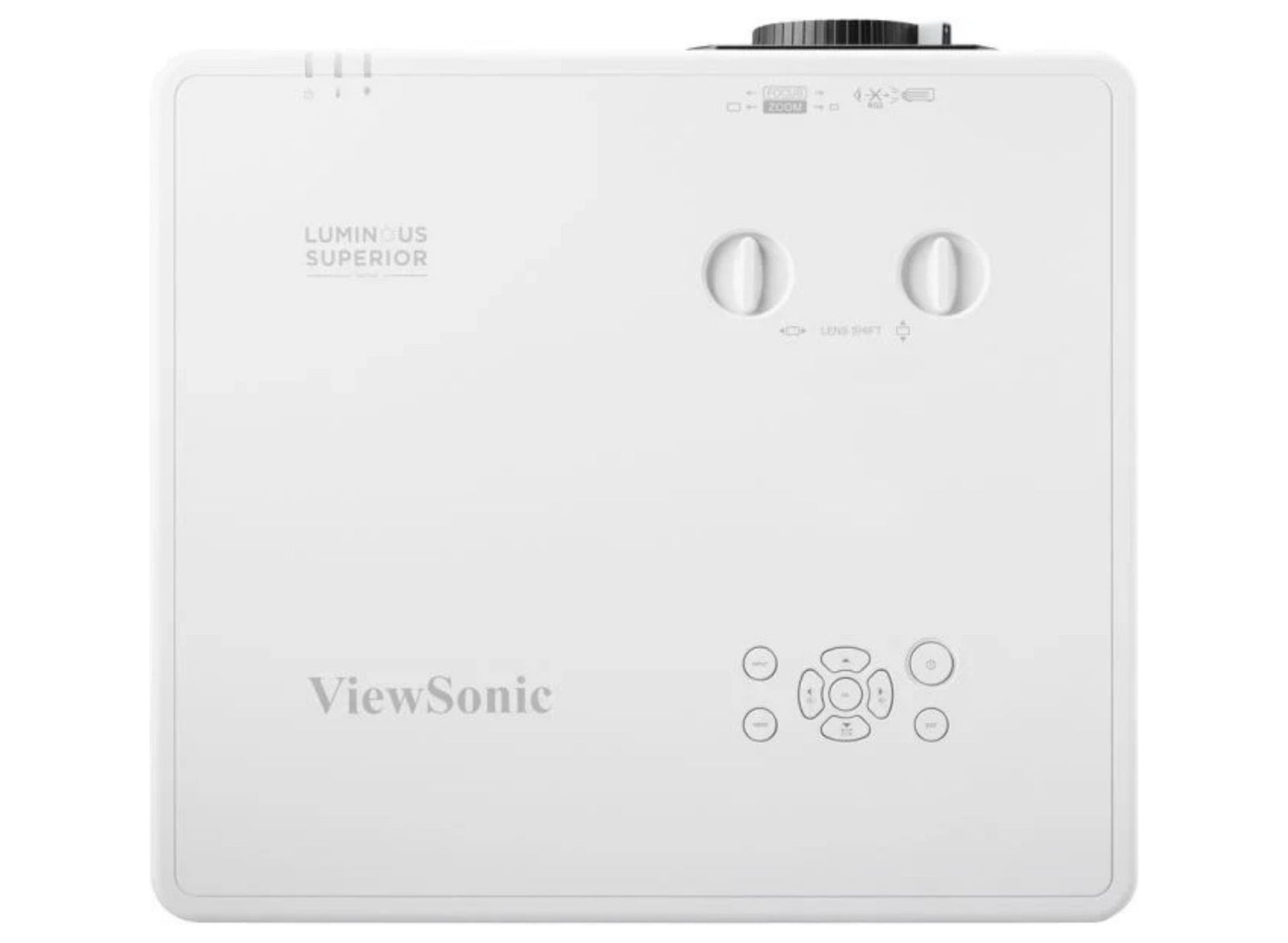

Featuring tool-free lens shift control knobs, 1.6x optical zoom, H/V keystone correction, and 4-corner adjustment capabilities, this projector allows image adjustments without relocation, ensuring it fits any environment.
H/V Lens Shift, Keystone Correction, 1.6x Optical Zoom
2nd Generation Laser Phosphor Technology
The projector adopts the 2nd generation laser phosphor technology. In addition to inheriting excellent colour performance, lamp-free design, and instant power on/off from the previous generation, technology on the new generation improves around 20% of brightness, better heat-resistance, and a smaller module design, making the images consistent in ambient settings as well as increased reliability with a more compact size for extended use in various scenarios.
Up to 30,000-hour Lifespan
Centralised Control for Management Efficiency
The projector is compatible with Crestron, PJ Link, ATEN, and Extron systems, allowing for centralised device management for better operational efficiency.
Comprehensive LAN Control

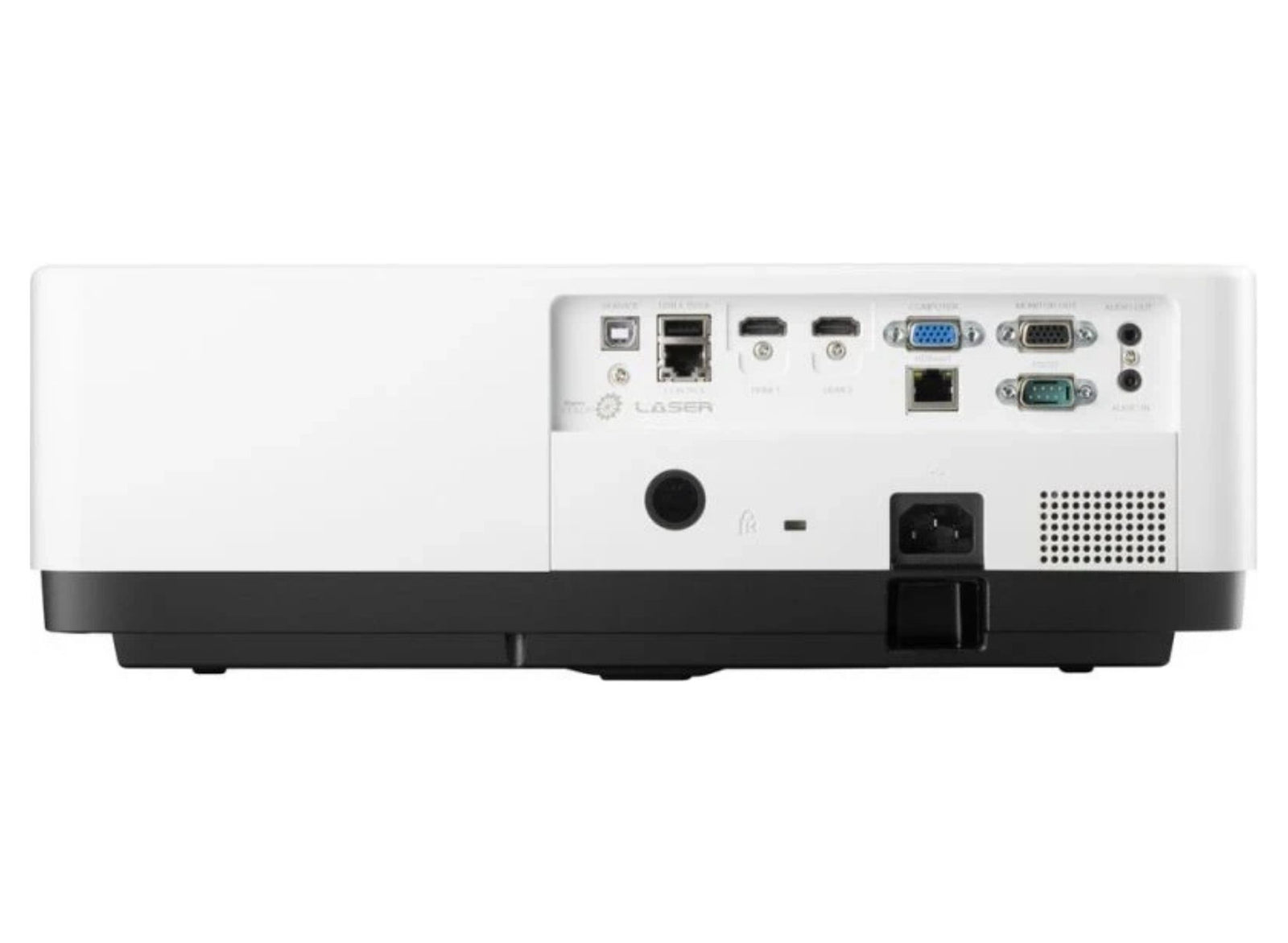

Dimensions & I/O Ports
1-Front IR
2-Service
3-USB-A (5V/2A)
4-HDMI x2
5-Computer
6-Monitor Out
7-RS232
8-Audio Out
9-Audio In
10-RJ45
11-Rear IR
12-HDBaseT
13-AC In
14-LED Indicator
15-Keypad
16-Focus Ring
17-Zoom Ring
18-Lens Shift Control Knob x2
19-Power Button -
Projection System 3LCD (3x0.64" with MLA) Native Resolution 1920x1200 (WUXGA) Brightness 8000 ANSI Lumens Brightness (Center Lumens) 8500 Lumens Contrast Ratio 3,000,000:1 Display Color 1.07 Billion Colors Light Source Type Laser Phosphor Light Source Life (Normal) 20,000 Hours Light Source Life (Eco) 30,000 Hours Lens F=1.5-2.08, f=17.2-27.7mm Projection Offset 0% ±5% Throw Ratio 1.2 - 2.0 Optical Zoom 1.6x Digital Zoom 1.0x - 4.0x Image Size 30" - 300" Throw Distance 0.78 - 12.99m (100"@2.58m) Keystone H:+/-25°, V:+/-30° Lens Shift (V Range) +60%, 0% Lens Shift (H Range) +29%, -29% Audible Noise (Normal) 37dB Audible Noise (Eco) 27dB Input Lag 60ms Resolution Support VGA (640x480) to 4K (3840x2160) HDTV Compatibility 480i–2160p Horizontal Frequency 15K–100KHz Vertical Scan Rate 23–85Hz Computer In 1 (Share with Component) HDMI 2 (HDMI 1.4 / HDCP 1.4) Audio-in (3.5mm) 1 USB Type A 1 (5V/2A) HDBaseT 1 Monitor Out 1 Audio-out (3.5mm) 1 Speaker 16W USB Type A (Power) 1 (USB2.0 - 5V/2A) RS232 (DB 9-pin) 1 RJ45 (LAN Control) 1 USB Type B (Service) 1 Power Supply Voltage 100–240V ±10%, 50/60Hz (AC In) Power Consumption 385W (Normal) / <0.5W (Standby) Operating Temperature 0~40°C Carton Brown Net Weight 7.9 kg Gross Weight 10.93 kg Dimensions (WxDxH) 405x358x137mm (With Adjustment Foot) Packing Dimensions 510x498x260mm OSD Language 25 Languages (English, German, French, Italian, etc.) User Guide Language 20 Languages (English, Chinese, French, etc.) Standard Accessories Power Cord, Remote Control, QSG, Air Filter, Warranty Card (CN) Optional Accessories Air Filter, Wall/Ceiling Mount PJ-WMK-007 -
Description Downloads ViewSonic LSC801WU WUXGA Laser Installation Projector - 8000 Lumens Datasheet Download
