OVERVIEW

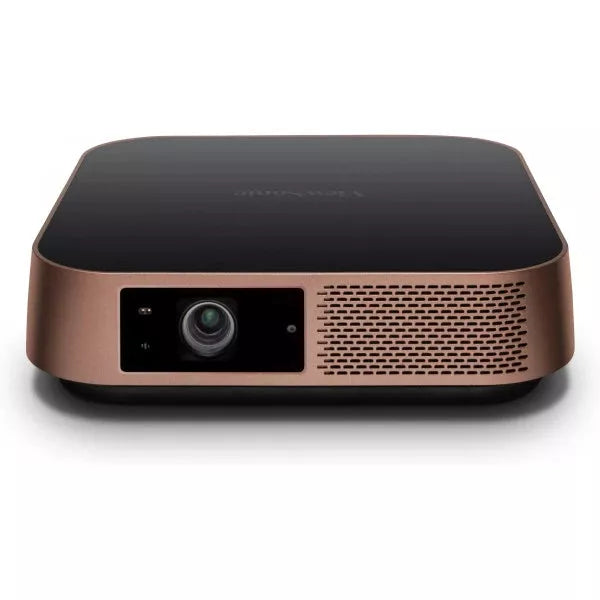

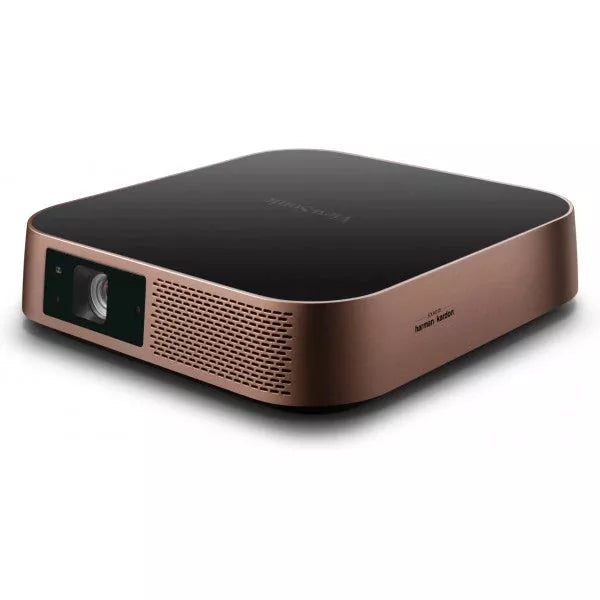

The M2 is a Full HD smart portable LED projector that delivers instant fun at the push of a button. Setup is effortless thanks to its instant autofocus and advanced auto keystone capabilities. Its ultra-light portable design allows you to take the cinema experience wherever you go. Experience crystal clear visuals in Full HD resolution and cinematic colours covering 125% Rec.709 supported by ViewSonic’s industry-leading 2nd generation LED technology. With 1200 LED Lumens, the M2 combines pixel-perfect images with exceptional sound quality through integrated dual speakers by Harman Kardon. Equipped with smart Wi-Fi and Bluetooth connectivity, it enables wireless casting from smart devices, built-in content streaming, and audio amplification, it also came with a USB-C port for direct single-cable streaming from Nintendo® Switch for an even easier set up and use.

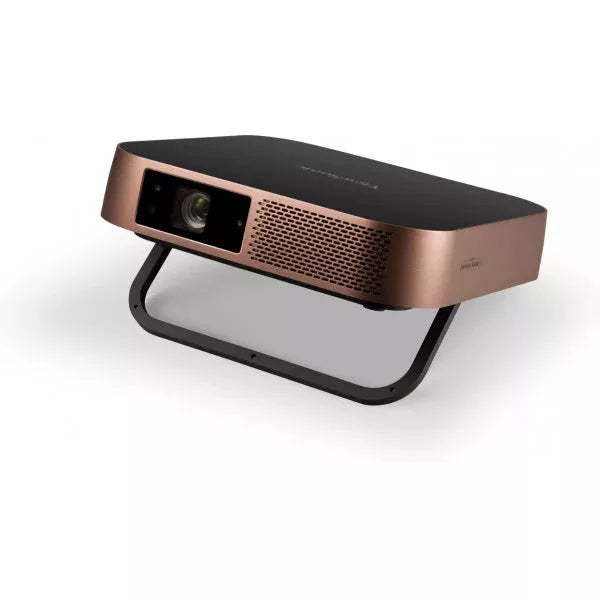

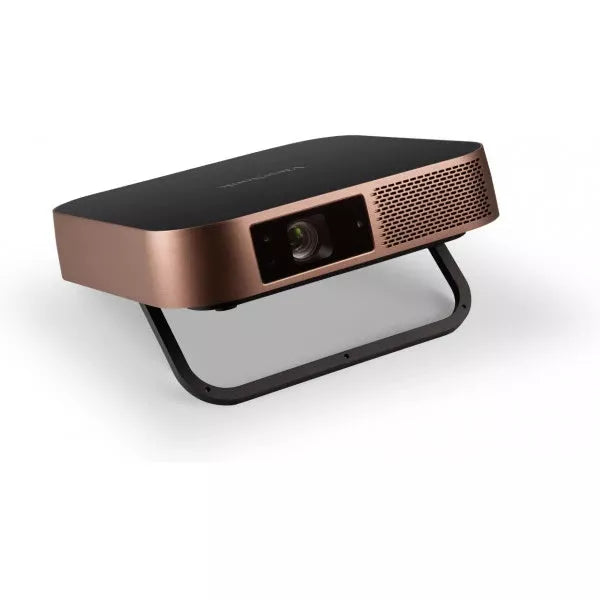

Premium Design, perfect for Work & Play
Thin & light to easily carry on-the-go
Metallic feel & matte black finish for an elegant lifestyle

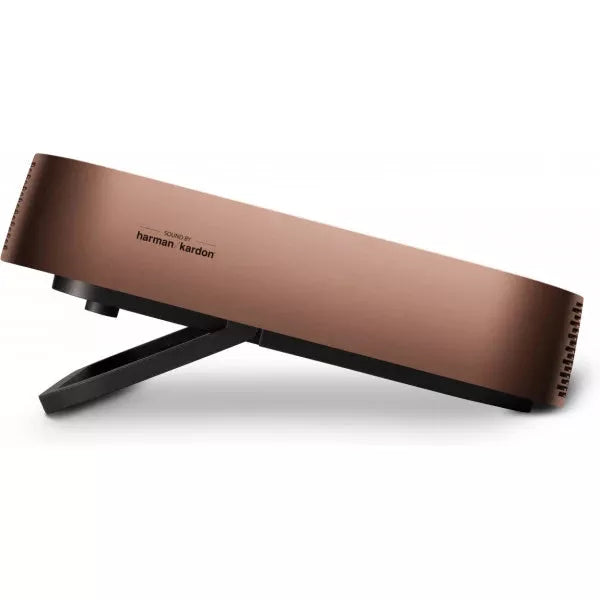

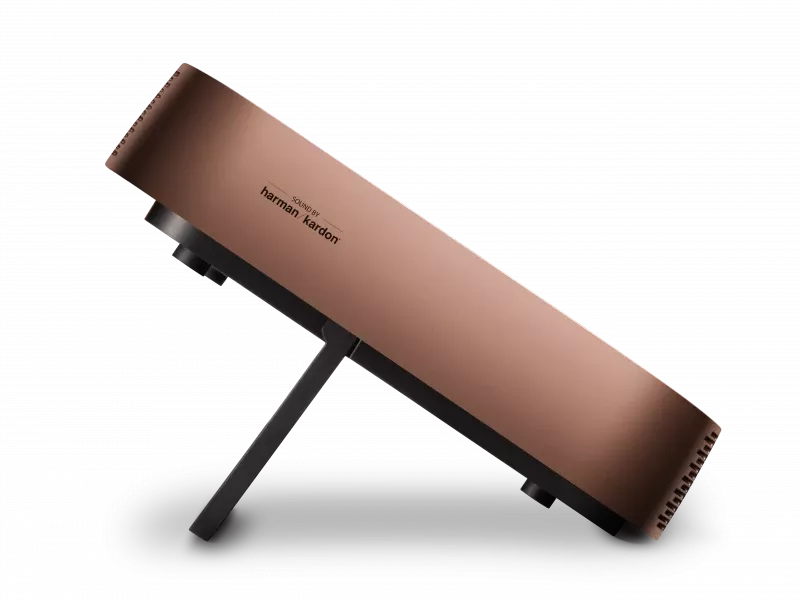

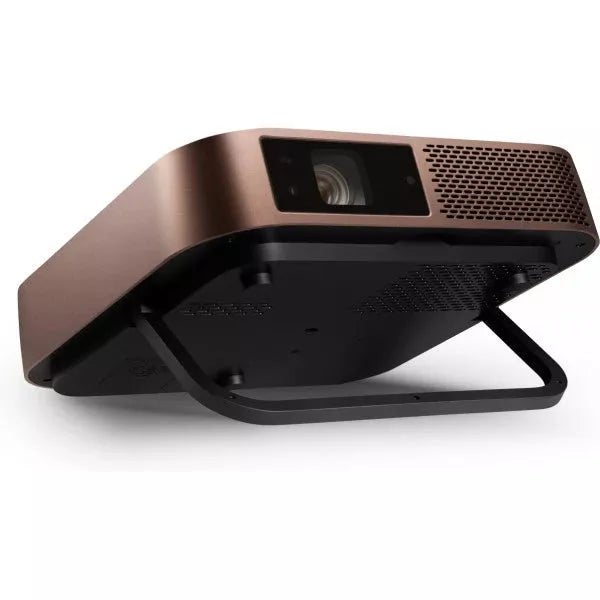

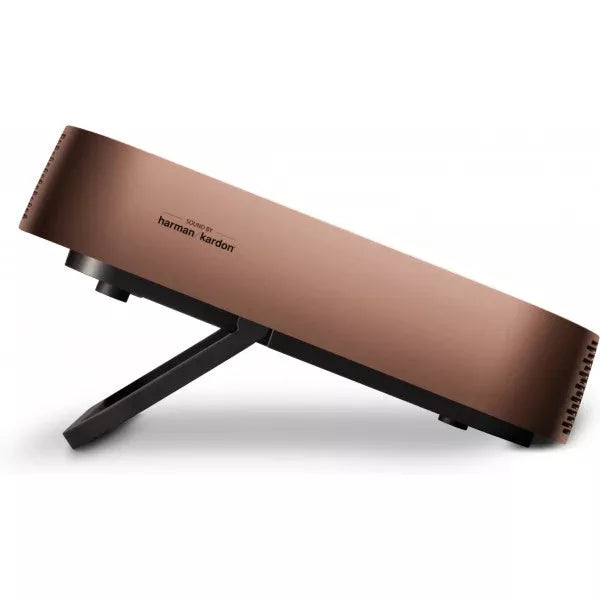

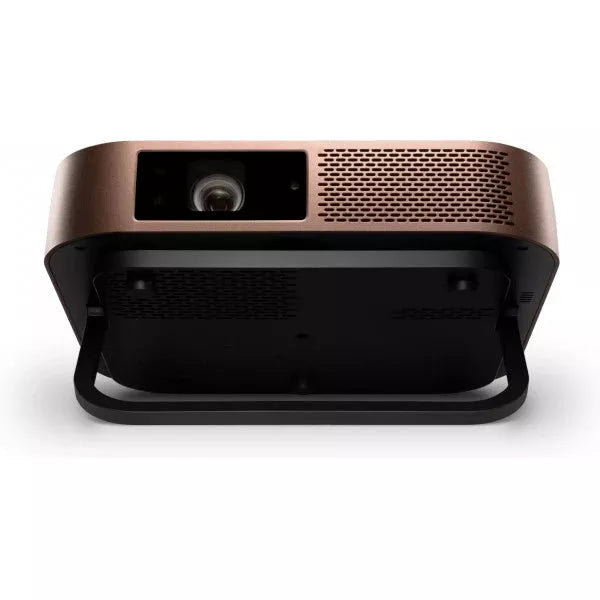

Stepless stand allowing customisable projection angles
A Feast for the Eyes and Ears
1080p Full HD for Captivating Details
Full HD 1080p (1920 x 1080) resolution projection delivers clearly displayed information and ultra-sharp image quality.
Vivid Details with HDR
Immersive 3D Experience
True-to-life Colours, Fill You with Wonder
True-to-life colours offered by ViewSonic’s proprietary Cinema SuperColor+™ Technology with 125% Rec.709 give you the vivid touch and feel for rich emotional pleasure.
Flowing Movements all the way
Lie back and immerse yourself in seamless viewing without a single second missed. It features Frame Interpolation technology, which reduces motion blur and makes for smooth delivery of fast-moving images.
Cutting-edge LED Technology
4 hours per day for more than 20 years
2nd gen. enhanced brightness
Wide colour gamut for cinematic experience
No harmful mercury

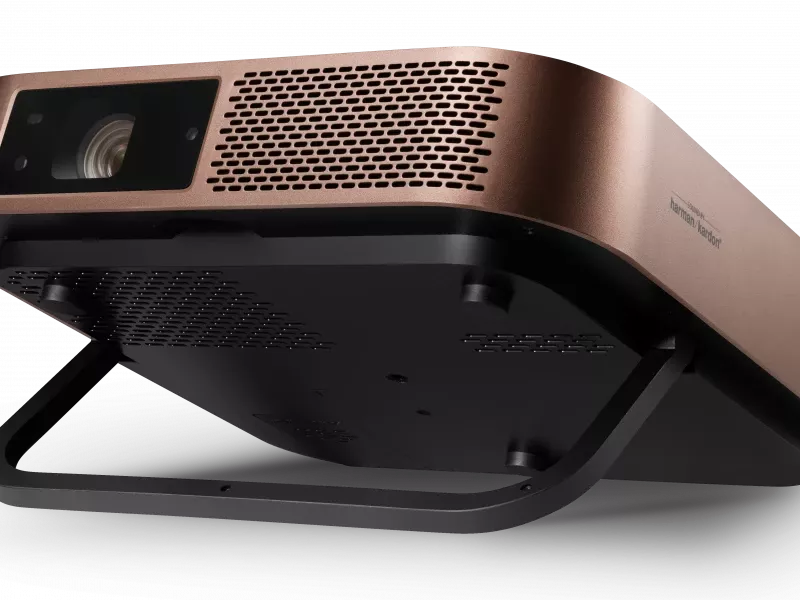

Theatre-Level Harman/Kardon Speakers
The dual speakers customised by Harman/Kardon deliver vibrant and powerful sound for an all-around immersive experience whether you’re watching movies, listening to a live concert, or presenting your creative art works.
Realising More Flexible Audio Needs
You can output the audio of a movie or a thrilling game from the projector via Bluetooth to your own Bluetooth headphones, creating a getaway from the outside world and immersing yourself in your own big screen fun.
Or the other way around, connect with your other Bluetooth sound bar or subwoofer, upgrading the excitement and sharing with family and friends.
Say Goodbye to Irritating Fan Noise
With a 24dB fan noise lower than a whisper, you can be fully immersed in the viewing experience. The secret lies in the proprietary wind tunnel design that advances heat dissipation efficiency to the next level.
Superb Audiovisual Performance on the Move
With the M2 mobile studio, the world is your showcase. Freely carry the smaller-than-A4 size projector and instantly power it on with a power bank* to stage your Full HD big screen show anywhere you want.
*The power bank should be 45W (15V/3A) at least, and support Power Delivery (PD) protocol output.
Wireless Casting from Your Smart Devices
Create and share impressive presentations or amplify enjoyment in an instant!
Thanks to the embedded 5Ghz fast speed Wi-Fi connectivity, you can cast or screen-mirror content from your devices at hand to the big screen without a single cable.
Intuitive Touch Control with your phone
Now you can turn your mobile device into an alternative powerful remote control – intuitive touch control, easy typing, and simple annotation on the big screen.
Simply download the ViewSonic vCastSender app on your phone, make sure your phone and the projector are connected to the same Wi-Fi network, and pair them up in the app to get started.
Quick & Easy set up in less than 1 minute
Revolutionise the stereotypical projector start time and turn the projector on in an instant, just like you would with a TV. Perfect images can be projected in seconds with built-in auto focus and auto v keystone.
Make it right from any side
Be it on the side table in the living room, bedroom or any other location you like, the M2 can provide perfectly-shaped images with comprehensive H/V keystone and 4 corner adjustment capabilities.
Go Big Even in Small Spaces
Scale up the overwhelming power and excitement with a screen size easily made larger than a TV - even in a coffee corner, shared studio, your own room or any other small spaces. A distance of only 2.18 m can create an 80” screen.
"All roads lead to Rome."

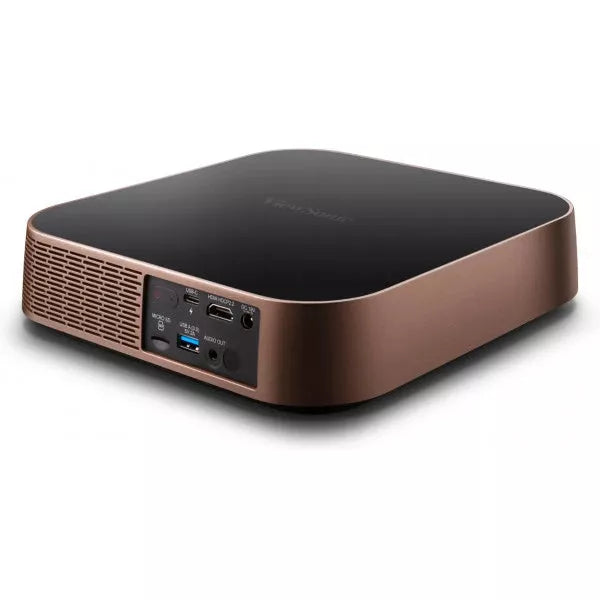

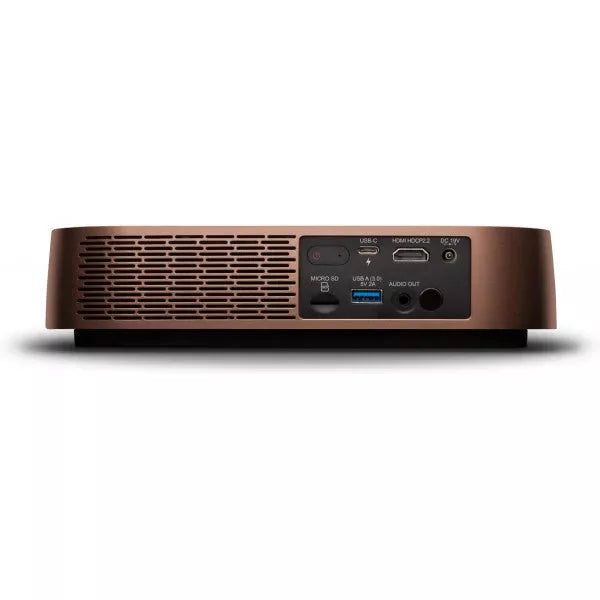

Want to bring content from a variety of carrier devices directly to the big screen? Not a problem. The M2 comes with comprehensive connectivity including USB Type-C, HDMI, USB reader, Micro SD and Wi-Fi, saving you the trouble of additional file/adaptor transitions.
Smart & Autonomous
Voice Control
The projector incorporates the latest voice activation services in the market today. Voice control your projector via Amazon Alexa & Google Assistant, a smart way to live - all under your command.*
*Alexa & Google Assistant are only available in English. The number of supported commands and usage scenarios varies with each country.
Eye Protection
User safety and comfort is ViewSonic’s top priority. With a built-in ultrasonic sensor, the Eye Protection* feature automatically cuts power to the projection beam when objects are too close to the lens.
*The default setting is “Off”. You can turn it on in Basic Settings.
Eye Care
Utilising reflective light, which bounces off the wall or projector screen before hitting your eyes, the projector makes the viewing experience virtually blue light free, less invasive to your sight and reduces eyestrain over prolonged viewing periods.

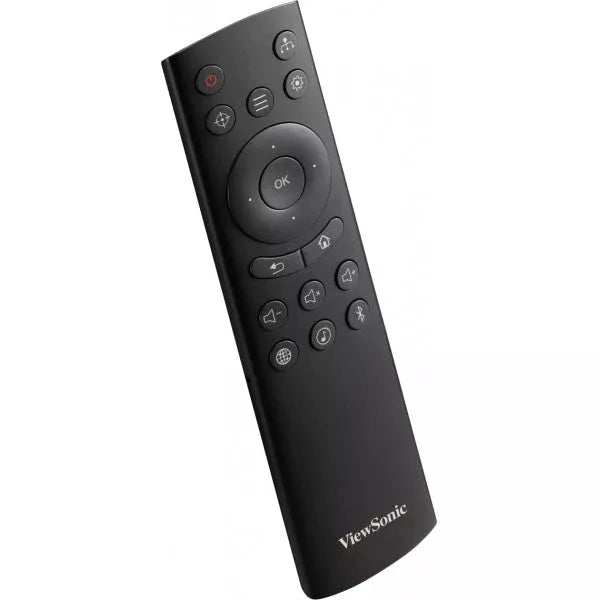

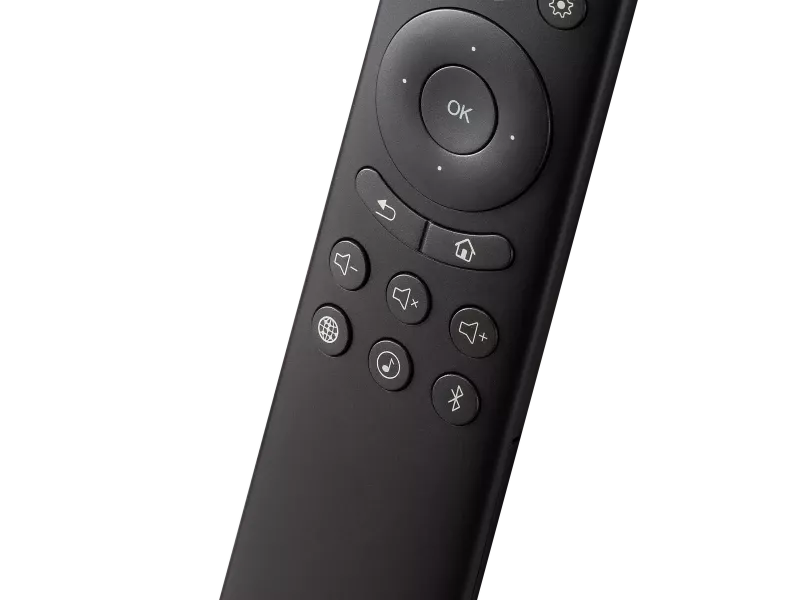

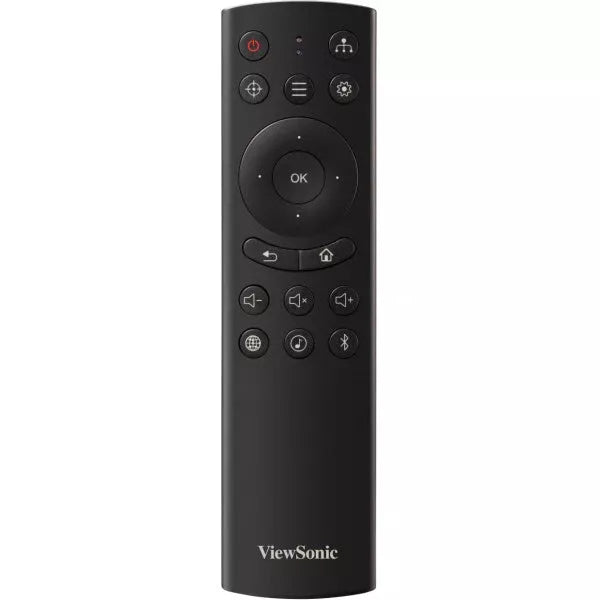

TÜV-Certified Antibacterial Remote Control
Stay entertained, stay healthy.
Our antibacterial remote control adopts a special coating with silver ions, which prevents bacteria from attaching and remains effective even after a long period of use.
-
| Specification |
Details |
| Projection System |
0.33 |
| Native Resolution |
1920x1080 |
| Brightness |
1200 LED Lumens |
| Contrast Ratio |
3000000:1 |
| Display Colour |
1.07 Billion Colours |
| Light Source Type |
LED |
| Light Source Life (Normal) |
up to 30000 |
| Lamp Watt |
RGBB LED |
| Lens |
F=1.7, f=9.251mm |
| Projection Offset |
100%+/-5% |
| Throw Ratio |
1.23 |
| Optical Zoom |
Fixed |
| Image Size |
24 |
| Throw Distance |
0.65m-2.72m, (80 |
| Keystone |
H:+/-30° , V:+/-40° |
| Audible Noise (Normal) |
26dB |
| Audible Noise (Eco) |
24dB |
| Local Storage |
Total 16GB , (10GB available storage) |
| Input Lag |
125ms |
| Resolution Support |
VGA(640 x 480) to , 4K(3840 x 2160) |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160P |
| Horizontal Frequency |
30K-97KHz |
| Vertical Scan Rate |
24-120Hz |
| Input |
HDMI: 1, (HDMI 2.0, HDCP 1.4/2.2) |
| USB Type C |
1 (5V/2A) |
| USB Type A |
2, (USB 3.0 Reader x1, USB 2.0 Reader x1, share with power) |
| SD Card |
Micro SD (64GB, SDXC) |
| Wifi Input |
1 (5Gn) |
| Output |
Audio out (3.5mm): 1 |
| Audio-out (Bluetooth) |
1 (BT4.0) |
| Speaker |
3W cube x2 |
| USB Type A (Power) |
2 , ( USB 3.0 - 5V/ 2A, USB2.0 - 5V/ 0.5A, share with USB reader ) |
| Control |
USB Micro B-2.0 (Services): 1 |
| Others |
Power Supply Voltage: Power adaptor: , Input: 100~240V, Output: 19VDC / 4.74A |
| Power Consumption |
Normal: 74W, Standby: <0.5W |
| Operating Temperature |
0~40℃ |
| Net Weight |
1.32kg |
| Dimensions (WxDxH) with Adjustment Foot |
224x224x51mm |
| OSD Language |
23 languages including English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek |
| Standard Accessory |

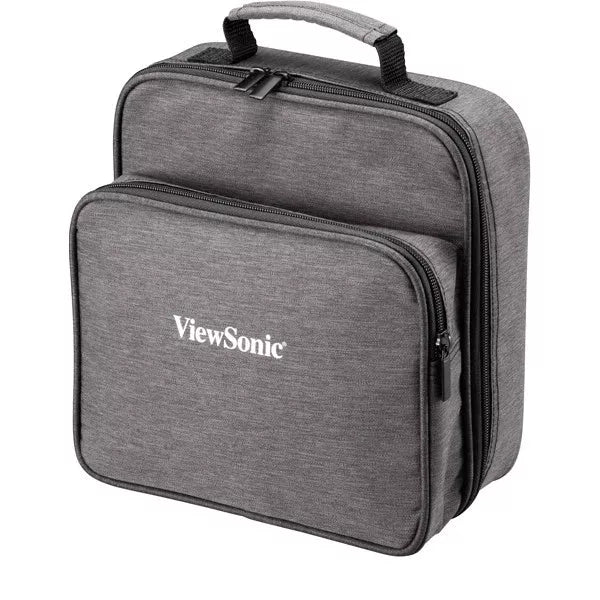

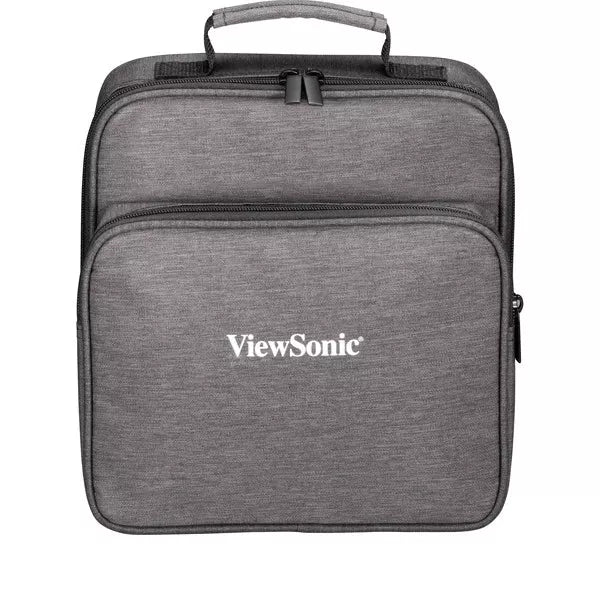

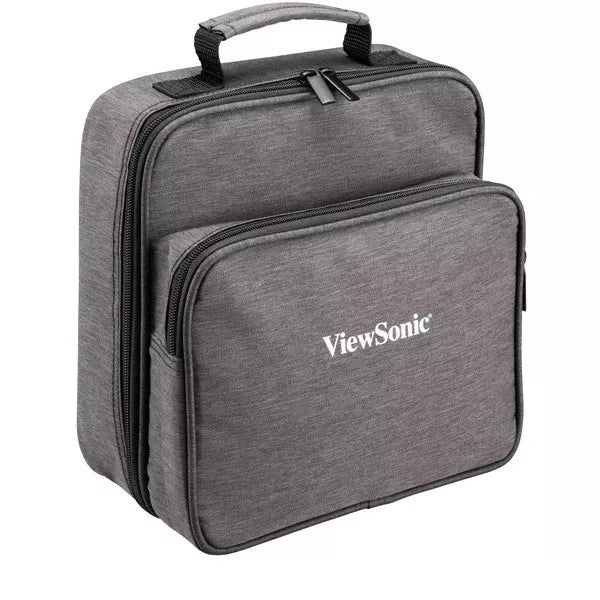

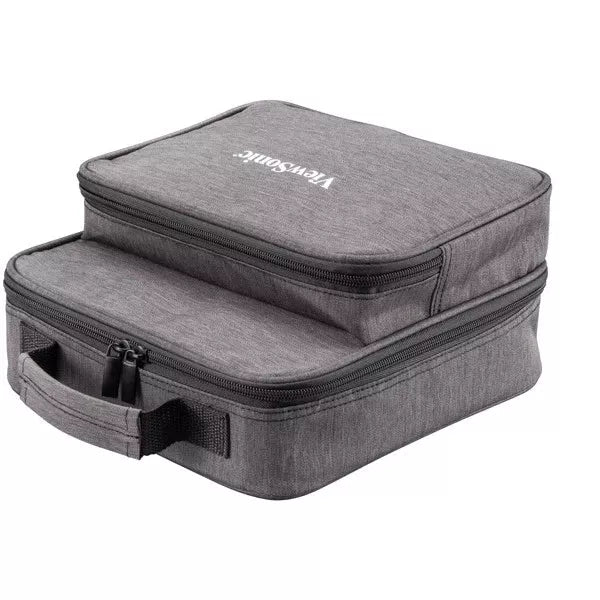

Power Cord: 1, USB-C Cable: 1 (1m), Remote Control: 1, QSG: 1, Wifi Dongle: 1, Carry Bag: Yes |
-
