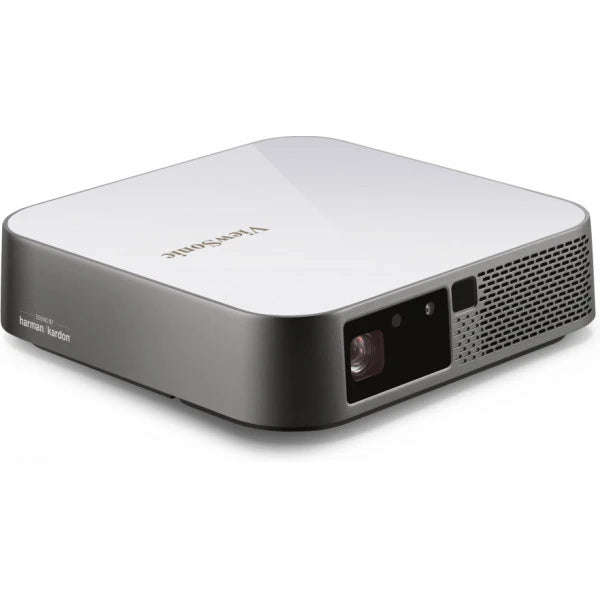

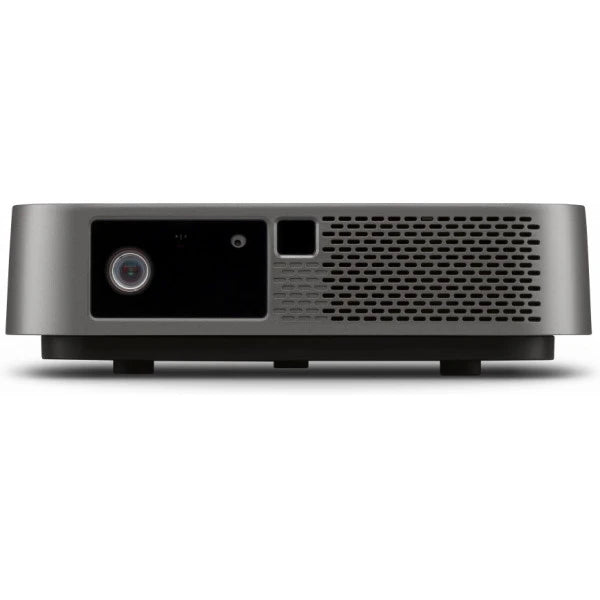

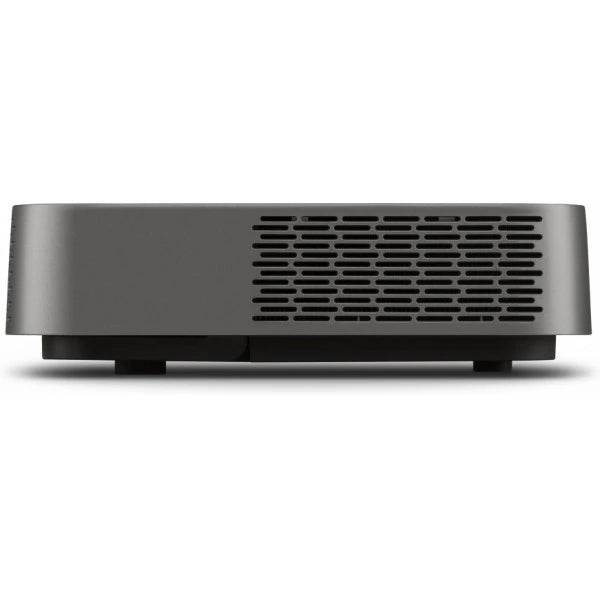

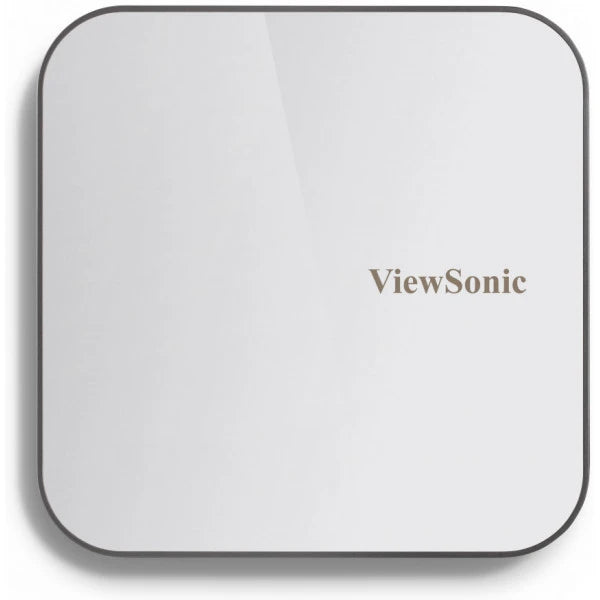

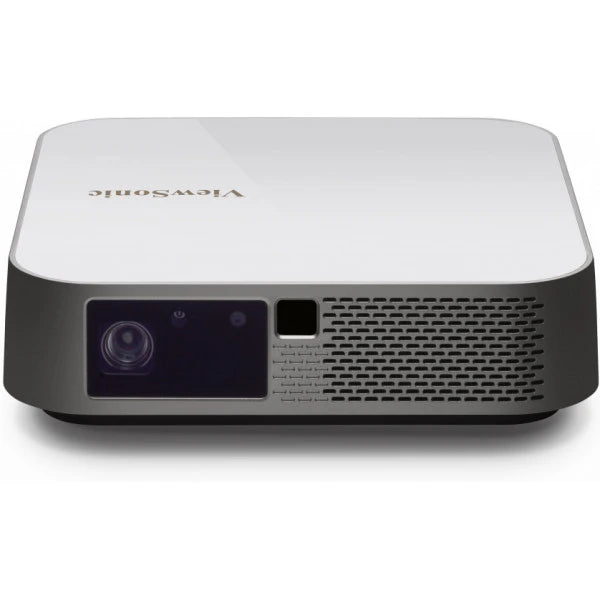

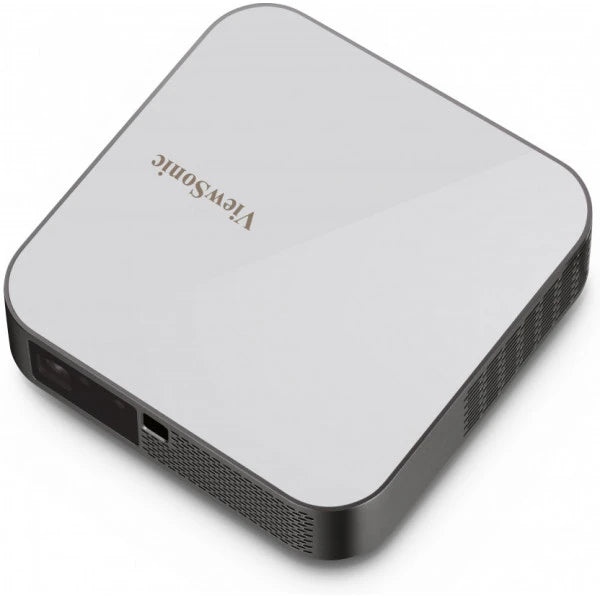

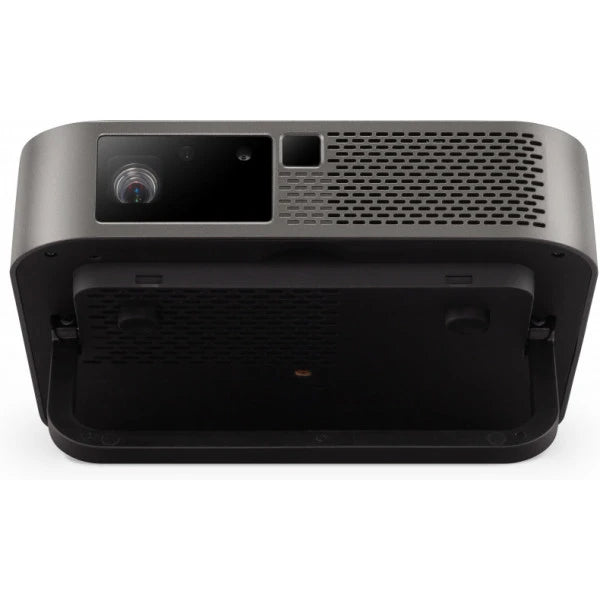

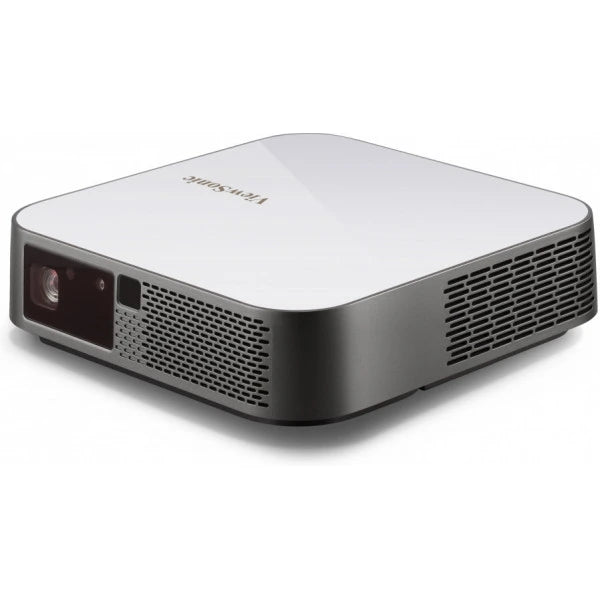

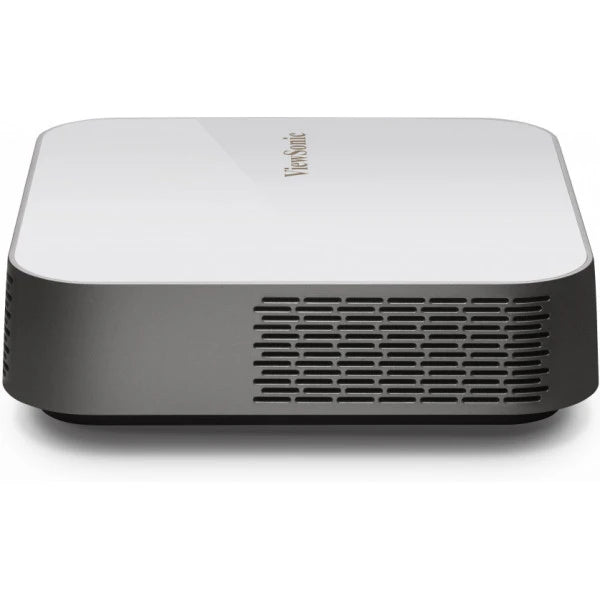

ViewSonic M2e Smart Portable LED Projector
400 Lumens, 16:9 Full HD 1080p
OVERVIEW
The M2e is a 1080p Full HD smart portable LED projector that delivers instant fun at the push of a button. Setup is effortless with instant autofocus and advanced auto keystone capabilities, and its ultralight portable design allows you to take the cinema experience wherever you go. Experience crystal clear visuals in Full HD resolution and cinematic colors covering 125% Rec.709 supported by ViewSonic’s industry-leading 2nd generation LED technology. The M2e combines pixel-perfect images with exceptional sound quality through integrated dual speakers customized by Harman Kardon. Add even more fun with smart connectivity features such as Wi-Fi for wireless screen mirroring to get your phone up on the big screen, Bluetooth for alternative audio options, and USB Type-C for direct single-cable streaming from Nintendo® Switch.
Life’s moments, in an instant.
Compact Design, Perfect for Home
Compact and light enough to take on the go.

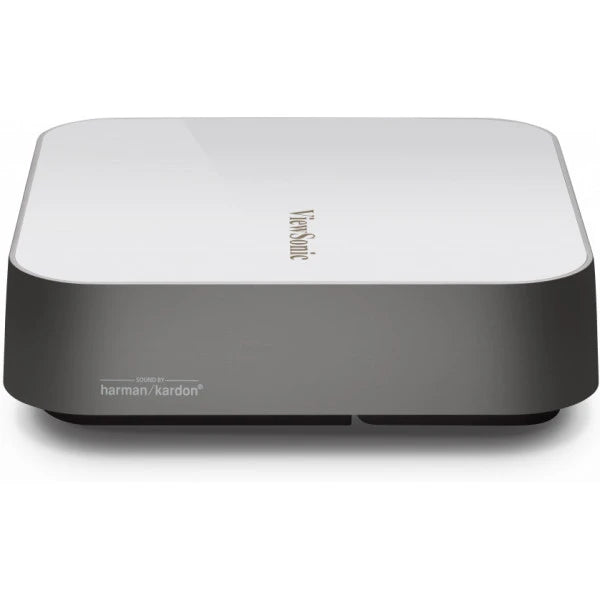

Meteor grey and polar white gloss finish for a modern look.

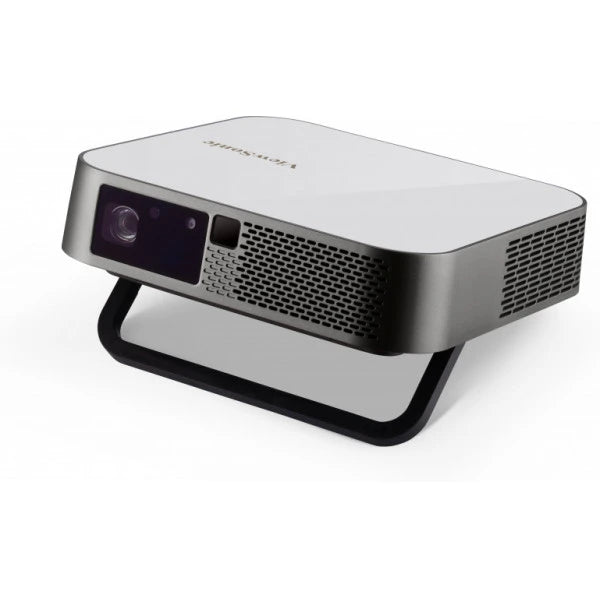

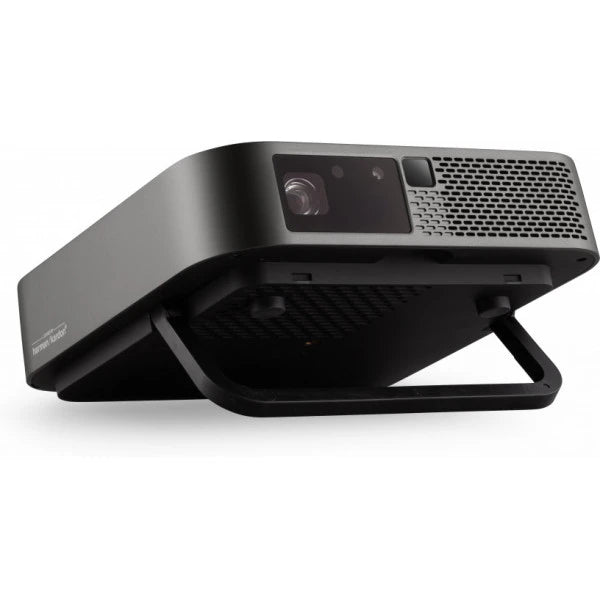

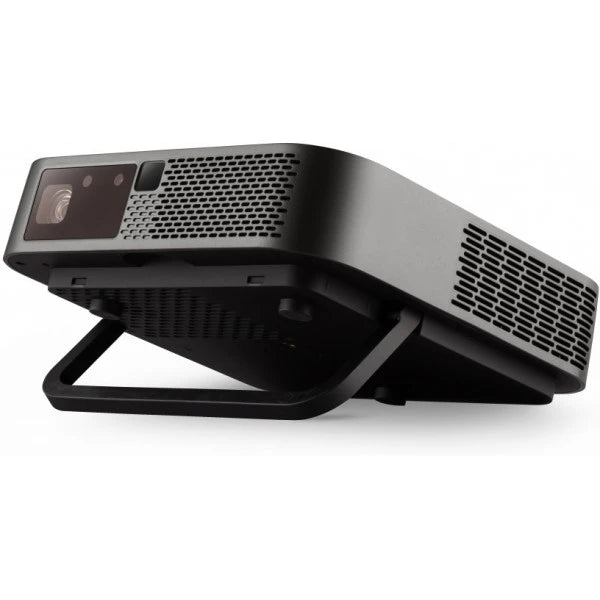

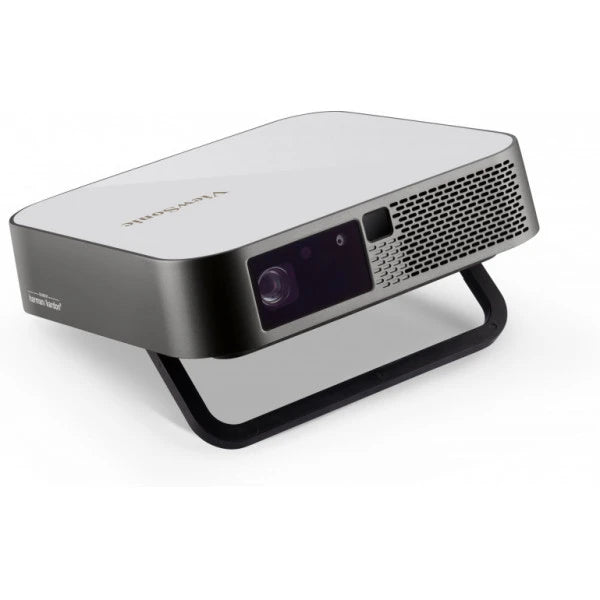

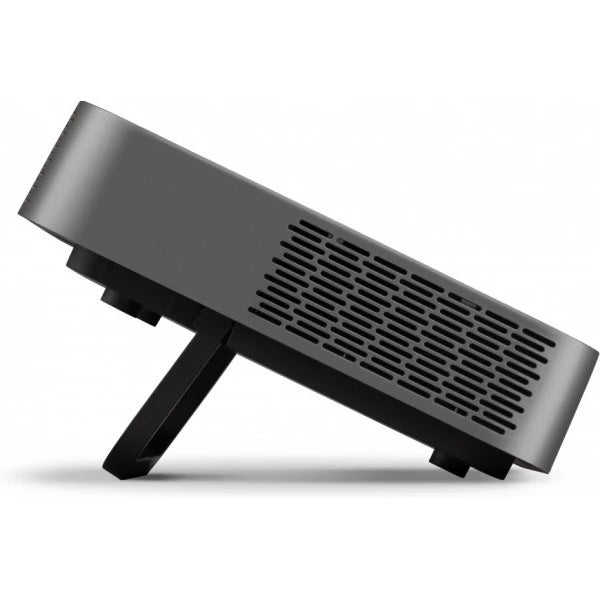

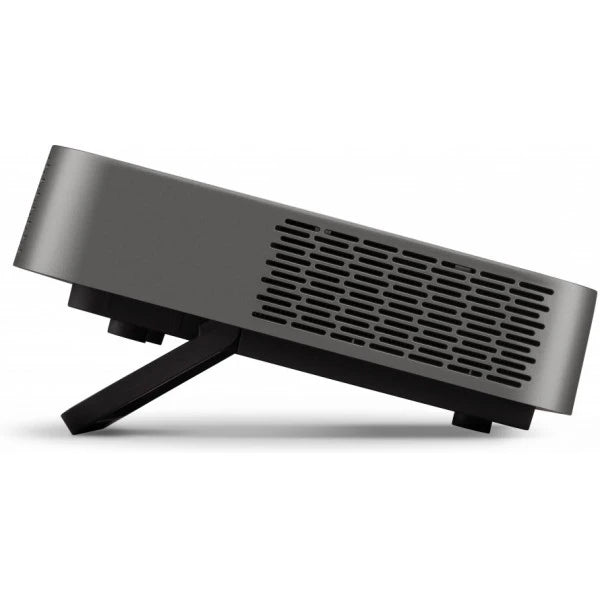

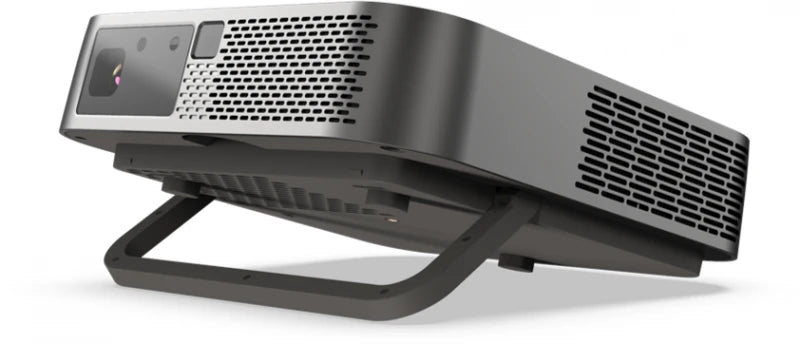

Stepless stand for customized projection angles.
Instant Fun, Easily Done
Effortless Setup in Seconds
A fully cinematic experience at the push of a button. With advanced instant auto focus and auto keystone capability, setup is now faster and easier than ever before.
Instant Auto Focus at the Speed of Light
Instant and accurate distance ranging on any surface using the industry-leading Time-of-Flight (ToF) technology, delivering perfectly focused visuals in the space of a single second.
A Perfect Fit from Any Angle
No need for central positioning. Comprehensive H/V keystone and 4 corner adjustment capabilities deliver perfectly shaped images from above, below, front or side.
Not Just Home
Entertainment
Take the big-screen experience wherever you go. The ultralight and extremely compact M2e is designed for effortless portability. Simply connect a power bank* via USB Type-C and take the show on the road.
*Power bank should be at least 45W (15V/3A) and support Power Delivery (PD) protocol output.
Go Big Even in Small Spaces
Get up to 100” of display from just 2.7m away for big entertainment in any space.
Plug and Play from Any Device

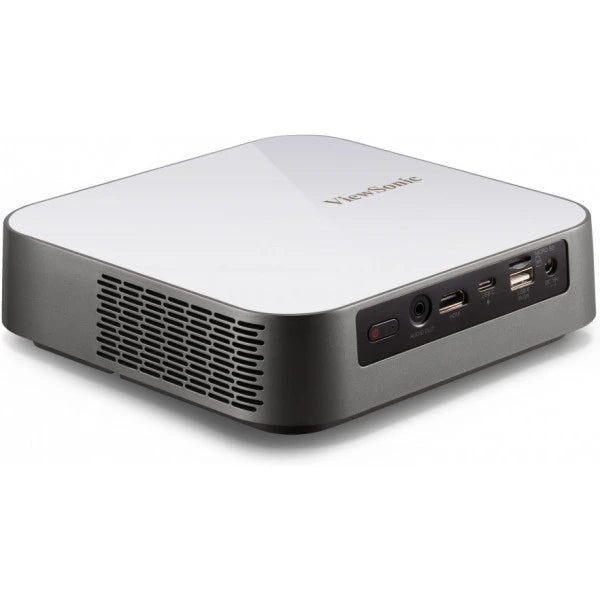

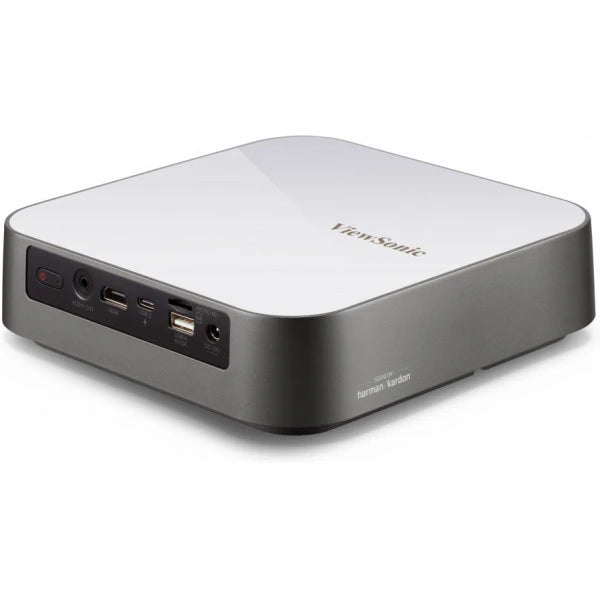

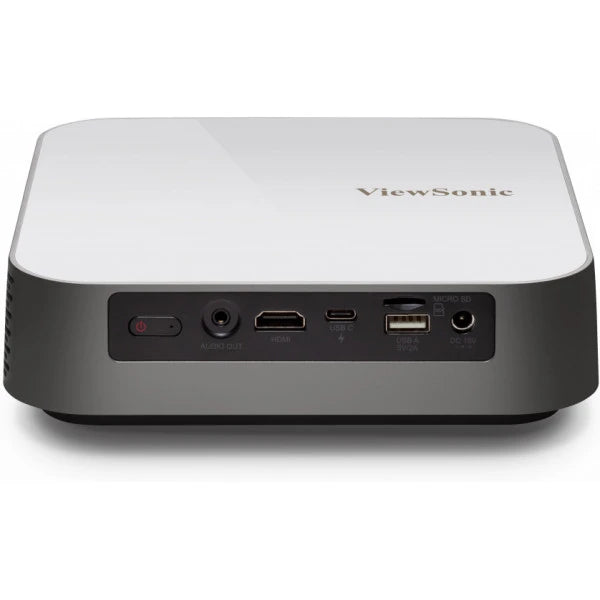

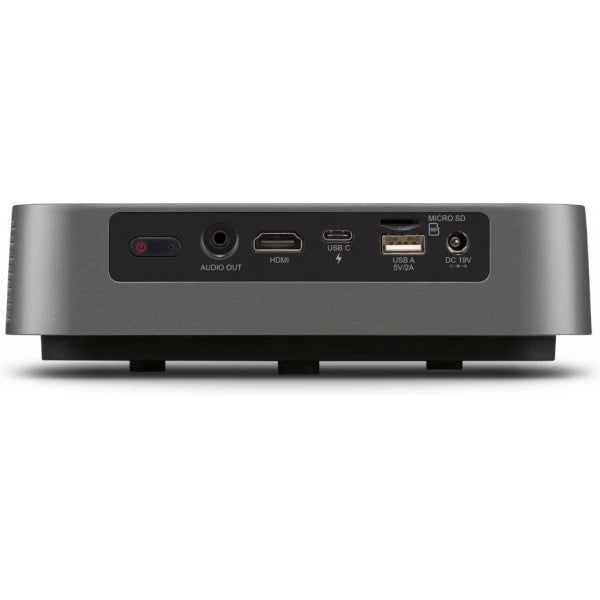

Watch content instantly from any device with plug-and-play connectivity through USB Type-C, HDMI, USB reader, Micro SD, and Wi-Fi. Or use the 10GB of local storage to keep your favorite content.
Watch More, Worry Less
Designed with eye care in mind, reflective projection light delivers a viewing experience virtually free of blue light to reduce eyestrain over prolonged viewing periods.
TÜV-Certified Antibacterial

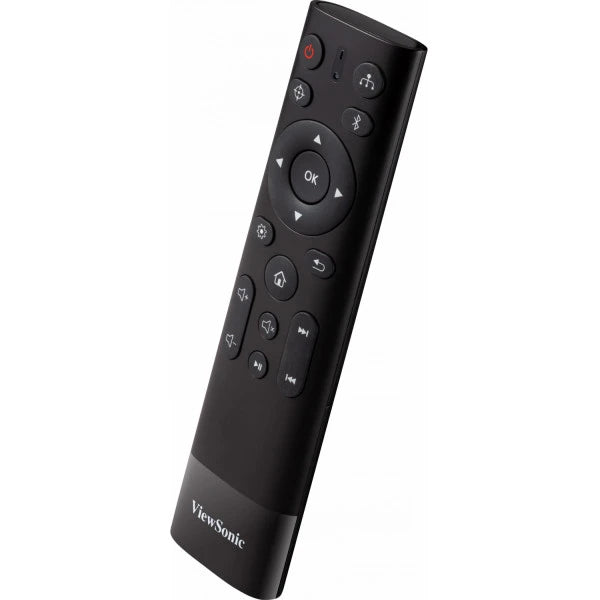

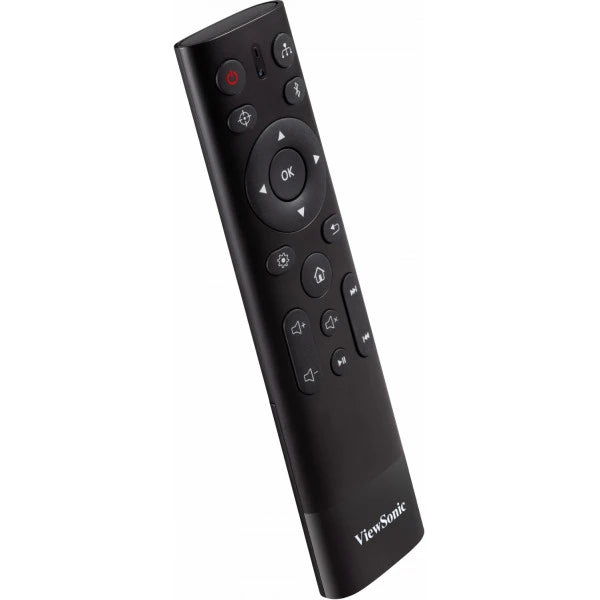

Remote Control

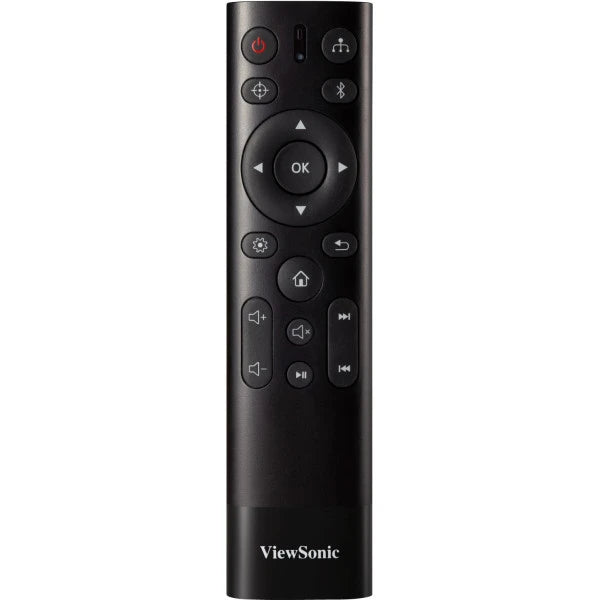

Stay entertained, stay healthy. The antibacterial remote control adopts a special coating with silver ions to prevent bacteria from attaching and remains effective even after a long period of use.
A Feast for the Eyes and Ears
Industry-Leading LED Technology
1080p Full HD for Captivating Details
Experience every detail with ultra-sharp image quality delivered in Full HD 1080p resolution for a visual feast wherever you are.
Immerse Yourself in Color with Cinema SuperColor+™
ViewSonic’s proprietary Cinema SuperColor+™ Technology with 125% Rec.709 delivers vivid
and rich colors for a true-to-life visual experience.
Custom-Built Sound by Harman Kardon
Integrated dual speakers, customized by Harman Kardon for crisp and clear sound delivery, bring a theater-level experience to your movies and music wherever you go.
Smart & Autonomous
Small Screen to Big Experience
Projecting your phone or tablet screen has never been easier. Wirelessly connect the M2e to your smart device* and enjoy instant big-screen entertainment.
Bluetooth Enabled for Additional Audio Options
Enjoy quality sound on your terms. Use the M2e as a Bluetooth speaker to get the party started, or connect your Bluetooth headphones and immerse yourself in your own world of big-screen entertainment.
Direct Content Streaming via USB Type-C
Project content directly from your phone or other mobile devices via USB Type-C while simultaneously charging it. Stream videos, FaceTime with friends, or play Nintendo® Switch on the big screen without a docking station, all through a single cable.
Intuitive Touch Control with Your Phone
Control the M2e with your phone. Download the ViewSonic vCastSender app and connect through the same Wi-Fi network for effortless navigation, easy typing, and simple annotation on the big screen.
| Specification | Details |
|---|---|
| Projection System | 0.23" 1080p |
| Native Resolution | 1920x1080 |
| Brightness | 1000 (LED Lumens) |
| Contrast Ratio | 3000000:1 |
| Display Color | 1.07 Billion Colors |
| Light Source Type | LED |
| Light Source Life (hours) with Normal Mode | up to 30000 |
| Lamp Watt | RGBB LED |
| Lens | F=1.7, f=6.35mm |
| Projection Offset | 100%+/-3% |
| Throw Ratio | 1.21 |
| Optical Zoom | Fixed |
| Digital Zoom | 0.8x-1.0x |
| Image Size | 24"-100" |
| Throw Distance | 0.65m-2.68m(80"@2.14m) |
| Keystone | H:+/-40° , V:+/-40° |
| Audible Noise (Normal) | 26dB |
| Audible Noise (Eco) | 24dB |
| Local Storage | Total 16GB (10GB available storage) |
| Input Lag | 66ms |
| Resolution Support | VGA(640 x 480) to FullHD(1920 x 1080) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Horizontal Frequency | 15K-102KHz |
| Vertical Scan Rate | 23-120Hz |
| Input | |
| HDMI | 1(HDMI 1.4/ HDCP 1.4) |
| USB Type C | 1 (5V/2A) |
| Audio-in (Bluetooth) | 1 (BT4.2) |
| USB Type A | 1(USB2.0 Reader x1) |
| SD Card | Micro SD (64GB, SDXC) |
| Wifi Input | 1 (5Gn) |
| Output | |
| Audio out (3.5mm) | 1 |
| Audio-out (Bluetooth) | 1 (BT4.2) |
| Speaker | 3W Cube x2 |
| USB Type A (Power) | 1 (USB2.0 - 5V/2A, share with USB A Input) |
| Others | |
| Power Supply Voltage | Power adaptor: Input: 100~240V, Output: 19VDC / 4.74A |
| Power Consumption | Normal: 54W Standby: <0.5W |
| Operating Temperature | 0~40℃ |
| Net Weight | 1.0kg |
| Dimensions (WxDxH) with Adjustment Foot | 184x184x54mm |
| OSD Language | English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Total 23 languages |
| Standard Accessory | |
| Power Cord | 1 |
| USB-C Cable | 1 (1m) |
| Remote Control | 1 |
| QSG | Yes |

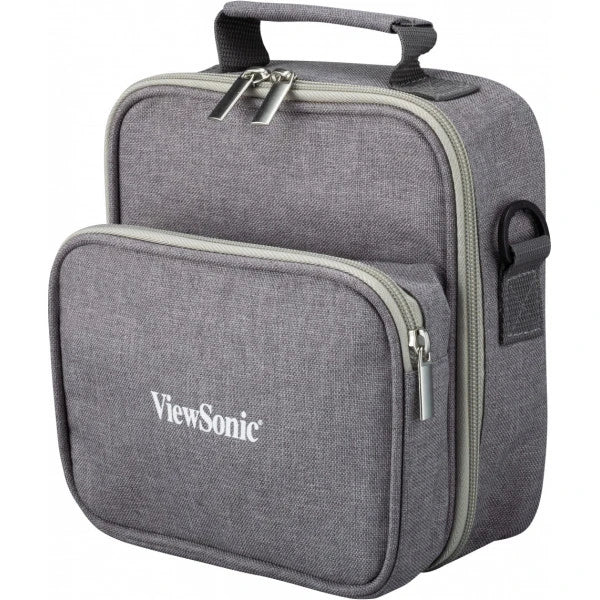

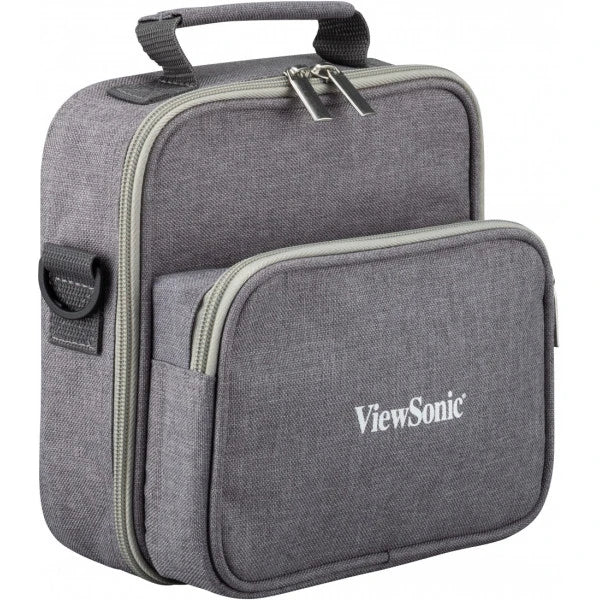

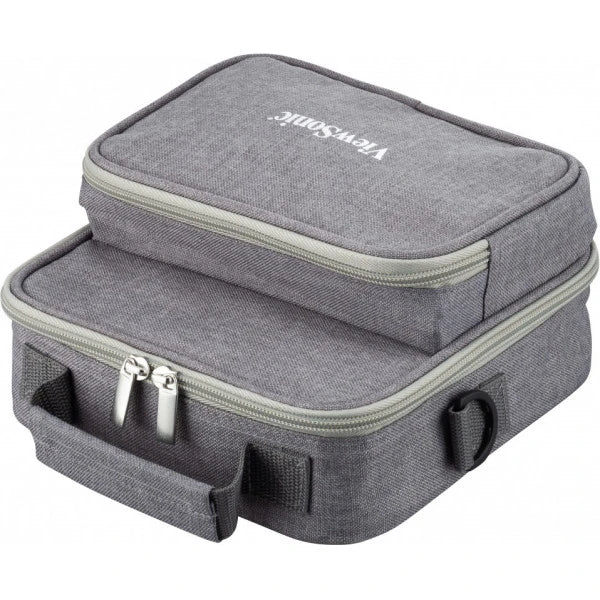

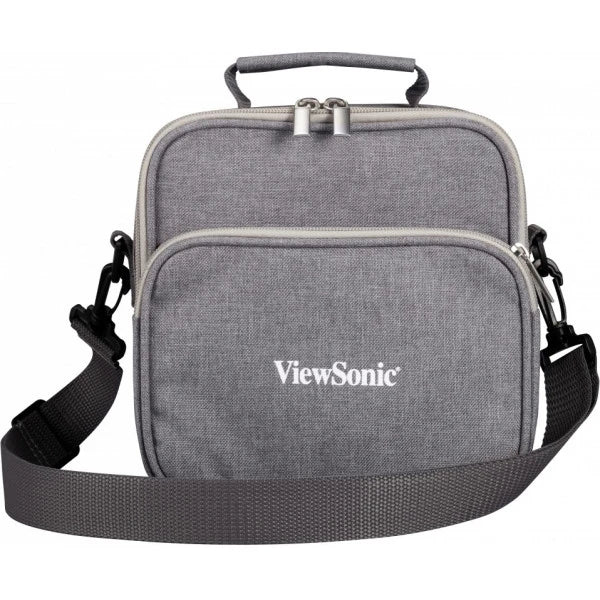

| Carry Bag | Yes |
| Sleeve Bag | Yes |
