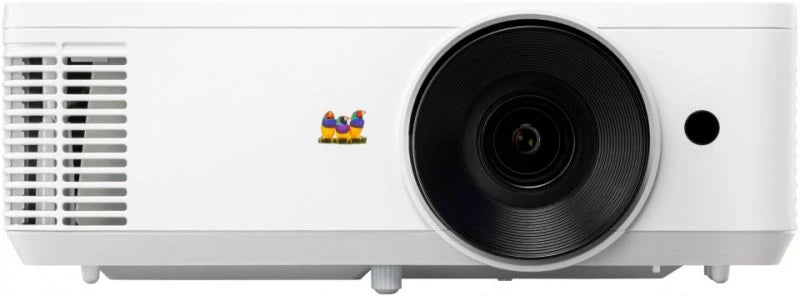

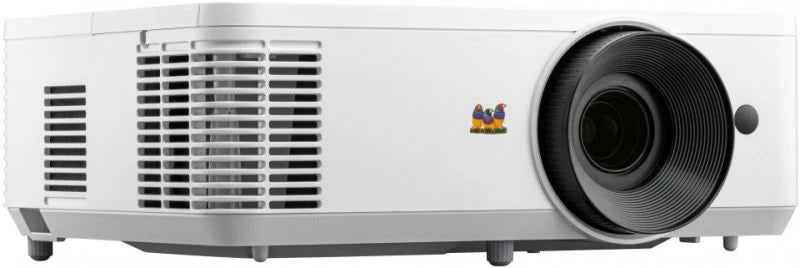

ViewSonic PA700S SVGA Business & Education Projector - 4.500 Lumens

• Description
• Specifications
• Downloads

• OVERVIEW
  The PA700S is ViewSonic’s high brightness SVGA business/education projector. With 4,500 ANSI Lumens of highbrightness, the projector offers clear images of up-to-300” large screen in meeting rooms, classrooms, or anyother bright environment. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switchingbetween content sources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless contentstreaming more convenient. The projector also allows software updates via USB cable connection with simply yourlaptops, skipping trips to service centers. ​

  High Brightness for Business & Education Environments​
  Thanks to 4,500 ANSI Lumens brightness, you're guaranteed clear visuals of vibrancy, which areperfectly suitable for spaces with a lot of ambient light.
  4,500 ANSI Lumens

  Ultra-Large Screen with Lower Cost-per-inch​​
  The projector allows for an up-to-300” image size, which is much larger and easier to install thancommercial displays.
  Up to 300"

  Easy and Flexible Connection​
  The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices.You no longer have to unplug your existing device to switch to a new one. Simply use the on-screendisplay to select and change the input source.​
  Dual HDMI Ports

  Present the Best with Vibrant Colors
  Impress any audience with ViewSonic’s exclusive color technology and elevate your presentationwith a true-to-life color experience.

  A Simpler Way to Update Projector Software​
  Skip trips to the service center by keeping software up to date easily and onsite via USB cableconnection with your laptop.​​​
  Learn more: https://youtu.be/irlhJLpDHas
  ​​​*The latest projector softwareupdate can be found in the download section at the bottom of the page when available.​

  USB Type A Power Supply​
  A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminatingthe need for separate power adapters when streaming your multimedia content.

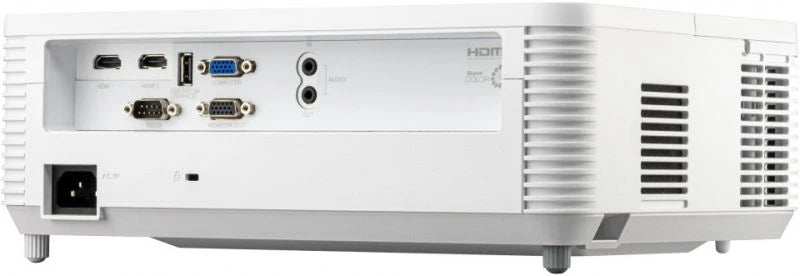

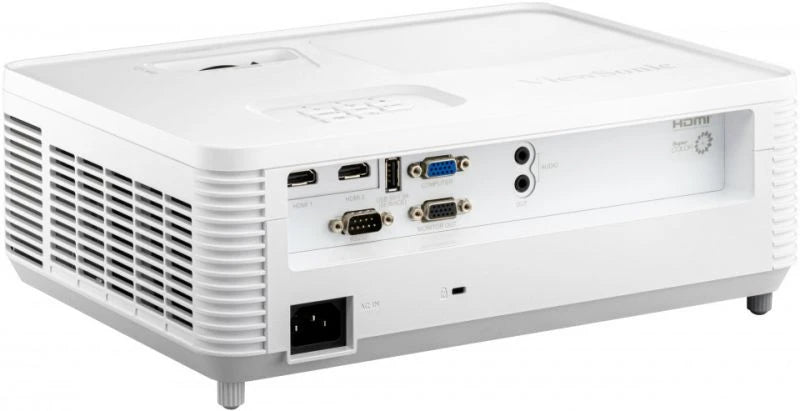

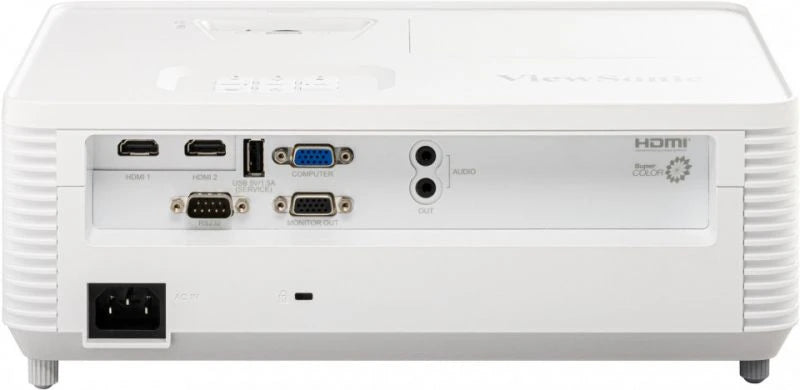

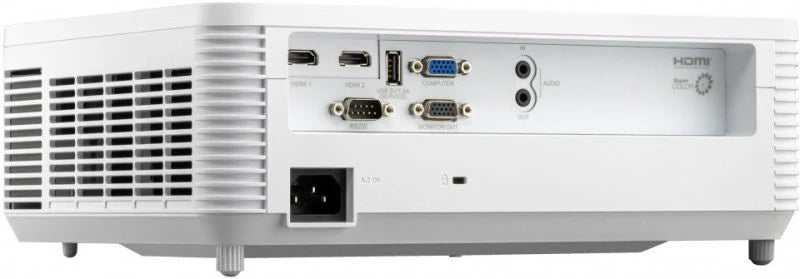

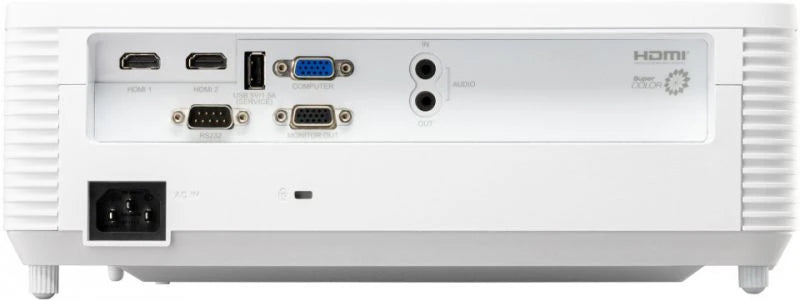

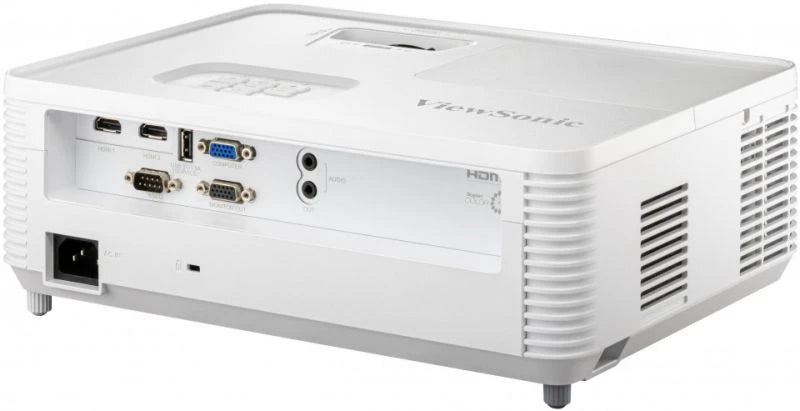

  Dimensions & I/O Ports



• Specification	Details
  Projection System	0.55" SVGA
  Native Resolution	800x600
  Brightness	4500 (ANSI Lumens)
  Contrast Ratio with SuperEco Mode	12500:1
  Display Color	1.07 Billion Colors
  Light Source Type	240W UHP Lamp
  Light Source Life (hours) with Normal Mode	4000
  Light Source Life (hours) with SuperEco Mode	12000
  Lens	F=2.42-2.53, f=21.85-24.01mm
  Projection Offset	115%+/-5%
  Throw Ratio	1.94-2.16
  Optical Zoom	1.1x
  Digital Zoom	0.8x-2.0x
  Image Size	30"-300"
  Throw Distance	1.18m-13.17m (100"@3.94m)
  Keystone	+/- 40° (V)
  Audible Noise (Normal)	34dB
  Audible Noise (Eco)	25dB
  Input Lag	33.2ms
  Resolution Support	VGA(640 x 480) to FullHD(1920 x 1080)
  HDTV Compatibility	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
  Video Compatibility	NTSC, PAL, SECAM
  Horizontal Frequency	15K-102KHz
  Vertical Scan Rate	23-120Hz
  Input
  Computer in (share with component)	1
  HDMI	2 (HDMI 1.4/ HDCP 1.4)
  Audio-in (3.5mm)	1
  Output
  Monitor out	1
  Audio-out (3.5mm)	1
  Speaker	3W
  USB Type A (Power)	1 (5V/1.5A)
  Control
  RS232 (DB 9-pin male)	1
  USB Type A (Services)	1 (share with USB A Output)
  Others
  Power Supply Voltage	100-240V+/- 10%, 50/60Hz (AC in)
  Power Consumption	Normal: 295W
  Standby	<0.5W
  Operating Temperature	0~40℃
  Carton	Brown
  Weight
  Net Weight	2.70kg
  Gross Weight	3.80Kg
  Dimensions
  Dimensions (WxDxH) with Adjustment Foot	309x234x115mm
  Packing Dimensions	400x337x168mm
  Language Support
  OSD Language	English, German, French, and more (Total 22 languages)
  User Guide Language	English, Chinese, Finnish, and more (Total 15 languages)
  Standard Accessory
  Power Cord	1
  VGA Cable	1

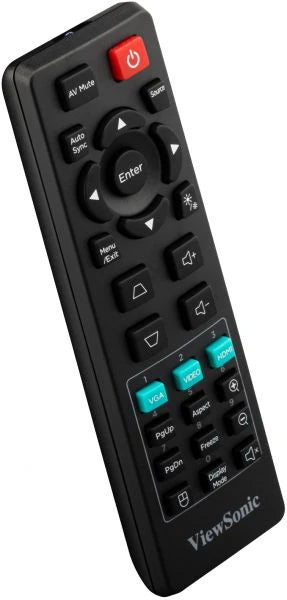

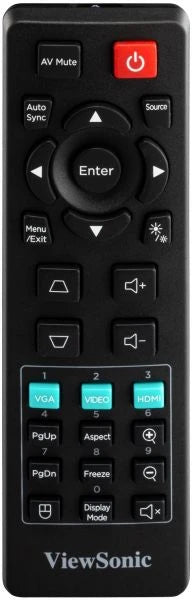

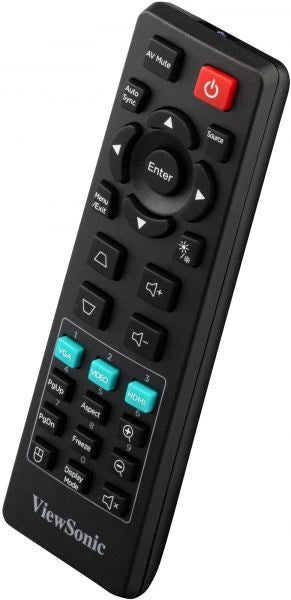

  Remote Control	1
  QSG	Yes
  Air Filter	Yes (CN Only)
  Warranty	*Warranty offered may differ from market to market
  Optional Accessory
  Lamp/Light Source	RLC-128
  Air Filter	RSPL
  Wall/Ceiling Mount	PJ-WMK-007
  Carry Bag	PJ-CASE-008
