OVERVIEW

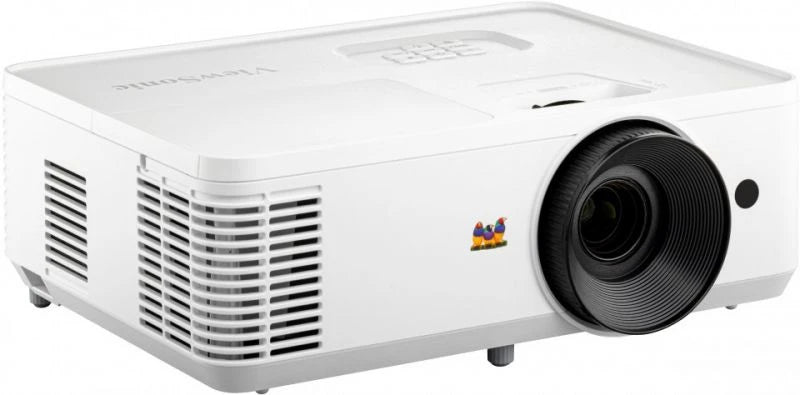

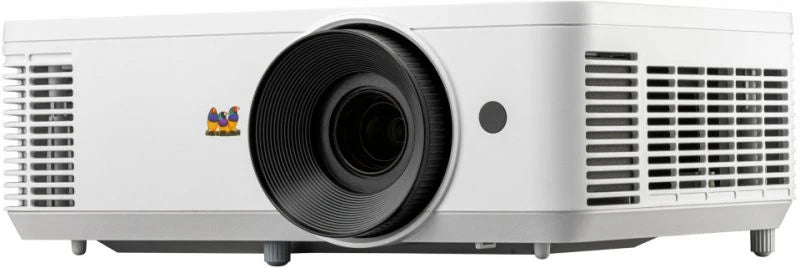

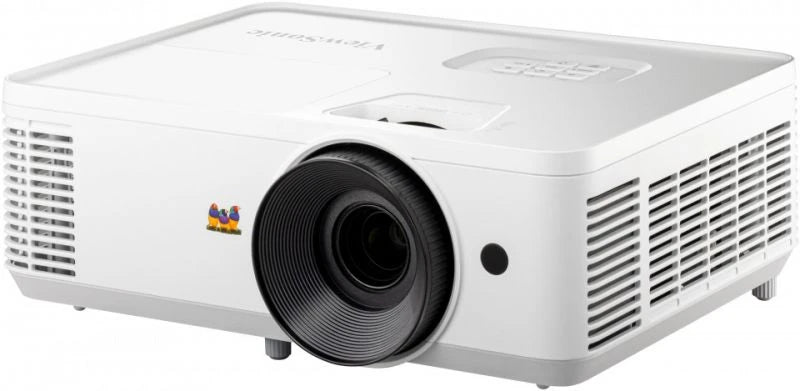

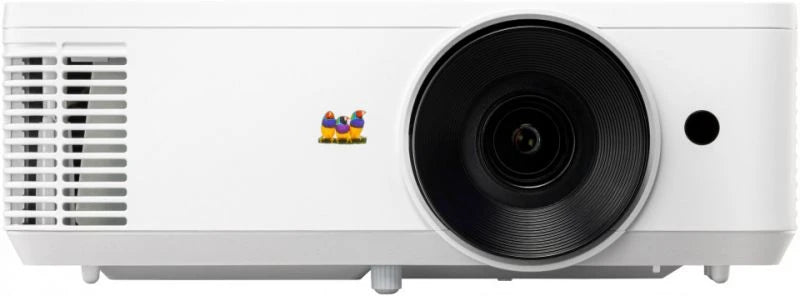

The PA700X is ViewSonic’s high brightness XGA business/education projector. With 4,500 ANSI Lumens of high brightness, the projector offers clear images of up-to-300” large screen in meeting rooms, classrooms, or any other bright environment. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switching between content sources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless content streaming more convenient. The projector also allows software updates via USB cable connection with simply your laptops, skipping trips to service centers.
High Brightness for Business & Education Environments
Thanks to 4,500 ANSI Lumens brightness, you're guaranteed clear visuals of vibrancy, which are perfectly suitable for spaces with a lot of ambient light.
4,500 ANSI Lumens
Ultra-Large Screen with Lower Cost-per-inch
The projector allows for an up-to-300” image size, which is much larger and easier to install than commercial displays.
Up to 300"
Easy and Flexible Connection
The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices. You no longer have to unplug your existing device to switch to a new one. Simply use the on-screen display to select and change the input source.
Dual HDMI Ports
Present the Best with Vibrant Colors
Impress any audience with ViewSonic’s exclusive color technology and elevate your presentation with a true-to-life color experience.
A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily and onsite via USB cable connection with your laptop.
Learn more: https://youtu.be/irlhJLpDHas
*The latest projector software update can be found in the download section at the bottom of the page when available.
USB Type A Power Supply
A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming your multimedia content.

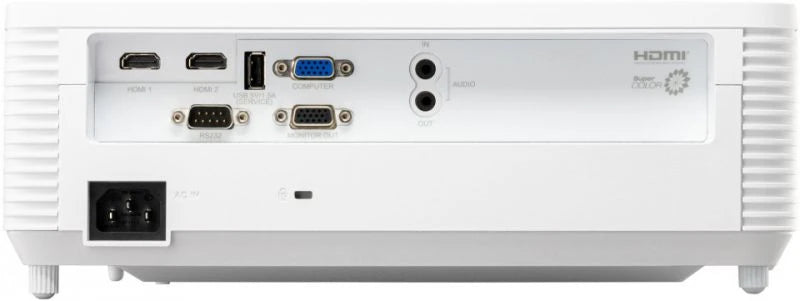

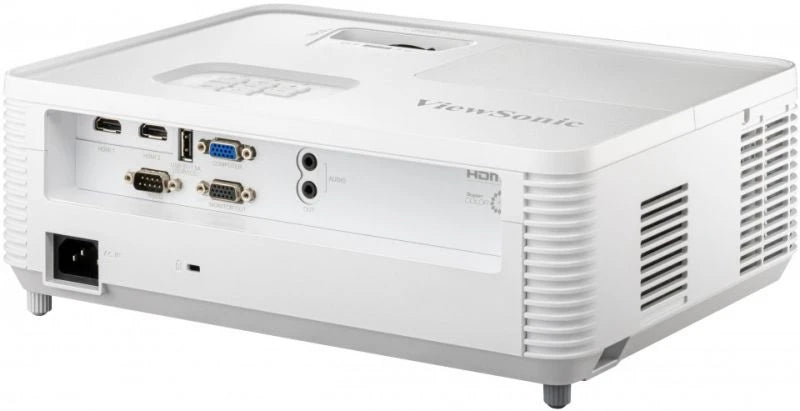

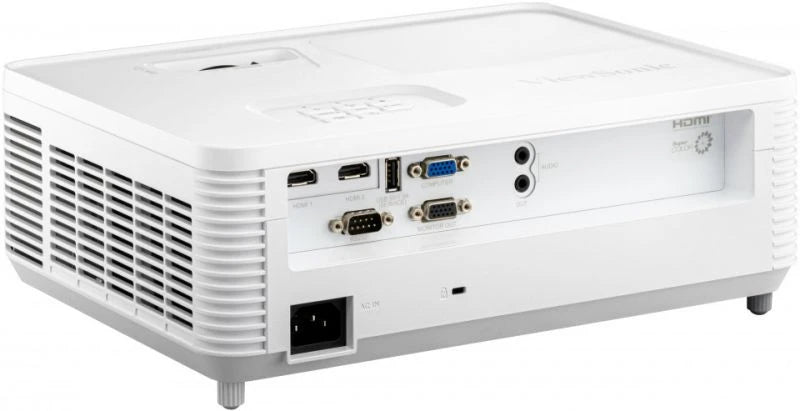

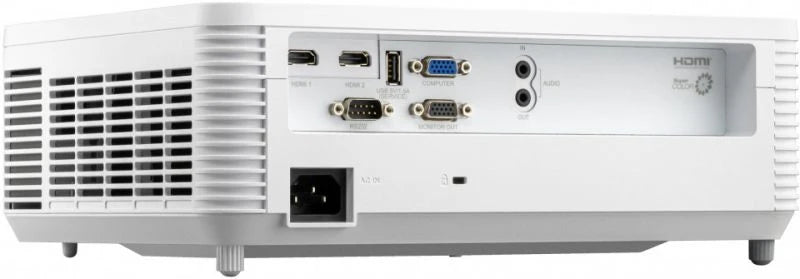

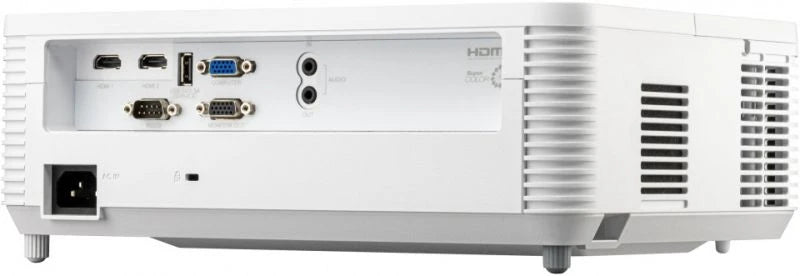

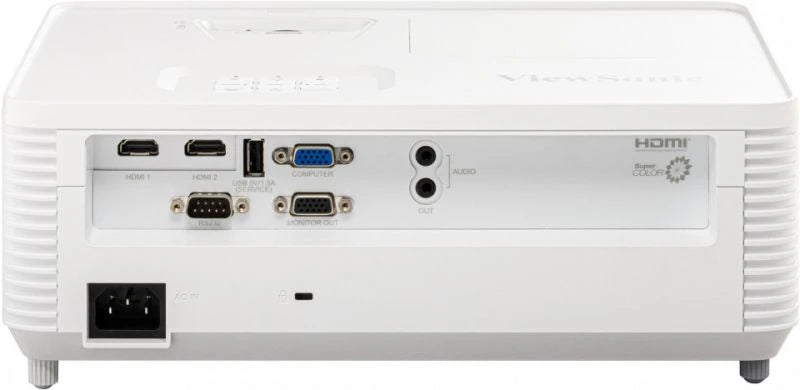

Dimensions & I/O Ports
| Specification | Details |
|---|---|
| Projection System | 0.55" XGA |
| Native Resolution | 1024x768 |
| Brightness | 4500 (ANSI Lumens) |
| Contrast Ratio (SuperEco Mode) | 12500:1 |
| Display Color | 1.07 Billion Colors |
| Light Source Type | 240W UHP Lamp |
| Light Source Life (Normal Mode) | 4000 hours |
| Light Source Life (SuperEco Mode) | 12000 hours |
| Lens | F=2.42-2.53, f=21.85-24.01mm |
| Projection Offset | 115%+/-5% |
| Throw Ratio | 1.94-2.16 |
| Optical Zoom | 1.1x |
| Digital Zoom | 0.8x-2.0x |
| Image Size | 30"-300" |
| Throw Distance | 1.18m-13.17m (100"@3.94m) |
| Keystone | +/- 40° (Vertical) |
| Audible Noise (Normal) | 34dB |
| Audible Noise (Eco) | 25dB |
| Input Lag | 33.2ms |
| Resolution Support | VGA(640 x 480) to FullHD(1920 x 1080) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Horizontal Frequency | 15K-102KHz |
| Vertical Scan Rate | 23-120Hz |
| Input | Computer in (share with component): 1 |
| HDMI: 2 (HDMI 1.4/ HDCP 1.4) | |
| Audio-in (3.5mm): 1 | |
| Output | Monitor out: 1 |
| Audio-out (3.5mm): 1 | |
| Speaker: 3W | |
| Control | RS232 (DB 9-pin male): 1 |
| USB Type A (Services): 1 | |
| Others | Power Supply Voltage: 100-240V+/- 10%, 50/60Hz (AC in) |
| Power Consumption: Normal: 295W | |
| Standby: <0.5W | |
| Operating Temperature: 0~40℃ | |
| Carton: Brown | |
| Net Weight: 2.70kg | |
| Gross Weight: 3.80Kg | |
| Dimensions (WxDxH) with Adjustment Foot: 309x234x115mm | |
| Packing Dimensions: 400x337x168mm | |
| OSD Language | English, German, French, Swedish, Spanish, Portuguese, Polish, Dutch, T. Chinese, S.Chinese, Finnish, Korean, Russian, Hungarian, Czech, Arabic, Thai, Turkish, Vietnamese, Indonesian, Greek, Italian (Total 22 languages) |
| User Guide Language | English, S-Chinese, T-Chinese, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish (Total 15 languages) |
| Standard Accessory | Power Cord: 1 |
| VGA Cable: 1 | |

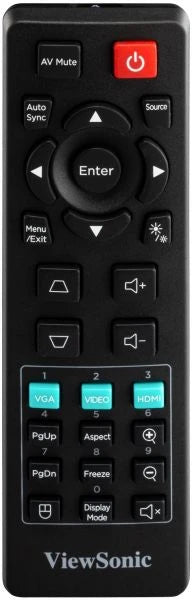

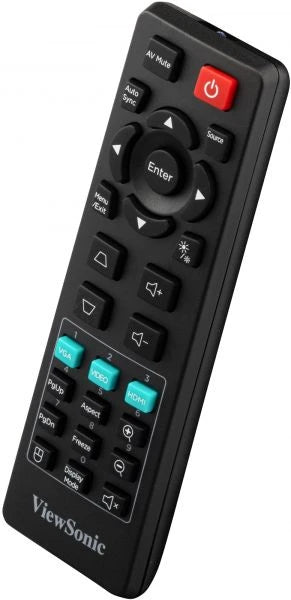

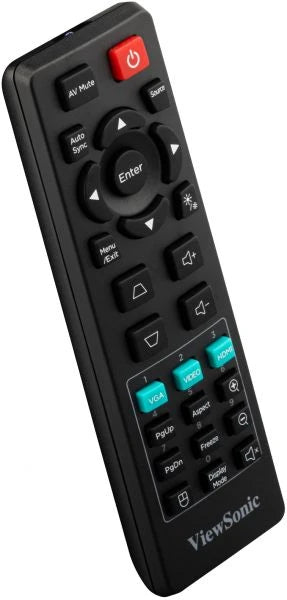

| Remote Control: 1 | |
| QSG: Yes | |
| Air Filter: Yes (CN Only) | |
| Warranty Card: Yes (CN Only) | |
| Optional Accessory | Lamp/Light Source: RLC-128 |
| Air Filter: RSPL | |
| Wall/Ceiling Mount: PJ-WMK-007 | |
| Carry Bag: PJ-CASE-008 |
